GB/T 37578-2019 PDF EnglishUS$150.00 · In stock · Download in 9 seconds
GB/T 37578-2019: Urea Grade Ultra-low Carbon Austenitic Seamless Stainless Steel Tubes and Pipes Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

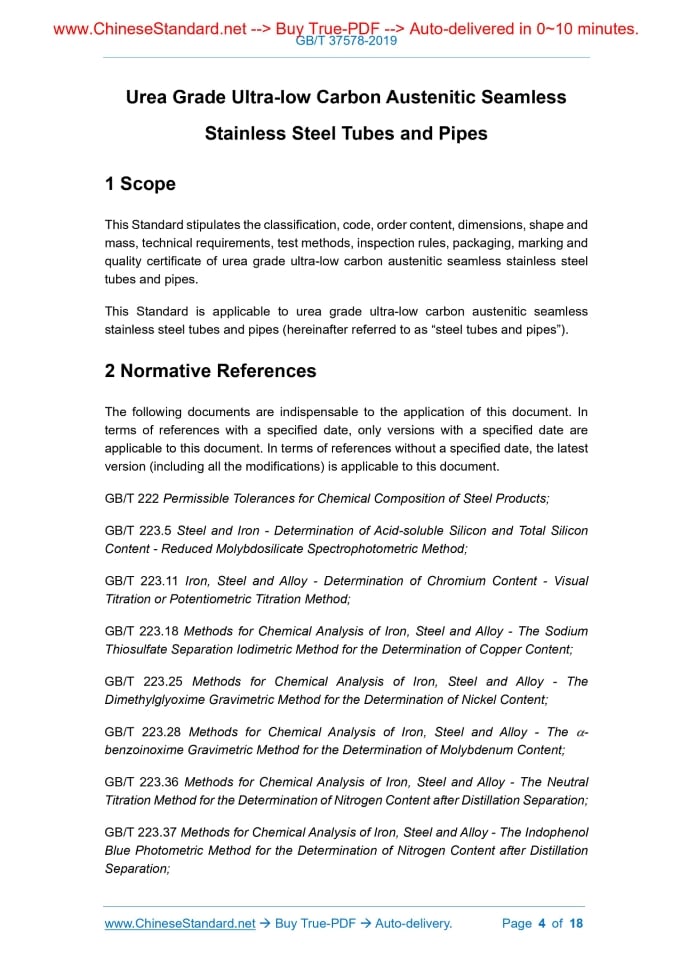

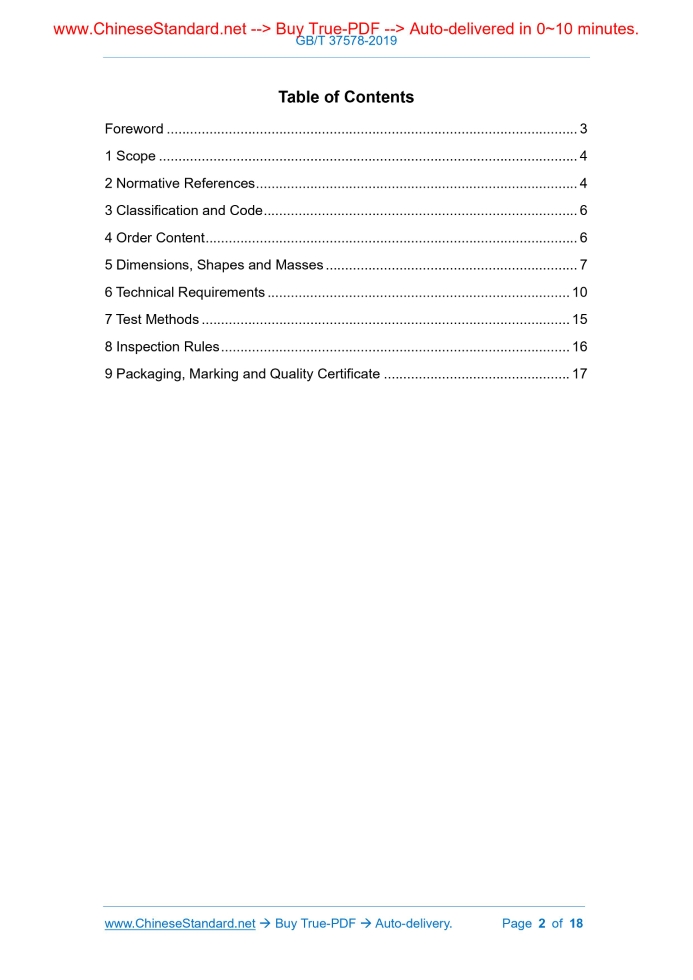

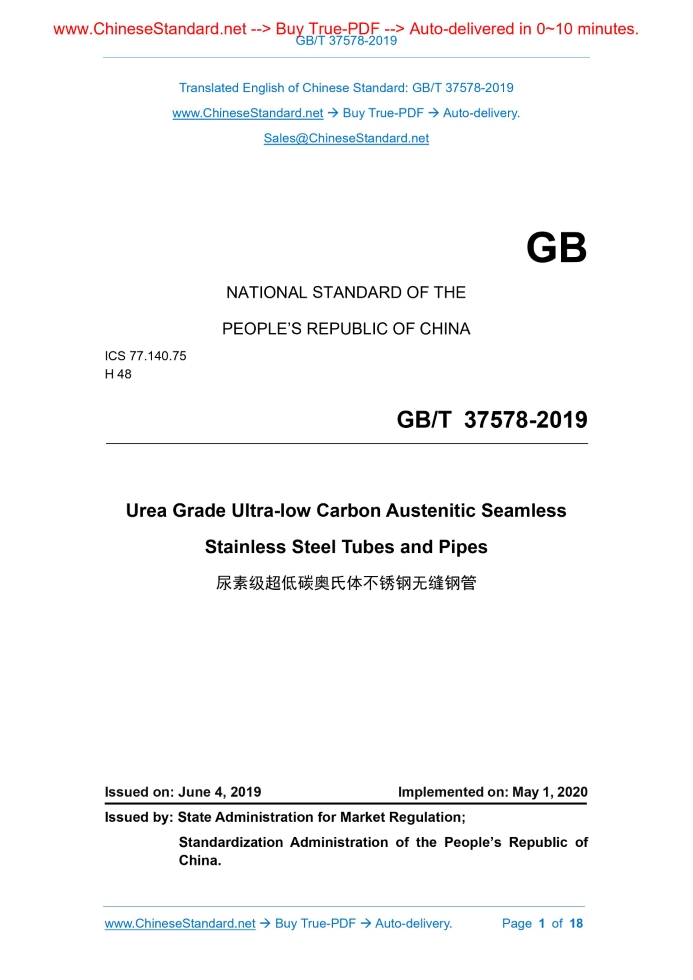

Similar standardsGB/T 37578-2019: Urea Grade Ultra-low Carbon Austenitic Seamless Stainless Steel Tubes and Pipes---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT37578-2019NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 77.140.75 H 48 Urea Grade Ultra-low Carbon Austenitic Seamless Stainless Steel Tubes and Pipes ISSUED ON: JUNE 4, 2019 IMPLEMENTED ON: MAY 1, 2020 Issued by: State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative References ... 4 3 Classification and Code ... 6 4 Order Content ... 6 5 Dimensions, Shapes and Masses ... 7 6 Technical Requirements ... 10 7 Test Methods ... 15 8 Inspection Rules ... 16 9 Packaging, Marking and Quality Certificate ... 17 Urea Grade Ultra-low Carbon Austenitic Seamless Stainless Steel Tubes and Pipes1 ScopeThis Standard stipulates the classification, code, order content, dimensions, shape and mass, technical requirements, test methods, inspection rules, packaging, marking and quality certificate of urea grade ultra-low carbon austenitic seamless stainless steel tubes and pipes. This Standard is applicable to urea grade ultra-low carbon austenitic seamless stainless steel tubes and pipes (hereinafter referred to as “steel tubes and pipes”).2 Normative ReferencesThe following documents are indispensable to the application of this document. In terms of references with a specified date, only versions with a specified date are applicable to this document. In terms of references without a specified date, the latest version (including all the modifications) is applicable to this document. GB/T 222 Permissible Tolerances for Chemical Composition of Steel Products; GB/T 223.5 Steel and Iron - Determination of Acid-soluble Silicon and Total Silicon Content - Reduced Molybdosilicate Spectrophotometric Method; GB/T 223.11 Iron, Steel and Alloy - Determination of Chromium Content - Visual Titration or Potentiometric Titration Method; GB/T 223.18 Methods for Chemical Analysis of Iron, Steel and Alloy - The Sodium Thiosulfate Separation Iodimetric Method for the Determination of Copper Content; GB/T 223.25 Methods for Chemical Analysis of Iron, Steel and Alloy - The Dimethylglyoxime Gravimetric Method for the Determination of Nickel Content; GB/T 223.28 Methods for Chemical Analysis of Iron, Steel and Alloy - The - benzoinoxime Gravimetric Method for the Determination of Molybdenum Content; GB/T 223.36 Methods for Chemical Analysis of Iron, Steel and Alloy - The Neutral Titration Method for the Determination of Nitrogen Content after Distillation Separation; GB/T 223.37 Methods for Chemical Analysis of Iron, Steel and Alloy - The Indophenol Blue Photometric Method for the Determination of Nitrogen Content after Distillation Separation; Determination of Chemical Composition; GB/T 20123 Steel and Iron - Determination of Total Carbon and Sulfur Content Infrared Absorption Method after Combustion in an Induction Furnace (routine method); GB/T 20124 Steel and Iron - Determination of Nitrogen Content - Thermal Conductimetric Method after Fusion in a Current of Inert Gas (routine method); GB/T 25151.2-2010 Fabrication and Inspection Method for High Pressure Urea Equipment - Part 2: Selective Corrosion Examination and Metallography Examination for Ultra Low-carbon Chromated Nickel Molybdenum Austenitic Stainless Steel of Urea Grade; GB/T 25151.3-2010 Fabrication and Inspection Method for High Pressure Urea Equipment - Part 3: Intergranular Corrosion Tendency Test for Ultra Low-carbon Chromated Nickel Molybdenum Austenitic Stainless Steel of Urea Grade; GB/T 25151.4-2010 Fabrication and Inspection Method for High Pressure Urea Equipment - Part 4: Intergranular Corrosion Tendency Test Specimen Preparation for Ultra Low-carbon Chromated Nickel Molybdenum Austenitic Stainless Steel of Urea Grade; GB/T 34475-2017 Urea Grade Austenitic Stainless Steel Bars.3 Classification and Code3.1 In accordance with the manufacturing mode, the classification and code of steel tubes and pipes are as follows: a) Hot-rolled (extruded) steel tubes and pipes, W-H; b) Cold-drawn (rolled) steel tubes and pipes, W-C. 3.2 In accordance with the grade of dimensional accuracy, the classification and code of steel tubes and pipes are as follows: a) Common grade, PA; b) Superior grade, PC.4 Order ContentContract or order form which orders steel tubes and pipes in accordance with this Standard shall include the following content: a) Serial No. of this Standard; 5.2 Length 5.2.1 General length The general length of steel tubes and pipes shall comply with the following stipulations: a) Hot-rolled (extruded) steel tubes and pipes: 2,000 mm ~ 12,000 mm; b) Cold-drawn (rolled) steel tubes and pipes: 1,000 mm ~ 12,000 mm. 5.2.2 Specified length and multiple length In accordance with the demand-side’s requirements, through the negotiation between the demand-side and the supply-side, and statement in the contract, steel tubes and pipes may be delivered in accordance with specified length or multiple length. Specified length and multiple length shall be within the general range of length; the allowable deviation of total length shall be . In terms of steel tubes and pipes which are delivered in accordance with multiple length, the allowance of each incision shall comply with the following stipulations: a) Nominal outer diameter not more than 159 mm, 5 mm ~ 10 mm; b) Nominal outer diameter more than 159 mm, 10 mm ~ 15 mm. 5.3 Curvature 5.3.1 Per meter curvature Per meter curvature of steel tubes and pipes shall be not more than what is stipulated below: a) Wall thickness not more than 15 mm, 1.5 mm/m; b) Wall thickness more than 15 mm, 2.0 mm/m. 5.3.2 Full length curvature Full length curvature of steel tubes and pipes shall be not more than 0.15% of total length of steel tubes and pipes. 5.4 End Shape Both end faces of steel tubes and pipes shall be vertical to the axis of steel tubes and pipes. The incision shall not have any burrs. 5.5 Out-of-roundness In accordance with the demand-side’s requirements, through the negotiation between with the stipulations in Chapter 4 in GB/T 25151.2-2010. Corrosion depth shall comply with the stipulations in Table 5. 6.9 Surface Quality 6.9.1 The internal and external surface of steel tubes and pipes shall not have cracking, folding, rolling, separation or crusting. These defects shall be completely eliminated. The actual wall thickness of the area of elimination shall be not less than the minimum allowable value of wall thickness. 6.9.2 On the internal and external surface of steel tubes and pipes, straight allowable depth shall comply with the following stipulations: a) Hot-rolled (extruded) steel tubes and pipes: not more than 5% of wall thickness, and not more than 0.4 mm; b) Cold-drawn (rolled) steel tubes and pipes: not more than 4% of wall thickness, and not more than 0.2 mm. 6.9.3 Other partial defects that would not affect the minimum value of wall thickness are allowed to exist. 6.9.4 Roughness (Ra) of the internal and external surface of steel tubes and pipes shall be not more than 3.2 m. 6.10 Ultrasonic Testing Steel tubes and pipes shall receive ultrasonic testing. In ultrasonic testing, the groove depth level of contrast tube shall comply with the stipulations of L2 in GB/T 5777-2008. When steel tubes and pipes are delivered in accordance with the minimum wall thickness, average wall thickness shall be adopted to calculate the groove depth.7 Test Methods7.1 The chemical composition analysis sampling of steel tubes and pipes shall comply with the rules in GB/T 20066. Generally speaking, chemical composition analysis shall be conducted in accordance with GB/T 11170, GB/T 20123, GB/T 20124 or other general methods. Arbitration shall comply with the stipulations in GB/T 223.5, GB/T 223.11, GB/T 223.18, GB/T 223.25, GB/T 223.28, GB/T 223.36, GB/T 223.37, GB/T 223.62, GB/T 223.63, GB/T 223.68, GB/T 223.85 and GB/T 223.86. 7.2 In metallographic test, along the steel tubes and pipes, longitudinally take strip samples. Sample size shall be: 50 mm 10 mm (length width). The sides of the sample shall be grinded and polished. 7.3 In terms of the dimensions and shape of steel tubes and pipes, measuring instruments that comply with the accuracy requirement shall be adopted for one-by- 8.2 Group Batch Rules Steel tubes and pipes shall receive inspection and acceptance inspection by batches. Each batch shall be constituted of steel tubes and pipes of the same designation, the same furnace No. (in terms of electroslag re-melting steel, under the condition of stable process and compliance with the various requirements in this Standard, it can be master smelting furnace No. of consumable electrode), the same specification and the same thermal treatment system (heat). The quantity of steel tubes and pipes in each batch shall not exceed the following stipulations: a) Outer diameter not more than 76 mm and wall thickness not more than 3 mm: 500 PCS; b) Outer diameter more than 351 mm: 50 PCS; c) Other dimensions: 200 PCS. 8.3 Sampling Size Sampling size of various inspections of each batch of steel tubes and pipes shall comply with the stipulations in Table 6. 8.4 Re-inspection and Determination Rules 8.4.1 Re-inspection and determination rules of corrosion resistance test shall comply with the following stipulations: a) If corrosion rate exceeds the stipulated value in Table 5, or, corrosion rate of the 5th cycle exceeds 50% of the 4th cycle, then, take another sample from the same steel tube/pipe; adopt the same procedures for re-inspection; b) When 015Cr25Ni22Mo2N steel tubes and pipes are under 10 cycles of test in accordance with the demand-side’s requirements, if corrosion rate exceeds the stipulated value in Table 5, or, corrosion rate of the 10th cycle exceeds 50% of the 9th cycle, then, take another sample from the same steel tube/pipe; adopt the same procedures for re-inspection; c) Re-inspection can only be conducted once. 8.4.2 Re-inspection and determination rules of the remaining inspection items of steel tubes and pipes shall comply with the stipulations in GB/T 2102.9 Packaging, Marking and Quality CertificatePackaging, marking and quality certificate of steel tubes and pipes shall comply with the stipulations in GB/T 2102. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 37578-2019 be delivered?Answer: The full copy PDF of English version of GB/T 37578-2019 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 37578-2019_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 37578-2019_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 37578-2019 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 37578-2019?A step-by-step guide to download PDF of GB/T 37578-2019_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 37578-2019". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
