GB/T 37404-2019 PDF EnglishUS$130.00 · In stock · Download in 9 seconds
GB/T 37404-2019: Application guide of soft-start device for high-voltage motor Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

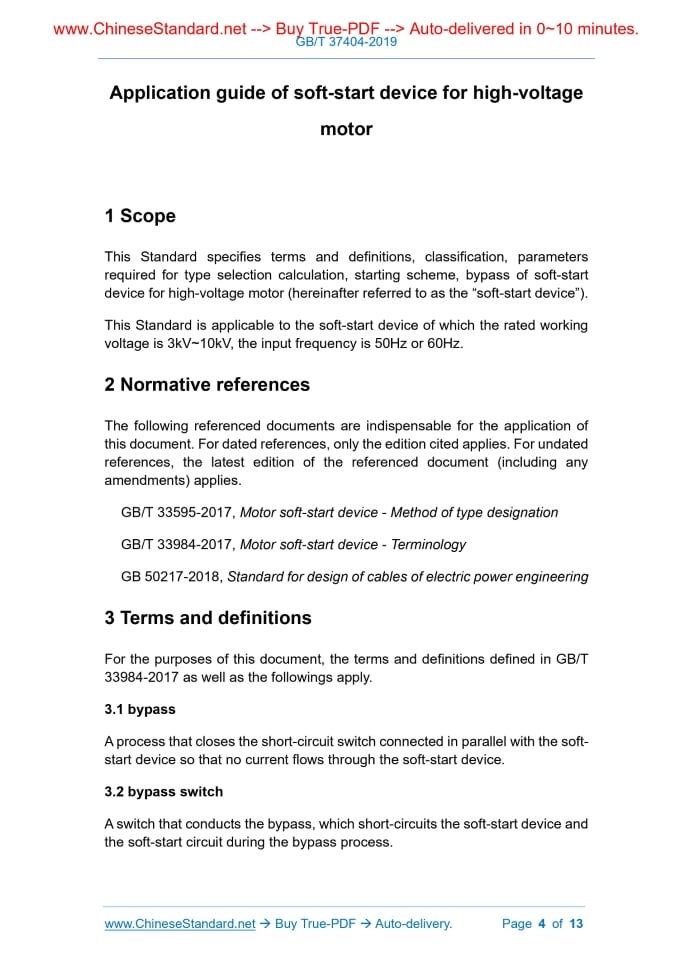

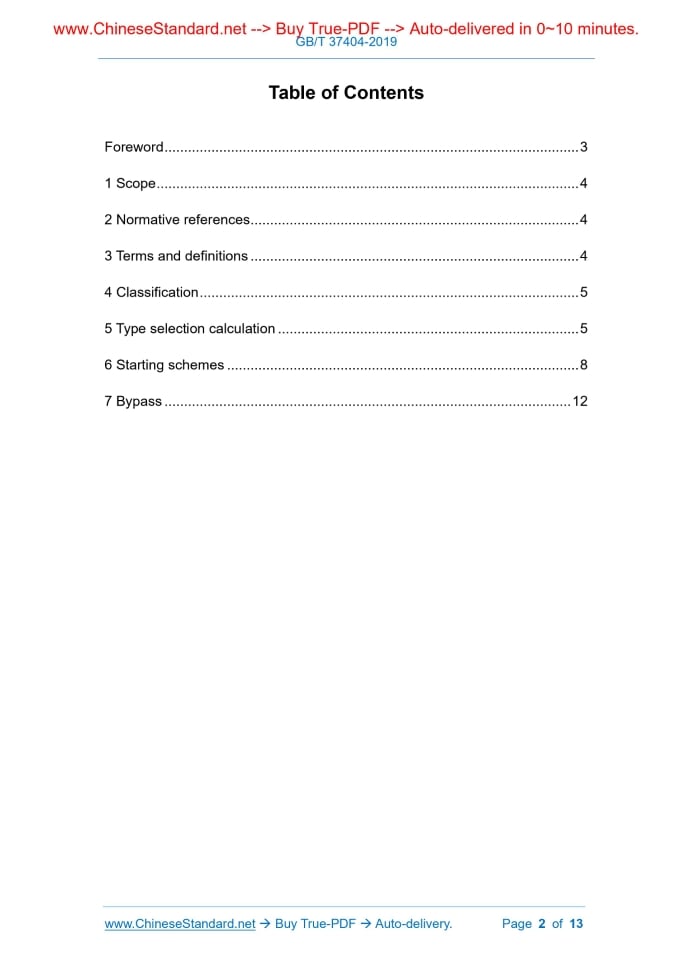

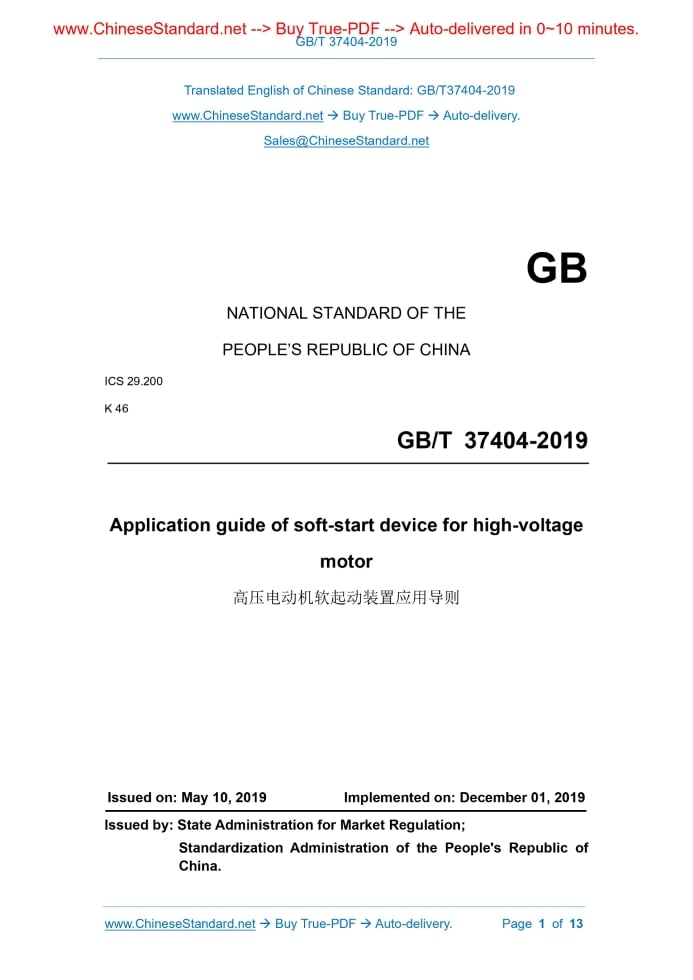

Similar standardsGB/T 37404-2019: Application guide of soft-start device for high-voltage motor---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT37404-2019GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 29.200 K 46 Application guide of soft-start device for high-voltage motor ISSUED ON: MAY 10, 2019 IMPLEMENTED ON: DECEMBER 01, 2019 Issued by: State Administration for Market Regulation; Standardization Administration of the People's Republic of China. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative references ... 4 3 Terms and definitions ... 4 4 Classification ... 5 5 Type selection calculation ... 5 6 Starting schemes ... 8 7 Bypass ... 12 Application guide of soft-start device for high-voltage motor1 ScopeThis Standard specifies terms and definitions, classification, parameters required for type selection calculation, starting scheme, bypass of soft-start device for high-voltage motor (hereinafter referred to as the “soft-start device”). This Standard is applicable to the soft-start device of which the rated working voltage is 3kV~10kV, the input frequency is 50Hz or 60Hz.2 Normative referencesThe following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. GB/T 33595-2017, Motor soft-start device - Method of type designation GB/T 33984-2017, Motor soft-start device - Terminology GB 50217-2018, Standard for design of cables of electric power engineering3 Terms and definitionsFor the purposes of this document, the terms and definitions defined in GB/T 33984-2017 as well as the followings apply. 3.1 bypass A process that closes the short-circuit switch connected in parallel with the soft- start device so that no current flows through the soft-start device. 3.2 bypass switch A switch that conducts the bypass, which short-circuits the soft-start device and the soft-start circuit during the bypass process. ● rated current; ● rated voltage; ● rated power; ● rated speed; ● moment of inertia; ● torque-speed curve or stall torque multiple at rated voltage; ● current-speed curve or stall current multiple at rated voltage. - Load parameters: ● moment of inertia / flywheel moment; ● static resistance torque; ● resistance torque-speed curve that is converted to the motor end. - Power grid parameters: ● grid short-circuit capacity or short-circuit impedance; ● length and specification of incoming cable or overhead line. - Environmental conditions: ● altitude; ● relative humidity; ● ambient temperature; ● pollution level. - Process requirements: ● start frequency. When the relevant parameters change, it shall recalculate the calculation results of the type selection. 5.2 Performance indicators The parameter indicators that are specified by users and in accordance with national grid regulations, include: - pilot differential protection (optional); - open triangle voltage protection (optional). NOTE: The setting values of current quick-break protection and over-current protection shall consider the characteristics of the soft-start device. 5.5 Matching type selection 5.5.1 Cable The type selection of cable shall meet the requirements of GB 50217-2018. Under the premise that the cable temperature rise is met in the starting circuit, the capacity can be reduced. When it uses a high-voltage variable-frequency soft-start device and when the output side is connected to the motor at a long distance, it is advisable to calculate the damage to the motor caused by the voltage spikes generated by the output harmonics. 5.5.2 Switch It shall select the breaking capacity of corresponding switch according to the short-circuit capacity of the power grid. The starting circuit shall choose a switch of the appropriate current level according to the starting current ratio. The bypass circuit shall select a switch of the appropriate current level according to the motor rated current. 5.6 Loss Due to the short-term operation of the soft-start device, it is unnecessary for the soft-start device manufacturer to calculate the loss.6 Starting schemes6.1 Typical scheme of motor stator to side-connect soft-start device 6.1.1 One-for-one system scheme The one-for-one system scheme is shown as Figure 1. 3 - Bypass switch (contactor or circuit breaker); 4 - Starting circuit switch (contactor or circuit breaker); 5 - Soft-start device. Figure 3 -- Typical scheme of motor rotor to side-connect soft-start device Connect the soft-start device to the rotor side of the motor. After the soft-start device and the process are ready, the signal shall be sent to the central control system. The central control system shall send the well-preparation signal. The power incoming switch shall be closed. After the site or the central system sends a command, the starting and operation switches 2 and 4 shall be closed and the soft-start device shall be put into operation. After the soft-start device detects that the motor meets the bypass conditions, the bypass switch shall close, starting and operation switch 4 shall be disconnected, the soft-start device shall stop operating and the starting shall be completed. When the back-end circuit of the starting and operating switch is short-circuited, it shall have the ability to interrupt the short-circuit current.7 Bypass7.1 Overview After the motor is driven by the soft-start device to near the rated speed, it shall be connected to the grid for direct power operation. 7.2 Bypass requirements for buck soft-start Before bypassing, the soft-start device shall, through a direct or indirect manner, detect the amplitudes of motor speed and motor terminal voltage. When it is determined that the amplitudes of motor speed and motor terminal voltage meet the design requirements, the soft-start device shall give bypass instruction. The specific requirements are determined by the manufacturer and user according to the site conditions. 7.3 Bypass requirements for variable-frequency soft start Before bypassing, the soft-start device shall, through a direct or indirect manner, detect the amplitudes, phases and frequencies of motor speed and motor terminal voltage. When it is determined that the amplitudes, phases and frequencies of motor speed and motor terminal voltage meet the design requirements, the soft-start device shall give bypass instruction. The specific requirements are determined by the manufacturer and user according to the ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 37404-2019 be delivered?Answer: The full copy PDF of English version of GB/T 37404-2019 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 37404-2019_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 37404-2019_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 37404-2019 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 37404-2019?A step-by-step guide to download PDF of GB/T 37404-2019_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 37404-2019". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
