GB/T 37355-2019: Test method of mercury removal rate for activated carbon mercury removal catalyst Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

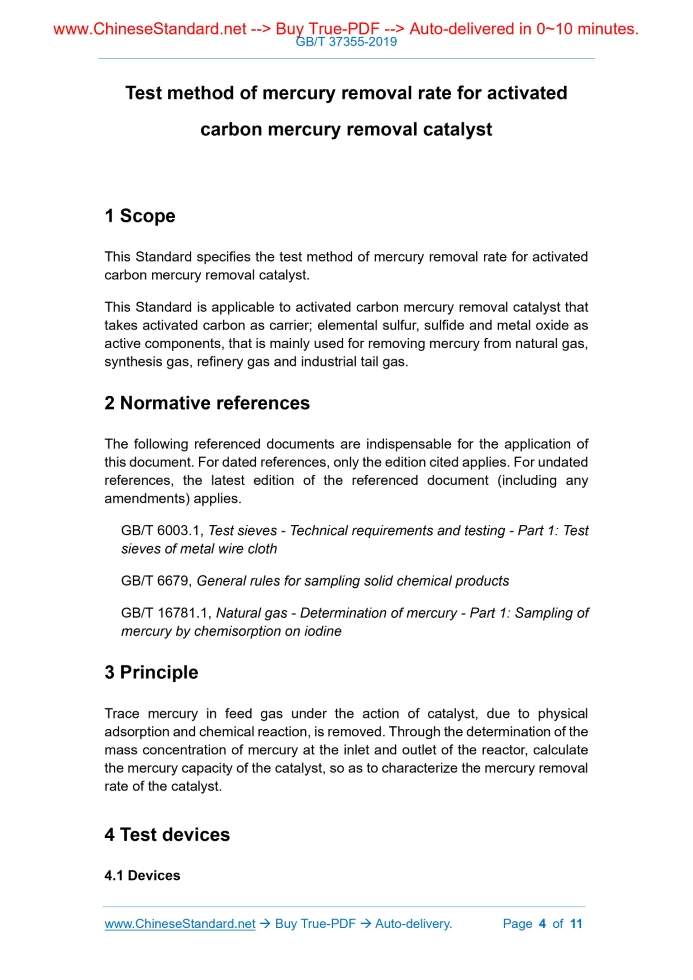

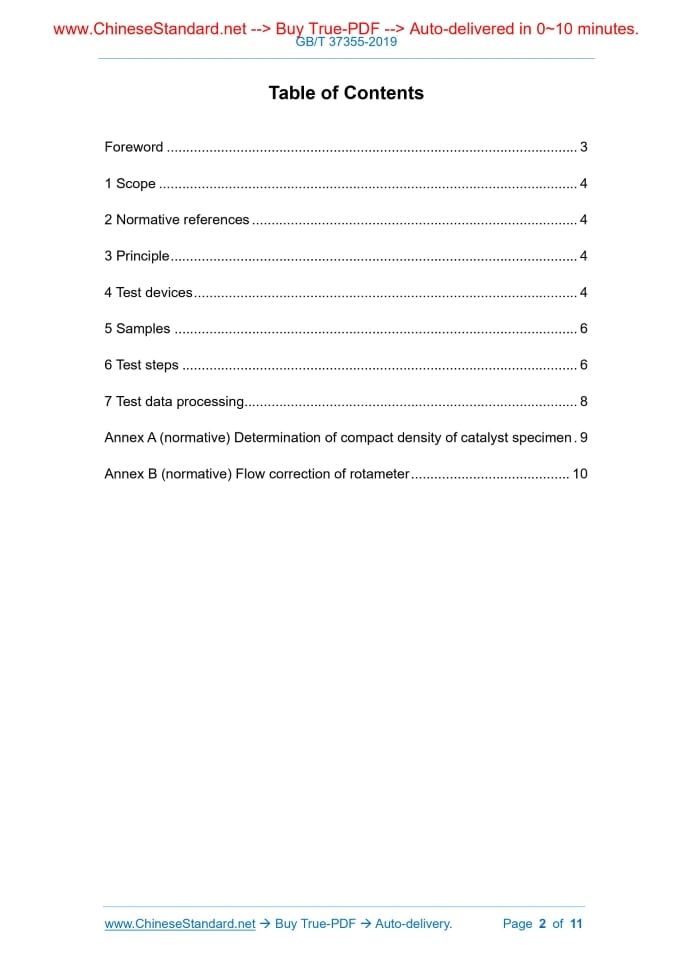

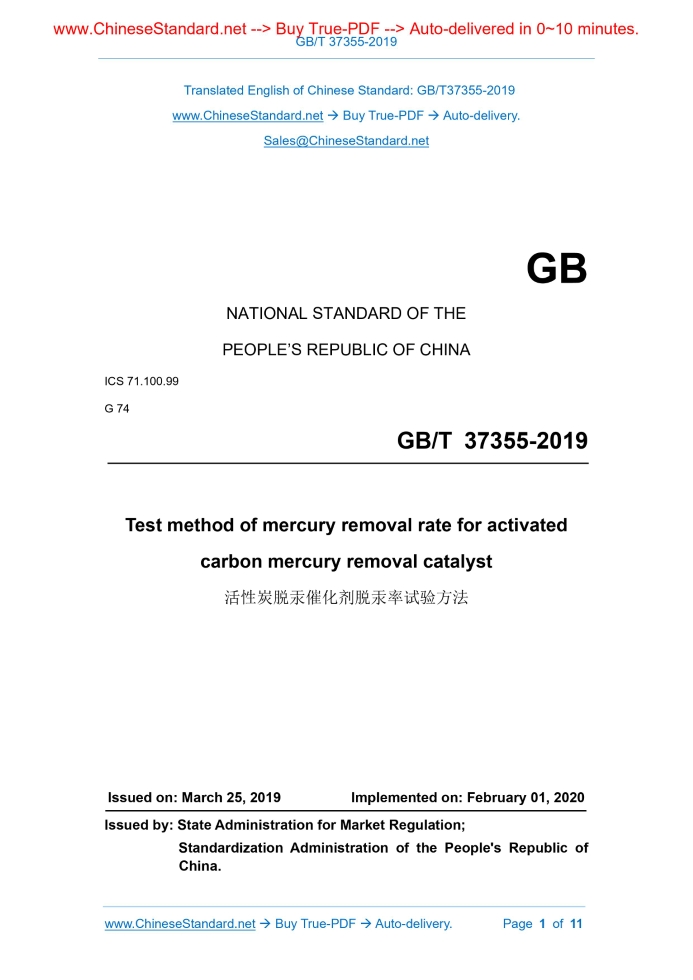

Similar standardsGB/T 37355-2019: Test method of mercury removal rate for activated carbon mercury removal catalyst---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT37355-2019 NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 71.100.99 G 74 Test method of mercury removal rate for activated carbon mercury removal catalyst ISSUED ON: MARCH 25, 2019 IMPLEMENTED ON: FEBRUARY 01, 2020 Issued by: State Administration for Market Regulation; Standardization Administration of the People's Republic of China. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative references ... 4 3 Principle ... 4 4 Test devices ... 4 5 Samples ... 6 6 Test steps ... 6 7 Test data processing ... 8 Annex A (normative) Determination of compact density of catalyst specimen . 9 Annex B (normative) Flow correction of rotameter ... 10 Test method of mercury removal rate for activated carbon mercury removal catalyst1 ScopeThis Standard specifies the test method of mercury removal rate for activated carbon mercury removal catalyst. This Standard is applicable to activated carbon mercury removal catalyst that takes activated carbon as carrier; elemental sulfur, sulfide and metal oxide as active components, that is mainly used for removing mercury from natural gas, synthesis gas, refinery gas and industrial tail gas.2 Normative referencesThe following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. GB/T 6003.1, Test sieves - Technical requirements and testing - Part 1: Test sieves of metal wire cloth GB/T 6679, General rules for sampling solid chemical products GB/T 16781.1, Natural gas - Determination of mercury - Part 1: Sampling of mercury by chemisorption on iodine3 PrincipleTrace mercury in feed gas under the action of catalyst, due to physical adsorption and chemical reaction, is removed. Through the determination of the mass concentration of mercury at the inlet and outlet of the reactor, calculate the mercury capacity of the catalyst, so as to characterize the mercury removal rate of the catalyst.4 Test devices4.1 Devices to make the test material filled tight, uniform and flat. Then put on a glass cloth. Use quartz sand to fill to a position that is about 5mm from the inlet cross section of the reaction tube. Connect the reaction tube into the system. 6.3 System leakage test Close all outlet and vent valves of the system. Make access to nitrogen. Boost the system to 0.1MPa. Close the system inlet valve. Use soap water to check the connection of each joint to test leakage. After the leakage test meets the requirements, open the system outlet valve to vent to reduce the system pressure to atmospheric pressure. 6.4 Absorption of mercury Raise the temperature of the water bath to 35°C. Maintain the temperature constant. Make the system access to nitrogen. Control and adjust the system pressure as constant pressure, reactor temperature as 25°C and volumetric space velocity as 10000h-1 (see Annex B for gas-related flow correction). Meanwhile, record the initial reading of the wet gas flowmeter. After several hours (depending on the removal rate of mercury removal catalyst), start determining the mass concentration of mercury in the inlet and outlet of the reactor, once every 2h. When the mercury concentration in the exhaust gas is found to increase, determine once every 30min. When the mass concentration of mercury exceeds 100μg/m3, it shall immediately and continuously determine twice. If the determination result still exceeds 100μg/m3, it shall immediately turn off the mercury generator. At the same time, record the end reading of the wet gas flowmeter. 6.5 Determination of mercury mass concentration 6.5.1 Mass concentration of inlet mercury Take an absorption bottle that is filled with 30mL of potassium permanganate- sulfuric acid solution (one volume of 40g/L potassium permanganate, one volume of 1+1 sulfuric acid solution and two volumes of water) to absorb 100mL of inlet gas. Measure 2.00mL of absorption fluid and move to a 100mL volumetric flask. Set constant volume and shake well. Then, according to the provisions of GB/T 16781.1, use atomic absorption spectroscopy to determine the mercury mass concentration. 6.5.2 Mass concentration of outlet mercury Take an absorption bottle that is filled with 30mL of potassium permanganate- sulfuric acid solution (one volume of 40g/L potassium permanganate, one volume of 1+1 sulfuric acid solution and two volumes of water) to absorb 300mLof outlet gas. Measure 10.00mL of absorption fluid and move to a 100mL volumetric flask. Set constant volume and shake well. Then, according to theAnnex A(normative) Determination of compact density of catalyst specimen A.1 Specimen accumulation Divide an appropriate amount of specimen (see 5.2) into several portions. Add 25mL into a measuring cylinder in sequence. In each addition, it needs to shake the cylinder up and down several times until the position of the specimen in the measuring cylinder does not change to compaction. Repeat the operation till the compacted sample volume is 10mL. A.2 Weighing of specimen Weigh the mass of 10mL of compacted specimen (see A.1), to the nearest of 0.01g. A.3 Calculation of compact density The compact density ρ, in grams per milliliter (g/mL), is calculated according to formula (A.1): Where, m2 - Values of mass of 25mL measuring cylinder and mass of 10mL of specimen, in grams (g); m1 - Value of mass of 25mL measuring cylinder, in grams (g); V - Value of specimen’s volume, in milliliters (mL). Calculation results are retained to two digits after the decimal point. Take the arithmetic mean of the parallel measurement results as the measurement results. The relative error of parallel determination results shall not be greater than 2.0%. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 37355-2019 be delivered?Answer: The full copy PDF of English version of GB/T 37355-2019 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 37355-2019_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 37355-2019_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 37355-2019 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 37355-2019?A step-by-step guide to download PDF of GB/T 37355-2019_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 37355-2019". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
