GB/T 37208-2018 PDF EnglishUS$230.00 · In stock · Download in 9 seconds
GB/T 37208-2018: Nonmetallic paper based wet type frictional materials Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

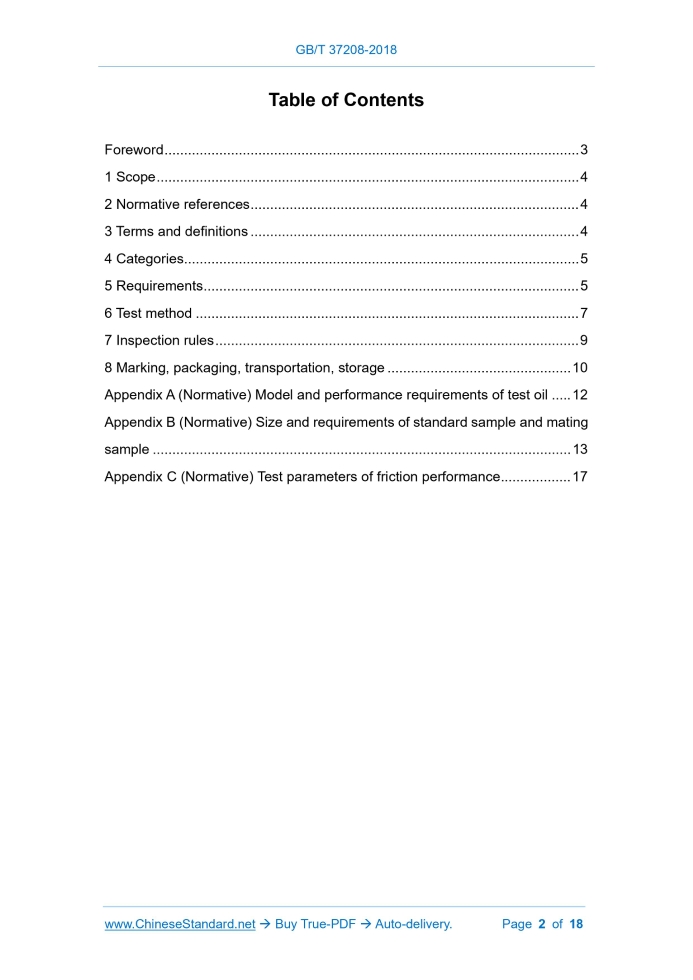

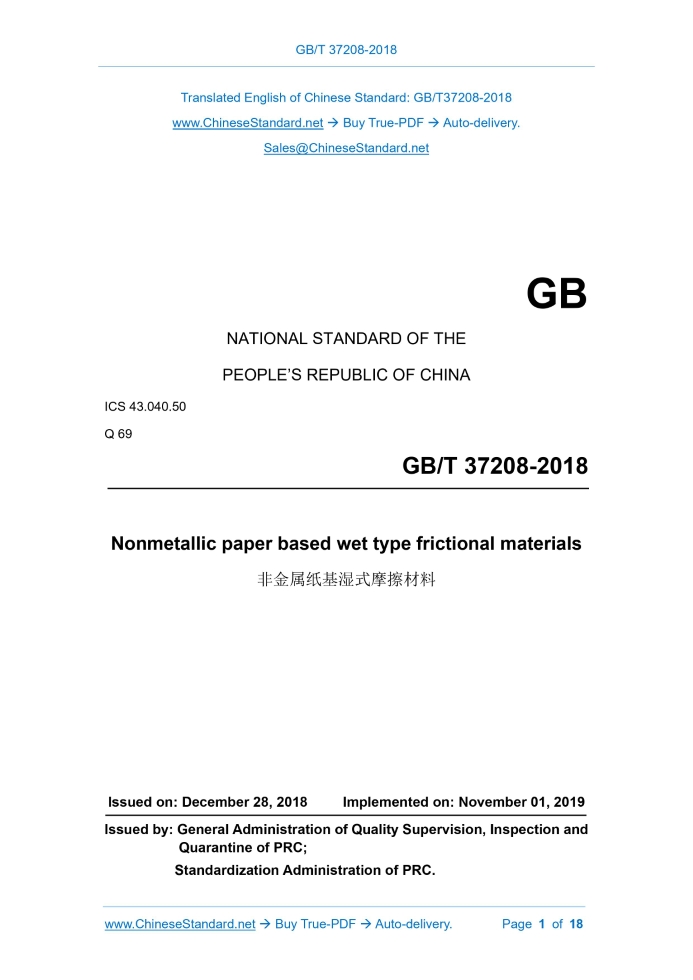

Similar standardsGB/T 37208-2018: Nonmetallic paper based wet type frictional materials---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT37208-2018GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 43.040.50 Q 69 Nonmetallic paper based wet type frictional materials ISSUED ON: DECEMBER 28, 2018 IMPLEMENTED ON: NOVEMBER 01, 2019 Issued by: General Administration of Quality Supervision, Inspection and Quarantine of PRC; Standardization Administration of PRC. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative references ... 4 3 Terms and definitions ... 4 4 Categories... 5 5 Requirements ... 5 6 Test method ... 7 7 Inspection rules ... 9 8 Marking, packaging, transportation, storage ... 10 Appendix A (Normative) Model and performance requirements of test oil ... 12 Appendix B (Normative) Size and requirements of standard sample and mating sample ... 13 Appendix C (Normative) Test parameters of friction performance ... 17 Nonmetallic paper based wet type frictional materials1 ScopeThis standard specifies the classification, requirements, test methods, inspection rules, marking, packaging, transportation, storage of non-metallic paper-based wet type frictional materials (hereinafter referred to as "frictional materials"). This standard applies to frictional materials, which are used for friction elements in wet type frictional systems, such as motorcycles, agricultural machinery, industrial machinery, automotive wet type automatic transmissions.2 Normative referencesThe following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) is applicable to this standard. GB/T 2828.1 Sampling procedures for inspection by attributes - Part 1: Sampling schemes indexed by acceptance quality limit (AQL) for lot-by-lot inspection GB/T 35472.2 Test method for friction element of wet automatic transmission - Part 2: SZBL type friction test machine guidelines GB/T 35472.3 Test method for friction element of wet automatic transmission - Part 3: Low-speed stepped power test method GB/T 35472.4 Test method for friction element of wet automatic transmission - Part 4: High-speed stepped power test method GB/T 35472.5 Test method for friction element of wet automatic transmission - Part 5: Durability test method GB/T 35472.6 Test method for friction element of wet automatic transmission - Part 6: μ-PVT test method3 Terms and definitionsThe following terms and definitions apply to this document. 6.4.2 The test oil shall meet the requirements of Appendix A. Type 1 frictional materials use No.1 standard test oil. Type 2 frictional materials use No.2 standard test oil. Type 3 frictional materials use No.3 standard test oil. 6.4.3 The size and requirements of the test sample and the mating sample shall meet the requirements of Appendix B. When the size of the inspection lot product is inconsistent with the standard sample, it shall use the standard sample, which is produced at the same time as the inspection lot product, by the same material and process, as the test sample. 6.4.4 Before the test, put the sample in the specified oil. Soak it for more than 30 min, at room temperature. 6.4.5 Carry out the friction performance test, in accordance with the provisions of GB/T 35472.6. The test parameters shall comply with the provisions of Appendix C. 6.5 Determination of wear After the test samples are soaked, measure and record the thickness of each test sample. For each test sample, measure at least three points (circumferentially equal-divided), these points are permanently marked AND used in the measurement after the test. Record the thickness of each measurement point of each test sample. Use its arithmetic average as the thickness value of the test sample before the test. After completing all the test stages, take out the test samples. Measure and record the thickness of each test sample, at the same measurement point, in the same way. Use the arithmetic mean as the thickness value of the test sample after the test. The thickness difference, before and after the test, is taken as the wear of the test sample. Take the value with the largest wear in a group of test samples, as the reported value. Use the micron micrometer, which has an accuracy of 0.001 mm, for measurement. The diameter of the measuring head is not less than 3.2 mm. 6.6 Power increment test The grade test of low-speed power increment test is carried out, according to GB/T 35472.3. The grade test of the high-speed power increment test is carried out, according to GB/T 35472.4. 6.7 Durability test The durability test is carried out, according to GB/T 35472.5. For the durability test, it shall carry out 200 running-in first; THEN carry out 10000 test cycles, according to the single condition in the power increment stepwise grade test. material and standard specimen size. 7.3 Judgment of results 7.3.1 Appearance quality, flatness, thickness shall be tested piece by piece; it is judged according to Table 5, respectively. 7.3.2 The friction performance is tested by standard samples. When the measured midpoint coefficient, the breakaway coefficient, the ratio of the endpoint coefficient to the midpoint coefficient, the wear all meet the requirements of 5.4, THEN, the above four items of the batch of products are determined qualified. If any item does not meet the requirements of 5.4, it shall use the two sets of standard samples, that have not been tested or used, for two repeated tests. If the two repeated test results meet the requirements of 5.4, it is still judged that the four items of the friction performance of the batch of products are qualified; it shall use the first repeated test data as the reported result. If any of the two repeated test results does not meet the requirements of 5.4, then this item of this batch of products is unqualified. 7.3.3 For the low-speed power increment test grade, the high-speed power increment test grade, the durability test result, the judgment rules shall be determined, through negotiation, between the supplier and the buyer. 7.3.4 When all inspection items are qualified, then the batch of products is determined to be qualified. If any item is unqualified, the batch of products shall be determined as unqualified.8 Marking, packaging, transportation, storage8.1 Marking The product's packaging carton (box) shall be marked with the product name, model specification, manufacturer name, address, product quantity, this standard number. 8.2 Packaging 8.2.1 The frictional material shall be packed tightly and neatly in a clean, dry, sturdy, durable carton (box). 8.2.2 Each packing carton (box) shall be accompanied by a product qualification certificate. 8.3 Transportation and storage 8.3.1 During transportation, the frictional material shall not be squeezed, ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 37208-2018 be delivered?Answer: The full copy PDF of English version of GB/T 37208-2018 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 37208-2018_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 37208-2018_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 37208-2018 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 37208-2018?A step-by-step guide to download PDF of GB/T 37208-2018_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 37208-2018". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
