GB/T 37158-2018: Non-destructive testing - Test method for measuring the maximum detectable steel thickness by industrial computed tomography (CT)


---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT37158-2018

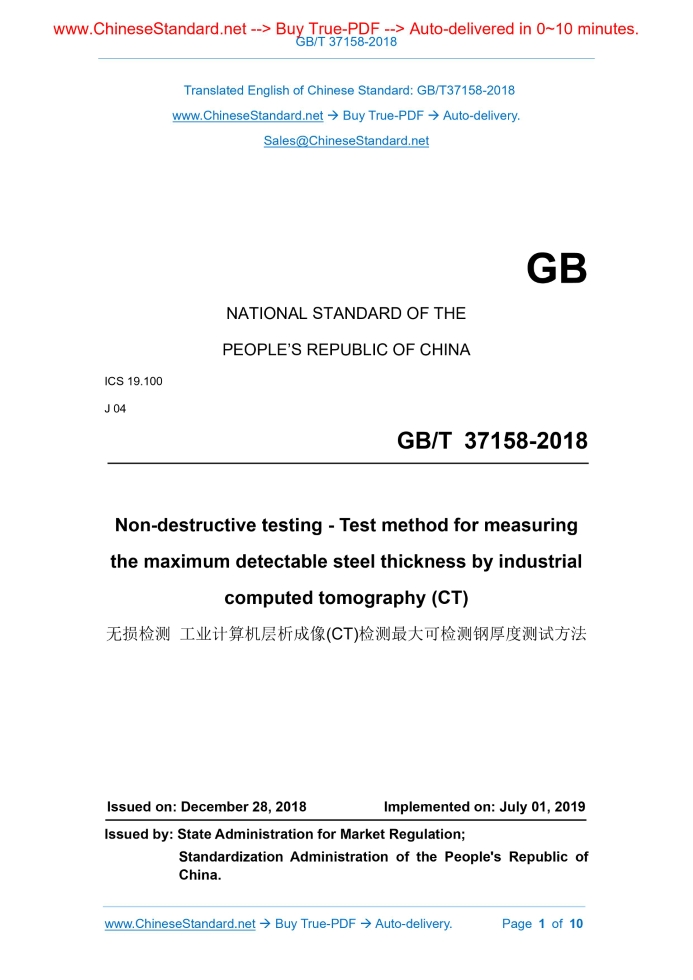

NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 19.100 J 04 Non-destructive testing - Test method for measuring the maximum detectable steel thickness by industrial computed tomography (CT) ISSUED ON: DECEMBER 28, 2018 IMPLEMENTED ON: JULY 01, 2019 Issued by: State Administration for Market Regulation; Standardization Administration of the People's Republic of China.

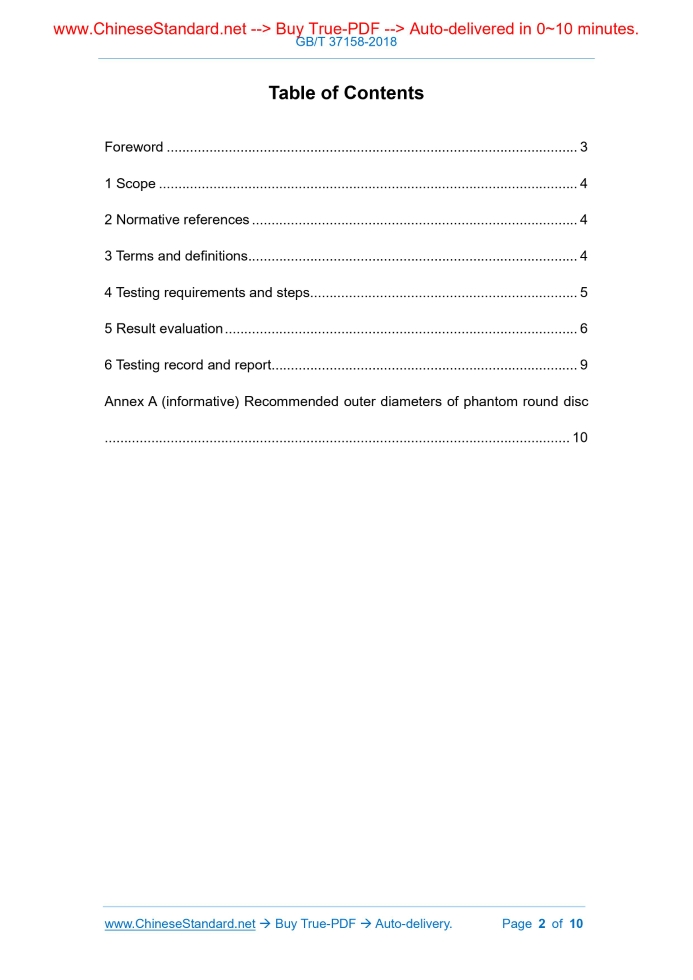

Table of Contents

Foreword ... 3 1 Scope ... 4 2 Normative references ... 4 3 Terms and definitions ... 4 4 Testing requirements and steps... 5 5 Result evaluation ... 6 6 Testing record and report ... 9 Annex A (informative) Recommended outer diameters of phantom round disc ... 10 Non-destructive testing - Test method for measuring the maximum detectable steel thickness by industrial computed tomography (CT)

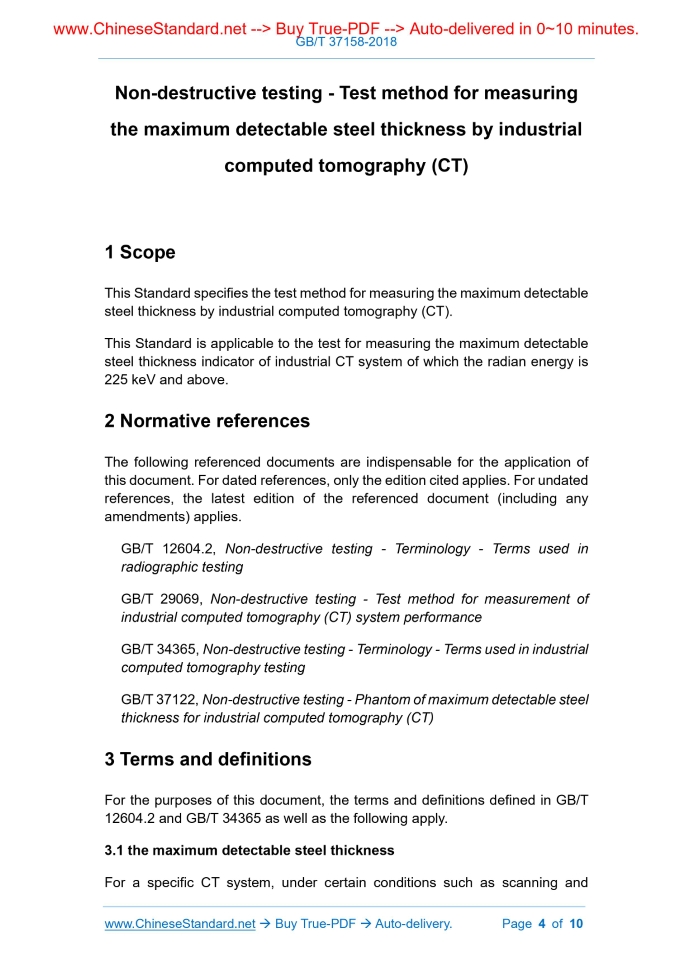

1 Scope

This Standard specifies the test method for measuring the maximum detectable steel thickness by industrial computed tomography (CT). This Standard is applicable to the test for measuring the maximum detectable steel thickness indicator of industrial CT system of which the radian energy is 225 keV and above.

2 Normative references

The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. GB/T 12604.2, Non-destructive testing - Terminology - Terms used in radiographic testing GB/T 29069, Non-destructive testing - Test method for measurement of industrial computed tomography (CT) system performance GB/T 34365, Non-destructive testing - Terminology - Terms used in industrial computed tomography testing GB/T 37122, Non-destructive testing - Phantom of maximum detectable steel thickness for industrial computed tomography (CT)

3 Terms and definitions

For the purposes of this document, the terms and definitions defined in GB/T 12604.2 and GB/T 34365 as well as the following apply. 3.1 the maximum detectable steel thickness For a specific CT system, under certain conditions such as scanning and detectable steel thickness indicator of the system is better than the outer diameter size of phantom round disc. 5.3 Guideline Under specified spatial resolution conditions, when R=10% and CNR=3, the outer diameter size of round disc of tested phantom is defined as the maximum detectable steel thickness. This thickness value usually requires multiple testing of fitting curves. To simplify testing, it usually regards the outer diameter size of round disc of testable maximum phantom as the maximum detectable steel thickness under specified spatial resolution conditions, when R≥10% and CNR≥3.

6 Testing record and report

6.1 Testing record 6.1.1 Testing record usually shall contain detailed records such as standard test piece name, test purpose, test equipment, ray source parameters, scanning mode, slice thickness, slice position, scanning time, field of view diameter, image matrix, reconstruction parameters, image description, evaluation criteria, tester, reviewer, test date. 6.1.2 Image data file shall generally include image number, standard test piece name, test purpose, test equipment, ray source parameters, scanning mode, slice thickness, slice position, scanning time, field of view diameter, image matrix, reconstruction parameters, etc. 6.2 Testing report Testing report shall usually contain standard test piece name, test purpose, test equipment, test method, slice thickness, slice position, image matrix, test image, evaluation standard, evaluation result, tester, reviewer, approver, test date, report date. ......
Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al.
