GB/T 36709-2018: Vibration damping clad steel sheet Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

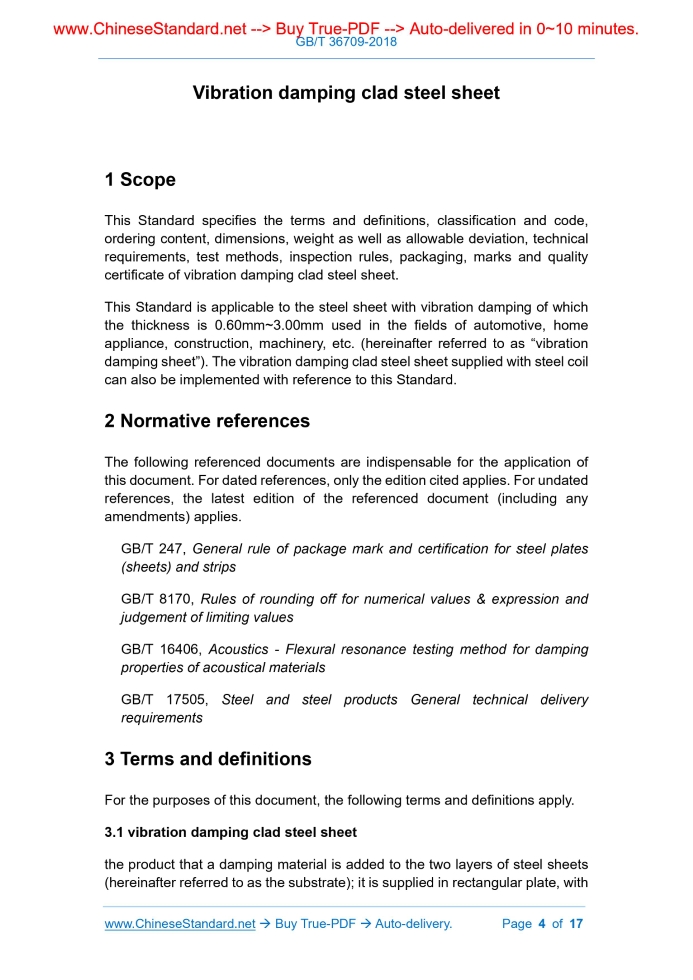

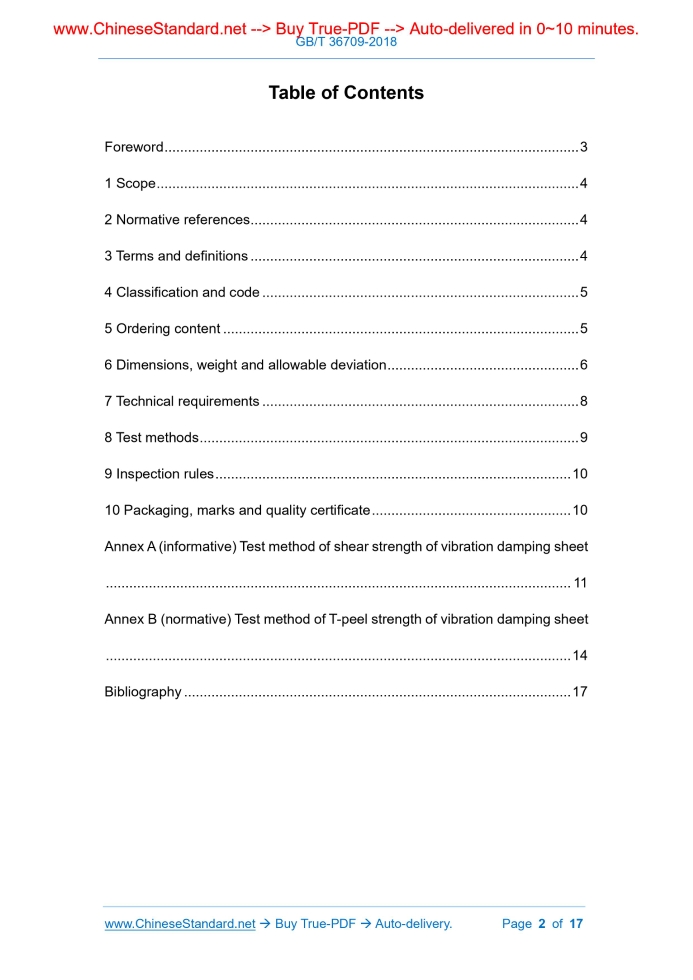

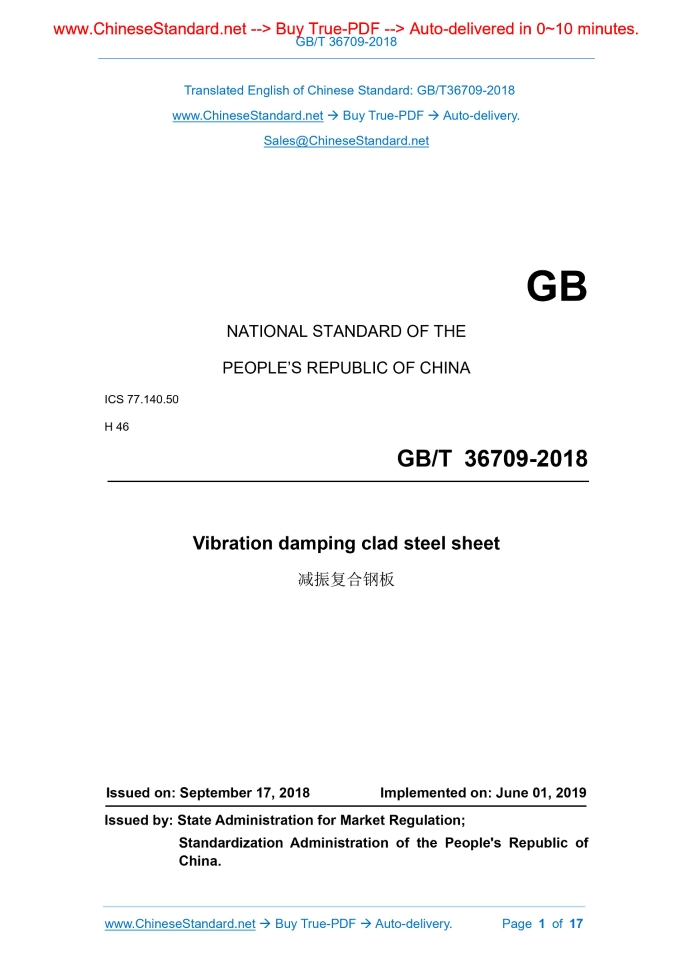

Similar standardsGB/T 36709-2018: Vibration damping clad steel sheet---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT36709-2018GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 77.140.50 H 46 Vibration damping clad steel sheet Issued on: SEPTEMBER 17, 2018 Implemented on: JUNE 01, 2019 Issued by. State Administration for Market Regulation; Standardization Administration of the People's Republic of China. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative references ... 4 3 Terms and definitions ... 4 4 Classification and code ... 5 5 Ordering content ... 5 6 Dimensions, weight and allowable deviation ... 6 7 Technical requirements ... 8 8 Test methods ... 9 9 Inspection rules ... 10 10 Packaging, marks and quality certificate ... 10 Annex A (informative) Test method of shear strength of vibration damping sheet ... 11 Annex B (normative) Test method of T-peel strength of vibration damping sheet ... 14 Bibliography ... 17 Vibration damping clad steel sheet1 ScopeThis Standard specifies the terms and definitions, classification and code, ordering content, dimensions, weight as well as allowable deviation, technical requirements, test methods, inspection rules, packaging, marks and quality certificate of vibration damping clad steel sheet. This Standard is applicable to the steel sheet with vibration damping of which the thickness is 0.60mm~3.00mm used in the fields of automotive, home appliance, construction, machinery, etc. (hereinafter referred to as “vibration damping sheet”). The vibration damping clad steel sheet supplied with steel coil can also be implemented with reference to this Standard.2 Normative referencesThe following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. GB/T 247, General rule of package mark and certification for steel plates (sheets) and strips GB/T 8170, Rules of rounding off for numerical values & expression and judgement of limiting values GB/T 16406, Acoustics - Flexural resonance testing method for damping properties of acoustical materials GB/T 17505, Steel and steel products General technical delivery requirements3 Terms and definitionsFor the purposes of this document, the following terms and definitions apply. 3.1 vibration damping clad steel sheet the product that a damping material is added to the two layers of steel sheets (hereinafter referred to as the substrate); it is supplied in rectangular plate, with7 Technical requirements7.1 Substrate The substrate of the vibration damping sheet can use GB/T 2518, GB/T 5213, GB/T 14978, GB/T 15675, GB/T 20564, etc. If the purchaser needs other types of substrates, it can be negotiated at the time of ordering. 7.2 Chemical composition The chemical composition of the vibration damping sheet shall comply with the requirements of the corresponding substrate standard. 7.3 Delivery status The vibration damping sheets are usually supplied when they are oiled. The oil film shall be removed with an aqueous alkali solution or a normal solution. Under normal conditions of packaging, transport, loading-unloading and storage, the supplier shall ensure that the surface of the vibration damping sheet does not rust within 6 months from the date of completion of manufacture. If the purchaser asks the products delivered when they are not oiled, it shall be negotiated at the time of ordering. 7.4 Mechanical properties and coating properties 7.4.1 Mechanical properties of the vibration damping sheet refer to the mechanical properties of the substrate. NOTE. Due to the influence of aging, the mechanical properties of the steel plate shall deteriorate with the storage time, such as the increase in yield strength and tensile strength, decrease in elongation after fracture, poor formability, tensile strain marks. It is recommended to use as early as possible. 7.4.2 Coating performance shall meet the requirements of the corresponding substrate standards. 7.5 Technology performance 7.5.1 The T-peel strength of the vibration damping sheet shall comply with the requirements of Table 5. Table 5 -- T-peel strength Nominal thickness / mm T-peel strength / (N/cm) not less than 0.60~1.00 20 >1.00~1.40 25 >1.40~2.00 30 2 Damping coefficient peak η GB/T 16406 GB/T 16406 GB/T 16406 3 Dimensions, shape Piece by piece 1 Appropriate measuring tool 4 Surface quality Piece by piece 1 Visual inspection9 Inspection rules9.1 The inspection and acceptance of the vibration damping sheet shall be carried out by the supplier quality inspection department. 9.2 The vibration damping sheet shall be accepted by batch. Each inspection lot shall consist of the vibration damping sheets of the same designation, the same specification, the same set of damping adhesives and the same processing technology. 9.3 The sampling quantity and sampling method of the vibration damping sheet shall comply with the provisions of Table 7. 9.4 The re-inspection and determination rules of the vibration damping sheet shall comply with the provisions of GB/T 17505. 9.5 The test results are rounded up according to the comparison method of rounded value. The rounding rules shall comply with the provisions of GB/T 8170.10 Packaging, marks and quality certificateThe packaging, marks and quality certificate of vibration damping sheet shall comply with the provisions of GB/T 247. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 36709-2018 be delivered?Answer: The full copy PDF of English version of GB/T 36709-2018 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 36709-2018_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 36709-2018_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 36709-2018 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 36709-2018?A step-by-step guide to download PDF of GB/T 36709-2018_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 36709-2018". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
