GB/T 35974.4-2018 PDF EnglishUS$160.00 · In stock · Download in 9 seconds
GB/T 35974.4-2018: Plastics and Plastic Lining Pressure Vessels - Part 4: Fabrication, Inspection and Testing for Plastic Pressure Vessels Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

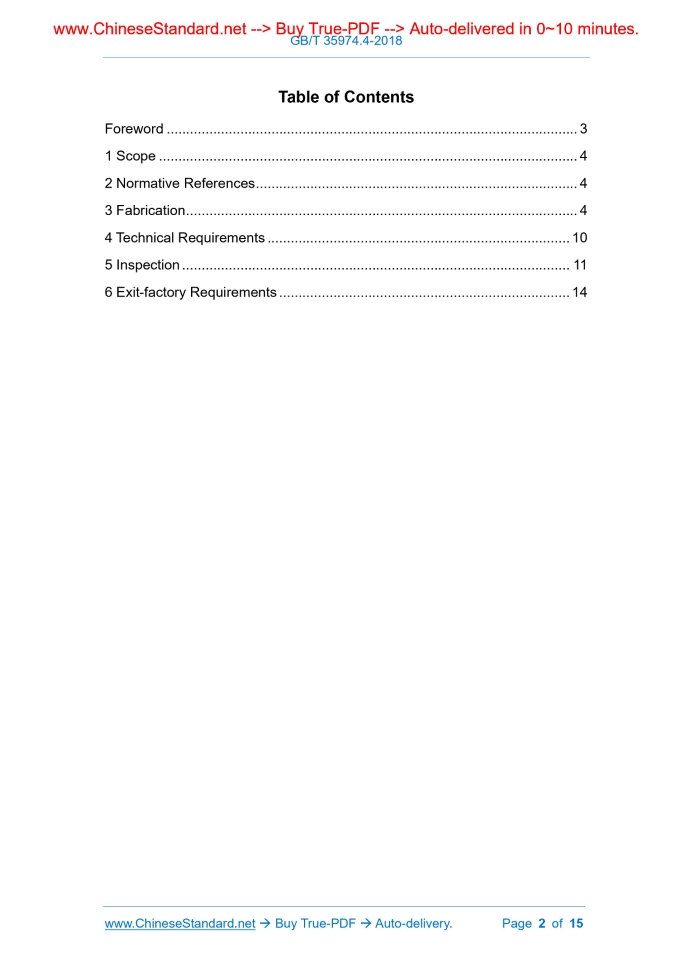

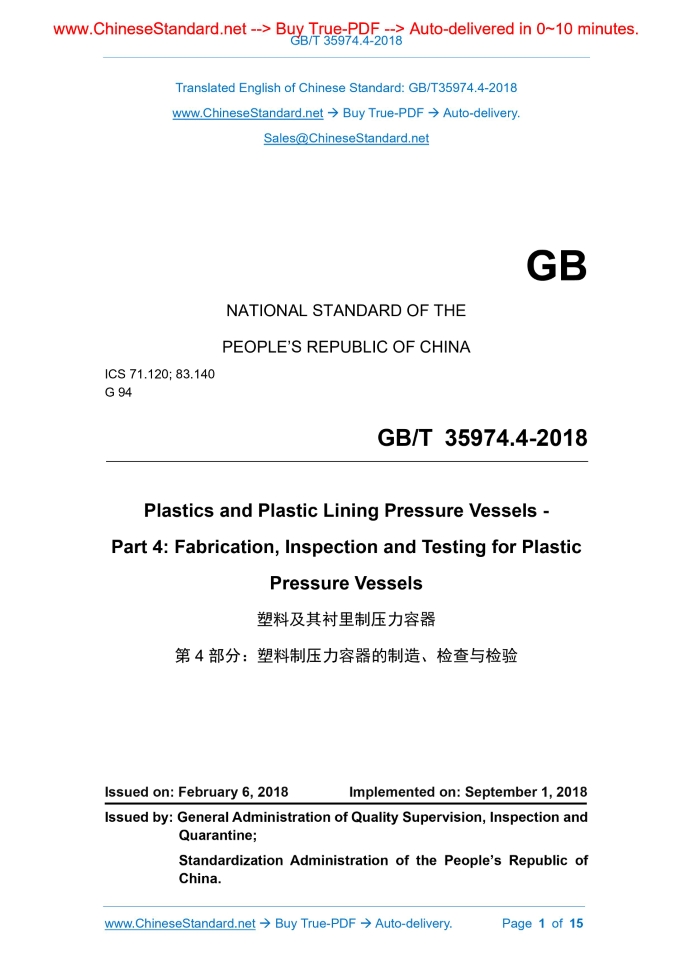

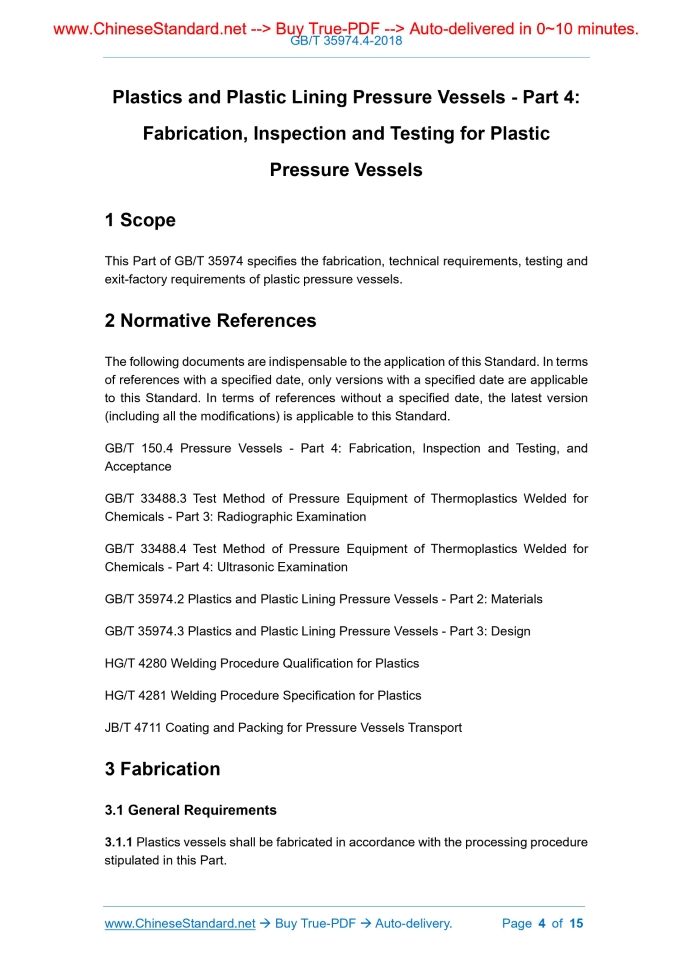

Similar standardsGB/T 35974.4-2018: Plastics and Plastic Lining Pressure Vessels - Part 4: Fabrication, Inspection and Testing for Plastic Pressure Vessels---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT35974.4-2018 NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 71.120; 83.140 G 94 Plastics and Plastic Lining Pressure Vessels - Part 4: Fabrication, Inspection and Testing for Plastic Pressure Vessels ISSUED ON: FEBRUARY 6, 2018 IMPLEMENTED ON: SEPTEMBER 1, 2018 Issued by: General Administration of Quality Supervision, Inspection and Quarantine; Standardization Administration of the People’s Republic of China. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative References ... 4 3 Fabrication ... 4 4 Technical Requirements ... 10 5 Inspection ... 11 6 Exit-factory Requirements ... 14 Plastics and Plastic Lining Pressure Vessels - Part 4: Fabrication, Inspection and Testing for Plastic Pressure Vessels1 ScopeThis Part of GB/T 35974 specifies the fabrication, technical requirements, testing and exit-factory requirements of plastic pressure vessels.2 Normative ReferencesThe following documents are indispensable to the application of this Standard. In terms of references with a specified date, only versions with a specified date are applicable to this Standard. In terms of references without a specified date, the latest version (including all the modifications) is applicable to this Standard. GB/T 150.4 Pressure Vessels - Part 4: Fabrication, Inspection and Testing, and Acceptance GB/T 33488.3 Test Method of Pressure Equipment of Thermoplastics Welded for Chemicals - Part 3: Radiographic Examination GB/T 33488.4 Test Method of Pressure Equipment of Thermoplastics Welded for Chemicals - Part 4: Ultrasonic Examination GB/T 35974.2 Plastics and Plastic Lining Pressure Vessels - Part 2: Materials GB/T 35974.3 Plastics and Plastic Lining Pressure Vessels - Part 3: Design HG/T 4280 Welding Procedure Qualification for Plastics HG/T 4281 Welding Procedure Specification for Plastics JB/T 4711 Coating and Packing for Pressure Vessels Transport3 Fabrication3.1 General Requirements 3.1.1 Plastics vessels shall be fabricated in accordance with the processing procedure stipulated in this Part. in GB/T 35974.2 and design documents. 3.2.2 Acceptance check 3.2.2.1 Items Acceptance check items of materials are: quality certificate, appearance, dimensions and performance indexes. 3.2.2.2 Quality certificate Materials shall have an exit-factory quality certificate. Items and indexes in the quality certificate shall comply with the stipulations in GB/T 35974.2. 3.2.2.3 Appearance Materials’ appearance shall receive full inspection. The indexes shall comply with the stipulations in GB/T 35974.2. 3.2.2.4 Dimensions Materials’ main dimensions shall receive 100% inspection. The indexes shall comply with the stipulations in GB/T 35974.2. 3.2.2.5 Performance indexes Main materials’ performance indexes shall comply with the stipulations in GB/T 35974.2. 3.2.3 Material re-inspection 3.2.3.1 Under one of the following circumstances, materials’ performance indexes shall be re-inspected in accordance with GB/T 35974.2 and design requirements: a) When there are doubts about the performance indexes in the quality certificate; b) When re-inspection is requested in design documents. 3.2.3.2 Material re-inspection shall receive sampling inspection of the performance indexes. The sampling range shall cover every exit-factory batch of the materials. Sampling inspection items shall at least include the content in Table 2. Materials shall be qualified in all the inspection items, then, they may be used in the fabrication of plastics vessels. Table 2 -- Re-inspection Items and Requirements Fabrication Procedures Material Status Inspection Items Requirements Welding Pipes PVC-U, PVC-C, ABS: density, Vicat softening Comply with the Initiate the rotating mechanism, so that the mold starts to rotate. Set up the speed ratio to make sure that during the heating process, materials can be evenly attached to the mold. Heat the rotating mold. The setting of heating temperature and time shall satisfy the requirements of the processing procedures. The highest air heating temperature in the mold shall be not lower than 180 °C. 3.3.2.1.3 Cooling Cool down the mold that is already heated. During the cooling process, the mold shall maintain the rotatory state. One of the following cooling modes, or a combination of several cooling modes may be adopted for cooling: natural cooling, water mist cooling or water spray cooling. During the cooling process, the difference between the air temperature in the mold and the external surface temperature of the mold is requested not to exceed 40 °C. When the external surface temperature of the shell decreases to 50 °C ~ 80 °C, stop the rotation of the shell. 3.3.2.1.4 Demolding and post-processing After the cooling is completed, disassemble the plastics vessel. Adopt vibration method to eliminate the internal stress of the plastics vessel. 3.3.2.2 Procedure evaluation Procedure evaluation shall at least include the items listed in Table 1. The various item indexes shall comply with the designed value and the stipulations in GB/T 35974.2. 3.3.3 Extrusion 3.3.3.1 Methods 3.3.3.1.1 Plasticization Extrusion plasticization shall adopt the following methods: a) Dry extrusion: through in-cylinder heating and heat generation by mechanical screw’s rotary shearing, plastics that enter the extruder’s cylinder would reach the plastics melt temperature. In accordance with the differences of materials, determine corresponding procedure parameters, such as plasticization temperature and shear torque force. b) Wet extrusion: adopt an organic solvent to soften and dissolve plastics. In accordance with the solvent’s technical parameters, determine procedure parameters, such as the matching ratio and plasticization time. 3.3.3.1.2 Molding In accordance with plastics vessel’s shape and dimensions, design a molding mold. Under mechanical pressure, plasticized plastics enter the mold, fill up the mold cavity. 3.3.3.1.3 Cooling Adopt the following methods for cooling, so that after cooling, the plastics vessel would reach relatively stable structure and dimensions: a) Dry extrusion: adopt one of the following cooling modes, or a combination of several cooling modes: natural cooling, water mist cooling or water spray cooling; b) Wet extrusion: adopt cooling modes like natural curing and heating curing. 3.3.3.1.4 Demolding and post-processing When plastics vessel’s structure and dimensions become relatively stable in the mold, disassemble the mold; take out the plastics vessel. In addition, cut off or remove redundant edges. 3.3.3.2 Procedure evaluation Procedure evaluation shall at least include the items listed in Table 1. The various item indexes shall comply with the designed value and the stipulations in GB/T 35974.2. 3.3.4 Extrusion winding 3.3.4.1 Methods Extrusion winding molding shall be conducted in accordance with the following three procedures: a) Cylinder’s extrusion winding molding: select the specifications of mold; determine the number of winding layers and the length of cylinder. After the cooling, demold it; make the head flat. It is requested that there shall be no gap among the layers. The minimum wall thickness shall be not less than the nominal thickness. b) Bottom cover (head) installation: hemispherical, ellipsoidal and conical head may adopt integral injection molding or plate thermo-compression molding. In the thermo-compression of the head flap plate and top plate butt joint, welded joints are merely allowed to be in radial and circumferential direction. In accordance with the drawings, properly handle the grooves of the cylinder’s joints; adopt extrusion welding equipment for welding. c) Accessory installation: in the welding of connecting pipe’s Flange and cylinder body, in accordance with the size of the connecting pipe, select an appropriate welding mode. Flange bolt holes shall be symmetrically distributed on both sides of the cylinder’s axis and in mid-span distribution. When there are any special requirements, they shall be indicated in the drawings. b) When there are relatively significant changes in structure, materials and procedures that might influence product performance; c) When there are significant differences between the result of exit-factory inspection and the previous type inspection. 5.2.4 Determination 5.2.4.1 Determination of exit-factory inspection When the result of exit-factory inspection complies with the requirements, products shall be determined as qualified. If products fail to comply with one or more requirements, they shall be determined as disqualified. Disqualified products may be returned for re-fabrication. One re-fabrication is allowed on welded joints. Two re- fabrications are allowed on other parts. After the re-fabrication, products shall be re- inspected. If products are still disqualified in the re-inspection, they shall be determined as disqualified. If there is re-fabrication, the time, the parts and the situation of the re- fabrication shall be recorded in the quality certificate. 5.2.4.2 Determination of type inspection When the result of type inspection complies with the requirements stipulated in Table 5, products shall be determined as qualified in type inspection. If products fail to comply with one or more requirements, they shall be determined as disqualified in type inspection.6 Exit-factory Requirements6.1 Exit-factory Information 6.1.1 Fabrication organizations shall provide exit-factory information to vessels’ purchaser. When there are special requirements towards the usage of vessels, they shall also provide an instruction manual. 6.1.2 Exit-factory information shall at least include the following content: a) Vessels’ original design drawings and general completion drawings; b) Vessels’ documentary quality certificates (including product certificate, product data sheet and quality certificate); c) Vessels’ characteristics (including design pressure, maximum allowable operating pressure, test pressure, design temperature and operating medium); d) Vessels’ instruction manual. 6.2 Vessel Nameplate ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 35974.4-2018 be delivered?Answer: The full copy PDF of English version of GB/T 35974.4-2018 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 35974.4-2018_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 35974.4-2018_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 35974.4-2018 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 35974.4-2018?A step-by-step guide to download PDF of GB/T 35974.4-2018_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 35974.4-2018". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
