GB/T 35070.2-2018 PDF EnglishUS$120.00 · In stock · Download in 9 seconds
GB/T 35070.2-2018: Parking Electronic Toll Collection - Part 2: Technical Specification for Terminal Equipment Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

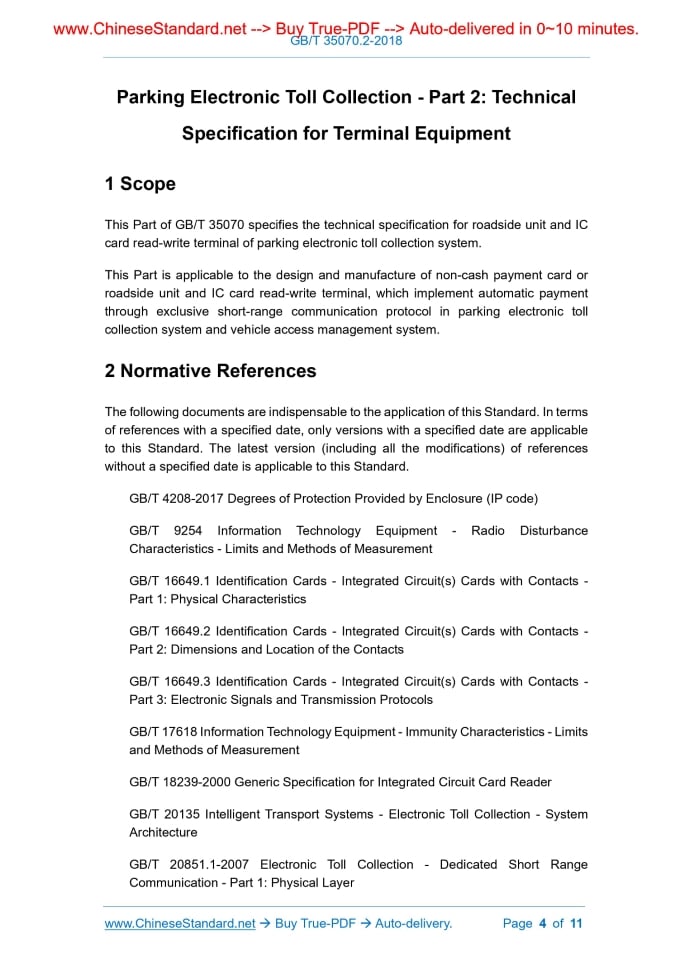

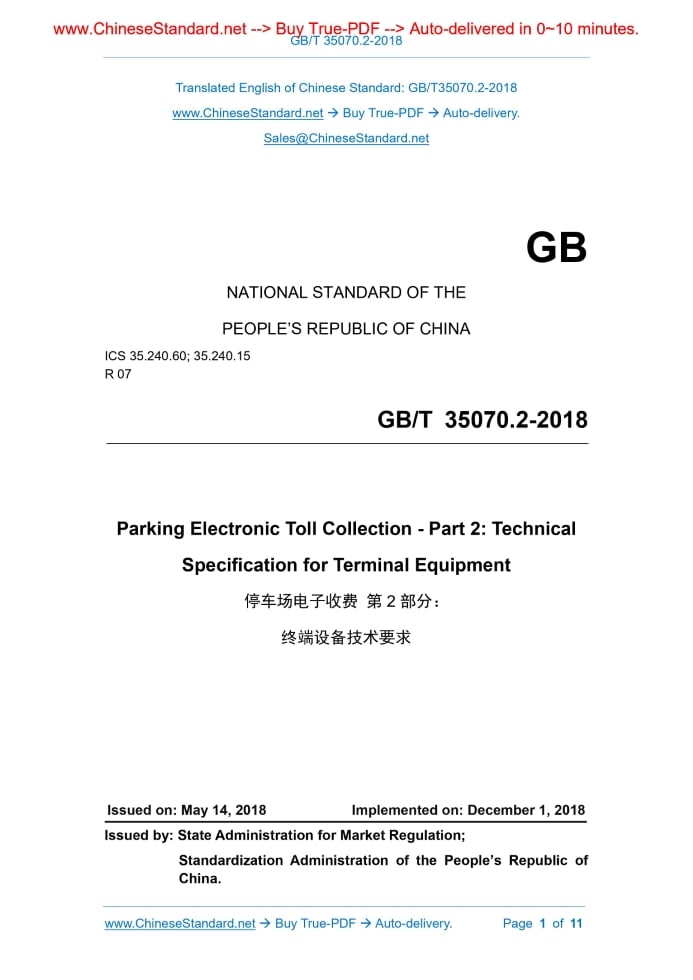

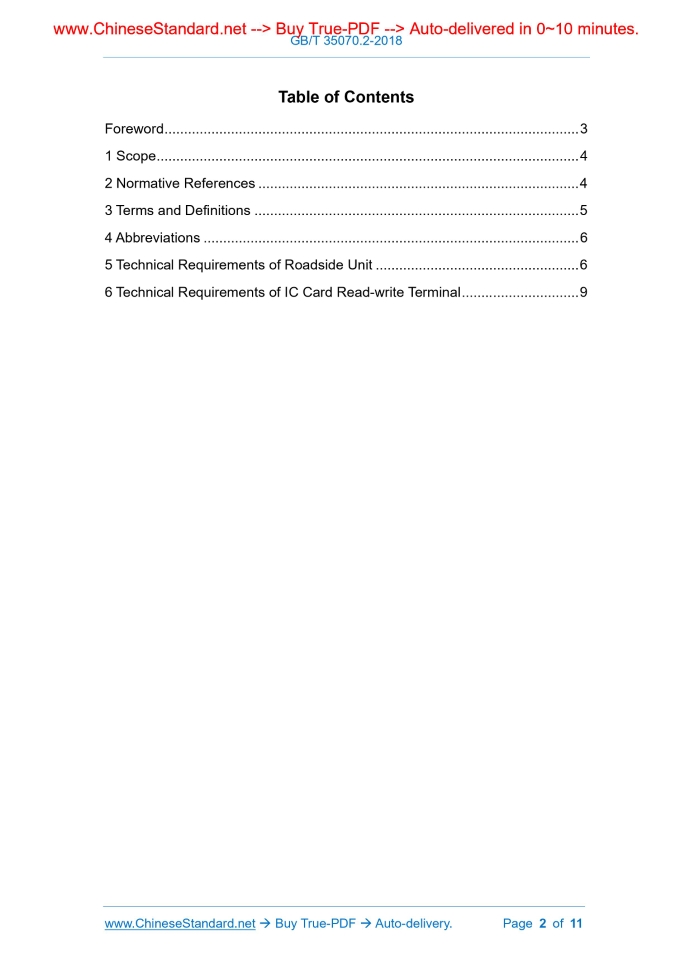

Similar standardsGB/T 35070.2-2018: Parking Electronic Toll Collection - Part 2: Technical Specification for Terminal Equipment---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT35070.2-2018 GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 35.240.60; 35.240.15 R 07 Parking Electronic Toll Collection - Part 2. Technical Specification for Terminal Equipment Issued on: MAY 14, 2018 Implemented on: DECEMBER 1, 2018 Issued by. State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative References ... 4 3 Terms and Definitions ... 5 4 Abbreviations ... 6 5 Technical Requirements of Roadside Unit ... 6 6 Technical Requirements of IC Card Read-write Terminal ... 9 Parking Electronic Toll Collection - Part 2. Technical Specification for Terminal Equipment1 ScopeThis Part of GB/T 35070 specifies the technical specification for roadside unit and IC card read-write terminal of parking electronic toll collection system. This Part is applicable to the design and manufacture of non-cash payment card or roadside unit and IC card read-write terminal, which implement automatic payment through exclusive short-range communication protocol in parking electronic toll collection system and vehicle access management system.2 Normative ReferencesThe following documents are indispensable to the application of this Standard. In terms of references with a specified date, only versions with a specified date are applicable to this Standard. The latest version (including all the modifications) of references without a specified date is applicable to this Standard. GB/T 4208-2017 Degrees of Protection Provided by Enclosure (IP code) GB/T 9254 Information Technology Equipment - Radio Disturbance Characteristics - Limits and Methods of Measurement GB/T 16649.1 Identification Cards - Integrated Circuit(s) Cards with Contacts - Part 1. Physical Characteristics GB/T 16649.2 Identification Cards - Integrated Circuit(s) Cards with Contacts - Part 2. Dimensions and Location of the Contacts GB/T 16649.3 Identification Cards - Integrated Circuit(s) Cards with Contacts - Part 3. Electronic Signals and Transmission Protocols GB/T 17618 Information Technology Equipment - Immunity Characteristics - Limits and Methods of Measurement GB/T 18239-2000 Generic Specification for Integrated Circuit Card Reader GB/T 20135 Intelligent Transport Systems - Electronic Toll Collection - System Architecture GB/T 20851.1-2007 Electronic Toll Collection - Dedicated Short Range Communication - Part 1. Physical Layer 3.6 Effective Communication Area Effective communication area refers to the area where roadside unit can conduct normal electronic toll transaction with electronic tag. 3.7 Lane Controller Lane controller is equipment which is installed in the toll lane and connected with RSU and other peripheral equipment to coordinate lane software to control the logical flow of the lane.4 AbbreviationsThe following abbreviations are applicable to this document. ASK. Amplitude Shift Keying CPU. Central Processing Unit e.i.r.p. equivalent isotropically radiated power IC. Integrated Circuit IP. Internet Protocol OBU. On Board Unit RSU. Roadside Unit SAM. Secure Access Module TCP. Transmission Control Protocol USB. Universal Serial Bus5 Technical Requirements of Roadside Unit5.1 Communication Protocol 5.1.1 Physical layer Physical layer shall comply with relevant stipulation in 5.2 and 5.3 in GB/T 20851.1- 2007. In addition, e.i.r.p shall be less than or equals to +30 dBm. 5.1.2 Data link layer Data link layer shall comply with relevant stipulation in Chapter 5 ~ Chapter 9 in GB/T ---Standard serial interface. adopt RS-232 and RS-485 interface; communication Baud rate shall at least reach 115,200 bps. The following should be set up. serial port adopts half-duplex asynchronous serial communication; protocol format. “115200, N, 8, 1” (namely, Baud rate. 115,200 bps; no parity; 8-bit data; 1 stop bit); ---The definition of communication data format between RSU and lane controller shall comply with GB/T 28423. 5.2.7 Security Security shall comply with relevant stipulation in Chapter 8 in GB/T 20851.4-2007. 5.2.8 Protection level The protection level of RSU shell shall comply with the requirement of Level-IP65 in GB/T 4208-2017. 5.2.9 Power AC220 V ± 22 V/50 Hz ± 1 Hz AC power supply shall be supported. 5.3 Inter Lane Interference RSU shall merely transact with OBU within the communication area of this lane; it shall not be affected by other inter lanes. 5.4 Transaction Success Rate RSU’s transaction success rate shall be more than or equals to 99.97%. 5.5 Installation 5.5.1 Side-mounted mode The typical installation height of side-mounted RSU is 2 m ~ 2.5 m. 5.5.2 Ceiling-mounted mode The typical installation height (clearance) of ceiling-mounted RSU is 3 m ~ 3.5 m. RSU mounting bracket shall have explicit scale indication; the range of installation angle is. 30° ~ 60°. 5.5.3 Others Other parameters that are not listed out shall comply with relevant stipulation in 5.2.6 in GB/T 20851.4-2007. ---Communication distance. in terms of standard CPU card. the minimum write- read distance is 40 mm; the maximum write-read distance is 100 mm; within an effective range, there shall be no blind zone; the included angle between IC card and antenna plane shall be not more than 80° and allows normal read and write; ---In the area where read and write is effective, field strength shall be within the range of 1.5 A/m (rms) ~ 7.5 A/m (rms); ---Communication Baud rate. 106 kbps, 202 kbps, 424 kbps, 848 kbps; ---Mode of modulation. ASK 100% (TYPE A) or ASK 10% (TYPE B). 6.3.2 Display module Displayed characters shall be distinct and intact. It shall be able to program and set up display information; have the function of double-sided indicator light. 6.3.3 Voice module Speaker output shall include voice and buzzer. It shall be able to store customized voice data information; program and set up prompt voice. 6.3.4 Non-volatile storage module Non-volatile storage module’s storage capacity shall be not less than 2 GB; may be configurated and replaced in accordance with demands. After power failure, it shall be able to store data for over 10 years. 6.3.5 SAM card holder SAM card holder shall comply with the following requirements. ---At least have 4 SAM card holders; ---Physical interface shall comply with the stipulation in GB/T 16649.1 and GB/T 16649.2; ---Communication interface shall comply with the stipulation in GB/T 16649.3; ---At least support 2.7 V ~ 3.3 V of operating voltage; ---Able to automatically identify and support 9,600 bps ~ 115,200 bps of data communication; ---When there is short circuit between any two contacts, it shall not lead to damage of IC card reader-writer. 6.3.6 Power supply ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 35070.2-2018 be delivered?Answer: The full copy PDF of English version of GB/T 35070.2-2018 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 35070.2-2018_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 35070.2-2018_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 35070.2-2018 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 35070.2-2018?A step-by-step guide to download PDF of GB/T 35070.2-2018_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 35070.2-2018". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
