GB/T 33241-2016: Zinc-Aluminum Alloy Coated Section Steel Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 33241: Historical versions

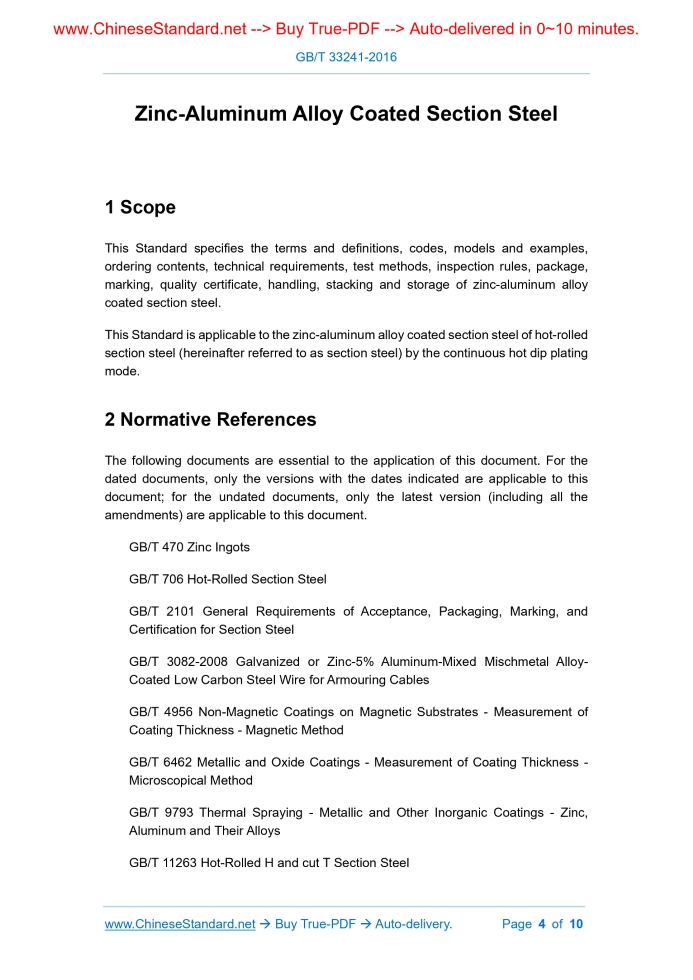

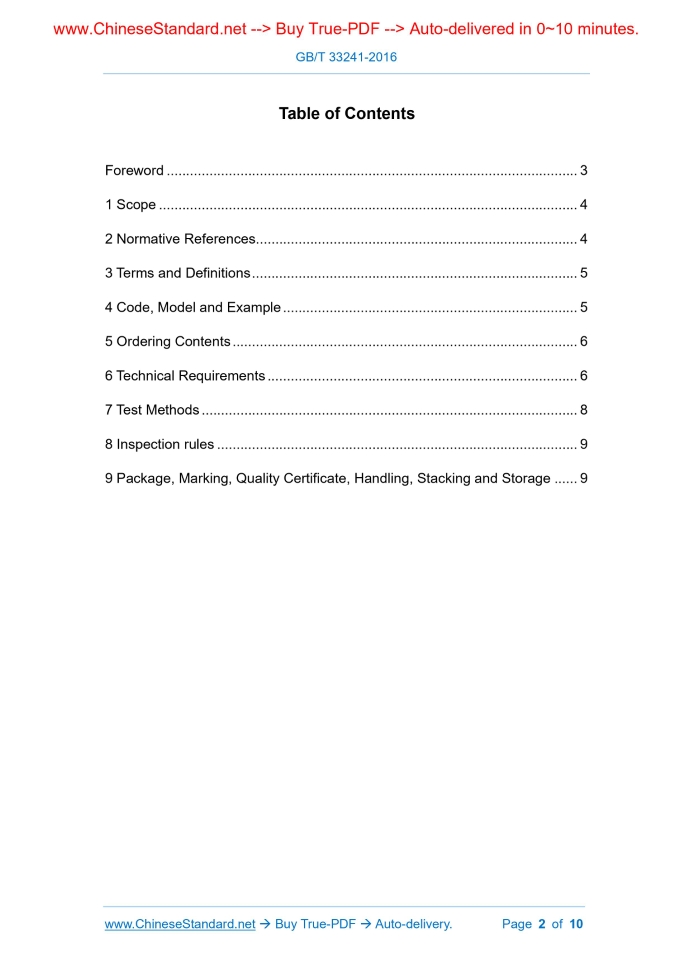

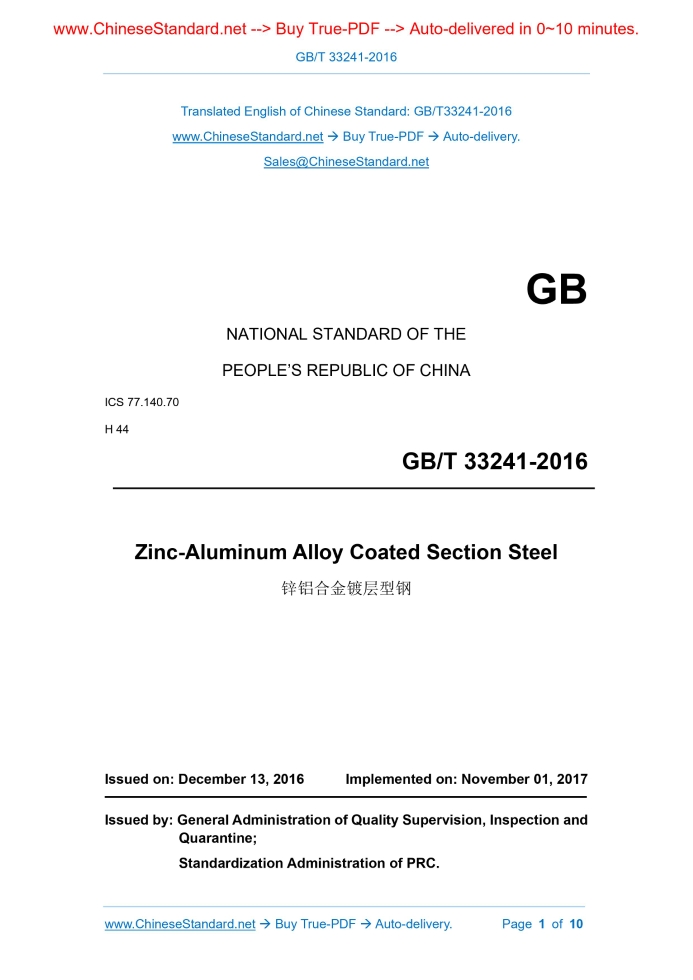

Similar standardsGB/T 33241-2016: Zinc-Aluminum Alloy Coated Section Steel---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT33241-2016NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 77.140.70 H 44 Zinc-Aluminum Alloy Coated Section Steel ISSUED ON: DECEMBER 13, 2016 IMPLEMENTED ON: NOVEMBER 01, 2017 Issued by: General Administration of Quality Supervision, Inspection and Quarantine; Standardization Administration of PRC. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative References ... 4 3 Terms and Definitions ... 5 4 Code, Model and Example ... 5 5 Ordering Contents ... 6 6 Technical Requirements ... 6 7 Test Methods ... 8 8 Inspection rules ... 9 9 Package, Marking, Quality Certificate, Handling, Stacking and Storage ... 9 Zinc-Aluminum Alloy Coated Section Steel1 ScopeThis Standard specifies the terms and definitions, codes, models and examples, ordering contents, technical requirements, test methods, inspection rules, package, marking, quality certificate, handling, stacking and storage of zinc-aluminum alloy coated section steel. This Standard is applicable to the zinc-aluminum alloy coated section steel of hot-rolled section steel (hereinafter referred to as section steel) by the continuous hot dip plating mode.2 Normative ReferencesThe following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this document. GB/T 470 Zinc Ingots GB/T 706 Hot-Rolled Section Steel GB/T 2101 General Requirements of Acceptance, Packaging, Marking, and Certification for Section Steel GB/T 3082-2008 Galvanized or Zinc-5% Aluminum-Mixed Mischmetal Alloy- Coated Low Carbon Steel Wire for Armouring Cables GB/T 4956 Non-Magnetic Coatings on Magnetic Substrates - Measurement of Coating Thickness - Magnetic Method GB/T 6462 Metallic and Oxide Coatings - Measurement of Coating Thickness - Microscopical Method GB/T 9793 Thermal Spraying - Metallic and Other Inorganic Coatings - Zinc, Aluminum and Their Alloys GB/T 11263 Hot-Rolled H and cut T Section Steel 4.3 Example The zinc-aluminum alloy coated H-shaped section steel with specification of 300mm×300mm×10mm×15mm shall be expressed as follows: ZAHM300×300×10×155 Ordering ContentsThe contract that orders products according to this Standard shall contain the following main contents: a) Product name; b) Standard number; c) Section steel specifications; d) Weight or quantity; e) Special requirements.6 Technical Requirements6.1 Materials 6.1.1 Base metal of section steel The base metal of section steel shall conform to the provisions of GB/T 706 or GB/T 11263, etc. 6.1.2 Zinc-aluminum alloy ingot The chemical composition of zinc-aluminum alloy ingot shall conform to the provisions of YS/T 310. 6.1.3 Zinc ingot The zinc ingot shall conform to the provisions of GB/T 470. 6.2 Coating 6.2.1 Appearance 6.2.1.1 The coating surface shall be smooth, and free of the following defects, such as peeling, uncoated area, zinc thorn, dripping and slagging. 7.2.2.3 Cross-section method It shall be performed as per the requirements of GB/T 6462. 7.2.3 Aluminum content in the coating It shall be inspected as per the provisions in Appendix A of GB/T 3082-2008. 7.2.4 Adhesion test As long as the adhesion between coating and substrate can meet the requirements of the part under normal use and general operating conditions; generally, it is not necessary to specifically test the bonding force between the coating and the substrate. If the purchaser has special requirements, the supplier and the purchaser can negotiate to determine the test methods of adhesion.8 Inspection rules8.1 Inspection and acceptance The inspection and acceptance of the section steel shall be carried out by the quality supervision department of the supplier. The purchaser reserves the right to check and accept any inspection items specified in this Standard or contract. 8.2 Batching rules The section steels shall be accepted in batches. Each batch consists of the section steels with the same furnace number, the same size, and same specification. Each batch is no more than 60t. 8.3 Sampling Locations and Sampling Quantities The sampling locations and sampling quantities of each batch of section steels shall conform to the provisions of Table 2. 8.4 Reinspection and judgment The reinspection and judgment of the section steel shall conform to the provisions of GB/T 2101. 8.5 Numerical rounding off The numerical rounding off shall conform to the provisions of YB/T 081.9 Package, Marking, Quality Certificate, Handling,......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. |
