GB/T 3301-2023 PDF EnglishUS$170.00 · In stock · Download in 9 seconds
GB/T 3301-2023: Test method for determination of specification allowance and size of defects of domestic ceramic ware Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 3301: Historical versions

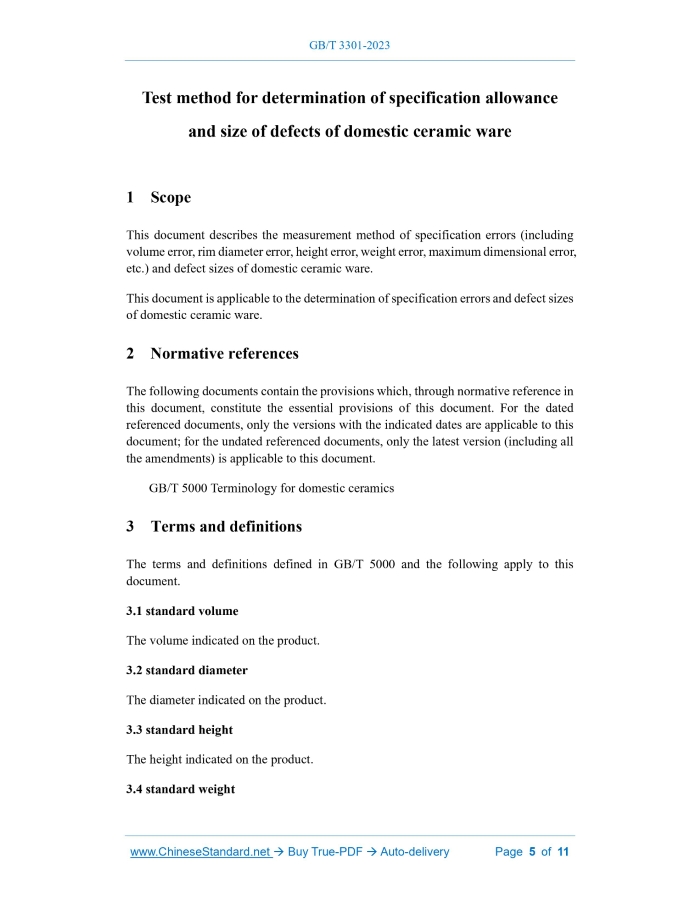

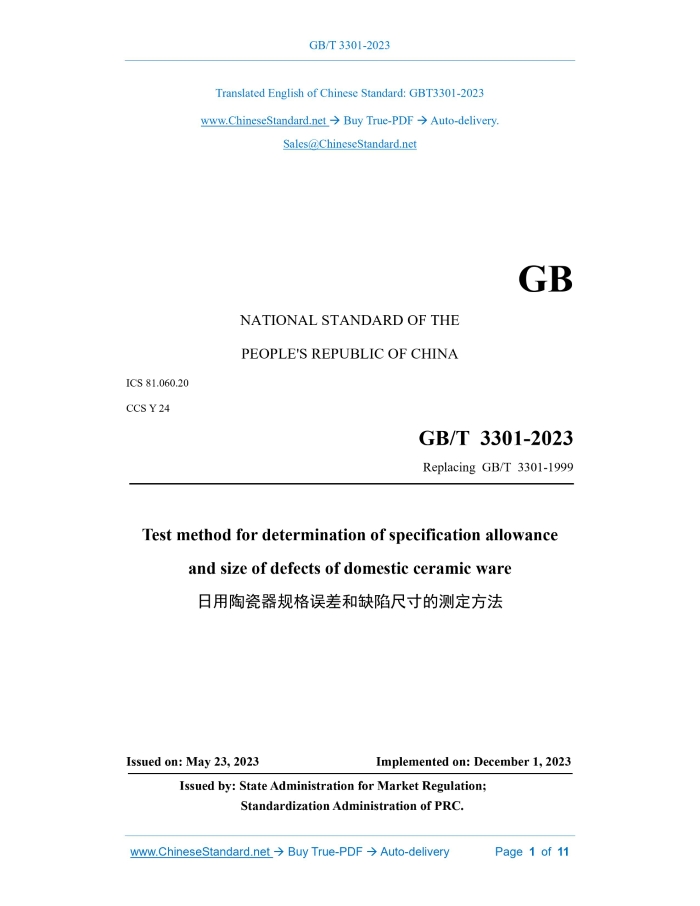

Similar standardsGB/T 3301-2023: Test method for determination of specification allowance and size of defects of domestic ceramic ware---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT3301-2023 GB NATIONAL STANDARD OF THE PEOPLE'S REPUBLIC OF CHINA ICS 81.060.20 CCS Y 24 Replacing GB/T 3301-1999 Test method for determination of specification allowance and size of defects of domestic ceramic ware ISSUED ON: MAY 23, 2023 IMPLEMENTED ON: DECEMBER 1, 2023 Issued by: State Administration for Market Regulation; Standardization Administration of PRC. Table of ContentsForeword ... 3 1 Scope ... 5 2 Normative references ... 5 3 Terms and definitions ... 5 4 Samples ... 6 5 Determination method of specification errors ... 6 6 Determination method of defect size ... 10 7 Test report ... 11 Test method for determination of specification allowance and size of defects of domestic ceramic ware1 ScopeThis document describes the measurement method of specification errors (including volume error, rim diameter error, height error, weight error, maximum dimensional error, etc.) and defect sizes of domestic ceramic ware. This document is applicable to the determination of specification errors and defect sizes of domestic ceramic ware.2 Normative referencesThe following documents contain the provisions which, through normative reference in this document, constitute the essential provisions of this document. For the dated referenced documents, only the versions with the indicated dates are applicable to this document; for the undated referenced documents, only the latest version (including all the amendments) is applicable to this document. GB/T 5000 Terminology for domestic ceramics3 Terms and definitionsThe terms and definitions defined in GB/T 5000 and the following apply to this document. 3.1 standard volume The volume indicated on the product. 3.2 standard diameter The diameter indicated on the product. 3.3 standard height The height indicated on the product. 3.4 standard weight The weight indicated on the product. 3.5 standard maximum size The maximum size indicated on the product.4 SamplesClean and undamaged domestic ceramic ware.5 Determination method of specification errors5.1 Determination of volume error 5.1.1 Instruments and equipment 5.1.1.1 Glass flat plate: The size shall be larger than the maximum size of the product being tested. The flatness is checked with a steel ruler, and there shall be no obvious gap between the glass flat plate and the steel ruler. 5.1.1.2 Measuring cylinder: The graduation values are 1 mL, 5 mL, and 10 mL respectively. 5.1.2 Test procedures Place the sample flat on a horizontal glass flat plate and fill it with water until the water surface reaches the specified height. For pots, lidded cups, lidded bowls, and lidded pots, the water surface shall reach the height at which the samples are filled with water but the water shall not overflow after the samples are covered with lids. For uncovered cups, uncovered bowls, uncovered pots, plates, and wine bottles, the samples are filled with water to the overflow surface. For cooking devices, the samples are filled the water to the edge of the lid. Use a measuring cylinder to measure the volume of injected water, which is the sample volume. For samples with a standard volume less than 250 mL, select a measuring cylinder with a graduation value of 1 mL; for samples with a standard volume of 250 mL~1000 mL, select a measuring cylinder with a graduation value of 5 mL; for samples with a standard volume greater than 1000 mL, select a measuring cylinder with a graduation value of 10 mL. 5.1.3 Test data processing The volume error is calculated according to formula (1), and the result is rounded to one decimal place. Ds -- standard diameter, the unit is millimeter (mm). 5.3 Determination of height error 5.3.1 Instruments and equipment 5.3.1.1 Steel ruler: The graduation values are 0.5 mm and 1.0 mm respectively. 5.3.1.2 Glass flat plate: The size shall be larger than the maximum size of the product being tested. The flatness is checked with a steel ruler, and there shall be no obvious gap between the glass flat plate and the steel ruler. 5.3.1.3 Vernier caliper: The graduation value is 0.1 mm. 5.3.2 Test procedures Place the sample flat on a horizontal glass flat plate, and use a steel ruler or vernier caliper to measure the distance from the bottom of the sample to the edge of the mouth (excluding the cover) to obtain the maximum height and minimum height of the sample. For samples with a standard height less than 30mm, select a vernier caliper; for samples with a standard height of 30 mm~100 mm, select a steel ruler with a graduation value of 0.5 mm; for samples with a standard height greater than 100 mm, select a steel ruler with a graduation value of 1.0 mm. 5.3.3 Test data processing The height error is calculated according to formula (3), and the result is rounded to one decimal place. where: Rh -- height error, %; Hmax -- maximum height, the unit is millimeter (mm); Hmin -- minimum height, the unit is millimeter (mm); Hs -- standard height, the unit is millimeter (mm). 5.4 Determination of weight error 5.4.1 Instruments and equipment 5.4.1.1 Drying oven: It can work at a temperature of 110 ℃±5 ℃. Microwave, infrared, with a standard maximum size greater than or equal to 200 mm, select a steel ruler with a graduation value of 1.0 mm. 5.5.3 Test data processing The maximum dimensional error is calculated according to formula (5), and the result is rounded to one decimal place. where: Rm -- maximum dimensional error, %; M -- the maximum size of the sample, the unit is millimeter (mm); Ms -- standard maximum size, the unit is millimeter (mm).6 Determination method of defect size6.1 Instruments and equipment 6.1.1 Steel ruler: The graduation value is 0.5 mm. 6.1.2 Vernier caliper: The graduation value is 0.1 mm. 6.1.3 Illuminance meter: The measuring range is not less than 1000 lx and the resolution is 1 lx. 6.2 Test procedures Use a steel ruler to measure various defects expressed in diameter, length or width, use a steel ruler to measure and calculate various defects expressed in area, and use a vernier caliper to measure various defects expressed in depth or height. For the identification of defects without specified size and amplitude, under the light intensity of 300 lx~500 lx, place the defective front of the sample at a visual distance of about 500 mm for visual identification. People who usually wear glasses can wear glasses. 6.3 Test data processing 6.3.1 For various defects expressed in diameter, such as ellipses or irregular shapes, the diameter shall be calculated according to formula (6), and the result shall be rounded to one decimal place. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 3301-2023 be delivered?Answer: The full copy PDF of English version of GB/T 3301-2023 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 3301-2023_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 3301-2023_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 3301-2023 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 3301-2023?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 3301-2023 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 3301-2023?A step-by-step guide to download PDF of GB/T 3301-2023_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 3301-2023". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
