GB/T 3246.2-2012: Inspection method for structure of wrought aluminum and aluminum alloy products -- Part 2: Inspection method for macrostructure Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 3246.2: Historical versions

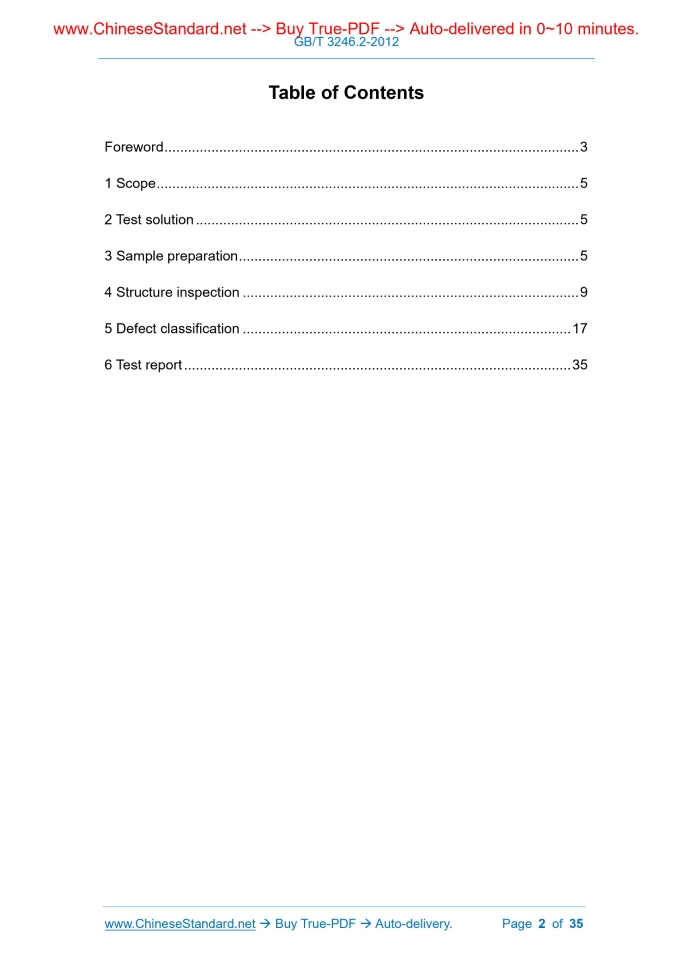

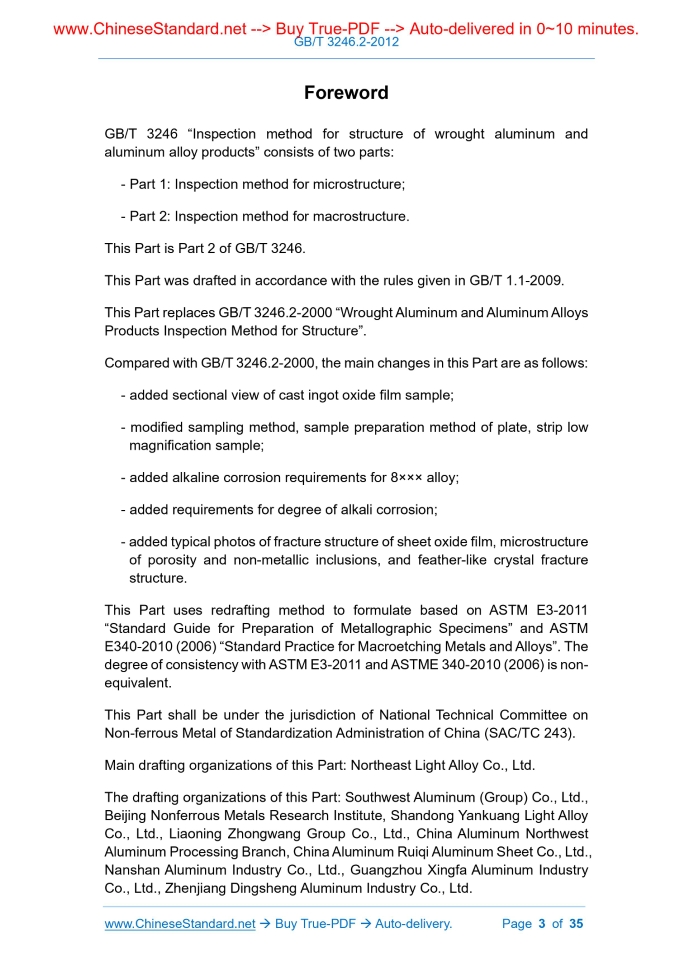

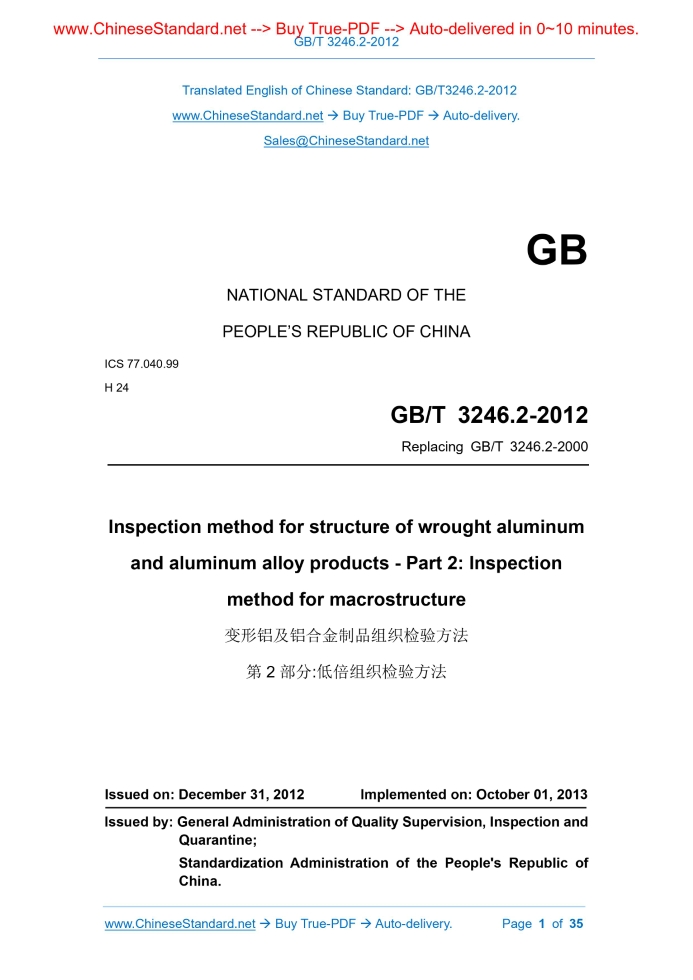

Similar standardsGB/T 3246.2-2012: Inspection method for structure of wrought aluminum and aluminum alloy products -- Part 2: Inspection method for macrostructure---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT3246.2-2012 GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 77.040.99 H 24 Replacing GB/T 3246.2-2000 Inspection method for structure of wrought aluminum and aluminum alloy products - Part 2.Inspection method for macrostructure Issued on. DECEMBER 31, 2012 Implemented on. OCTOBER 01, 2013 Issued by. General Administration of Quality Supervision, Inspection and Quarantine; Standardization Administration of the People's Republic of China. Table of ContentsForeword... 3 1 Scope... 5 2 Test solution... 5 3 Sample preparation... 5 4 Structure inspection... 9 5 Defect classification... 17 6 Test report... 351 ScopeThis Standard specifies test solution as well as sample preparation, structure inspection, defect classification and test report for macrostructure inspection of aluminum and aluminum alloy cast ingots (or ingot blank), deformed aluminum and aluminum alloy sheets, strips, foils, tubes, rods, shapes, wires, forgings (hereinafter referred to as processed products). This Part is applicable to macrostructure inspection of aluminum and aluminum alloy cast ingots (or ingot blank) and processed products.2 Test solution2.1 Extra strong mixed acid solution. mix hydrofluoric acid (ρ1.15g/mL), nitric acid (ρ1.40g/mL) and hydrochloric acid (ρ1.19g/mL) in the volume of (1+5+15), mix well. 2.2 Strong mixed acid solution. mix hydrofluoric acid (ρ1.15g/mL), nitric acid (ρ1.40g/mL) and hydrochloric acid (ρ1.19g/mL) and water in the volume of (1+5+15+42), mix well. 2.3 Sodium hydroxide solution (150g/L~250g/L). 2.4 High concentration mixed acid solution. mix hydrofluoric acid (ρ1.15g/mL), nitric acid (ρ1.40g/mL) and hydrochloric acid (ρ1.19g/mL) and water in the volume of (2+1+1+76), mix well. 2.5 Nitric acid solution (1+4) ~ nitric acid solution (1+3). 2.6 Sodium hydroxide solution (80g/L~120g/L).3 Sample preparation3.1 Sample blanks shall be taken in accordance with relevant standards or technical agreements and the requirements of Table 1. 3.2 Samples shall be taken from the sample blank as specified in Table 2. 3.3 For 1×××, 3×××, 5××× and 8××× series of samples for grain size inspection, the surface to be inspected shall be immersed in a strong mixed acid solution (2.1) or a strong mixed acid (2.2). Etch for the appropriate time at room temperature, or repeatedly wipe the test surface with an etchant. Immediately use water to rinse. It may repeat several times until the grain appears clear. 3.4 For 2×××, 4×××, 6××× and 7××× series of samples for grain size inspection, the surface to be inspected shall be immersed in sodium hydroxide solution (2.3) or high concentration mixed acid (2.4) or strong mixed acid (2.2). Etch for the appropriate time at room temperature, or repeatedly wipe the test surface with an etchant. Then immediately use water and nitric acid solution (2.5) to rinse until the grain appears clear. 3.5 The surface to be tested of other sample (except the sample for fracture tissue inspection) shall be immersed into the test solution specified in Table 3 for alkali etching. The alkali etching time (room temperature) shall refer to the provisions of Table 3.4 Structure inspection4.1 General rules Inspect according to the quality requirements specified in the relevant technical standards and technical agreements. And change the direction of light irradiation at any time, and observe each part in detail. If necessary, use a magnifying glass of 10 times or less, or analyze the microstructure or other means as appropriate. 4.2 Measurement of coarse crystal ring The coarse crystal ring with a simple shape shall take the maximum depth of the coarse ring as the measurement result. 4.3 Grain size inspection 4.3.1 It shall be assessed according to the specified grain size photo or physical comparison. Sample with equiaxed grains shall be evaluated according to the grain size grading standards of Figures 4 to 11. 4.3.3 The measured size of the grain is expressed by the average grain area (or diameter) or the number of grains per unit area. The measurement steps are as follows. 4.3.3.1 According to the size of the crystal grain, draw a square of 10mm × 10mm or 50mm × 50mm on the sample, or draw a circle with a diameter of 10mm or 50mm. 4.3.3.3 Select at least three measurements for each sample and then take the average. 4.3.3.4 When the grain size is very different, and the distribution is extremely uneven, the largest grain area shall be selected.5 Defect classification5.1 Porosity Porosity is a macroscopic or microscopic dispersive micropore produced in the grain boundary and dendritic network, as shown in Figure 17.After the defect is etched, a dense small pinhole is dispersed on the lateral low-magnification sample. It is boundary jagged, multi-angled, nearly jagged, dark in color, sharp- pitted pit at the bottom. The porosity microstructure is shown in Figure 18. 5.2 Non-metallic inclusion Non-metallic inclusion is slag mixed into the ingot or other non-metallic 5.3 Foreign metal inclusions and white spots The foreign metal inclusions are white spots that are formed during the casting process due to inadvertent operation, falling into other metals (strips, blocks or sheets) in the ingot, or due to the liquid flow impact of the alloy melt, causing the bottom aluminum to be rolled into the ingot. 5.6 Feather-like crystal Feather-like crystal, also known as lace-like structure, is preferred orientation of twins. Its low-magnification structure is composed of many parallel thin strips, similar to feathers, and the fracture tissue is in the form of a sheet, as shown in Figure 27 and 28. 5.7 Bright grain The bright crystal grains are bright in color on the lateral macrostructure test piece, non-selective to light, and have dendritic crystal structure, as shown in Figure 30.Its microstructure is characterized by coarse dendrites and thin networks. The hardness of the bright grains is lower than that of normal tissues, as shown in Figure 31. 5.8 Pore On a lateral macrostructure sample, the pore refers to a circular or elliptical hole whose inner wall is smooth without being etched. The distribution of pores in the ingot is irregular, often associated with porosity. After pressure processing, the pores can be deformed, but they cannot be pressed, as shown in Figure 32. 5.9 Cold partition The cold partition is due to the interruption or insufficient supply of the liquid during casting, and the molten metal near the groove wall cannot form a crystal whole, which is divided into two layers. The sample can be found without etching, as shown in Figure 33.The sample can be found without etching, as 5.10 Casting crack Casting cracks are cracking of the alloy during crystallization or after complete solidification. The former is hot cracking, the latter is cold cracking; most of which can be found without etching, as shown in Figure 34. 5.13 Layering 5.14 Squeeze crack Squeeze crack is a zigzag crack generated in the surface layer of the extruded product, generally appearing at the edge of the lateral macrostructure sample, showing a small arc-shaped crack. It is periodically cracked in the longitudinal direction, especially in the form of jagged, easy to find from the surface of the product. The light one is often hidden under the skin and can be found by macrostructure checking, as shown in Figure 40 and Figure 41. 5.15 Quenching crack The quenching crack is a network crack cracked along the grain boundary on the macrostructure sample of the quenched processed product, as shown in Figure 42.The light one is distributed in the coarse-grained area of the edge, and the heavy one can be extended to the central fine-grained area. 5.16 Coarse crystal ring The coarse crystal ring is a coarse recrystallized grain structure zone along the periphery of the extruded article after the quenching treatment. The single hole extrusion is annular, and the porous extrusion is crescent shaped, as shown in Figure 43.The distribution of coarse crystal rings in the longitudinal direction. gradually decreasing from the tail end to the head end. 5.18 Forging crack In the forging process, the cracking phenomenon caused by the tension is called forging crack. The area of the scattered hair crack that appears at the edge of the sample is called the edge crack, as shown in Figure 45a). The irregular holes appearing in the center of the sample are called center cracks, 5.19 Fold At the edge of the macrostructure sample of the molded forging, a smooth crease line extending obliquely from the outside to the inside and having a whisker at the end is called a fold, as shown in Figure 46.The fold usually occurs at the transitional arc position between the ribs of the die forging and the 5.20 Unsmooth flow pattern Unsmooth flow pattern means that when the metal is molded and deformed, the flow line reflecting the metal flow scene is not distributed according to the contour of the product. When the streamline is in the shape of a tree ring or a swirling current, it is called eddy current, and when the streamline runs through the section of the product, it is called eddy current, as shown in Figure 47 and Figure 48. 5.21 Gap The crack on the surface of the cast-rolled strip is partially parabolic and deep into the section. The crack is called a gap, as shown in Figure 49. 5.22 Vertical crack (vertical cracking) One or several straight cracks appear in the longitudinal direction of the surface of the cast strip, and a section of the crack can be seen to have a certain crack depth called a vertical crack, as shown in Figure 50.6 Test reportThe test report shall contain the following information. a) date of report; b) designation or chemical composition; c) status code; d) sample number; ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 3246.2-2012 be delivered?Answer: The full copy PDF of English version of GB/T 3246.2-2012 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 3246.2-2012_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 3246.2-2012_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 3246.2-2012 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 3246.2-2012?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 3246.2-2012 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 3246.2-2012?A step-by-step guide to download PDF of GB/T 3246.2-2012_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 3246.2-2012". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
