GB/T 32323-2015: Rolling bearings - Measuring methods for axial internal clearance of four-point-contact ball bearings Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

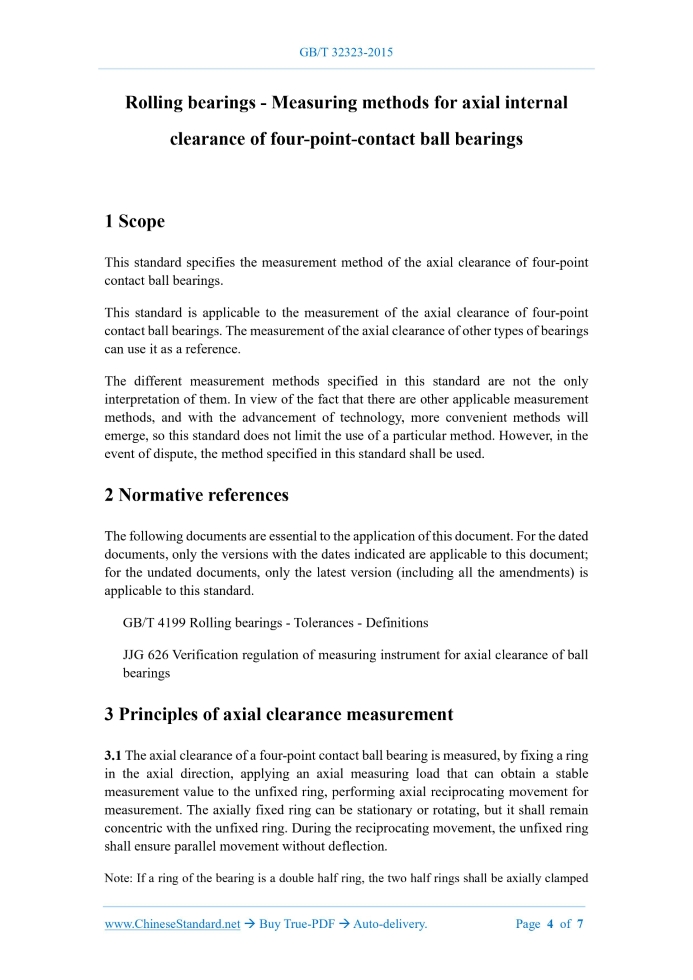

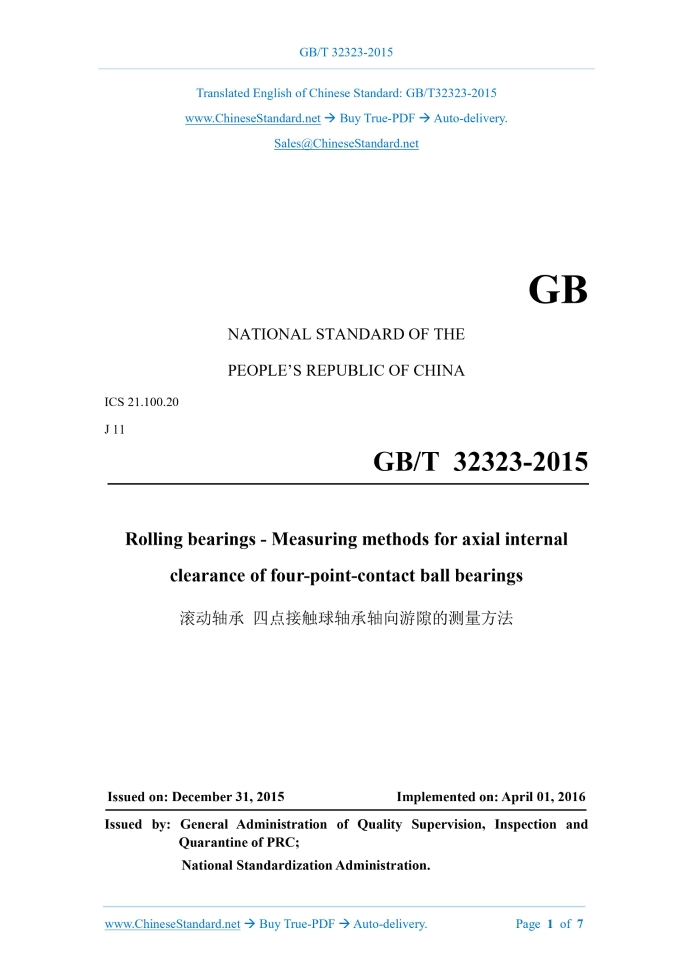

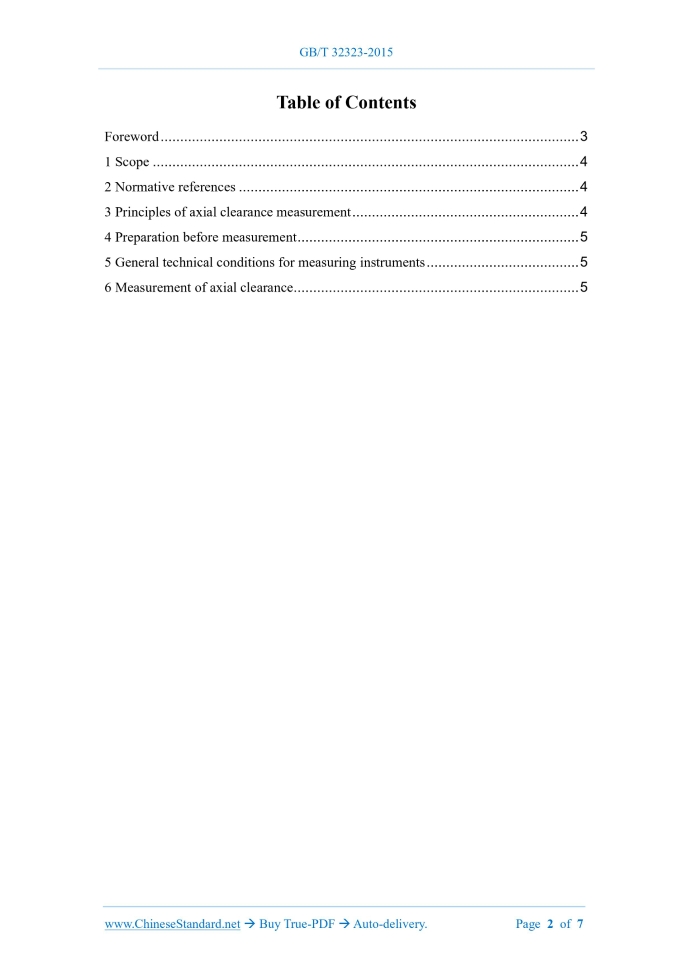

Similar standardsGB/T 32323-2015: Rolling bearings - Measuring methods for axial internal clearance of four-point-contact ball bearings---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT32323-2015 GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 21.100.20 J 11 Rolling bearings - Measuring methods for axial internal clearance of four-point-contact ball bearings Issued on: DECEMBER 31, 2015 Implemented on: APRIL 01, 2016 Issued by. General Administration of Quality Supervision, Inspection and Quarantine of PRC; National Standardization Administration. Table of ContentsForeword... 3 1 Scope... 4 2 Normative references... 4 3 Principles of axial clearance measurement... 4 4 Preparation before measurement... 5 5 General technical conditions for measuring instruments... 5 6 Measurement of axial clearance... 5 Rolling bearings - Measuring methods for axial internal clearance of four-point-contact ball bearings1 ScopeThis standard specifies the measurement method of the axial clearance of four-point contact ball bearings. This standard is applicable to the measurement of the axial clearance of four-point contact ball bearings. The measurement of the axial clearance of other types of bearings can use it as a reference. The different measurement methods specified in this standard are not the only interpretation of them. In view of the fact that there are other applicable measurement methods, and with the advancement of technology, more convenient methods will emerge, so this standard does not limit the use of a particular method. However, in the event of dispute, the method specified in this standard shall be used.2 Normative referencesThe following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) is applicable to this standard. GB/T 4199 Rolling bearings - Tolerances - Definitions JJG 626 Verification regulation of measuring instrument for axial clearance of ball bearings3 Principles of axial clearance measurement3.1 The axial clearance of a four-point contact ball bearing is measured, by fixing a ring in the axial direction, applying an axial measuring load that can obtain a stable measurement value to the unfixed ring, performing axial reciprocating movement for measurement. The axially fixed ring can be stationary or rotating, but it shall remain concentric with the unfixed ring. During the reciprocating movement, the unfixed ring shall ensure parallel movement without deflection. Note. If a ring of the bearing is a double half ring, the two half rings shall be axially clamped tightly during measurement, to achieve a state that can be regarded as one ring. 3.2 Read the movement of the non-fixed ring along the axial direction from one extreme position to another at each angular position (roughly evenly distributed, at least 3); the arithmetic mean value (minus the increase in axial clearance caused by the measuring load) is the measured value of the bearing axial clearance. If it is a dynamic measurement, the average value is automatically calculated; more than 50 points are sampled per cycle.4 Preparation before measurementBefore measurement, the grease and/or rust inhibitor adhering to the bearing that may affect the measurement results shall be removed; low-viscosity oil lubrication shall be used. For closed bearings, the measurement shall be made before closing. Note. After the measurement is completed, the bearing shall be immediately rust-proofed.5 General technical conditions for measuring instrumentsThe design and use conditions of the axial clearance measuring instrument shall comply with the definition of bearing axial clearance in GB/T 4199; the technical requirements shall comply with JJG 626 or other relevant provisions.6 Measurement of axial clearance6.1 Instrument measurement method This method is applicable to four-point contact ball bearings with d ≤ 260 mm. 6.1.1 Fix the outer ring (or inner ring) of the bearing in the axial direction. Keep it stationary or rotate in the circumferential direction (for dynamic measurement). Evenly and alternately apply the axial measurement load shown in Table 1 to the inner ring (or outer ring), so that the inner ring (or outer ring) of the bearing moves axially. The bearing clearance measurement value can be read from the indicator (see Figure 1 and Figure 2). Note. During dynamic measurement, the measured ring shall have a guide mechanism or deflection elimination mechanism during the reciprocating movement, to eliminate the error caused by the ring deflection. 6.1.2 Since the axial clearance specified for the bearing is the value under no-load state, the result of the load measurement shall indicate the measured load value; the measured ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 32323-2015 be delivered?Answer: The full copy PDF of English version of GB/T 32323-2015 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 32323-2015_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 32323-2015_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 32323-2015 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 32323-2015?A step-by-step guide to download PDF of GB/T 32323-2015_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 32323-2015". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
