GB/T 31525-2015 PDF EnglishUS$130.00 · In stock · Download in 9 seconds
GB/T 31525-2015: Graphical signs -- Electric vehicle charging and battery swapping infrastructure signs Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

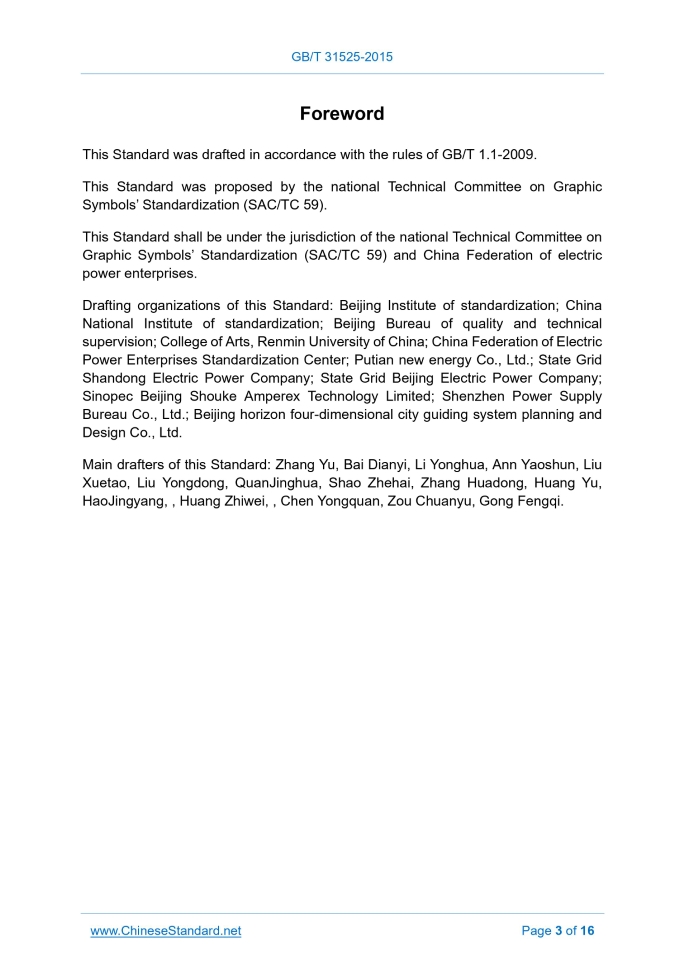

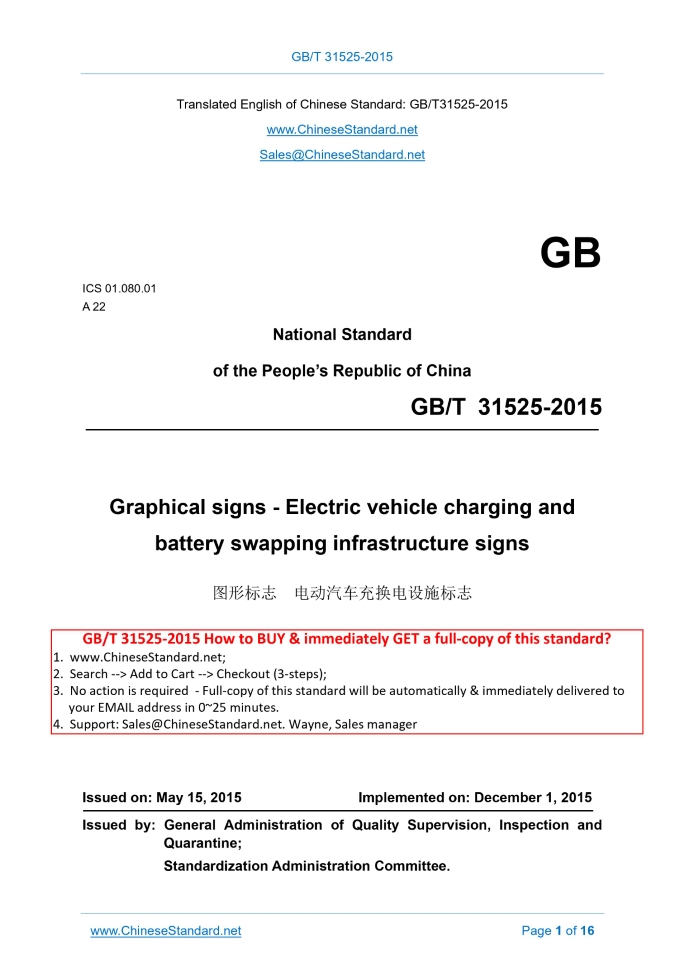

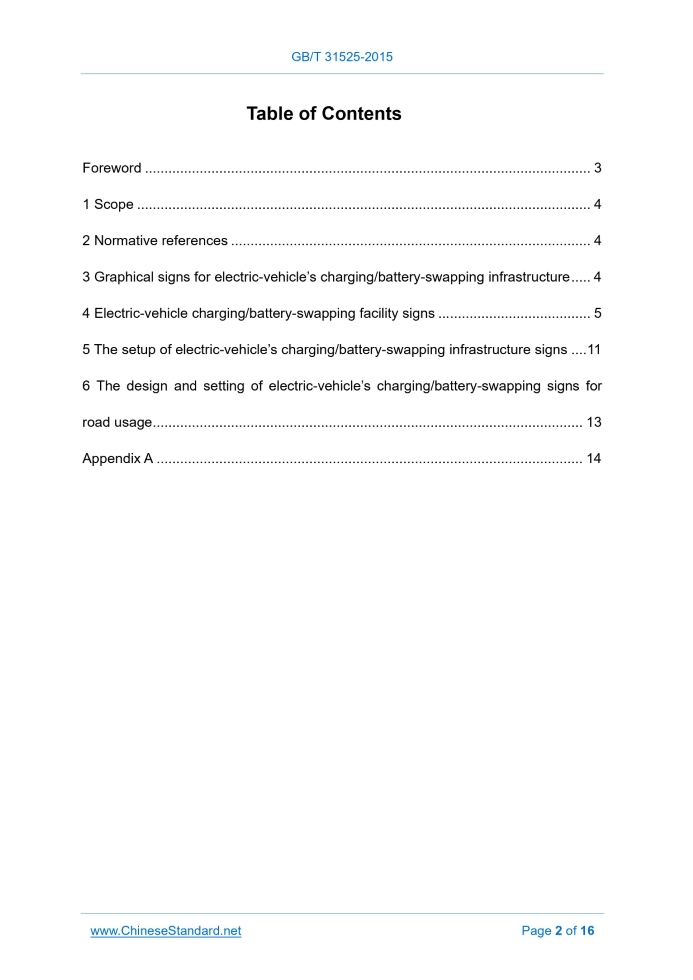

Similar standardsGB/T 31525-2015: Graphical signs -- Electric vehicle charging and battery swapping infrastructure signs---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT31525-2015 GB ICS 01.080.01 A 22 National Standard of the People’s Republic of China Graphical signs - Electric vehicle charging and battery swapping infrastructure signs Issued on: MAY 15, 2015 Implemented on: DECEMBER 1, 2015 Issued by. General Administration of Quality Supervision, Inspection and Quarantine; Standardization Administration Committee. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative references ... 4 3 Graphical signs for electric-vehicle’s charging/battery-swapping infrastructure ... 4 4 Electric-vehicle charging/battery-swapping facility signs ... 5 5 The setup of electric-vehicle’s charging/battery-swapping infrastructure signs ... 11 6 The design and setting of electric-vehicle’s charging/battery-swapping signs for road usage ... 13 Appendix A ... 14ForewordThis Standard was drafted in accordance with the rules of GB/T 1.1-2009. This Standard was proposed by the national Technical Committee on Graphic Symbols’ Standardization (SAC/TC 59). This Standard shall be under the jurisdiction of the national Technical Committee on Graphic Symbols’ Standardization (SAC/TC 59) and China Federation of electric power enterprises. Drafting organizations of this Standard. Beijing Institute of standardization; China National Institute of standardization; Beijing Bureau of quality and technical supervision; College of Arts, Renmin University of China; China Federation of Electric Power Enterprises Standardization Center; Putian new energy Co., Ltd.; State Grid Shandong Electric Power Company; State Grid Beijing Electric Power Company; Sinopec Beijing Shouke Amperex Technology Limited; Shenzhen Power Supply Bureau Co., Ltd.; Beijing horizon four-dimensional city guiding system planning and Design Co., Ltd. Main drafters of this Standard. Zhang Yu, Bai Dianyi, Li Yonghua, Ann Yaoshun, Liu Xuetao, Liu Yongdong, QuanJinghua, Shao Zhehai, Zhang Huadong, Huang Yu, HaoJingyang, , Huang Zhiwei, , Chen Yongquan, Zou Chuanyu, Gong Fengqi. Graphical signs - Electric vehicle charging and battery swapping infrastructure signs1 ScopeThis Standard specifies the requirements for electric-vehicles’ charging and battery- swapping infrastructure symbols and signs, as well as their setting requirements. This Standard is applicable to electric-vehicle’s charging/battery-swapping station, battery replacement station, parking lots with electric-vehicles’ charging/battery- swapping infrastructure, transport depot, nearby roads and other public places. Specifically, it is applicable to the design of location signs, guidance signs, the information edition, the schematic diagram and other orientation elements in public information orientation system.2 Normative referencesThe following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this Standard. GB/T 2893.1 Graphical symbols - Safety colors and safety signs - Part 1. Design principles for safety signs and safety markings GB 5768.2 Road traffic signs and markings - Part 2. Road traffic signs GB/T 15566.1 Guidance system for public information - Setting principles and requirements - Part 1. General principles3 Graphical signs for electric-vehicle’s charging/battery-swapping infrastructure See Table 1 for electric-vehicle’s charging/battery-swapping infrastructure signs. Table 1 Electric-vehicle’s Charging/Battery-swapping Infrastructure Signs S/N Graphical Symbol Meaning Explanation Charging/Battery- swap Infrastructure It refers to places to provide charging services for electric-vehicles, such as. charging/battery-swapping stations, charging stations, or battery-replacement stations. It can also denote functionality for charging/battery-swapping on the road. It is used in charging/battery-swapping stations, charging stations, or battery-replacement stations, etc. 2 DC Charging It refers to places or facilities to provide DC charging services for electric-vehicles, such as. DC charging stations, DC charging areas, DC charging piles, etc. It can also denote functionality for DC charging. Generally it is not for road usage. 3 AC Charging It refers to places or facilities to provide AC charging services for electric-vehicles, such as. AC charging stations, AC charging areas, AC charging piles, etc. It can also denote functionality for AC charging. Generally it is not for road usage. 4 Battery-swapping It refers to places to provide battery-swapping services for electric-vehicles, such as. battery-swapping stations, or battery-swapping areas. It can also denote functionality for battery-swapping. Generally it is not for road usage.4 Electric-vehicle charging/battery-swapping facility signs4.1 Sign color and format 4.1.1 General requirements 4.1.1.1 The color and format of the signs for electric-vehicles’ charging/battery- swapping facilities shall be in accordance with the color and size of the facilities, and environmental characteristics of the site. 4.1.1.2 The format of the sign shall be selected from Figure 1 ~ 6. The color shall be those from Figure 1 ~6. Among which the color code for blue shall be CMYK. C100 M52 Y0 K0, PANTONE. 2935PC; and that for black shall be C0 M0 Y0 K100, PANTONE. Pro.BlackPC. The color of the graphic symbols and text shall be in enough contrast with the background color of base-material. The base-material’s background color of the sign shall not be the safety color - red or yellow as specified in GB/T 2893.1. Note1. The CMYK color mode is a printing mode. The four letters refer to Cyan, Magenta, Yellow, Black, representing four colors of printing ink. Note 2. PANTONE color matching system, is a universal international standard language of color. Note 3. The base-material’s background color usually refers to the natural color of the sign plates, such as copper plates, stainless steel plates, acrylic plates. When the sign is sprayed on the charging pile or other objects, the base-material’s background color refers to the natural color of charging pile or other objects 4.1.1.3 The graphic sign for “Charging/Battery-swapping Infrastructure” in Table 1 Number 1 can be an independent mark without the text. But the color shall be consistent with the provisions of 4.1.1.2. 4.1.2 DC charging signs 4.1.2.1 The horizontal-plate DC charging signs See Figure 1 for the color and layout of horizontal-plate DC charging signs. a) Type A - white background, white graph, blue text b) Type B - blue background, blue graph, white text c) Type C – base-material’s background, black graph, black text (or base-material’s background, white graph, white text) Figure 1 Color and Layout of Horizontal-plate DC Charging Signs 4.1.2.2 Vertical-plate DC charging signs See Figure 2 for the color and layout of vertical-plate DC charging signs. Figure 2 Color and Layout of Vertical-plate DC Charging Signs 4.1.3 AC charging signs 4.1.3.1 The horizontal-plate of DC charging signs See Figure 3 for the color and layout of horizontal-plate DC charging signs. a) Type A - white background, white graph, blue text b) Type B - blue background, blue graph, white text c) Type C - base-material’s background, black graph, black text (or base-material’s background, white graph, white text) a) Type A - white background, white graph, blue text b) Type B - blue background, blue graph, white text C) Type C - base-material’s background, black graph, black text (or base-material’s background, white graph, white text) Figure 3 Color and Layout of Horizontal-plate AC Charging Signs 4.1.3.2 The layout of Vertical-plate AC charging signs Figure 4 Vertical-plate AC Charging Signs a) Type A - white background, white graph, blue text b) Type B - blue background, blue graph, white text c) Type C - base-material’s background, black graph, black text (or base-material’s background, white graph, white text) 4.1.4 Battery-swapping signs 4.1.4.1 The horizontal-plate battery-swapping signs See Figure 5 for horizontal-plate battery-swapping signs Type A - white background, white graph, blue text Type B - blue background, blue graph, white text Type C - base-material’s background, black graph, black text (or base-material’s background, white graph, white text) Figure 5 Horizontal-plate AC Charging Signs 4.1.4.2 The vertical-plate battery-swapping signs See Figure 5 for vertical-plate battery-swapping signs. Figure 6 Vertical-plate Battery-swapping Signs 4.2 Size of Sign 4.2.1 General requirements 4.2.1.1 The minimum size of the electric-vehicle’s Charging/Battery-swapping Infrastructure sign shall be determined according to the observation distance (D) of the sign. 4.2.1.2 After the observation distance is determined, the corresponding size of sign (h, w) shall be selected from Table 2. 4.2.1.3 In application, signs in Figure 1 ~ 6 shall be amplified in proportion. 4.2.2 Size series 4.2.1.1 See Table 2 for size series of electric-vehicle’s Charging/Battery-swapping Infra... ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 31525-2015 be delivered?Answer: The full copy PDF of English version of GB/T 31525-2015 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 31525-2015_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 31525-2015_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 31525-2015 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 31525-2015?A step-by-step guide to download PDF of GB/T 31525-2015_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 31525-2015". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
