GB/T 31480-2015: Materials for high vacuum multilayer insulation of cryogenic vessel Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

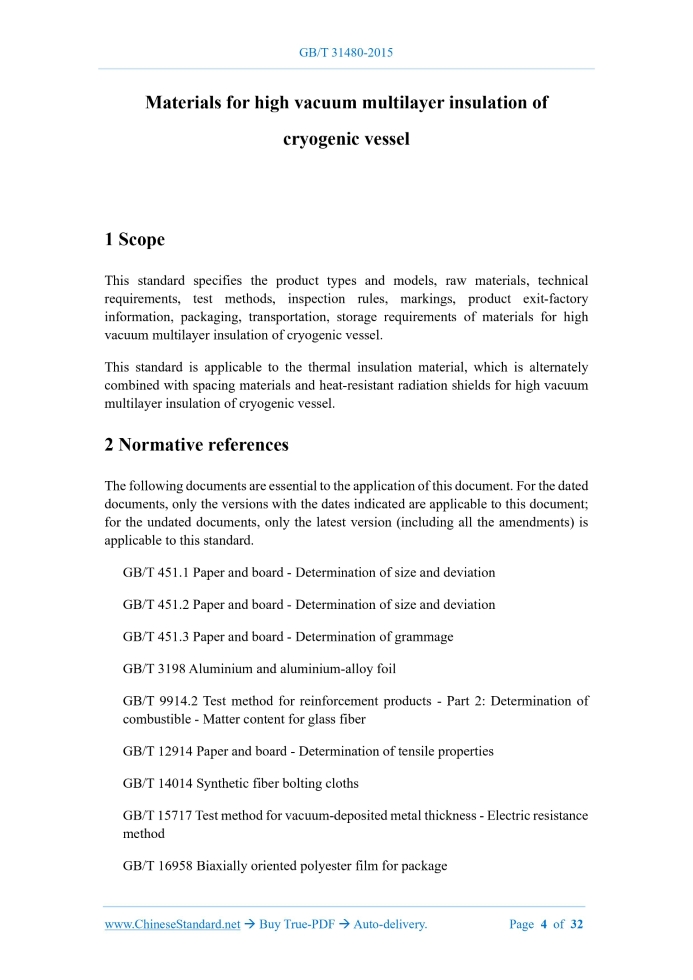

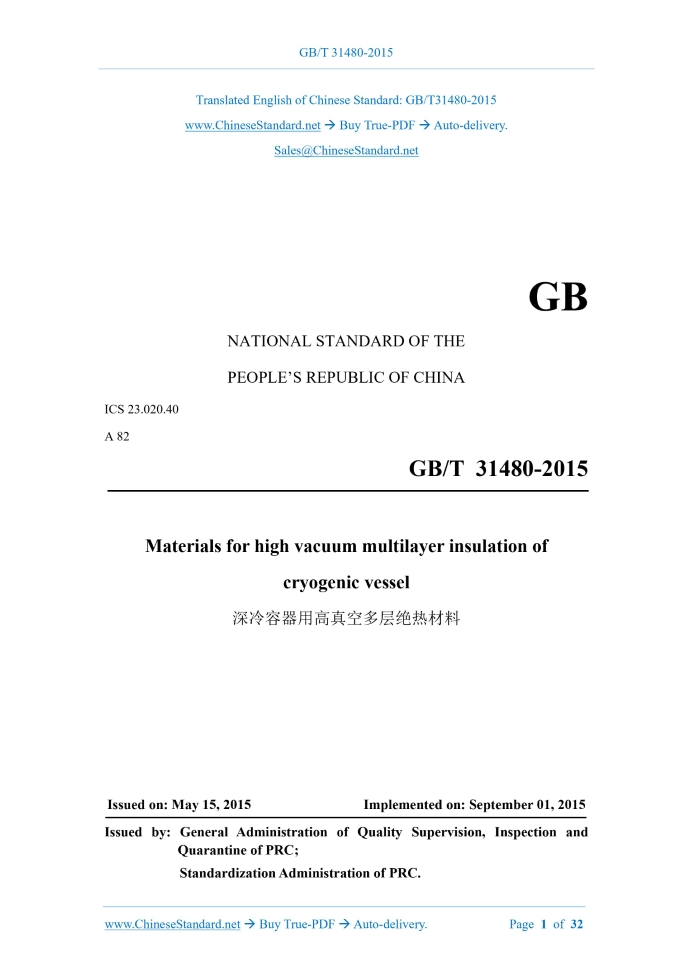

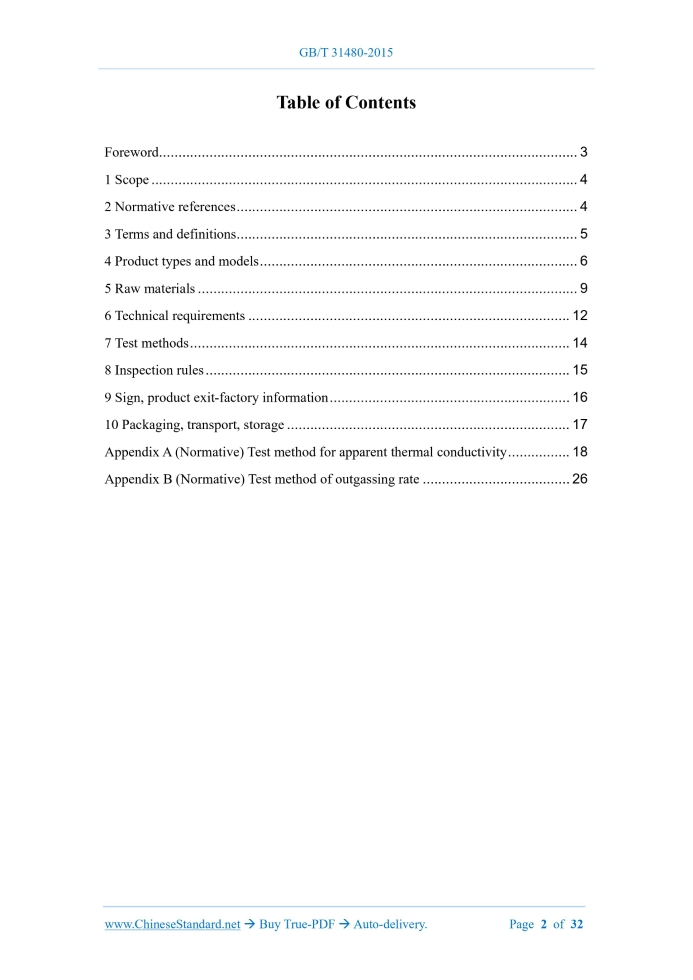

Similar standardsGB/T 31480-2015: Materials for high vacuum multilayer insulation of cryogenic vessel---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT31480-2015NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 23.020.40 A 82 Materials for high vacuum multilayer insulation of cryogenic vessel Issued on. MAY 15, 2015 Implemented on. SEPTEMBER 01, 2015 Issued by. General Administration of Quality Supervision, Inspection and Quarantine of PRC; Standardization Administration of PRC. Table of ContentsForeword... 3 1 Scope... 4 2 Normative references... 4 3 Terms and definitions... 5 4 Product types and models... 6 5 Raw materials... 9 6 Technical requirements... 12 7 Test methods... 14 8 Inspection rules... 15 9 Sign, product exit-factory information... 16 10 Packaging, transport, storage... 17 Appendix A (Normative) Test method for apparent thermal conductivity... 18 Appendix B (Normative) Test method of outgassing rate... 261 ScopeThis standard specifies the product types and models, raw materials, technical requirements, test methods, inspection rules, markings, product exit-factory information, packaging, transportation, storage requirements of materials for high vacuum multilayer insulation of cryogenic vessel. This standard is applicable to the thermal insulation material, which is alternately combined with spacing materials and heat-resistant radiation shields for high vacuum multilayer insulation of cryogenic vessel.2 Normative referencesThe following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) is applicable to this standard. GB/T 451.1 Paper and board - Determination of size and deviation GB/T 451.2 Paper and board - Determination of size and deviation GB/T 451.3 Paper and board - Determination of grammage GB/T 3198 Aluminium and aluminium-alloy foil GB/T 9914.2 Test method for reinforcement products - Part 2.Determination of combustible - Matter content for glass fiber GB/T 12914 Paper and board - Determination of tensile properties GB/T 14014 Synthetic fiber bolting cloths GB/T 15717 Test method for vacuum-deposited metal thickness - Electric resistance method3 Terms and definitionsThe following terms and definitions apply to this document. 3.1 High vacuum multilayer insulation In the high vacuum multilayer insulation space of cryogenic vessel, the thermal insulation method, which is formed by the alternate combination of spacing materials and heat-resistant radiation shields. 3.2 Heat-resistant radiation shield Metal foil, which has high reflectivity, OR film, which has metal plating. 3.3 Spacing material The thermal-insulating material, which is used between heat-resistant radiation shields, to prevent direct contact between two adjacent heat-resistant radiation shields. 3.4 Apparent thermal conductivity Under specified test conditions, the heat transferred per unit time, through a multilayer insulation unit thickness of insulating material. 3.5 Outgassing rate Under the specified test conditions, the amount of gas released per unit mass of material, per unit time.4 Product types and models4.1 Multilayer insulation unit 4.1.1 Structure A typical structure of the multilayer insulation unit is as shown in Figure 1. Legends. 4.2 Multilayer insulation rolls 4.2.1 Product structure A typical structure of a multilayer insulation roll is as shown in Figure 2. Legends. 4.3 Multilayer insulation blanket 4.3.1 Product structure The typical structure of the multilayer insulation blanket is as shown in Figure 4. 4.3.2 Models of multilayer insulation blanket and examples The model of the multilayer insulation blanket is according to the requirements in Figure 5.5 Raw materials5.1 General requirements 5.1.1 The raw materials shall comply with the relevant standards; the product 5.1.2 According to the operating conditions of the cryogenic vessel, the compatibility with oxygen shall be considered, when selecting raw materials. 5.1.3 The technological properties of raw materials shall be able to meet the requirements of construction, baking temperature resistance, vacuuming of cryogenic vessels. 5.1.4 When there are special requirements, the supplier and the buyer can negotiate separately. 5.2 Spacing material 5.2.1 Types of spacing materials and their compatibility with oxygen 5.2.3 Glass fiber cloth 5.2.3.1 The glass fiber cloth shall meet the requirements of JC/T 170. 5.2.3.2 The thickness shall be tested, according to the method of GB/T 451.3, which should be 0.05 mm ~ 0.25 mm. 5.2.3.3 The longitudinal tensile strength shall be tested, according to the method of GB/T 12914, which should not be less than 0.06 kN/m. 5.2.3.4 It needs to be degreased and dewaxed; the content of combustibles shall be tested, according to the method of GB/T 9914.2, which shall not exceed 0.2% (mass fraction). 5.2.4 Chemical fiber paper 5.3 Heat-resistant radiation shield 5.3.1 Types of heat-resistant radiation shields and their compatibility with oxygen 5.3.1.1 Typical types of heat-resistant radiation shields include aluminum foil, aluminized polyester film, etc. 5.3.1.2 The compatibility of the heat-resistant radiation shield with oxygen shall be evaluated, according to 4.2 of GB/T 31481-2015. 5.3.2 Aluminum foil 5.3.3 Aluminized polyester film 5.3.3.1 Aluminized polyester film shall comply with the requirements of BB/T 0030- 2004.The surface shall have a continuous, bright luster, without oil traces; the edges shall be smooth and flat. Looking at the light source, there shall be no obvious scratches, holes, impurities, or aluminized layer falling off. 5.3.3.2 The base material of aluminized polyester film shall comply with the provisions of GB/T 16958; the thickness should be 0.005 mm ~ 0.025 mm.6 Technical requirements6.1 Manufacturing environment requirements 6.1.1 The whole manufacturing process shall be carried out in a clean environment. 6.2 Manufacturing requirements for multilayer insulation units 6.2.1 The heat-resistant radiation shield can be provided with ventilation holes. 6.2.2 The spacing material and the heat-resistant radiation shield layer shall not be fixed by chemical adhesives, such as adhesives and tapes. 6.2.3 The surface of the multilayer insulation unit shall be clean; there shall be no oil stains, sweat stains, fingerprints, or other stains. 6.2.6 Apparent thermal conductivity Take a representative sample of the multilayer insulation unit for testing. The apparent thermal conductivity shall not be greater than 1.35 × 10-4 W/(m·K). 6.2.7 Outgassing rate Take a representative sample of the multilayer insulation unit for testing. The outgassing rate shall not exceed 8 × 10-7 Pa·m3/(s·g). 6.3 Manufacturing requirements for products 6.3.1 General requirements 6.3.2 Manufacturing requirements for multilayer insulation rolls 6.3.2.1 Aluminum foil tape should be used for the joint of spacing material or heat- resistant radiation shield. It shall not use organic substrate tape. The interlayer joints shall be staggered. 6.3.3 Manufacturing requirements for multilayer insulation blankets 6.3.3.1 Fixing measures shall be taken between the multilayer insulation units; the fixings shall be clean and evenly distributed. 6.3.3.2 Chemical adhesives, such as adhesives and tapes, shall not be used for fixing.7 Test methods7.1 Appearance quality The appearance quality shall be visually inspected as required. The surface cleanliness shall meet the requirements of 6.3.1.1. 7.2 Indentation of the heat-resistant radiation shield The indentation of the heat-resistant radiation shield shall be tested, according to the method of GB/T 451.1, which is expressed as the distance between the edge of the heat- resistant radiation shield and the edge of the spacing material. It shall comply with the provisions of 6.2.4. 7.3 Width deviation The width deviation shall be tested, according to the method of GB/T 451.1, which shall comply with the provisions of 6.2.5. 7.4 Width misalignment The width misalignment shall be tested, according to the method of GB/T 451.1, expressed as the misalignment of the same side edge of the spacing material of 2 multilayer insulation units, which shall comply with the provisions of 6.3.1.2. 7.5 Apparent thermal conductivity The apparent thermal conductivity shall be tested, according to the method specified in Appendix A, which shall meet the requirements of 6.2.6. 7.6 Outgassing rate The outgassing rate shall be tested, according to the method specified in Appendix B, which shall meet the requirements of 6.2.7. 7.8 Compatibility test 7.8.1 The platinum wire combustion test of representative specimen and oxygen shall be tested, according to the relevant methods in GB/T 31481-2015.8 Inspection rules8.1 Inspection classification The inspection is divided into multilayer insulation unit inspection, product inspection, performance test. The inspection items are as shown in Table 3. 8.2 Inspection of multilayer insulation unit The inspection of multilayer insulation unit is a piece-by-piece inspection; the items are as specified in Table 3. 8.3 Product inspection The product inspection is a piece-by-piece inspection; the items are as specified in Table 3. 8.4 Performance test If it is one of the following situations, the performance test shall be carried out. The test items shall be in accordance with the provisions of Table 3.9 Sign, product exit-factory information9.1 Sign 9.1.1 Sign content The product sign shall at least include the following. 9.1.2 Sign position The product sign shall be indicated on the outer packaging. 9.2 Product exit-factory information 9.2.1 The product exit-factory information shall at least include the certificate of conformity and quality certification documents. 9.2.2 The product certificate shall at least include the following contents. 9.2.3 The quality certificate shall at least include the following contents. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 31480-2015 be delivered?Answer: The full copy PDF of English version of GB/T 31480-2015 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 31480-2015_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 31480-2015_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 31480-2015 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 31480-2015?A step-by-step guide to download PDF of GB/T 31480-2015_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 31480-2015". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
