GB/T 31389-2015: Technical Requirements and Evaluation Methods of Solar Reflective Materials for Exterior Walls and Roofs Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

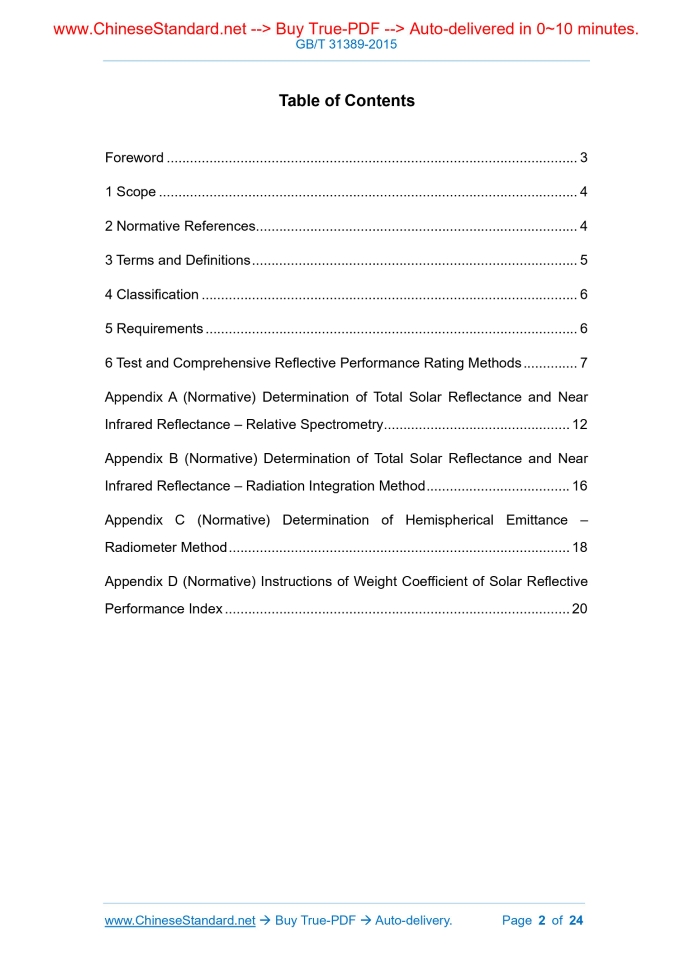

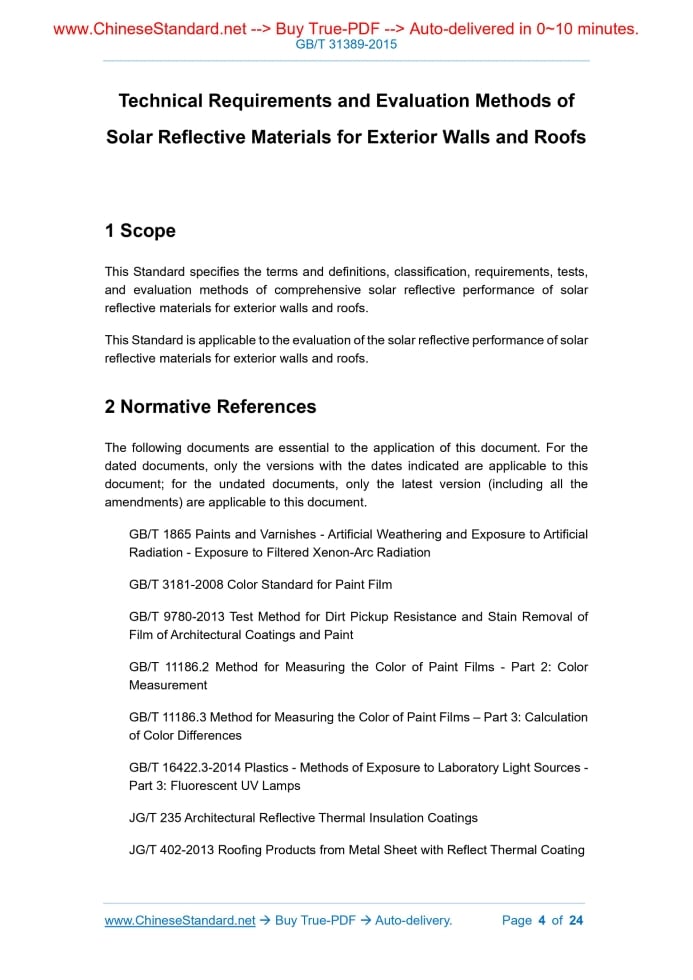

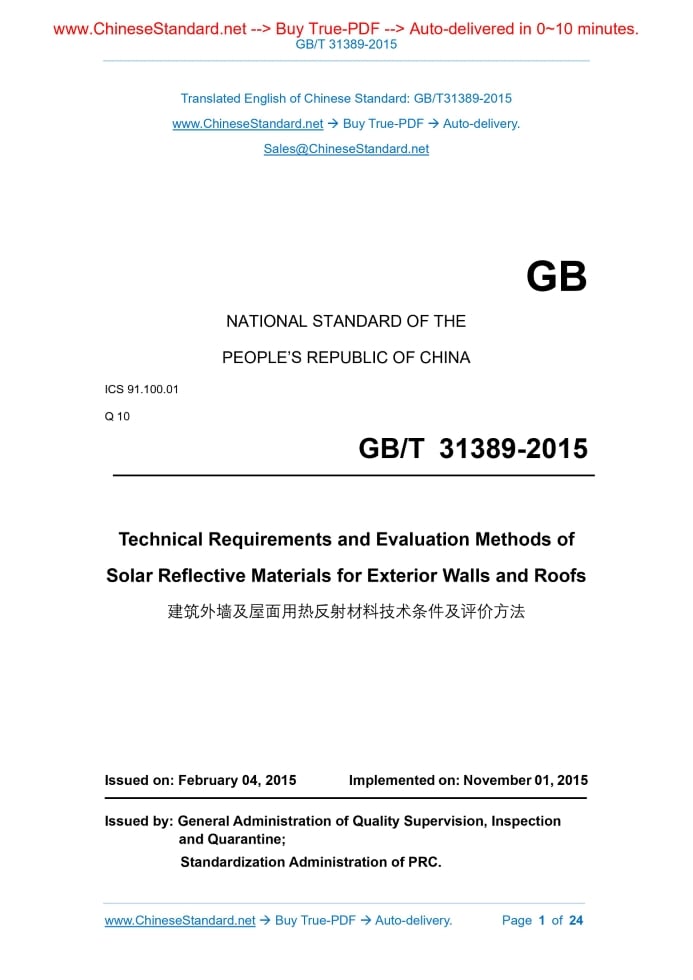

Similar standardsGB/T 31389-2015: Technical Requirements and Evaluation Methods of Solar Reflective Materials for Exterior Walls and Roofs---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT31389-2015 NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 91.100.01 Q 10 Technical Requirements and Evaluation Methods of Solar Reflective Materials for Exterior Walls and Roofs ISSUED ON: FEBRUARY 04, 2015 IMPLEMENTED ON: NOVEMBER 01, 2015 Issued by: General Administration of Quality Supervision, Inspection and Quarantine; Standardization Administration of PRC. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative References ... 4 3 Terms and Definitions ... 5 4 Classification ... 6 5 Requirements ... 6 6 Test and Comprehensive Reflective Performance Rating Methods ... 7 Appendix A (Normative) Determination of Total Solar Reflectance and Near Infrared Reflectance – Relative Spectrometry ... 12 Appendix B (Normative) Determination of Total Solar Reflectance and Near Infrared Reflectance – Radiation Integration Method ... 16 Appendix C (Normative) Determination of Hemispherical Emittance – Radiometer Method ... 18 Appendix D (Normative) Instructions of Weight Coefficient of Solar Reflective Performance Index ... 20 Technical Requirements and Evaluation Methods of Solar Reflective Materials for Exterior Walls and Roofs1 ScopeThis Standard specifies the terms and definitions, classification, requirements, tests, and evaluation methods of comprehensive solar reflective performance of solar reflective materials for exterior walls and roofs. This Standard is applicable to the evaluation of the solar reflective performance of solar reflective materials for exterior walls and roofs.2 Normative ReferencesThe following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this document. GB/T 1865 Paints and Varnishes - Artificial Weathering and Exposure to Artificial Radiation - Exposure to Filtered Xenon-Arc Radiation GB/T 3181-2008 Color Standard for Paint Film GB/T 9780-2013 Test Method for Dirt Pickup Resistance and Stain Removal of Film of Architectural Coatings and Paint GB/T 11186.2 Method for Measuring the Color of Paint Films - Part 2: Color Measurement GB/T 11186.3 Method for Measuring the Color of Paint Films – Part 3: Calculation of Color Differences GB/T 16422.3-2014 Plastics - Methods of Exposure to Laboratory Light Sources - Part 3: Fluorescent UV Lamps JG/T 235 Architectural Reflective Thermal Insulation Coatings JG/T 402-2013 Roofing Products from Metal Sheet with Reflect Thermal Coating3 Terms and DefinitionsFor the purpose of this document, the following terms and definitions apply. 3.1 Solar reflective materials for exterior walls and roofs Materials that are applied to the exterior wall and roof, and have a high total solar reflectance, near infrared reflectance and hemispheric emittance. 3.2 Solar reflective coating for buildings Paint that is applied to the surface of building with higher total solar reflectance, near infrared reflectance and hemispherical emittance. 3.3 Solar reflective metal sheet for roofs The metal sheets with surface coated with a solar-reflective coating for building roofs. 3.4 Lightness The visual perception characteristic value that indicates the brightness of the surface color of the object; gives division on the basis of absolute white and absolute black; and is expressed by L*. (one of the three attributes of color). [GB/T 3181-2008, definition 3.14] 3.5 Total solar reflectance The ratio of solar radiation flux BEWTEEN the visible light and near-infrared band reflection in 300nm ~ 2500nm AND the incident in the same band. 3.6 Near infrared reflectance The ratio of solar radiation flux BEWTEEN near-infrared band reflection in 780nm~2500nm AND the incident in the same band. 3.7 Hemispherical emittance The ratio of the radiant exitance BETWEEN the thermal radiator in the direction of the hemisphere AND the full radiator (black body) at the same temperature. 3.8 Thermal insulation temperature difference Under the specified test conditions, the difference of the surface temperature facing away from the heat source between the heat insulation test plate and the standard blackboard. 3.9 Comprehensive reflective performance rating The L* value is measured according to the provisions of GB/T 11186.2; the total solar reflectance and near infrared reflectance are measured according to the provisions of Appendix A or Appendix B. Refer to Appendix A for arbitration inspection. 6.1.2.3 Hemispherical emittance It shall be carried out according to the provisions of Appendix C. 6.1.2.4 Change rate of total solar reflectance after contamination Test the initial solar reflectance according to the provisions of 6.1.2.2; then carry out the contamination treatment according to the method A specified in GB/T 9780-2013; and then test the total solar reflectance after contamination according to the provisions of 6.1.2.2. For coatings that require ultraviolet light irradiation, the test panels that have expired shall be irradiated for 4h by ultraviolet light before contamination treatment (UV light irradiation is carried out according to the provisions of the GB/T 16422.3-2014 standard, exposure method A, cycle number 1, The light source adopts UV-A340 lamp). The result is calculated according to Formula (1): Where: c1 – change rate of total solar reflectance after contamination, in %; ρ0 – initial solar reflectance; ρ1 – total solar reflectance after contamination. 6.1.2.5 Artificial weathering aging Test the initial solar reflectance according to the provisions of 6.1.2.2; and then conduct the artificial weathering aging test according to the provisions of GB/T1865. According to the type of coating and the corresponding product standards, the artificial weathering aging time shall meet the requirements of Table 4.Appendix A(Normative) Determination of Total Solar Reflectance and Near Infrared Reflectance – Relative Spectrometry A.1 Principle Use an ultraviolet spectrophotometer with an integrating sphere, a visible light spectrophotometer, a near-infrared spectrophotometer, or a spectrometer to accurately measure the reflectance of materials at different wavelengths. According to the relative energy distribution of sunlight in the wavelength range of heat rays, calculate the total solar reflectance and near infrared reflectance of materials within a certain wavelength range through the weighted average method. A.2 Testing device A.2.1 Spectrophotometer or spectrometer The wavelength range is 300nm~2500nm or above; the minimum wavelength interval is 5nm; the wavelength accuracy is no less than 1.6nm; and the photometric measurement accuracy is ±1%. A.2.2 Integrating sphere The inner diameter is no less than 60mm, and the inner wall shall be highly-reflective material. A.2.3 Standard whiteboard Pressed barium sulfate or Teflon plate is used for baseline calibration. A.3 Preparation of test plate Solar reflective coating for buildings shall be conducted in accordance with the provisions of 6.1.2.1; and solar reflective metal sheet for roofs shall be conducted in accordance with the provisions of 6.1.3.1. A.4 Test process A.4.1 Preheat to a stable state after booting. A.4.2 Set the instrument parameters and use the instrument configured standard whiteboard for baseline calibration.Appendix B(Normative) Determination of Total Solar Reflectance and Near Infrared Reflectance – Radiation Integration Method B.1 Principle Use a number of detectors with different wavebands to measure the radiation reflection with an incident angle of 20°. Through the detector-configured filter device, obtain the electronic induction consistent with the specific wavelength band of the sunlight spectrum; and get the total solar reflectance and the near infrared reflectance after being processed by the reading module. B.2 Testing device B.2.1 Portable reflectance tester B.2.1.1 Measuring head It is composed of tungsten halogen lamp, filter and detector with multiple different wave bands. The tungsten halogen lamp is used as a radiation source for irradiation. The filter is used to adjust the radiation reflection to adapt to a specific wave band. And the detector is used to sense the radiation reflection of different wave bands. B.2.1.2 Reading module The reading module is connected to the measuring head and is used to process the signal of the measuring head, the digital output signal of the reflectance, and display the input parameters or calibration information. The digital display resolution of the reading module is 0.001. B.2.2 Calibration device It contains black cavity and standard plate; black cavity is used for zero adjustment of the instrument; and standard plate is used for instrument calibration. B.3 Preparation of test plate Solar reflective coating for buildings shall be conducted in accordance with the provisions of 6.1.2.1; and solar reflective metal sheet for roofs shall be conducted in accordance with the provisions of 6.1.3.1. B.4 Test processAppendix C(Normative) Determination of Hemispherical Emittance – Radiometer Method C.1 Principle Heat the thermopile in the detector to cause a temperature difference between the detector and the test plate. The temperature difference has a linear relationship with the emittance of the test plate. By comparing the temperature difference between the high-emittance standard plate, the low-emittance standard plate and the test plate surface, obtain the emittance of the test plate. C.2 Testing device C.2.1 Portable radiometer C.2.1.1 Differential thermopile radiant energy detector It consists of a controllable heater, a high-emittance probe element and a low- emittance probe element. The controllable heater ensures that the detector temperature is higher than the test plate temperature or the standard plate temperature. The emittance probe element can produce an output voltage proportional to the temperature difference. Detector repeatability is ±0.01. C.2.1.2 Reading module The reading module is connected to a differential thermopile radiant energy detector and is used to process the output signal of the thermopile. The digital display resolution of the reading module is 0.01. C.2.2 Heat sink The heat sink platform is used to place the test plate and the standard plate. The heat sink shall have good thermal conductivity to ensure that the temperature of the test plate and the standard plate is stable and consistent. C.2.3 Standard plate It is composed of low-emittance polished stainless-steel standard plate and high- emittance black standard plate. C.3 Preparation of test plate Solar reflective coating for buildings shall be conducted in accordance with the provisions of 6.1.2.1; and solar reflective metal sheet for roofs shall be conducted inAppendix D(Normative) Instructions of Weight Coefficient of Solar Reflective Performance Index D.1 Overview This appendix gives instructions of the process of determining the weight coefficient of the solar reflective performance index by the Analytic Hierarchy Process (AHP). D.2 Principle The overall evaluation objective of comprehensive solar reflective performance is decomposed into different component factors; and is divided into a criterion layer and an index layer according to the interrelationship and subordination of each factor; and form a three-level analysis structure model. Give judgment to the relative importance of the factors in the criterion layer and indicator layer; write the judgment matrix by the 1~9 scale method. Through calculating the maximum feature root of the judgment matrix and its corresponding feature vector to calculate the relative importance weights of factors in criterion layer against the target layer, as well as index layer against the criterion layer. Weighting and synthesizing by the weights of the factors in the criterion layer and the index layer to obtain the relative importance weights of the index layer factors against the comprehensive solar reflective performance, that is, the weight coefficient. D.3 Determination process of weight coefficient D.3.1 Solar reflective coating for buildings D.3.1.1 Establish analysis structural model The analysis structural model of comprehensive solar reflective performance rating is shown in Figure D.1. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 31389-2015 be delivered?Answer: The full copy PDF of English version of GB/T 31389-2015 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 31389-2015_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 31389-2015_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 31389-2015 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 31389-2015?A step-by-step guide to download PDF of GB/T 31389-2015_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 31389-2015". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
