GB/T 31125-2014 PDF EnglishUS$160.00 · In stock · Download in 9 seconds
GB/T 31125-2014: Test method of adhesive tapes - Loop tack Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

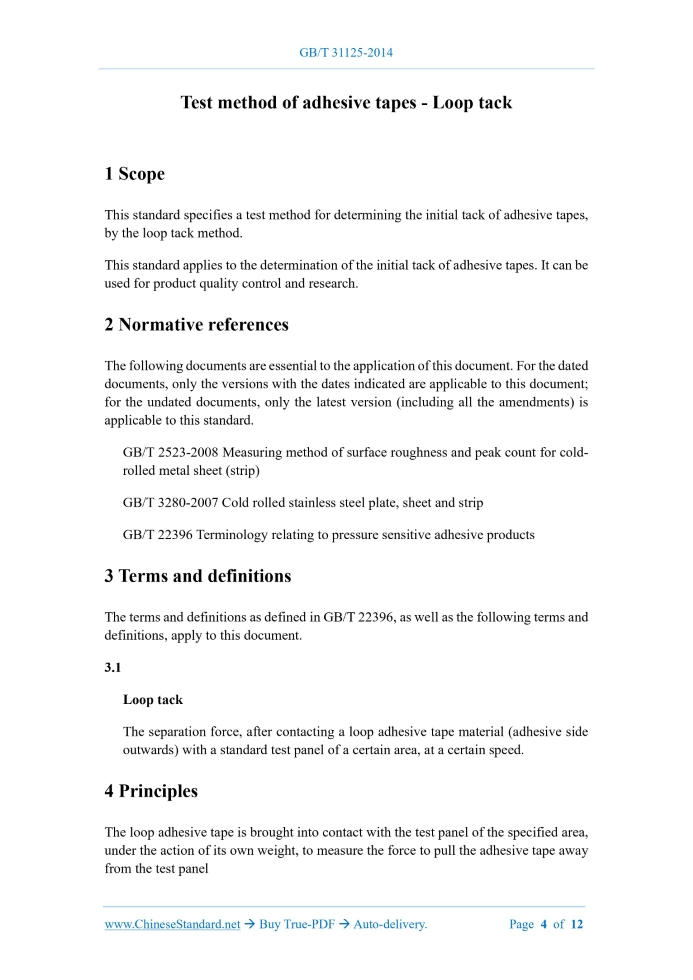

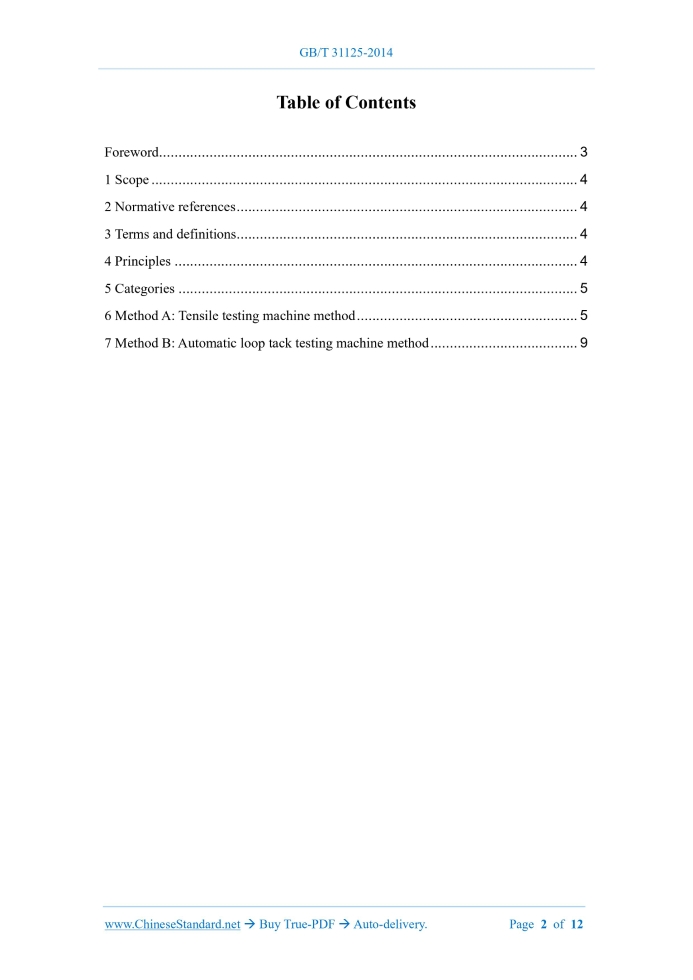

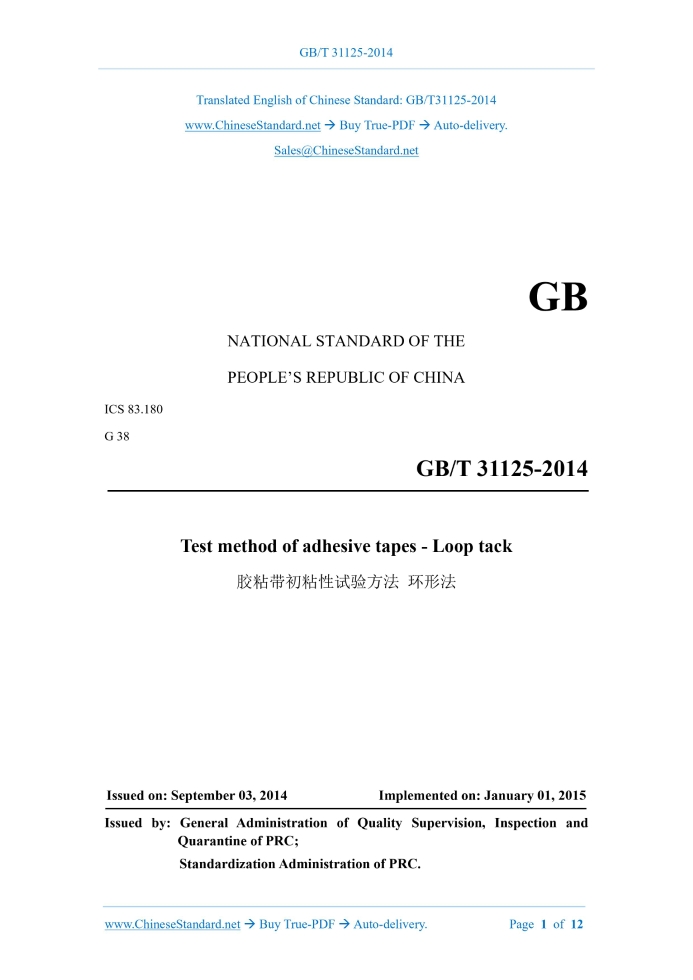

Similar standardsGB/T 31125-2014: Test method of adhesive tapes - Loop tack---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT31125-2014NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 83.180 G 38 Test method of adhesive tapes - Loop tack ISSUED ON: SEPTEMBER 03, 2014 IMPLEMENTED ON: JANUARY 01, 2015 Issued by: General Administration of Quality Supervision, Inspection and Quarantine of PRC; Standardization Administration of PRC. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative references ... 4 3 Terms and definitions... 4 4 Principles ... 4 5 Categories ... 5 6 Method A: Tensile testing machine method ... 5 7 Method B: Automatic loop tack testing machine method ... 9 Test method of adhesive tapes - Loop tack1 ScopeThis standard specifies a test method for determining the initial tack of adhesive tapes, by the loop tack method. This standard applies to the determination of the initial tack of adhesive tapes. It can be used for product quality control and research.2 Normative referencesThe following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) is applicable to this standard. GB/T 2523-2008 Measuring method of surface roughness and peak count for cold- rolled metal sheet (strip) GB/T 3280-2007 Cold rolled stainless steel plate, sheet and strip GB/T 22396 Terminology relating to pressure sensitive adhesive products3 Terms and definitionsThe terms and definitions as defined in GB/T 22396, as well as the following terms and definitions, apply to this document. 3.1 Loop tack The separation force, after contacting a loop adhesive tape material (adhesive side outwards) with a standard test panel of a certain area, at a certain speed.4 PrinciplesThe loop adhesive tape is brought into contact with the test panel of the specified area, under the action of its own weight, to measure the force to pull the adhesive tape away from the test panel 6.3.1 Specimen ring 6.3.1.1 Size of specimen ring: Width 24 mm, circumference 175 mm. 6.3.1.2 Number of specimen rings: At least 3. 6.3.1.3 If the test sample is an unsupported adhesive tape, it is necessary to transfer the sample to a 0.05 mm PET film, to make a specimen ring. The PET film is used here as the support carrier, for the unsupported adhesive tape. 6.3.2 Test panel 6.3.2.1 The thickness of the stainless steel test panel is 1.5 mm ~ 2.0 mm; the width is 24 mm; the length is 100 mm. 6.3.2.2 The material of the stainless steel test panel is the 0Cr18Ni9 or 1Cr18Ni9Ti test panel, which is specified in GB/T 3280-2007. The surface roughness (GB/T 2523-2008) is (50 ± 25) nm. When there is permanent contamination or scars on the surface of the test panel, replace it in time. 6.3.2.3 If PVC, ABS, PE, glass materials are used for the test panel, the material and surface conditions shall be stated in the test report. 6.3.2.4 The stainless steel test panel, which is fixed by the fixture, shall be able to accommodate the bonding area of 24 mm × 24 mm. 6.3.3 Cleaning agents and wiping materials 6.3.3.1 Cleaning agent One or more of the following solvents: - Diacetone alcohol (4-hydroxy-4-methyl-2-pentanone); - Isopropyl alcohol; - Methanol; - Methyl ethyl ketone; - Acetone; - N-heptanone; - Mixture off n-heptane and a fluorinated hydrocarbon (e.g.: refrigerant) (applicable under conditions of toxicity or flammability restrictions). Solvents are of common chemical grade AND placed in suitable containers. 6.4.8 The failure modes of the bonding between the specimen ring and the test panel are divided into three cases: interface failure, cohesive failure, transfer failure. 6.4.9 After the test is completed, use reagents, to clean the stainless steel test panel in the test fixture. Use dust-free cloth to cover the stainless steel test panel, to prevent the surface from being scratched. 6.5 Test results From the adhesive tape sample, collect the data from at least three specimen rings. The initial viscosity shall be expressed as the average value of the maximum tensile force of the specimen rings, in the unit of N. 6.6 Test report The test report contains the following items: a) Test methods; b) Information of adhesive tape sample; c) Reagents and cleaning methods used for cleaning stainless steel sheets; d) Dwelling time of sample; e) Type and thickness of adhesive tape, unit: mm; f) Support material for the adhesive tape; g) Release paper used for adhesive tape; h) Dwelling time during the test of the specimen ring; i) Average value of tensile force, unit: N; j) Visual failure mode; k) Non-standard test conditions.7 Method B: Automatic loop tack testing machine method7.1 Test devices Figure 5 is a schematic diagram of an automatic loop tack performance testing machine. 7.4.2 Turn on the power switch. 7.4.3 Confirm that the upper gripper is at the topmost position. 7.4.4 Loosen the fixing screw. Then remove the stainless steel test panel. 7.4.5 Put the cleaned stainless steel test panel back into the test fixture. Tighten the fixing screws. 7.4.6 Peel off the release paper, which covers the specimen. 7.4.7 Turn the specimen completely over, taking care not to crease it. Bend the specimen into a teardrop-shaped annular specimen ring, which has a perimeter of 98 mm. The adhesive side faces outside, as shown in Figure 6. 7.4.8 Use a 13 mm wide adhesive tape, to fasten the ends of the specimen ring together. 7.4.9 Insert the specimen ring into the upper gripper, to ensure that the specimen ring is in the proper position, to form the upper assembly. 7.4.10 Zero the dynamometer, according to the manufacturer's instructions. 7.4.11 Long press the "Inching" button, to make the upper assembly start to move downwards. The upper assembly stops automatically, after completing a complete cycle. At this point, the dynamometer returns to its initial position. 7.4.12 A complete cycle begins with the upper assembly moving down; the specimen ring contacts with the test panel, to form a bond. Then, the assembly is moved upward, at a speed of 300 mm/min ± 10 mm/min. The dynamometer records the tensile force, which is required to pull the specimen ring away from the test panel. At the end of a ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 31125-2014 be delivered?Answer: The full copy PDF of English version of GB/T 31125-2014 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 31125-2014_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 31125-2014_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 31125-2014 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 31125-2014?A step-by-step guide to download PDF of GB/T 31125-2014_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 31125-2014". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
