GB/T 29459.1-2012 PDF English

US$130.00 · In stock · Download in 9 seconds
GB/T 29459.1-2012: Small punch test methods of metallic materials for in-service pressure equipment - Part 1: General requirements
Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure
Status: Valid
Standard IDUSDBUY PDFDeliveryStandard Title (Description)Status
GB/T 29459.1-2012130 Add to Cart Auto, 9 seconds. Small punch test methods of metallic materials for in-service pressure equipment - Part 1: General requirements Valid

Similar standards

GB/T 24523   GB/T 31930   GB/T 29459.2   GB/T 45597

GB/T 29459.1-2012: Small punch test methods of metallic materials for in-service pressure equipment - Part 1: General requirements


---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT29459.1-2012

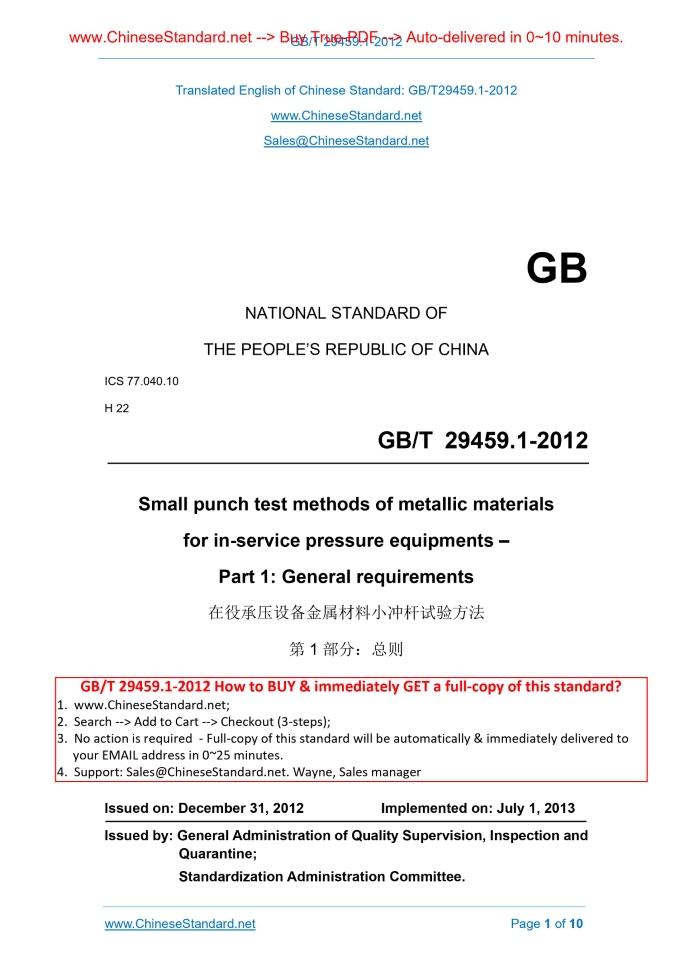

GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 77.040.10 H 22 Small punch test methods of metallic materials for in-service pressure equipments – Part 1. General requirements Issued on: DECEMBER 31, 2012 Implemented on: JULY 1, 2013 Issued by. General Administration of Quality Supervision, Inspection and Quarantine; Standardization Administration Committee.

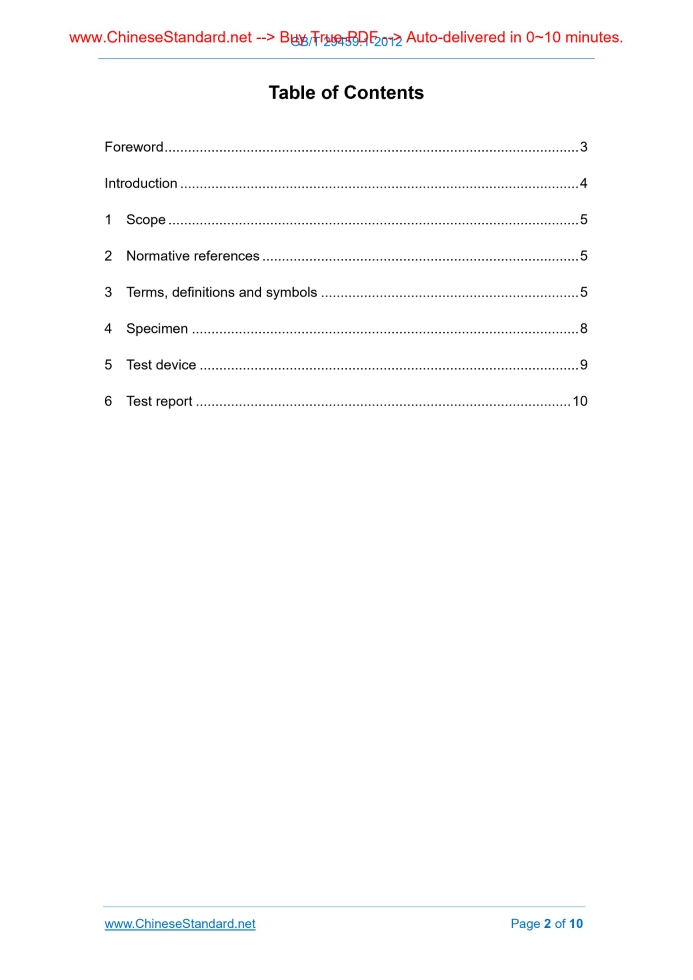

Table of Contents

Foreword ... 3 Introduction ... 4 1 Scope ... 5 2 Normative references ... 5 3 Terms, definitions and symbols ... 5 4 Specimen ... 8 5 Test device ... 9 6 Test report ... 10

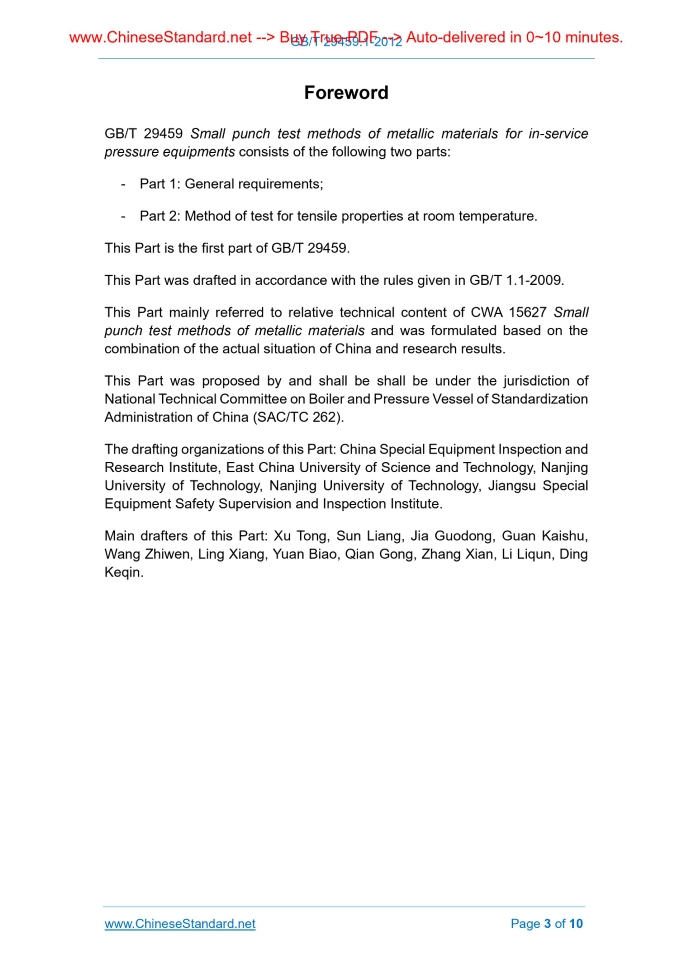

Foreword

GB/T 29459 Small punch test methods of metallic materials for in-service pressure equipments consists of the following two parts. - Part 1. General requirements; - Part 2. Method of test for tensile properties at room temperature. This Part is the first part of GB/T 29459. This Part was drafted in accordance with the rules given in GB/T 1.1-2009. This Part mainly referred to relative technical content of CWA 15627 Small punch test methods of metallic materials and was formulated based on the combination of the actual situation of China and research results. This Part was proposed by and shall be shall be under the jurisdiction of National Technical Committee on Boiler and Pressure Vessel of Standardization Administration of China (SAC/TC 262). The drafting organizations of this Part. China Special Equipment Inspection and Research Institute, East China University of Science and Technology, Nanjing University of Technology, Nanjing University of Technology, Jiangsu Special Equipment Safety Supervision and Inspection Institute. Main drafters of this Part. Xu Tong, Sun Liang, Jia Guodong, Guan Kaishu, Wang Zhiwen, Ling Xiang, Yuan Biao, Qian Gong, Zhang Xian, Li Liqun, Ding Keqin. Small punch test methods of metallic materials for in-service pressure equipments – Part 1. General requirements

1 Scope

This Part of GB/T 29459 specifies general requirements for small punch test methods of metallic materials for in-service pressure equipment. This Part is applicable to metallic materials for pressure equipment.

2 Normative references

The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. GB/T 16825.1-2008, Verification of static uniaxial testing machines - Part 1. Tension/compression testing machines - Verification and calibration of the force-measuring system

3 Terms, definitions and symbols

3.1 Terms and definitions The following terms and definitions apply to this document. 3.1.1 small punch test; SPT a test method for mechanical properties which takes micro-sheet sample as test object; this method fixes the edge of the sheet specimen; the center of the specimen is loaded with a spherical punch at the top of the punch in a mechanically loading manner; the mechanical properties of the composites are determined by experimental data association. The schematic diagram of the test device is shown in Figure 1. 3.1.2 load; F the mechanical force exerted by the plunger on the specimen 3.1.9 sample a sheet of material removed from the equipment 3.1.10 specimen the sheet material which meets small punch test requirements 3.2 Symbols d1 - specimen diameter, in millimeters (mm); d2 - lower fixture aperture, in millimeters (mm); E - elastic modulus, in megapascals (MPa); F - load, in newtons (N); h - specimen thickness, in millimeters (mm); r - radius of the punch or ball, in millimeters (mm); T - test temperature, in Celsius degrees (°C); t - test time, in seconds (s); u - punch displacement, in millimeters (mm); V - test speed (movement speed of punch under pressure), in millimeters per second (mm/s).

4 Specimen

4.1 Sampling 4.1.1 General requirements Sampling should prevent overheating and work hardening which shall affect the mechanical properties of the specimen. The specimen shall not contain any cracks and other macroscopic defects. And it should ensure that the cut pieces have integrity. 4.1.2 Sampling position The cutting of test piece should avoid the corrosion layer (as shown in Figure 3). ......
Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al.
