GB/T 29318-2024 PDF EnglishUS$380.00 · In stock · Download in 9 seconds
GB/T 29318-2024: Electric energy metering for off-board charger of electric vehicle Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 29318: Historical versions

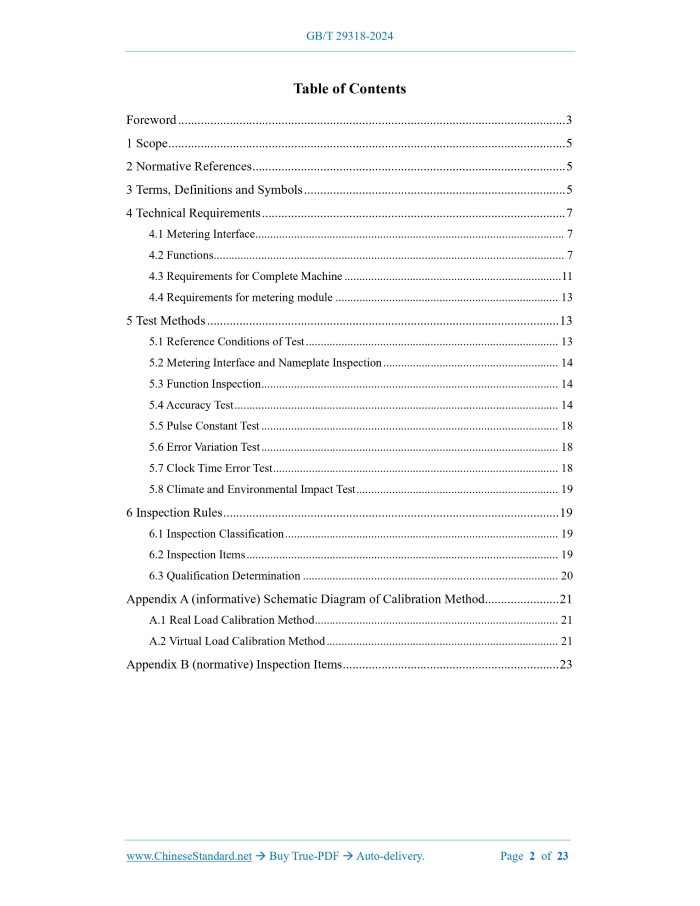

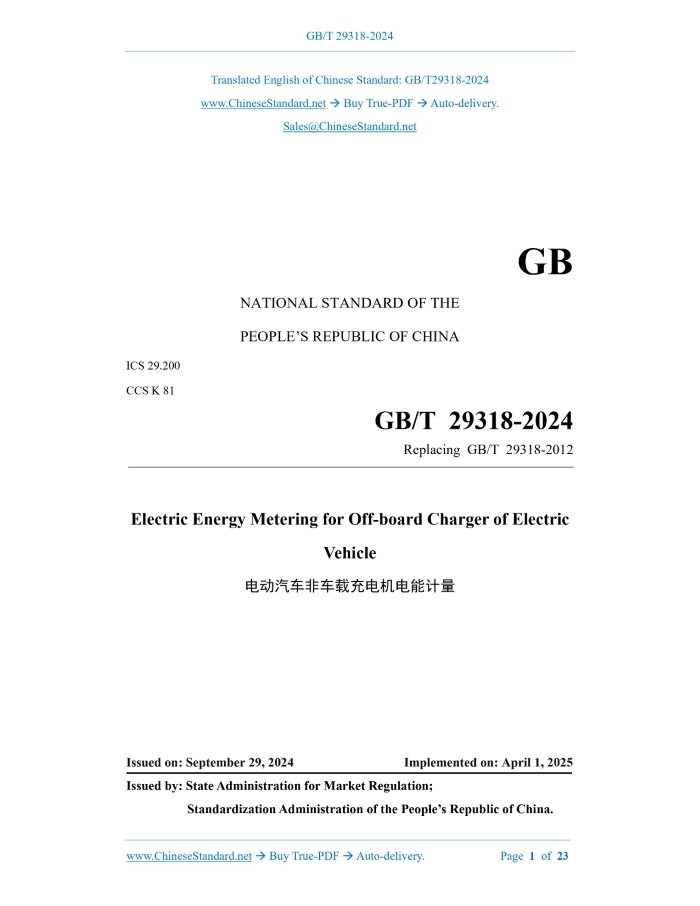

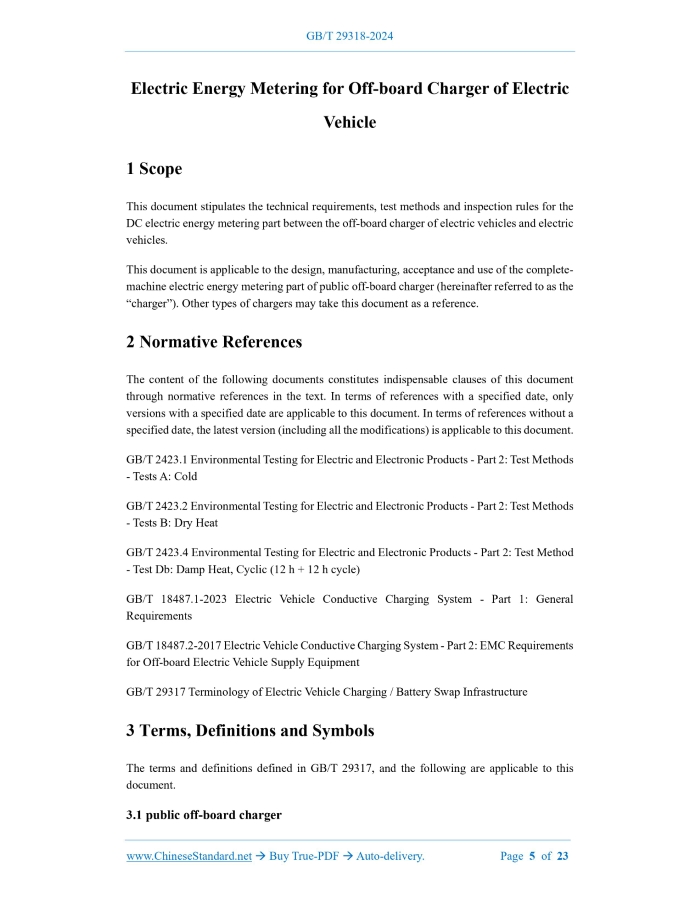

Similar standardsGB/T 29318-2024: Electric energy metering for off-board charger of electric vehicle---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT29318-2024GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 29.200 CCS K 81 Replacing GB/T 29318-2012 Electric Energy Metering for Off-board Charger of Electric Vehicle Issued on. SEPTEMBER 29, 2024 Implemented on. APRIL 1, 2025 Issued by. State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword... 3 1 Scope... 5 2 Normative References... 5 3 Terms, Definitions and Symbols... 5 4 Technical Requirements... 7 4.1 Metering Interface... 7 4.2 Functions... 7 4.3 Requirements for Complete Machine... 11 4.4 Requirements for metering module... 13 5 Test Methods... 13 5.1 Reference Conditions of Test... 13 5.2 Metering Interface and Nameplate Inspection... 14 5.3 Function Inspection... 14 5.4 Accuracy Test... 14 5.5 Pulse Constant Test... 18 5.6 Error Variation Test... 18 5.7 Clock Time Error Test... 18 5.8 Climate and Environmental Impact Test... 19 6 Inspection Rules... 19 6.1 Inspection Classification... 19 6.2 Inspection Items... 19 6.3 Qualification Determination... 20 Appendix A (informative) Schematic Diagram of Calibration Method... 21 A.1 Real Load Calibration Method... 21 A.2 Virtual Load Calibration Method... 21 Appendix B (normative) Inspection Items... 231 ScopeThis document stipulates the technical requirements, test methods and inspection rules for the DC electric energy metering part between the off-board charger of electric vehicles and electric vehicles. This document is applicable to the design, manufacturing, acceptance and use of the complete- machine electric energy metering part of public off-board charger (hereinafter referred to as the “charger”). Other types of chargers may take this document as a reference.2 Normative ReferencesThe content of the following documents constitutes indispensable clauses of this document through normative references in the text. In terms of references with a specified date, only versions with a specified date are applicable to this document. In terms of references without a specified date, the latest version (including all the modifications) is applicable to this document. GB/T 2423.1 Environmental Testing for Electric and Electronic Products - Part 2.Test Methods - Tests A. Cold GB/T 2423.2 Environmental Testing for Electric and Electronic Products - Part 2.Test Methods - Tests B. Dry Heat GB/T 2423.4 Environmental Testing for Electric and Electronic Products - Part 2.Test Method - Test Db. Damp Heat, Cyclic (12 h + 12 h cycle) GB/T 18487.1-2023 Electric Vehicle Conductive Charging System - Part 1.General Requirements GB/T 18487.2-2017 Electric Vehicle Conductive Charging System - Part 2.EMC Requirements for Off-board Electric Vehicle Supply Equipment GB/T 29317 Terminology of Electric Vehicle Charging / Battery Swap Infrastructure3 Terms, Definitions and SymbolsThe terms and definitions defined in GB/T 29317, and the following are applicable to this document. 3.1 public off-board charger An off-board charger used to provide public services and carry out electric energy transactions. 3.2 total charging energy The total charging energy recorded by the charger from the first charge when it is in working condition. 3.3 rate amount The amount of electric energy output by the charger during the corresponding period of time when it is, in working condition, multiplied by the rate. 3.4 additional amount Charges in addition to the rate amount recorded when the charger is in working condition. NOTE. for example, parking fees, etc. 3.5 billable amount The sum of the rate amount and the additional amount recorded when the charger is in working condition, which is used for settlement with the user.4 Technical Requirements4.1 Metering Interface The charger’s interface for electric energy metering satisfies the following requirements. 4.2 Functions 4.2.1 Metering function The charger has the following functions. 4.2.2 Billing function The charger shall have the function of calculating the billable amount based on time, electric energy and rate, etc. 4.2.3 Rate period setting function The charger has the following functions. 4.2.4 Time adjustment function The charger shall have a time adjustment function. In addition, it is prohibited to adjust the time during the charging process. 4.2.5 Information recording function 4.2.6 Clear function The charger has the following functions. 4.2.7 Display function 4.2.7.1 Basic requirements The charger shall have a display function that allows display on the machine body or other carriers. 4.2.7.2 Display digits and resolution The display digits and resolution of the charger satisfy the following requirements. 4.2.7.3 Charging display 4.2.8 Charging receipt function The charging receipt function of the charger satisfies the following requirements. 4.2.9 Consistency requirements If the charger has multiple human-machine interaction modes, all information related to metering and billing shall be consistent at the end of charging. 4.2.10 Software protection function 4.2.10.1 Prevention of mis-operation The charger shall have a software protection function that minimizes the possibility of mis- operation. 4.2.11 Other functions During the charging process, if the charger cannot normally perform billing, the current charging, metering and billing shall be immediately stopped, and the metering and billing value shall be stored; after the above-mentioned functions are restored, metering and billing shall be re-started. 4.3 Requirements for Complete Machine 4.3.1 Connection point location The connection point location of the charger satisfies the following requirements. 4.3.2 Nameplate The charger shall have a nameplate, and the nameplate identification shall include the following meter-related information. If there are multiple charging interface outputs, the maximum current and minimum current of each channel shall be marked. If each channel is not separately marked, it is the same by default. 4.3.3 Measurement range The measurement range of the charger shall comply with the following requirements. 4.3.4 Accuracy requirements 4.3.5 Pulse constant The relation between the number of electric energy pulses output by the charger test and the change in electric energy indicated by the display shall be consistent with the pulse constant marked on the nameplate. 4.3.6 Error variation At the same test point of the charger, the absolute value of the maximum error change between adjacent test results shall not exceed 1/5 of the maximum allowable error shown in Table 1 and Table 2. 4.3.7 Clock time error For chargers with time-sharing billing function, the clock time error of the chargers shall not exceed 5 seconds. 4.4 Requirements for metering module The shell of the metering module shall be able to be sealed. Only after the seal is broken is it possible to access the internal components of the module. For the metering module, which is an electric energy meter plus a supporting sensor device, the electric energy meter and sensor device shall be respectively and independently sealed.5 Test Methods5.1 Reference Conditions of Test In order to verify the accuracy, the test conditions comply with the following requirements. 5.2 Metering Interface and Nameplate Inspection During the test, visually inspect the metering interface and nameplate identification of the charger. Check whether the test results comply with the provisions of 4.1 and 4.3.2. 5.3 Function Inspection During the test, the charger needs to be powered on. Check various functions through visual inspection, simulated charging and software copying, etc. 5.4 Accuracy Test 5.4.1 General requirements Under the test reference conditions specified in Table 4, compare the electric energy values simultaneously determined by the calibration device and the charger under test, so as to determine the basic error of the charger under test. 5.4.2 Basic error test under reference voltage During the test, the charger applies the reference conditions specified in Table 4 other than current. The current test points shall include the minimum current and maximum current marked on the charger nameplate. Adopt the method specified in 5.4.1 to test the basic error of the charger. 5.4.3 Basic error test under reference current During the test, the charger applies the reference conditions specified in Table 4 other than voltage. The voltage test points shall include the minimum voltage and maximum voltage marked on the charger nameplate. Adopt the method specified in 5.4.1 to test the basic error of the charger. Check whether the test results comply with the provisions of 4.3.4.2. 5.4.4 Self-heating effect test During the test, set the charger to operate at the rated power and maximum output current, and immediately carry out the test on the error of electric energy metering. Then, at an interval of no more than 1 s, accurately draw the error change curve as a function of time. This test is conducted for at least 0.5 h, and in any case, the percentage error of the accuracy within 20 min does not change by more than 0.2% (Level-1 and Level-2). Calculate the change value before and after the error stabilizes. 5.4.5 Electromagnetic compatibility test During the test, under the test reference conditions specified in Table 4, select (Umin + Umax)/2, 0.5Imax load point to test the basic error. Then, in accordance with the requirements of 7.2 in GB/T 18487.2-2017, conduct tests on the external power frequency magnetic field, radio frequency electromagnetic field radiation, conducted disturbance induced by radio frequency field, and electrical fast transient pulse. During each test, the basic error is tested at the same load point. 5.5 Pulse Constant Test During the test, under the test reference conditions specified in Table 4, record the electric energy value displayed by the charger and the output pulse number of the test output within a time interval. The error ek is determined by Formula (6). 5.6 Error Variation Test During the test, under the test reference conditions specified in Table 4, the charger is tested repeatedly 3 times at the same test point. Calculate the maximum absolute value of the difference between adjacent test results. 5.8 Climate and Environmental Impact Test During the test, under the test reference conditions specified in Table 4, the charger is respectively subjected to high-temperature test, low-temperature test, alternating heat and humidity test. The test methods are as follows.6 Inspection Rules6.1 Inspection Classification The product inspection categories include exit-factory inspection, type inspection and acceptance inspection. 6.2 Inspection Items 6.2.1 Exit-factory inspection The manufacturer shall test the newly produced chargers in accordance with the inspection items specified in Table B.1 of Appendix B. After the chargers pass the inspection, the manufacturer shall issue an inspection certificate. 6.2.2 Type inspection Type inspection shall be carried out by a testing institution with relevant qualifications. Tests shall be carried out in accordance with the inspection items specified in Table B.1.When one of the following circumstances occurs, type inspection of the chargers shall be performed. 6.2.3 Acceptance inspection The acceptance inspection shall be covered by the clients themselves or entrusted to a testing institution with relevant qualifications. In addition, the inspection shall be carried out in accordance with the following procedures. 6.3 Qualification Determination Only when all test items corresponding to the inspection category of the products under test comply with the requirements can the category be determined as qualified, otherwise, it shall be determined as disqualified. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 29318-2024 be delivered?Answer: The full copy PDF of English version of GB/T 29318-2024 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 29318-2024_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 29318-2024_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 29318-2024 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 29318-2024?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 29318-2024 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 29318-2024?A step-by-step guide to download PDF of GB/T 29318-2024_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 29318-2024". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
