GB/T 2543.1-2015 PDF EnglishUS$230.00 · In stock · Download in 9 seconds
GB/T 2543.1-2015: Textiles -- Determination of twist in yarns -- Part 1: Direct counting method Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 2543.1: Historical versions

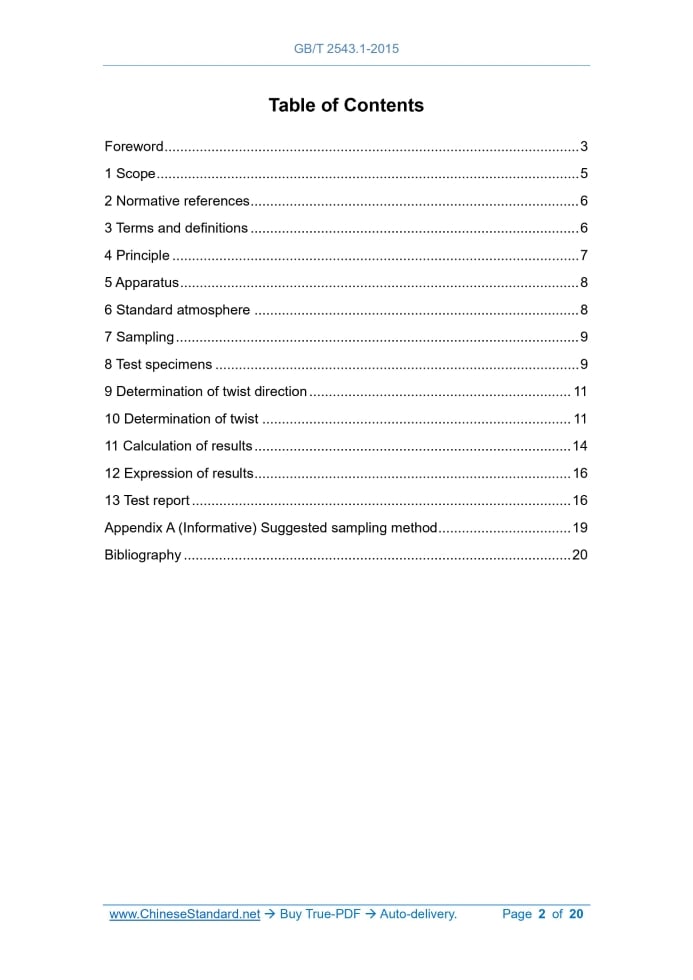

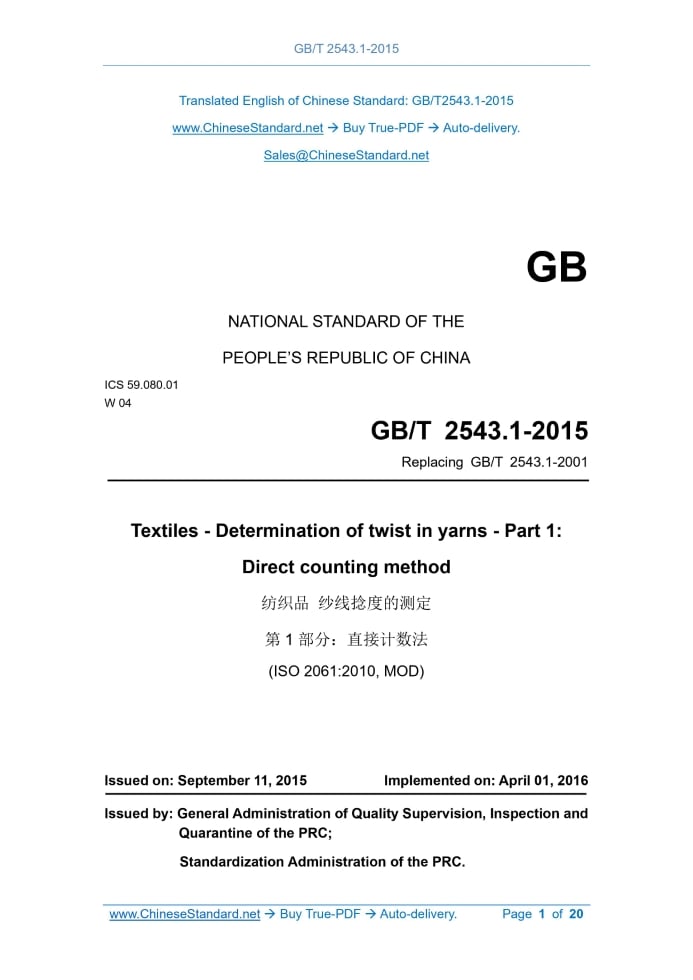

Similar standardsGB/T 2543.1-2015: Textiles -- Determination of twist in yarns -- Part 1: Direct counting method---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT2543.1-2015GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 59.080.01 W 04 Replacing GB/T 2543.1-2001 Textiles - Determination of twist in yarns - Part 1: Direct counting method (ISO 2061:2010, MOD) ISSUED ON: SEPTEMBER 11, 2015 IMPLEMENTED ON: APRIL 01, 2016 Issued by: General Administration of Quality Supervision, Inspection and Quarantine of the PRC; Standardization Administration of the PRC. Table of ContentsForeword ... 3 1 Scope ... 5 2 Normative references ... 6 3 Terms and definitions ... 6 4 Principle ... 7 5 Apparatus ... 8 6 Standard atmosphere ... 8 7 Sampling ... 9 8 Test specimens ... 9 9 Determination of twist direction ... 11 10 Determination of twist ... 11 11 Calculation of results ... 14 12 Expression of results ... 16 13 Test report ... 16 Appendix A (Informative) Suggested sampling method ... 19 Bibliography ... 20 Textiles - Determination of twist in yarns - Part 1: Direct counting method1 Scope1.1 This Part of GB/T 2543 specifies the test method for the determination of twist direction, twist, and change in length on untwisting of yarns by direct counting method. 1.2 This Part applies to: a) Single yarns (spun and twisted multifilament); b) Plied yarns; c) Cabled yarns. Each type of yarn has a separate test procedure. This method is mainly used for yarn package. After adding a special step, it can be used for yarns taken from fabrics. Note: For yarns taken from fabrics, see GB/T 29256.4. 1.3 This Part includes the determination of the following twists of plied and cabled yarns: a) Plied yarns: Final twist of plied yarns and original twist of the single yarn before plying; b) Cabled yarns: - The final cabling twist of cabled yarns; - The original twist of the plied yarn after plying, but before cabling; - The twist of single yarn before plying. 1.4 If necessary, through the special steps of 10.5.7, the twist of single yarn and plied yarn in the final structure can be determined. 1.5 Except by agreement, this Part does not apply to yarns which stretch more than 0.5% when the tension is increased from 0.5 cN/tex to 1.0 cN/tex. This type of yarn can be tested under tension conditions accepted by the parties involved. specimen; rotate one end of the specimen; remove the twist of the yarn specimen, until the components of the yarn under test are parallel. According to the number of turns required to remove the twist of the yarn, obtain the twist of the yarn.5 Apparatus5.1 Twist counter 5.1.1 It is composed of a pair of clamps. One of which can rotate around an axis in both directions and is connected with a rotation counter. It shall be possible to adjust the position of at least one clamp, so that the measured yarn length can be varied within the range of 10 mm~500 mm. There must be no gaps in the jaws. 5.1.2 There shall be pretensioning device and device for measuring specimen length. The accuracy of the device for measuring specimen length is ±0.5 mm or ±2% of the specimen length, whichever is less. 5.1.3 The twist counting device shall be able to record the number of revolutions of the rotary clamp. 5.1.4 If it is necessary to determine the contraction or elongation of the specimen length after untwisting, the movable clamp, when moving, shall not produce significant friction. 5.2 Dissecting needle It is used to check the untwisting state of the yarn under test. 5.3 Magnifying device It is used to observe the specimen. 5.4 Reeling device (optional) It is used for reeling laboratory sample skeins.6 Standard atmosphere6.1 The standard atmosphere for pre-conditioning, conditioning and testing shall meet the requirements of GB/T 6529. The change of relative humidity will not directly affect the twist. However, a large range of humidity changes will cause the length of some materials to change. Therefore, the sample should be subject to moisture equilibrium and test in a 10.1.1 According to the provisions of GB/T 6529, condition the laboratory sample package or the laboratory sample skeins (5.4) wound from the package in the test standard atmosphere for equilibrium. 10.1.2 According to the unwinding method when the package is in use, at the lowest practicable tension, the yarn is unwound from the top or side of the yarn package. In the process of unwinding and handling the sample, pay attention to avoid the change of the original twist. Before taking the first specimen, unwind and discard about 5 m of yarn. 10.1.3 Fix the specimen in the clamp of the twist counter (5.1); then cut the specimen from the package. If it is necessary to continue to take another specimen from the package, it shall use a fixed clamp to clamp; or use a heavy object to press the free end of the yarn, to avoid loss of twist. 10.2 Single spun yarn 10.2.1 According to the nominal length of the fiber in the yarn under test, adjust the position of the movable clamp on the twist counter (5.1) (see 8.1.1), accurate to ±0.5 mm. The gap between the jaws of the two clamps will affect the gauge length of the specimen and shall be eliminated. Use an accurate gauge or caliper to measure the distance between the clamps, to verify the gauge length of the specimen. Set the revolution counter to zero. 10.2.2 Use a pretension of (0.5±0.1)cN/tex to fix the specimen in the clamp of the tester. Be careful not to lose twist. If the elongation of the yarn under test reaches or exceeds 0.5% under the specified tension, the pretension shall be adjusted, so that the specimen elongation does not exceed 0.1%. This exceptional situation shall be agreed by the parties concerned. And the pretension used shall be indicated in the test report. 10.2.3 Turn the rotating clamp to untwist the specimen, until the dissecting needle (5.2) can be passed from the non-rotating clamp to the rotating clamp. If necessary, it is possible to use a magnifying glass (5.3) to observe, to ensure that the specimen is completely untwisted. 10.2.4 Observe the untwisting; verify whether it is consistent with the twist direction of the specimen determined by the observation in Clause 9. 10.2.5 Record the initial length, twist direction, and number of turns of the specimen. 10.2.6 Repeat the above operation, until the required number n of specimens is tested (see 8.3). 10.3 Single multifilament yarns 10.3.1 Adjust the distance between the clamps of the twist counter to (250±0.5)mm [or (500±0.5)mm]. The gap between the jaws of the two clamps will affect the gauge length of the specimen and shall be eliminated. Use an accurate gauge or caliper to measure the distance between the clamps, to verify the gauge length of the specimen. Set the revolution counter to zero. 10.3.2 Follow the steps of 10.2.2~10.2.5 in single spun yarn. 10.3.3 If the information about change in length on untwisting is required, loosen the fixing mechanism of the movable clamp; under pretension, measure the length of the specimen after untwisting; record the change in length; indicate whether the length is increased or decreased. 10.3.4 Repeat the above operation, until the required number n of specimens is tested (see 8.3). 10.4 Plied yarns 10.4.1 According to the operation steps 10.3.1~10.3.3 of single multifilament yarns, determine the twist of plied yarns. 10.4.2 If the single yarns in the plied yarns have the same twist direction and twist, after untwisting the plied yarns, cut off the excess single yarns and only keep one of the single yarns, to determine the twist of the single yarn. If it is not known that the constituent single yarns are the same, it shall be verified. If there are differences (twist direction or twist), all constituent single yarns shall be tested and indicated separately in the test report. If the constituent single yarn is spun yarn, it is necessary to increase specimens. The yarn section with no twist loss, which is cut after untwisting the plied yarns, can be used as an additional specimen. 10.4.3 If the single yarn is a spun yarn, its twist shall be determined according to the provisions of 10.2. If the single yarn is multifilament, its twist shall be determined according to the provisions of 10.3. 10.4.4 If the information about change in length on untwisting is required, loosen the fixing mechanism of the movable clamp; under pretension, measure the length of the specimen after untwisting; record the change in length; indicate whether the length is increased or decreased. 10.4.5 Repeat the above operation, until the required number n of specimens is tested (see 8.3). 10.5 Cabled yarns deviating from this Part. According to the yarn type, the following information shall also be included. 13.1 Single yarn: a) If necessary, the average twist of each package; b) The average twist of all packages; c) 95% confidence interval; d) Twist direction, "S" twist or "Z" twist; e) If necessary, the average change in length on untwisting (only for multifilament yarns); f) The form of the sample (yarn package, warp, fabric); g) Sampling method; h) The number of specimens; i) Average specimen length, in mm; j) Pretension; k) If necessary, the coefficient of variation of the twist of the yarn, in %; l) If necessary, twist factor. 13.2 Plied yarns: a) If necessary, the average twist of the plied yarns in each package; b) The average twist of the plied yarns in all packages; c) If necessary, the average twist of the single yarn in each package; d) The average twist of single yarn in all packages; e) The twist direction of each twist, "S" twist or "Z" twist; f) If necessary, the average change in length on untwisting, and items f)~k) in 13.1; g) If necessary, twist factor. 13.3 Cabled yarns: ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 2543.1-2015 be delivered?Answer: The full copy PDF of English version of GB/T 2543.1-2015 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 2543.1-2015_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 2543.1-2015_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 2543.1-2015 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 2543.1-2015?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 2543.1-2015 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 2543.1-2015?A step-by-step guide to download PDF of GB/T 2543.1-2015_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 2543.1-2015". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
