GB/T 24928-2020: Symbols for controls, indicators and tell-tale for all-terrain vehicles Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 24928: Historical versions

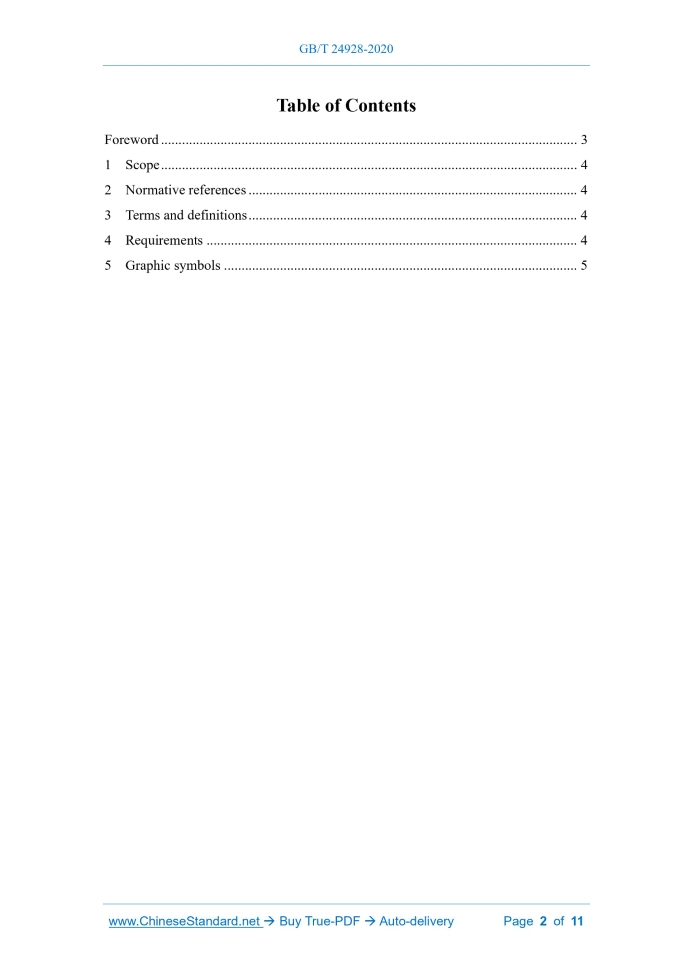

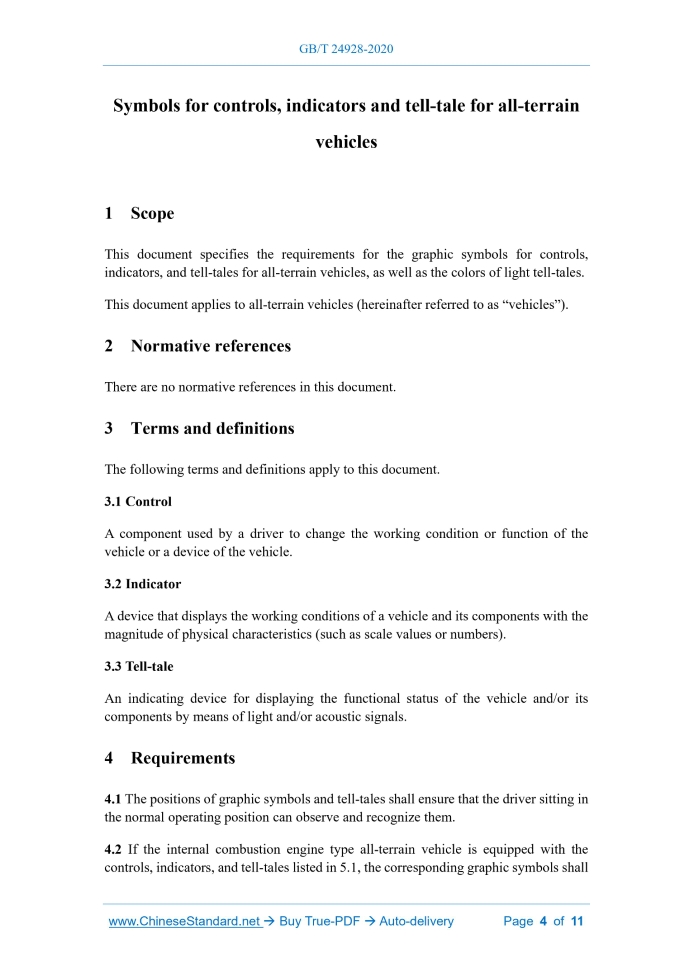

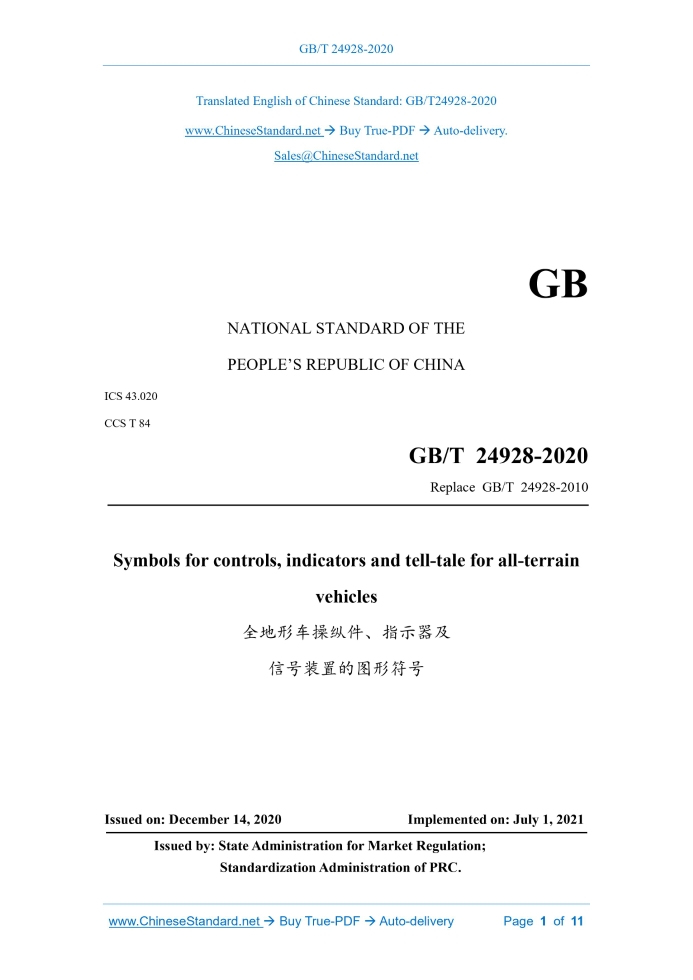

Similar standardsGB/T 24928-2020: Symbols for controls, indicators and tell-tale for all-terrain vehicles---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT24928-2020NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 43.020 CCS T 84 Replace GB/T 24928-2010 Symbols for controls, indicators and tell-tale for all-terrain vehicles ISSUED ON: DECEMBER 14, 2020 IMPLEMENTED ON: JULY 1, 2021 Issued by: State Administration for Market Regulation; Standardization Administration of PRC. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative references ... 4 3 Terms and definitions ... 4 4 Requirements ... 4 5 Graphic symbols ... 5 Symbols for controls, indicators and tell-tale for all-terrain vehicles1 ScopeThis document specifies the requirements for the graphic symbols for controls, indicators, and tell-tales for all-terrain vehicles, as well as the colors of light tell-tales. This document applies to all-terrain vehicles (hereinafter referred to as “vehicles”).2 Normative referencesThere are no normative references in this document.3 Terms and definitionsThe following terms and definitions apply to this document. 3.1 Control A component used by a driver to change the working condition or function of the vehicle or a device of the vehicle. 3.2 Indicator A device that displays the working conditions of a vehicle and its components with the magnitude of physical characteristics (such as scale values or numbers). 3.3 Tell-tale An indicating device for displaying the functional status of the vehicle and/or its components by means of light and/or acoustic signals.4 Requirements4.1 The positions of graphic symbols and tell-tales shall ensure that the driver sitting in the normal operating position can observe and recognize them. 4.2 If the internal combustion engine type all-terrain vehicle is equipped with the controls, indicators, and tell-tales listed in 5.1, the corresponding graphic symbols shall be marked and shall comply with the provisions of 5.1. 4.3 If the electric all-terrain vehicle is equipped with the controls, indicators, and tell- tales listed in 5.2, the corresponding graphic symbols shall be marked and shall comply with the provisions of 5.2. 4.4 The positions of the graphic symbols and tell-tales shall be placed on or near the corresponding controls, indicators, and tell-tales; otherwise, a short solid line shall be used between the graphic symbols and the corresponding controls, indicators, or tell- tales to indicate their interrelation, and to ensure the driver sitting in the normal operating position can observe and recognize them. 4.5 The graphic symbols on the controls and tell-tales shall have a clear contrast with the background color, so as to be eye-catching. If a coating (plating) layer is used, it shall be able to be permanently kept; otherwise, it shall be made by moulding or engraving. 4.6 If a graphic symbol represents a vehicle or a vehicle component in a side view, it shall be assumed that the vehicle travels from right to left. 4.7 The color requirements for the light tell-tales are as follows: a) Red indicates danger; b) Yellow or amber indicates a warning; c) Green indicates safety; d) Blue is only used for the color of the headlight’s high beam tell-tale.5 Graphic symbols5.1 The graphic symbols marked on the controls, indicators, and tell-tales of internal combustion engine type ATVs, as well as the colors of light tell-tales, shall comply with the provisions in Table 1. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 24928-2020 be delivered?Answer: The full copy PDF of English version of GB/T 24928-2020 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 24928-2020_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 24928-2020_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 24928-2020 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 24928-2020?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 24928-2020 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 24928-2020?A step-by-step guide to download PDF of GB/T 24928-2020_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 24928-2020". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
