GB/T 24185-2009: Test method for measurement of hydrogen embrittlement threshold in steel by the incremental step loading method Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

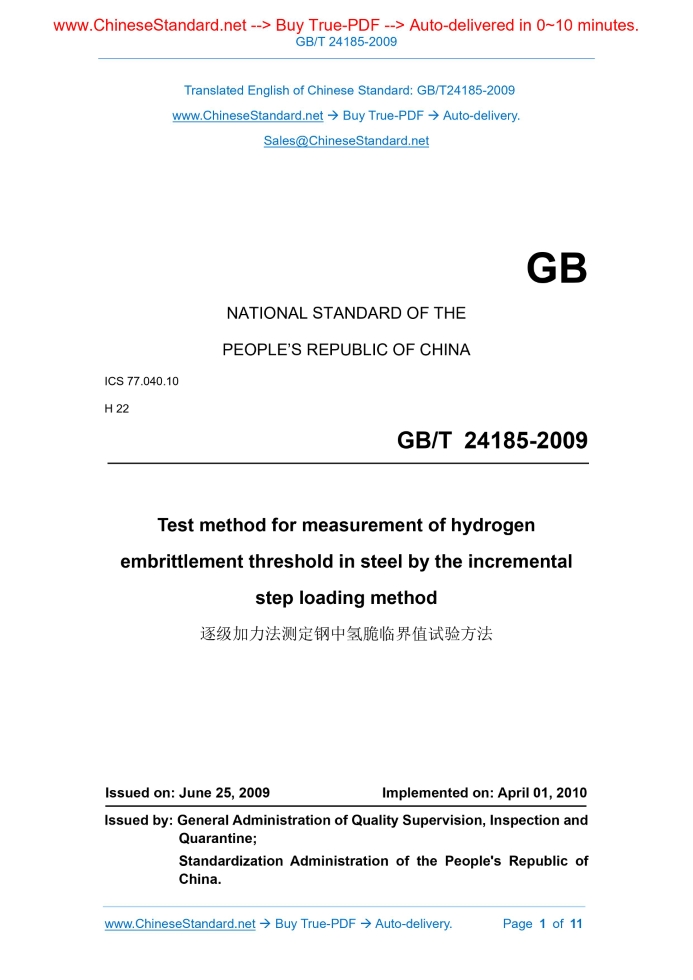

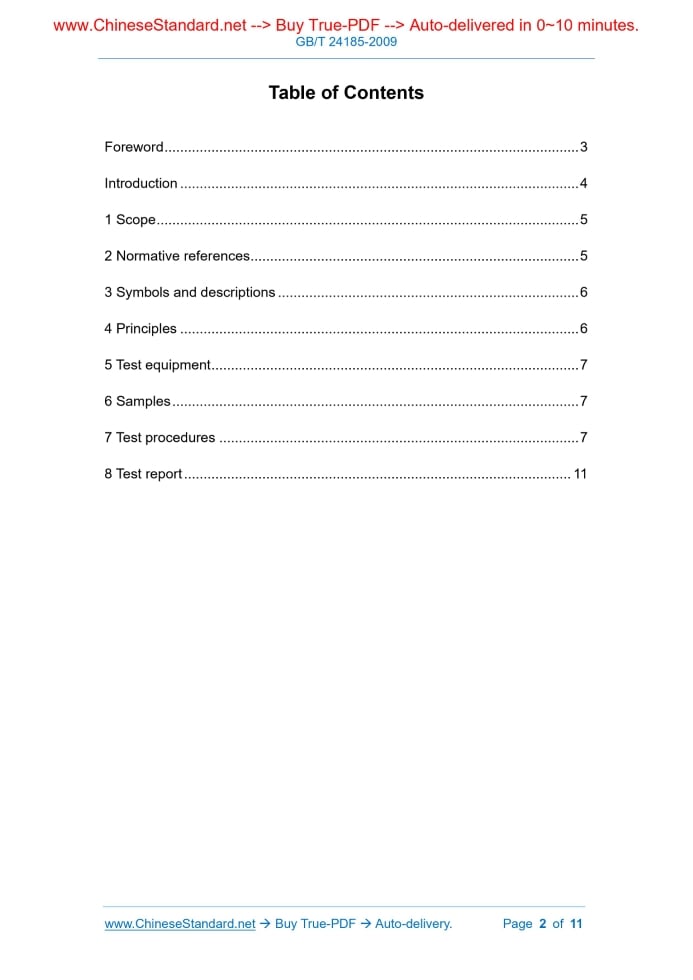

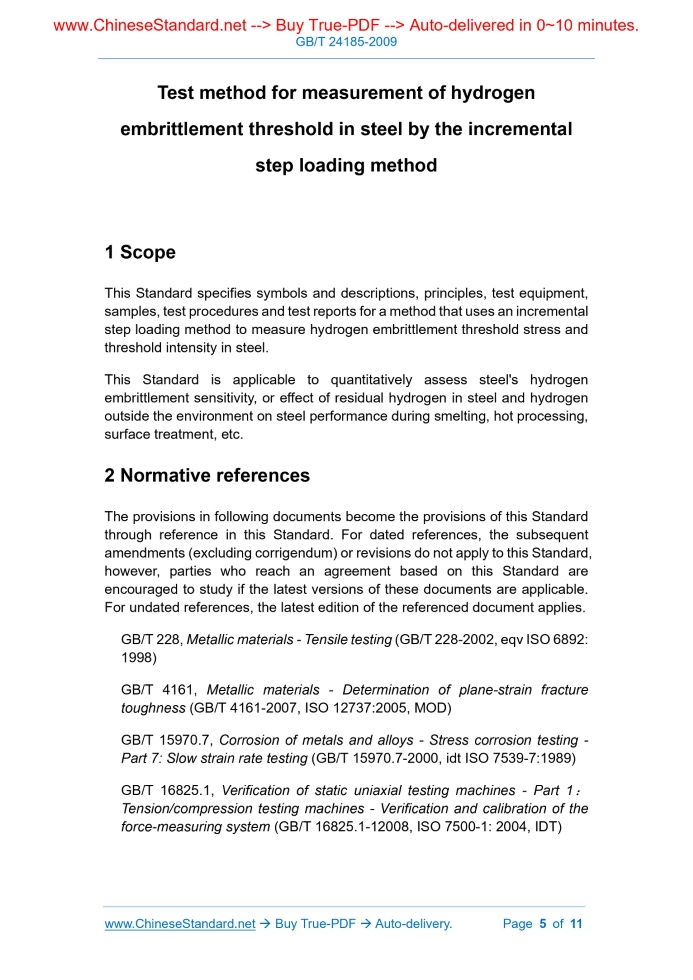

Similar standardsGB/T 24185-2009: Test method for measurement of hydrogen embrittlement threshold in steel by the incremental step loading method---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT24185-2009 GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 77.040.10 H 22 Test method for measurement of hydrogen embrittlement threshold in steel by the incremental step loading method ISSUED ON: JUNE 25, 2009 IMPLEMENTED ON: APRIL 01, 2010 Issued by: General Administration of Quality Supervision, Inspection and Quarantine; Standardization Administration of the People's Republic of China. Table of ContentsForeword ... 3 Introduction ... 4 1 Scope ... 5 2 Normative references ... 5 3 Symbols and descriptions ... 6 4 Principles ... 6 5 Test equipment ... 7 6 Samples ... 7 7 Test procedures ... 7 8 Test report ... 11 Test method for measurement of hydrogen embrittlement threshold in steel by the incremental step loading method1 ScopeThis Standard specifies symbols and descriptions, principles, test equipment, samples, test procedures and test reports for a method that uses an incremental step loading method to measure hydrogen embrittlement threshold stress and threshold intensity in steel. This Standard is applicable to quantitatively assess steel's hydrogen embrittlement sensitivity, or effect of residual hydrogen in steel and hydrogen outside the environment on steel performance during smelting, hot processing, surface treatment, etc.2 Normative referencesThe provisions in following documents become the provisions of this Standard through reference in this Standard. For dated references, the subsequent amendments (excluding corrigendum) or revisions do not apply to this Standard, however, parties who reach an agreement based on this Standard are encouraged to study if the latest versions of these documents are applicable. For undated references, the latest edition of the referenced document applies. GB/T 228, Metallic materials - Tensile testing (GB/T 228-2002, eqv ISO 6892: 1998) GB/T 4161, Metallic materials - Determination of plane-strain fracture toughness (GB/T 4161-2007, ISO 12737:2005, MOD) GB/T 15970.7, Corrosion of metals and alloys - Stress corrosion testing - Part 7: Slow strain rate testing (GB/T 15970.7-2000, idt ISO 7539-7:1989) GB/T 16825.1, Verification of static uniaxial testing machines - Part 1: Tension/compression testing machines - Verification and calibration of the force-measuring system (GB/T 16825.1-12008, ISO 7500-1: 2004, IDT)5 Test equipmentThe force measuring system of the testing machine shall be calibrated in accordance with the requirements of GB/T 168.25.1. The accuracy shall be level 1 or better. If testing is required under specified environmental conditions, the test equipment shall be able to provide the required test environment. The test equipment shall be able to record the test force-time curve.6 Samples6.1 The sample is divided into fracture mechanical sample and physical sample. 6.1.1 The fracture mechanical sample shall meet the requirements of GB/T 4161. NOTE: To ensure the accuracy of the test results, the maximum stress during prefabrication of fatigue cracks shall be less than 60% of the stress value of any measured hydrogen-induced crack propagation. 6.1.2 The physical sample is the actual product as a sample, such as fasteners. NOTE: For physical samples, the test results of samples of the same material with different shapes or sizes shall be different. 6.2 The number of samples is generally 5~10.7 Test procedures7.1 Before the test, apply the test force to the sample at the test rate specified in GB/T 228 until it breaks. Measure the maximum force Fm. 7.2 When the test force is applied to the remaining samples by the incremental step loading method, the test force value added at each level shall be equal. For example, for a test with an accuracy of 5%, the test force added at each level is 5%Fm. The force shall be applied in 20 levels in total. The retention time of each level of test force of the 1# sample is generally 1h. The retention time of each level of test force for subsequent samples is generally twice that of the previous sample, as shown in Figure 1 for 2# and 3# samples. In order to save test time, it is recommended to double the test force retention time for each level when the test force exceeds 0.5Fim, as shown in Figure 1 4# sample. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 24185-2009 be delivered?Answer: The full copy PDF of English version of GB/T 24185-2009 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 24185-2009_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 24185-2009_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 24185-2009 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 24185-2009?A step-by-step guide to download PDF of GB/T 24185-2009_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 24185-2009". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
