GB/T 23451-2023: Lightweight panels for partition wall used in buildings Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 23451: Historical versions

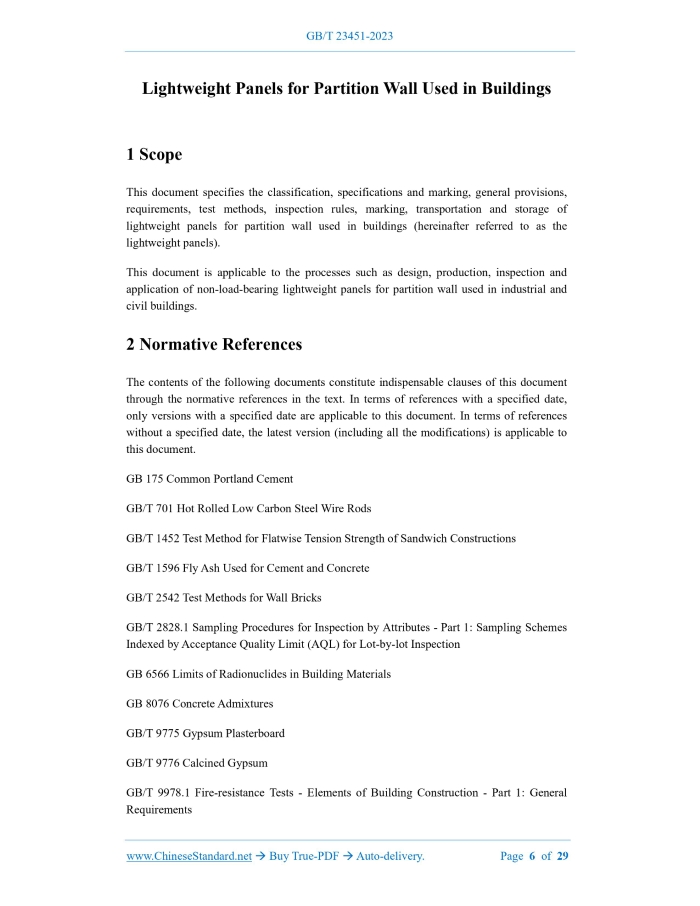

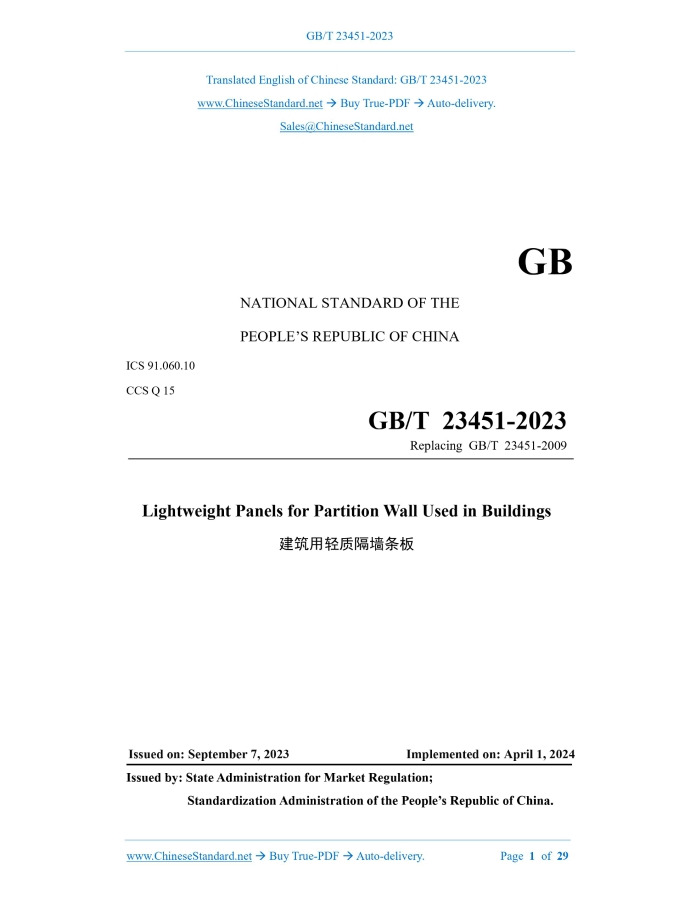

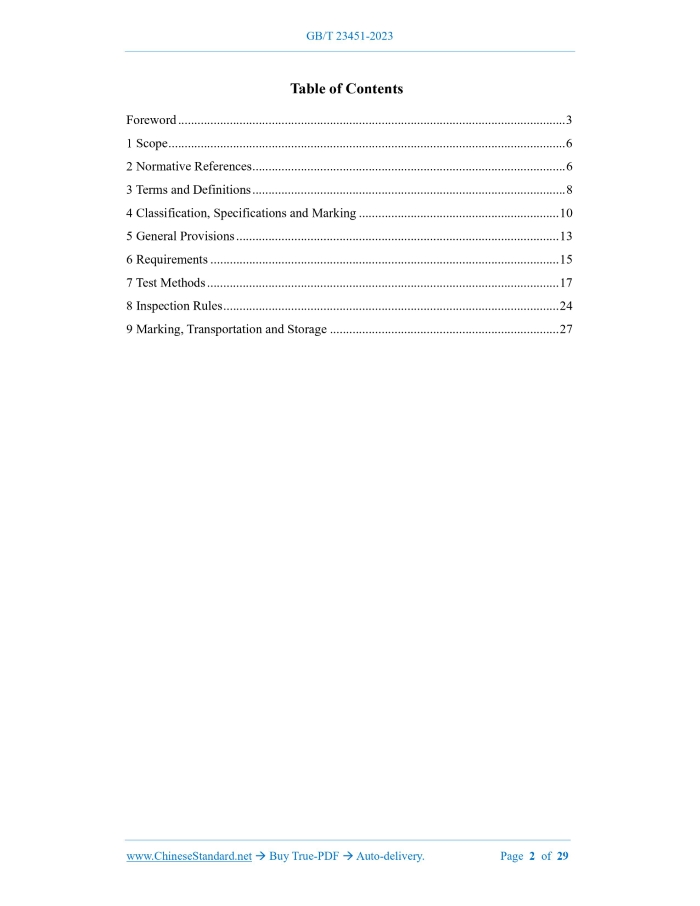

Similar standardsGB/T 23451-2023: Lightweight panels for partition wall used in buildings---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT23451-2023GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 91.060.10 CCS Q 15 Replacing GB/T 23451-2009 Lightweight Panels for Partition Wall Used in Buildings Issued on: SEPTEMBER 7, 2023 Implemented on: APRIL 1, 2024 Issued by. State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword... 3 1 Scope... 6 2 Normative References... 6 3 Terms and Definitions... 8 4 Classification, Specifications and Marking... 10 5 General Provisions... 13 6 Requirements... 15 7 Test Methods... 17 8 Inspection Rules... 24 9 Marking, Transportation and Storage... 27 Lightweight Panels for Partition Wall Used in Buildings1 ScopeThis document specifies the classification, specifications and marking, general provisions, requirements, test methods, inspection rules, marking, transportation and storage of lightweight panels for partition wall used in buildings (hereinafter referred to as the lightweight panels). This document is applicable to the processes such as design, production, inspection and application of non-load-bearing lightweight panels for partition wall used in industrial and civil buildings.2 Normative ReferencesThe contents of the following documents constitute indispensable clauses of this document through the normative references in the text. In terms of references with a specified date, only versions with a specified date are applicable to this document. In terms of references without a specified date, the latest version (including all the modifications) is applicable to this document. GB 175 Common Portland Cement GB/T 701 Hot Rolled Low Carbon Steel Wire Rods GB/T 1452 Test Method for Flatwise Tension Strength of Sandwich Constructions GB/T 1596 Fly Ash Used for Cement and Concrete GB/T 2542 Test Methods for Wall Bricks GB/T 2828.1 Sampling Procedures for Inspection by Attributes - Part 1.Sampling Schemes Indexed by Acceptance Quality Limit (AQL) for Lot-by-lot Inspection GB 6566 Limits of Radionuclides in Building Materials GB 8076 Concrete Admixtures GB/T 9775 Gypsum Plasterboard GB/T 9776 Calcined Gypsum GB/T 9978.1 Fire-resistance Tests - Elements of Building Construction - Part 1.General Requirements YB/T 5294 Low Carbon Steel Wire for General Uses3 Terms and DefinitionsThe following terms and definitions are applicable to this document. 3.1 Lightweight Panel A prefabricated panel with a length of not less than 2.2 m, a length-to-width ratio of not less than 2, made of lightweight materials or by means of lightweight construction, with a surface density not greater than the value specified in this document, and manufactured by mechanized production. 3.2 Hollow Panel A lightweight panel with several through holes along the length of the board. 3.3 Solid Panel A non-porous lightweight panel. 3.4 Composite Sandwich Panel A prefabricated panel made of a composite of two or more materials with different properties or a composite of a face panel and a sandwich material. 3.5 Lightweight Concrete Panel A prefabricated concrete panel mixed with pumice, ceramsite, fly ash, coal gangue, slag, recycled aggregates and other lightweight aggregates or admixtures, using cement as the cementitious material, and steel bars, steel wire mesh, chopped fibers or other materials as the reinforced materials; or a prefabricated concrete panel molded by foaming process. 3.6 Lightweight Cement Panel A prefabricated panel for partition wall made with appropriate amounts of additives and admixtures, using alkali-resistant glass fiber mesh, steel wire mesh or steel wire mesh frame, and chopped fibers as the reinforced materials, cement as the cementitious material, or magnesium cementitious material. NOTE. Lightweight cement panels include glass fiber reinforced cement panels, foamed cement panels, panels of cement polystyrene particle, etc. 3.7 Panel of Cement Polystyrene Particle A cement panel made with appropriate amounts of additives and admixtures, using cement, polystyrene particles, etc. as the main materials, and steel wire mesh or steel wire mesh frame as the reinforced material. 3.8 Gypsum Hollow Panel A hollow panel made with an appropriate amount of additives, using gypsum as the main raw material, with cement content not exceeding 10%, and added with inorganic lightweight aggregates, chopped fibers, alkali-resistant glass fiber mesh, steel wire mesh and other reinforced materials. 3.9 Moisture-proof Gypsum Panel A gypsum panel that has moisture-proof properties after moisture-proof treatment during the molding process. 3.10 Lightweight Foamed Ceramic Panel A lightweight ceramic panel foamed and fired at high temperature using one or more of clay, quartz, ceramic fragments, tailings, red mud, fly ash, aeolian sand and other materials as the main raw materials, with the aid of a foaming agent. 3.11 Foamed Ceramic Composite Panel A lightweight composite panel made of foamed ceramic as the face material and other functional materials as the core material. 3.12 Composite Panel of Cement Polystyrene Particle A composite panel made of cement-based polystyrene particle composite material as the core material and inorganic sheet material as the face panel. 3.13 Composite Panel of Aluminum Honeycomb A lightweight composite panel made of single-layer or multi-layer aluminum honeycomb core panel as the core material and inorganic sheet materials bonded on both sides as the face panels. 3.14 Composite Panel of Paper Honeycomb A lightweight composite panel laminated, pressurized, and bonded using paper honeycomb core panel as the core material and inorganic sheet material as the face panel. 3.15 Multi-ribbed Glass Fiber Reinforced Cement Composite Panel A ribbed composite thermoinsulating panel cast, extruded and molded with appropriate amounts of fly ash, sawdust and additives, using rock wool strip as the core material and fiber mesh as the reinforced material, and high-strength cement or magnesium cementitious material. 3.16 Sintered Hollow Panel A hollow panel with holes made by pre-extrusion molding, drying and calcination with5 General Provisions5.1 Raw Materials 5.1.1 Cement shall comply with the provisions of GB 175 and GB/T 20472. 5.1.2 Calcined gypsum shall comply with the provisions of GB/T 9776. 5.1.3 Magnesium cementitious materials shall comply with the provisions of JC/T 449. 5.1.4 Aggregates shall comply with the provisions of GB/T 14684, GB/T 14685 and GB/T 17431.1, and recycled aggregates shall comply with the provisions of GB/T 25176 and GB/T 25177. 5.1.5 The water for production mixing shall comply with the provisions of JGJ 63. 5.1.6 Reinforced materials shall comply with the provisions of GB/T 701, JC/T 841, YB/T 5294, etc. 5.1.7 External mixtures shall comply with the provisions of GB/T 1596, GB/T 18046, GB/T 20491, JGJ/T 318, etc. 5.1.8 Admixtures shall comply with the provisions of GB 8076, etc. 5.1.9 The aluminum honeycomb core shall be a continuous honeycomb, preferably a hexagonal structure, with a side length of no more than 15 mm. The thickness of aluminum foil for the aluminum honeycomb core with a side length of no more than 6 mm should not be less than 0.04 mm. For a side length of 6 mm to 15 mm, the aluminum honeycomb core shall use aluminum foil of series 3 or above. The density of core panel shall not be less than 1 kg/m2.The thickness of a single-layer honeycomb core panel should not be greater than 50 mm. When it is greater than 50 mm, a multi-layer structure shall be set. 5.1.10 The adhesive for aluminum honeycomb core material shall be weather-resistant and tough, and shall not corrode aluminum. The limit of hazardous substances shall comply with the provisions of GB 18583. 5.1.11 The core material of paper honeycomb sandwich panels shall be continuous honeycomb core panels. The thickness of a single-layer honeycomb core panel should not be greater than 50 mm. When it is greater than 50 mm, a multi-layer structure shall be set. The amount of paper for core materials should not be less than 125 g/m2.The properties shall comply with the provisions of GB/T 13024. 5.1.12 The starch adhesive should be used as the adhesive for paper honeycomb core materials, and its properties shall comply with the provisions of GB/T 31818.The adhesive shall be tough and shall not have any adverse effects on the paper for paper honeycomb core materials. The limit of hazardous substances shall comply with the provisions of GB 18583. 5.1.13 The face panel of the composite sandwich panel shall comply with the following provisions. a) Fiber reinforced cement panels shall comply with the provisions of JC/T 412.1; b) Fiber reinforced calcium silicate panels shall comply with the provisions of JC/T 564.1; c) Gypsum plasterboards shall comply with the provisions of GB/T 9775; d) The thickness of the foamed ceramic panel shall not be less than 25 mm; e) The face panel of the composite sandwich panel shall be made of asbestos-free sheet material with a combustion performance of Grade A. 5.1.14 The combustion performance of the core material of the composite sandwich panel shall be Grade B1 or above. 5.1.15 The raw materials of sintered panels shall meet the requirements of brick making. The used mining slag, solid waste from industrial and mining enterprises, etc. shall not contain substances harmful to the human body and excessive radioactive elements. 5.1.16 When the sintered panels are formed by the manufacturing process of combining and bonding sintered products, they shall be bonded and combined in the factory along the length of the panels, and usually at least 2 pores of dowel and grouting or other equivalent reinforcement measures shall be adopted. The panels should not be spliced in the width direction. When the panels need to be spliced in the width direction, they shall be spliced into a partition wall to avoid straight joints along the length direction to ensure the integrity of the panels. 5.1.17 The rock wool material used as the core material of the multi-ribbed glass fiber reinforced cement composite panels shall comply with the provisions of GB/T 11835. 5.2 Moisture Content The territory of use corresponding to the different moisture content limit regulations of the panels are shown in Table 2. Carry out according to the provisions of GB/T 13475.The sample dimensions shall meet the requirements of the testing equipment. The panel joints are treated with the same bonding materials and processes as during construction, compacted and scraped. 7.4.9 Softening coefficient Carry out according to the provisions of GB/T 30100. 7.4.10 Moisture content Carry out according to the provisions of GB/T 30100. 7.4.11 Drying shrinkage value Carry out according to the provisions of GB/T 30100.The sample of the composite sandwich panel shall be a whole including the face panel and core material. 7.4.12 2-hour water absorption rate of moisture-proof gypsum panels 7.4.12.1 Preparation of test specimens. Take 3 pieces of wallboards, and cut a test specimen along the length direction of the wallboards respectively at the middle position not less than 25 mm from the end of the wallboards, with a total of 3 pieces constituting a group of samples. The width of the test specimen is 100 mm, the length is the same as the width dimension of the wallboard (if the board width is ≤800 mm, the cutting length of the test specimen is the board width; if the board width is >800 mm, the cutting length of the test specimen is 600 mm), and the thickness is the same as the thickness of the wallboard. Place the wallboard under normal temperature and humidity conditions for 3 d before testing. 7.4.12.2 Place the test specimen in an electric blast drying oven and dry it for 24 h at a drying temperature of 50°C. Thereafter, weigh it every 2 h until the difference between the two weighing values does not exceed 0.2% of the latter weighing value. After the test specimen cools to room temperature, weigh its absolute dry mass m0 immediately to an accuracy of 0.01 kg. 7.4.12.3 Place the test specimen in water above 10°C. The test specimen is suspended by a bracket and is not close to the bottom and side walls of the pool. The upper surface of the test specimen is not less than 30 mm from the water surface. After 2 h, the test specimen is taken out and the water attached to the surface of the test specimen is absorbed with a towel. Weigh the mass of the test specimen m1 to an accuracy of 0.01 kg. 7.4.12.4 The 2-hour moisture content of each test specimen is calculated according to Formula (1) and rounded to 0.1%. Where. recently produced and have a complete appearance. Cut 2 test specimens with the dimensions of 200 mm × 200 mm × board thickness at any diagonal corner of each wallboard. 7.4.15.2 The test method shall be carried out according to the provisions of GB/T 2542. 7.5 Radionuclide Limit Carry out according to the provisions of GB 6566.8 Inspection Rules8.1 Inspection Classification 8.1.1 Exit-factory inspection The products shall be subjected to exit-factory inspection before leaving the factory. The exit-factory inspection items include appearance quality, dimensional deviation, compressive strength, flexural load, and moisture content. The moisture-proof gypsum panels shall also be tested for 2-hour water absorption rate and softening coefficient. The products can only leave the factory after passing the inspection. 8.1.2 Type inspection 8.1.2.1 Type inspection conditions The type inspection shall be carried out under any of the following circumstances. a) When a trial-produced new product is put into production for appraisal; b) When the material, formula, or process of the product has been significantly changed, which may affect the product performance; c) For products produced in continuous standardization, the airborne sound weighted sound insulation and fire resistance limit are tested once every three years, and other items specified in Chapter 6 are tested once a year; d) When the product is put back into production after being discontinued for more than half a year; e) When the exit-factory inspection result is significantly different from the last type inspection result. 8.1.2.2 Type inspection items of the product The type inspection items of the product are all items specified in 6.1, 6.2, 6.3, and 6.4. 8.2 Sampling Methods for Exit-factory Inspection and Type Inspection requirements of 4.4, and the manufacturer name and production date shall be marked. 9.1.2 The products leaving the factory shall have a quality certificate and product manual. 9.1.3 The certificate of conformity shall contain the following contents. a) Product name, product standard number, trademark; b) Manufacturer name and detailed address; c) Product specifications, models, and main technical parameters; d) The product inspection report shall contain the code of the inspector and the seal of the inspection department. 9.1.4 The product manual shall contain the following contents. a) Precautions for product transportation and stacking; b) Requirements for wallboard auxiliary materials and installation process description; c) Precautions for wall grooving and hole opening; d) Precautions for laying anti-cracking mesh and wall finishing construction; e) Precautions for later use and maintenance. 9.2 Transportation The panels can be transported by carts for short distances and should be carried sideways; for long distances, they can be transported by trucks, ships or other freight methods. For long-distance transportation, the panels shall be bundled and gently lifted and dropped. During transportation, the panels shall be tightened with ropes, supported reasonably, prevented from impact, damage and deformation, and covered with tarpaulin if necessary to prevent rain. 9.3 Storage 9.3.1 Conditions The panel products are stored under normal temperature and humidity conditions, and the environment shall be kept dry and ventilated. The storage site shall be solid and flat, and easy to carry. The panels can be stored in a warehouse, but not in the open air. Effective measures shall be taken for open air storage to prevent corrosion media and rain damage. If the sintered panel products are stored for more than half a year, the panel surface direction and side position shall be changed. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 23451-2023 be delivered?Answer: The full copy PDF of English version of GB/T 23451-2023 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 23451-2023_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 23451-2023_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 23451-2023 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 23451-2023?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 23451-2023 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 23451-2023?A step-by-step guide to download PDF of GB/T 23451-2023_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 23451-2023". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
