GB/T 223.82-2018 PDF EnglishUS$135.00 · In stock · Download in 9 seconds
GB/T 223.82-2018: Steel and Iron - Determination of Hydrogen Content - Thermal Conductivity/Infrared Method after Fusion under Inert Gas Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 223.82: Historical versions

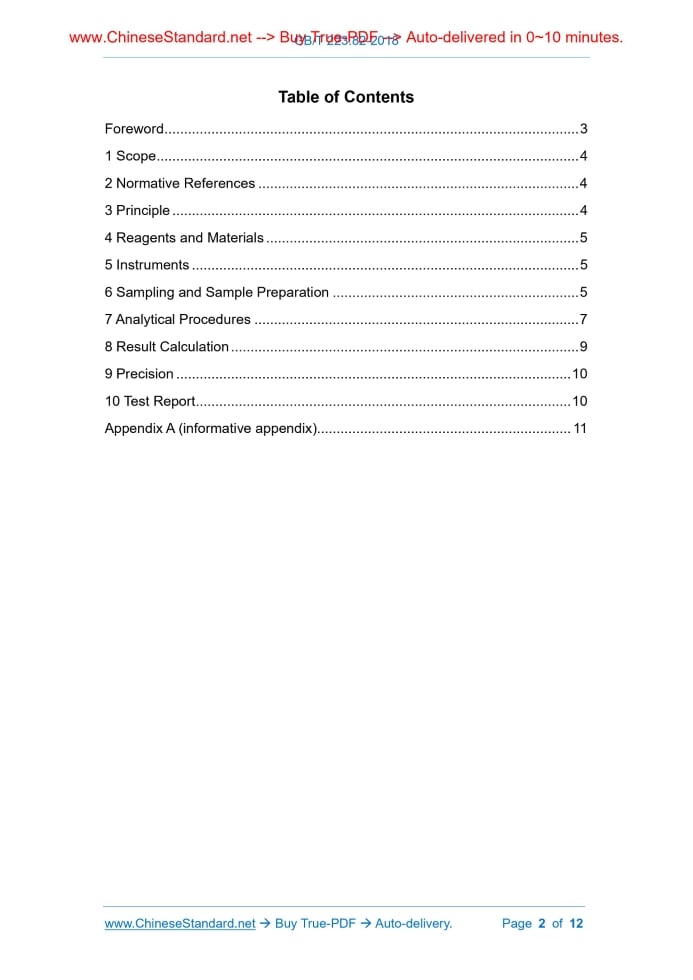

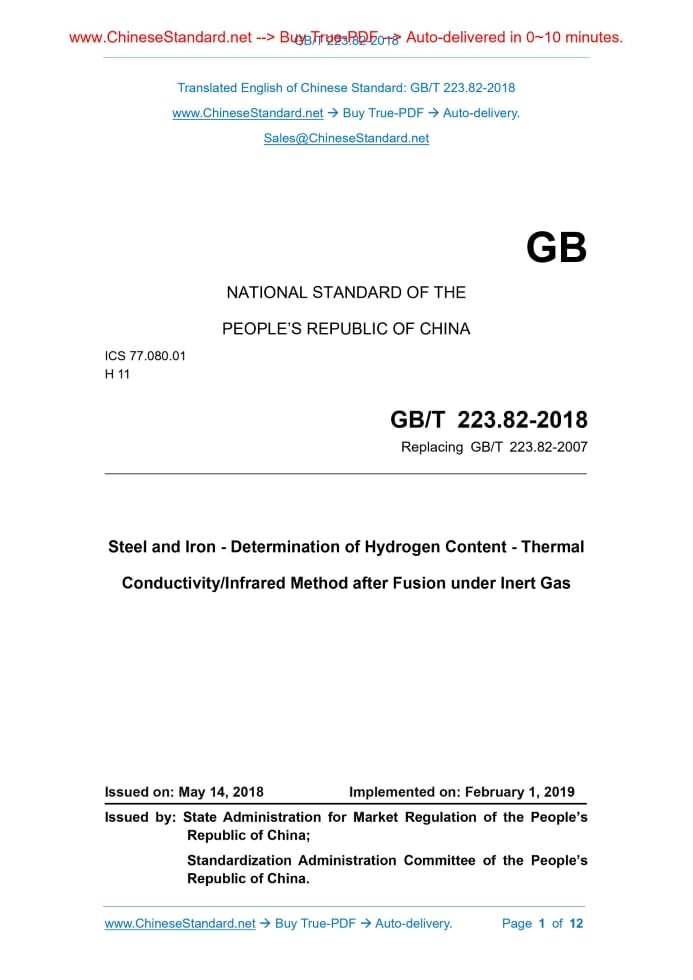

Similar standardsGB/T 223.82-2018: Steel and Iron - Determination of Hydrogen Content - Thermal Conductivity/Infrared Method after Fusion under Inert Gas---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT223.82-2018 GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 77.080.01 H 11 Replacing GB/T 223.82-2007 Steel and Iron - Determination of Hydrogen Content - Thermal Conductivity/Infrared Method after Fusion under Inert Gas Issued on. MAY 14, 2018 Implemented on. FEBRUARY 1, 2019 Issued by. State Administration for Market Regulation of the People’s Republic of China; Standardization Administration Committee of the People’s Republic of China. Table of ContentsForeword... 3 1 Scope... 4 2 Normative References... 4 3 Principle... 4 4 Reagents and Materials... 5 5 Instruments... 5 6 Sampling and Sample Preparation... 5 7 Analytical Procedures... 7 8 Result Calculation... 9 9 Precision... 10 10 Test Report... 10 Appendix A (informative appendix)... 11ForewordThis is No. 82 part of GB/T 223. This Part is drafted in accordance with stipulations in GB/T 1.1-2009. This Part is drafted as a replacement of GB/T 223.82-2007 Steel and Iron - Determination of Hydrogen Content - Inert Gas Impulse Fusion Heat Conductivity Method. In comparison with GB/T 223.82-2007, there are the following main changes to the content. ---The name of the Standard is modified; ---The range of determination is modified; ---The content of infrared method is added to detection; ---The content of ultrasonic cleaning, powdered sample and crumbed sample is added to sampling and preparation of sample; ---The content of single-point calibration and multi-point calibration is added to calibration; ---“7 Analytical Procedure”, previous “5.2 Instrument Preparation”, “7 Calibration” and “8 Measurement” are added to Chapter 7; ---Formula of repeatability limit and reproducibility limit in “9 Precision” is modified. This Part is proposed by China Iron and Steel Association. This Part is summarized by National Technical Committee 183 on Steel Standardization (SAC/TC 183). This Standard is drafted by. Institute of Metal Research, Chinese Academy of Sciences, Central Iron & Steel Research Institute, BAOSTEEL Co., Ltd., Wuhan Iron and Steel Company Limited, Shanghai MEISHAN Iron & Steel Co., Ltd., ANSTEEL Research Institute of Iron & Steel of Pangang Group Research Institute Co., Ltd., ANSTEEL Group, BAOSTEEL Special Steel Co., Ltd., SHOUGANG JINGTANG United Iron & Steel Co., Ltd., BAOSTEEL Special Steel Shaoguan Co., Ltd., NCS Testing Technology Co., Ltd. The main drafters of this Part include. Zhu Yuejin, Jiang Zhimin, Li Sujuan, Sun Mingyue, Luo Qianhua, Wang Hongjing, Zheng Mingyue, Xu Fanghu. The issuing of the previous versions of the standard replaced by this Part is listed below. ---GB/T 223.82-2007. Steel and Iron - Determination of Hydrogen Content - Thermal Conductivity/Infrared Method after Fusion under Inert Gas1 ScopeThis Part in GB/T 223 specifies methods of determining hydrogen content through thermal conductivity or infrared method after fusion under inert gas. This Part is applicable to the determination of hydrogen content in steel and iron (mass fraction. 0.6 μg/g ~ 30.0 μg/g).2 Normative ReferencesThe following documents are indispensable to the application of this Standard. In terms of references with a specified date, only versions with a specified date are applicable to this Standard. The latest version (including all the modifications) of references without a specified date is also applicable to this Standard. GB/T 6379.1 Accuracy (Trueness and Precision) of Measurement Methods and Results - Part 1.General Principles and Definitions (GB/T 6379.1-2004, ISO 5725- 1.1994, IDT) GB/T 6379.2 Accuracy (Trueness and Precision) of Measurement Methods and Results - Part 2.Basic Method for the Determination of Repeatability and Reproducibility of a Standard Measurement Method (GB/T 6379.2-2004, ISO 5725-2.1994, IDT) GB/T 20066 Steel and Iron - Sampling and Preparation of Samples for the Determination of Chemical Composition (GB/T 20066-2006, ISO 14284.1996, IDT)3 PrinciplePlace reagent in a degassed graphite crucible; heat it up and fuse it under inert gas. In reagent, hydrogen is released in the form of molecular, and enters carrier gas flow. After isolating it from other gases with chromatographic column, conduct the detection in thermal conductivity cell.4 Reagents and Materials4.1 High-purity carrier gas (purity. ≥ 99.99%). argon, nitrogen or helium, depends on instrument manufacturer’s recommendation. 4.2 Power gas, nitrogen, argon or compressed air; oil and water content < 0.5%; flammable gas is prohibited. 4.3 Carbon tetrachloride, acetone or ether (analytical purity). 4.4 Anhydrous magnesium perchlorate (granular reagent). 4.7 Graphite (electrode) crucible, disposable, made of high-purity graphite. 4.8 Hydrogen standard substance/standard sample in steel (iron).5 InstrumentsInert gas fusion - thermal conductivity or infrared hydrogen detection analyzer, including pulsed graphite electrode furnace, analytical airflow impurity removal system, auxiliary purification system and thermal conductivity cell or infrared pool hydrogen determination system.6 Sampling and Sample Preparation6.1 General Requirements Sampling and preparation of sample shall comply with stipulations in GB/T 20066. 6.2 Pre-furnace Sampling and Sample Preparation Pre-furnace sampling shall adopt exclusive sampling devices. Before adopting a new pre-furnace sampling method or a new sampling device, its reliability and availability shall be evaluated; an evaluation report shall be issued for the record. 6.3 Sampling and Sample Preparation on Steel Ingot or Profile In terms of forged or casted workpiece, the mode of sawing, digging and wire-electrode cutting is recommended for sampling. The mode of water soldering open flame cutting is not recommended for sampling. 6.4 Powdered Sample Powdered sample needs to be taken from a great deal of evenly mixed powder. After sampling, store the sample in a clean plastic zip lock bag for a short time; store it in a vacuum bag, argon bag or sealed glass bottle for a long time. Since paper bag is water and gas permeable, it is not recommended here. 6.5 Crumbed Sample Crumbed sample that is taken from profit or casted workpiece cannot be adopted as hydrogen determination sample, because of hydrogen transfer during the processing. 6.6 Other Samples Materials in abnormal shapes shall be sampled in accordance with the materials. The operation of sampling can adopt certain modes of processing, such as cutting, sawing and wire-electrode cutting. Avoid overheat and contamination. Wire materials can be directly sampled.7 Analytical Procedures7.1 Instrument Preparation 7.1.1 Initiate the instrument in accordance with requirements in the instruction for use provided by instrument manufacturer; confirm that flow meter and pressure gauge on the instrument are indicating the specified position. 7.1.2 If necessary, conduct air-leak check of the instrument while the power is connected, and the water-cooling system is initiated. 7.1.3 Configurate parameters of the instrument; pre-heat and stabilize the instrument. The following analytical conditions are recommended. 7.2 Blank Test Conduct blank test before the procedure of analysis and determination. Conduct at least 3 blank value determinations; replace a new crucible in each determination. The deduction of blank value can be automatic or manual. 7.3 Calibration (any calibration procedure can be adopted) 7.3.1 Single-point calibration 7.3.1.1 Select hydrogen standard substance/standard sample (4.8) in 2 types of steel (iron); its hydrogen content shall be higher or close to the hydrogen content of the sample to be tested; the detection range of this method shall not be exceeded. 7.3.2 Multi-point calibration 7.3.2.1 Select hydrogen standard substance/standard sample (4.8) in at least 4 types of steel (iron); its hydrogen content shall be different and within the detection range of this method. 7.3.2.2 Conduct multi-point calibration in accordance with requirements in the instruction for use of the instrument. Analyze at least 3 standard substances/standard samples (7.3.2.1); each standard substance/standard sample shall be analyzed for 3 times; respectively take the average value; determine calibration curve slope and intercept through multiple points of of hydrogen content. 7.3.2.5 In accordance with the procedure described in the instruction for use of the instrument, store this calibration in the form of method; name this method. 7.3.3 Calibration frequency requirements Instrument shall be calibrated for at least 1 time every year. When any of the abnormal circumstances emerge, instrument shall be re-calibrated to guarantee the reliability and validity of measurement. 7.4 Sample Analysis 7.4.1 Select a suitable analytical method (7.3.1.5 or 7.3.2.5). The adopted analytical conditions shall maintain consistency with the analytical conditions adopted for calibration. If the sample to be determined is powdered, corresponding standard substance/standard sample shall be adopted for calibration. 7.4.2 Input sample information in accordance with the procedure required in the instruction for use of the instrument. 7.4.3 Weigh-take 0.5 g ~ 1.0 g of sample (accurate to 0.001 g) (if there are any special8 Result CalculationHydrogen content shall be calculated by mass fraction (μg/g).9 PrecisionIn the precision test of this method, 10 cooperative organizations and 10 laboratories shall determine 6 content levels of hydrogen element. Each laboratory shall determine 2 ~ 3 times of each content level under the repeatability conditions stipulated in GB/T 6379.1. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 223.82-2018 be delivered?Answer: The full copy PDF of English version of GB/T 223.82-2018 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 223.82-2018_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 223.82-2018_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 223.82-2018 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 223.82-2018?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 223.82-2018 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 223.82-2018?A step-by-step guide to download PDF of GB/T 223.82-2018_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 223.82-2018". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
