GB/T 22097-2008 PDF EnglishUS$160.00 · In stock · Download in 9 seconds
GB/T 22097-2008: Gear measuring center Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

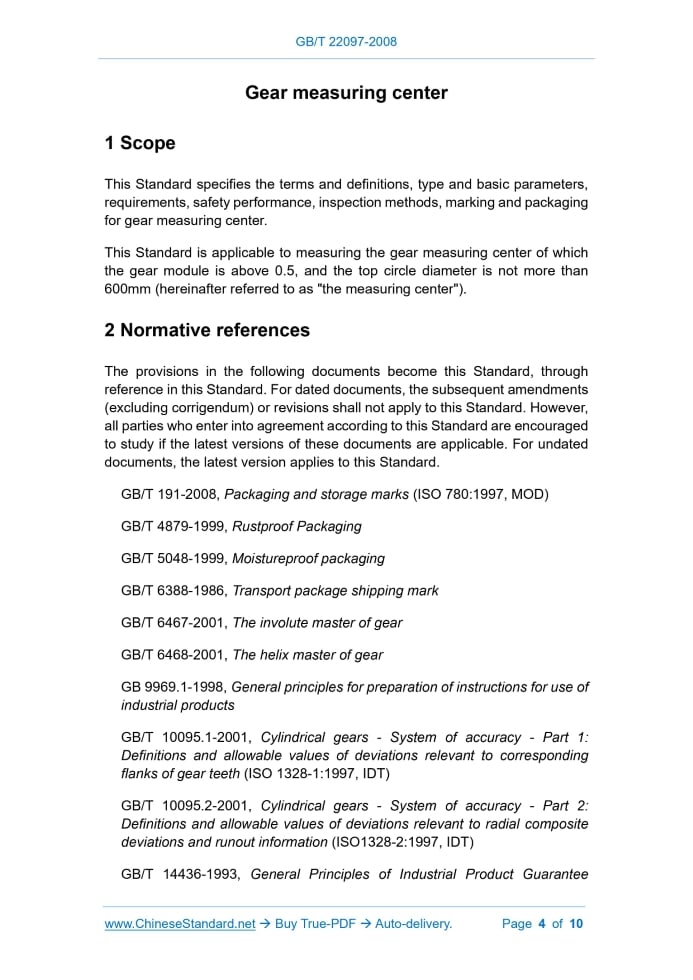

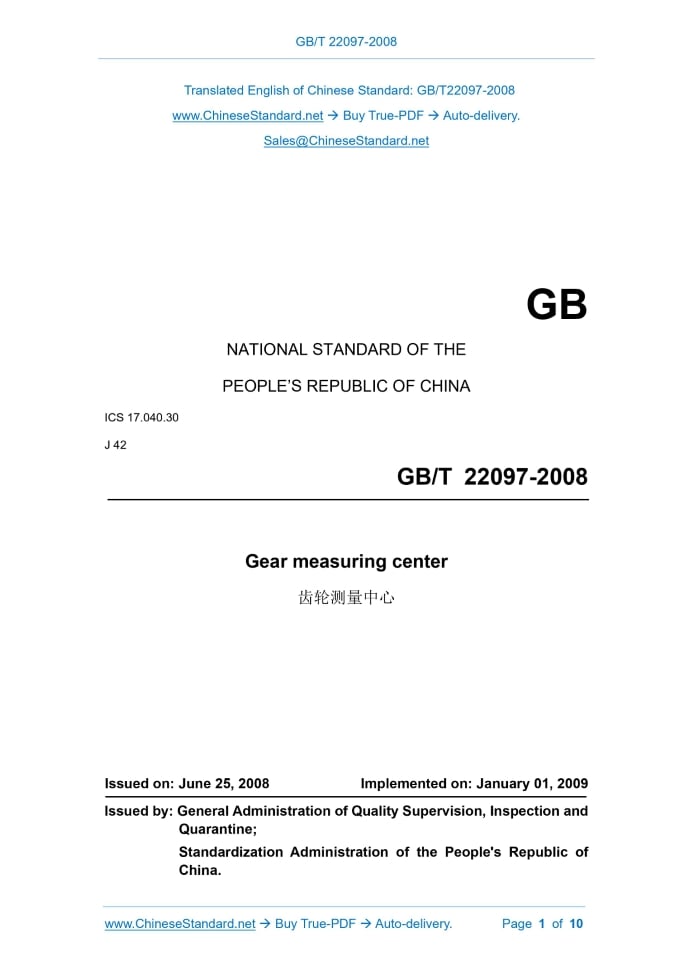

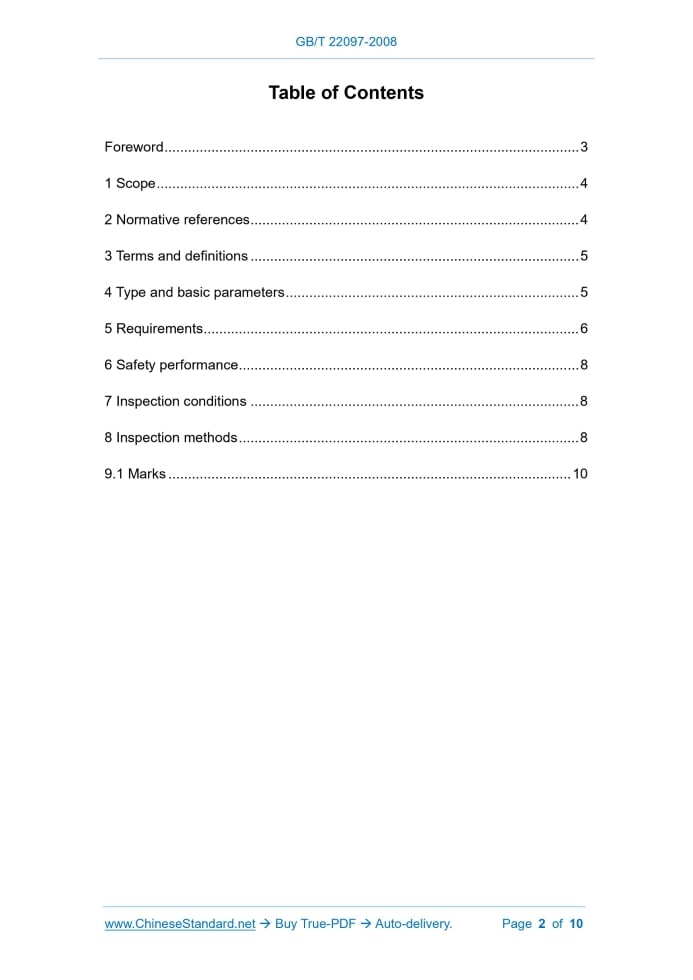

Similar standardsGB/T 22097-2008: Gear measuring center---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT22097-2008GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 17.040.30 J 42 Gear measuring center ISSUED ON: JUNE 25, 2008 IMPLEMENTED ON: JANUARY 01, 2009 Issued by: General Administration of Quality Supervision, Inspection and Quarantine; Standardization Administration of the People's Republic of China. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative references ... 4 3 Terms and definitions ... 5 4 Type and basic parameters ... 5 5 Requirements ... 6 6 Safety performance ... 8 7 Inspection conditions ... 8 8 Inspection methods ... 8 9.1 Marks ... 10 Gear measuring center1 ScopeThis Standard specifies the terms and definitions, type and basic parameters, requirements, safety performance, inspection methods, marking and packaging for gear measuring center. This Standard is applicable to measuring the gear measuring center of which the gear module is above 0.5, and the top circle diameter is not more than 600mm (hereinafter referred to as "the measuring center").2 Normative referencesThe provisions in the following documents become this Standard, through reference in this Standard. For dated documents, the subsequent amendments (excluding corrigendum) or revisions shall not apply to this Standard. However, all parties who enter into agreement according to this Standard are encouraged to study if the latest versions of these documents are applicable. For undated documents, the latest version applies to this Standard. GB/T 191-2008, Packaging and storage marks (ISO 780:1997, MOD) GB/T 4879-1999, Rustproof Packaging GB/T 5048-1999, Moistureproof packaging GB/T 6388-1986, Transport package shipping mark GB/T 6467-2001, The involute master of gear GB/T 6468-2001, The helix master of gear GB 9969.1-1998, General principles for preparation of instructions for use of industrial products GB/T 10095.1-2001, Cylindrical gears - System of accuracy - Part 1: Definitions and allowable values of deviations relevant to corresponding flanks of gear teeth (ISO 1328-1:1997, IDT) GB/T 10095.2-2001, Cylindrical gears - System of accuracy - Part 2: Definitions and allowable values of deviations relevant to radial composite deviations and runout information (ISO1328-2:1997, IDT) GB/T 14436-1993, General Principles of Industrial Product Guarantee6 Safety performance6.1 Insulation resistance The insulation resistance of the measuring center shall not be less than 2MΩ. 6.2 Ground resistance The grounding resistance between the measuring center grounding device and the grounding terminal shall not be greater than 0.2Ω.7 Inspection conditions7.1 The indoor temperature during inspection is 20°C±1°C. The temperature change is 0.5°C/h. The time for the tested instrument to equilibrate the temperature in the test room is not less than 12h. The equilibrium temperature of the inspection tool in the room shall not be less than 6h. 7.2 The inspection room is kept clean. The vibration and power supply voltage meet the requirements.8 Inspection methods8.1 Appearance Use visual inspection. 8.2 Interaction Use visual inspection and hand touching detection. 8.3 Oblique circular runout of lower center Fix the magnetic meter base with the torsion spring comparator on the base. Make the probe of the torsion spring comparator vertically contact the cone of the lower center. Turn the main shaft 720°. Take the maximum change of the indicated value of the comparator. 8.4 Parallelism of measuring head moving up and down to connecting line between upper and lower centers Install precision mandrel between upper and lower centers. Fix the magnetic meter base with torsion spring on the vertical slide plate. Make the probe perpendicular to the outer circle of the mandrel. Move the vertical slide for inspection. Take the maximum change of the indicated value of the comparator. 8.5 Coaxiality of upper center to spindle rotation center Install a precision mandrel with a length of 200mm between the upper and lower centers. Fix the magnetic meter base with the torsion spring comparator on the lower disc. Make the probe of the comparator vertically contact the outer circle of the upper end of the mandrel. Turn the main shaft 720°. Take the maximum change of the indicated value of the comparator. 8.6 Indication error when measuring involute tooth profile deviation Install an involute model between the upper and lower centers. According to the computer involute tooth profile measurement program, the probe is in contact with the tooth surface. Measure the tooth surface of the template. Take the difference between the measured value and the actual value of the sample. 8.7 Indication error when measuring spiral deviation Install a spiral line model between the upper and lower centers. According to the computer spiral program, the probe is in contact with the tooth surface. Measure the tooth surface. Take the difference between the measured value and the actual value of the model. 8.8 Indication error when measuring cumulative total deviation of tooth pitch The probe is in contact with the middle of the standard gear tooth surface. Measure from the marked tooth according to the computer pitch measurement program. Take the maximum difference between the cumulative total deviation of the tooth pitch measured for one revolution and the actual value of the standard gear. 8.9 Variation of indication value when measuring involute tooth profile deviation Use the same method as 8.6. In one clamping, continuously measure the tooth surface of the involute template five times. Take the maximum difference between the indicated values of each curve. 8.10 Variability of indication value when measuring spiral deviation Use the same method as 8.7. Measure the spiral pattern five times continuously in one clamping. Take the maximum difference between the indicated values of each curve. 8.11 Variability of indication value when measuring cumulative total deviation of tooth pitch Use the same method as 8.9. In one clamping, five rotations are continuously ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 22097-2008 be delivered?Answer: The full copy PDF of English version of GB/T 22097-2008 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 22097-2008_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 22097-2008_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 22097-2008 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 22097-2008?A step-by-step guide to download PDF of GB/T 22097-2008_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 22097-2008". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
