GB/T 18942.1-2003 PDF EnglishUS$134.00 · In stock · Download in 9 seconds
GB/T 18942.1-2003: Polymeric materials, cellular flexible -- Determination of stress-strain characteristic in compression -- Part 1: Low-density materials Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

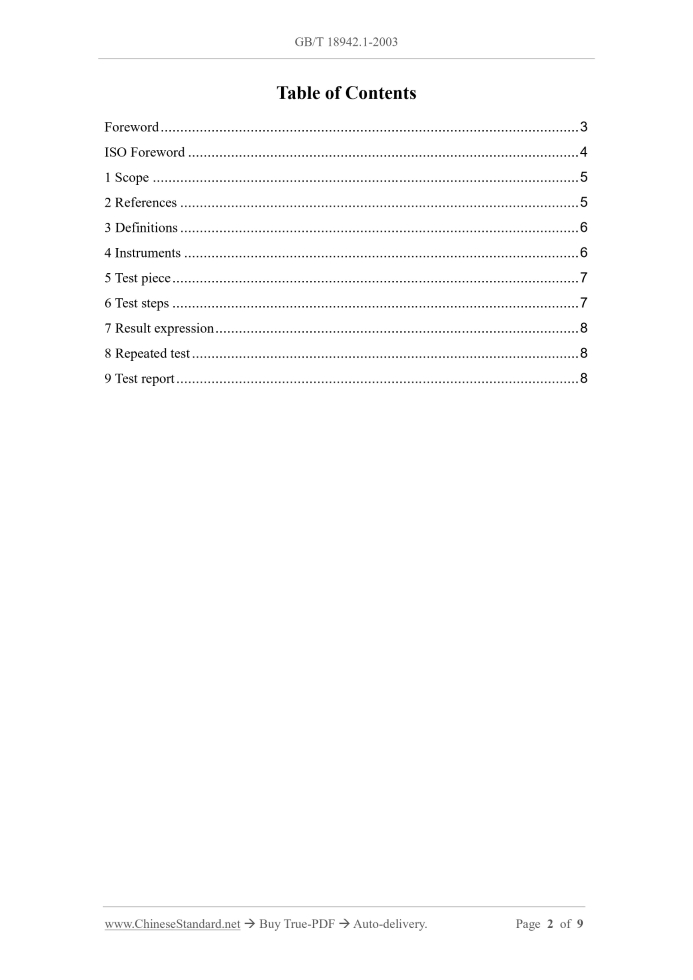

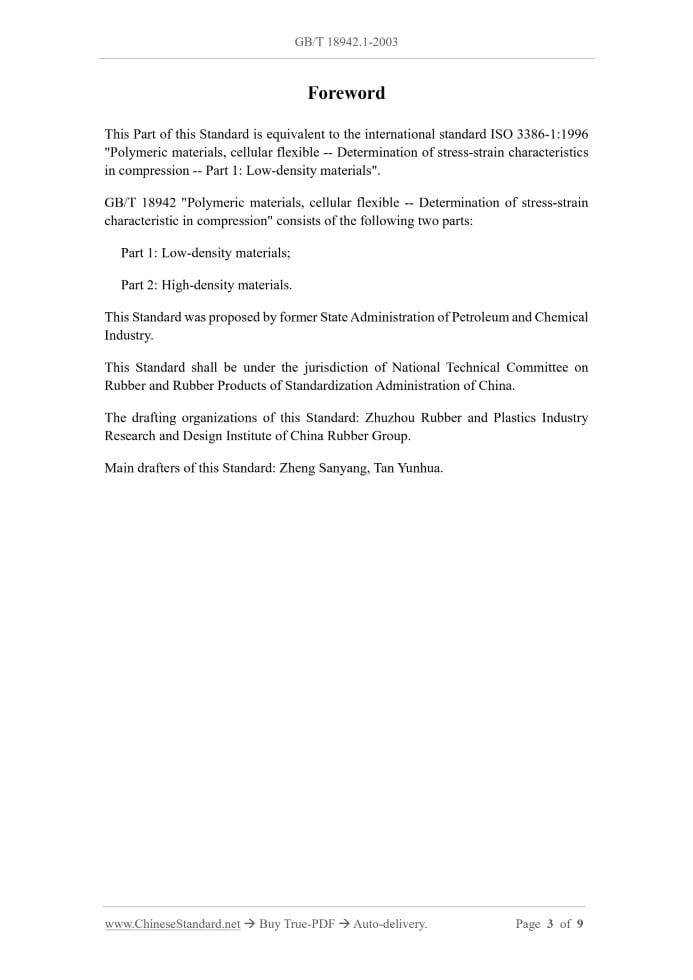

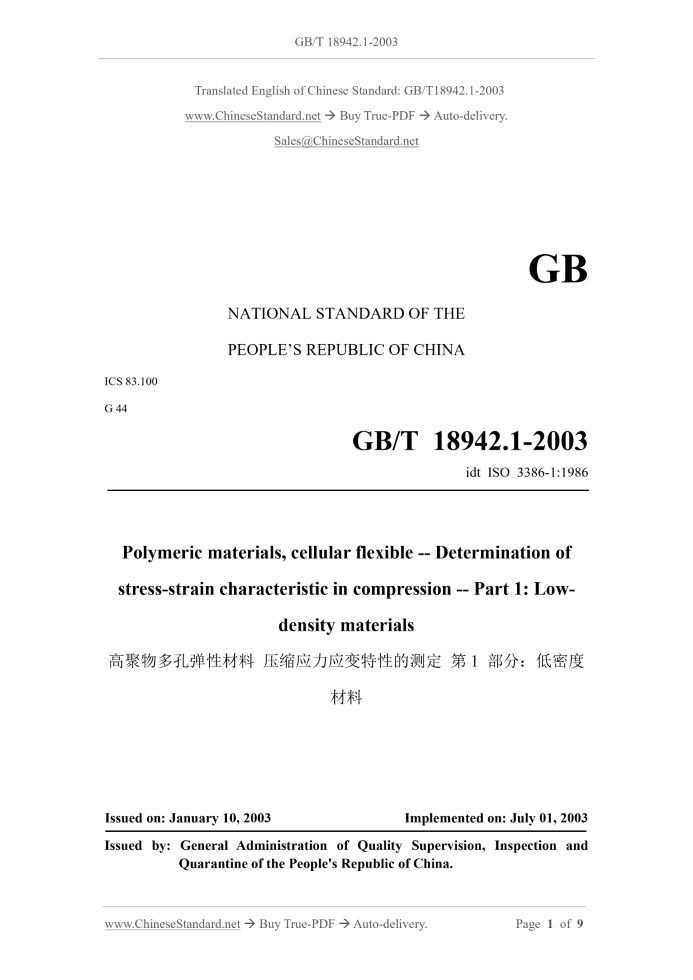

Similar standardsGB/T 18942.1-2003: Polymeric materials, cellular flexible -- Determination of stress-strain characteristic in compression -- Part 1: Low-density materials---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT18942.1-2003 GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 83.100 G 44 idt ISO 3386-1.1986 Polymeric materials, cellular flexible -- Determination of stress-strain characteristic in compression -- Part 1.Low- density materials 材料 Issued on: JANUARY 10, 2003 Implemented on: JULY 01, 2003 Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China. Table of ContentsForeword... 3 ISO Foreword... 4 1 Scope... 5 2 References... 5 3 Definitions... 6 4 Instruments... 6 5 Test piece... 7 6 Test steps... 7 7 Result expression... 8 8 Repeated test... 8 9 Test report... 8ForewordThis Part of this Standard is equivalent to the international standard ISO 3386-1.1996 "Polymeric materials, cellular flexible -- Determination of stress-strain characteristics in compression -- Part 1.Low-density materials". GB/T 18942 "Polymeric materials, cellular flexible -- Determination of stress-strain characteristic in compression" consists of the following two parts. Part 1.Low-density materials; Part 2.High-density materials. This Standard was proposed by former State Administration of Petroleum and Chemical Industry. This Standard shall be under the jurisdiction of National Technical Committee on Rubber and Rubber Products of Standardization Administration of China. The drafting organizations of this Standard. Zhuzhou Rubber and Plastics Industry Research and Design Institute of China Rubber Group. Main drafters of this Standard. Zheng Sanyang, Tan Yunhua. Polymeric materials, cellular flexible -- Determination of stress-strain characteristic in compression -- Part 1.Low- density materials WARNING. Personnel using this standard should be familiar with formal laboratory operating procedures. This standard does not purport to address all safety issues that may arise from its use. It is the user's responsibility to establish appropriate safety and health systems and ensure compliance with national regulations.1 ScopeThis Part of the standard specifies the method for determining the compressive stress- strain characteristics of low-density porous elastic materials with a mass fraction of less than 250 kg/m3.It also describes the method for calculating the compressive stress value of such materials. Although such materials may not necessarily have the ability to withstand long-term loads, the compressive stress-strain characteristics can be used as a measure of the material's load-bearing performance. The compressive stress-strain characteristics are different from the indentation hardness characteristics (measured according to GB/T 12825), which are affected by the thickness and tensile properties of the tested porous elastic material, the shape of the compression plate, and the shape and size of the test piece. Part 2 of this Standard specifies the method for determining compressive stress and strain in high-density materials and differs from Part 1 in the following respects. - Primarily relevant for materials with densities above 250 kg/m³. - Compressive stress values have been eliminated. - Cylindrical test pieces are not permitted.2 ReferencesThe provisions contained in the following standards constitute the provisions of this Standard through reference in this Standard. The versions shown are valid at the time of publication of this standard. All standards are subject to revision, and parties using this standard should investigate the possibility of using the latest versions of the following standards. GB/T 6342, Cellular plastics and rubbers. Determination of linear dimensions GB/T 12825, Polymeric materials, cellular flexible -- Determination of hardness by indentation technique3 DefinitionsThis Standard uses the following definitions. 3.1 Compressive stress-strain characteristics (C). The stress required to compress to a specified deformation at a constant deformation rate during the fourth loading period of a specified test, expressed as a function of the compression deformation. The unit of stress is kPa. 3.2 Compressive stress value (CV40). Compressive stress-strain characteristics when compressed to 40%.4 Instruments4.1 Testing machine The testing machine should be capable of compressing the test piece between the support surface (see 4.2) and the compression plate (see 4.3). The relative speed of the testing machine in the vertical direction should always be maintained at (100±20) mm/min. The testing machine should be capable of measuring the force required to produce the specified compression deformation to an accuracy of ±2%, and the ability to measure the thickness of the test piece under load to an accuracy of ±0.2 mm. The testing machine should be equipped with a device for automatically recording stress and strain values. 4.2 Supporting surface Unless otherwise specified, the test piece should be placed on a smooth, flat, horizontal, and rigid support surface. The support surface should be larger than the test piece. The surface should have vent holes with a diameter of 6 mm and a spacing of approximately 20 mm to allow air to escape from under the test piece.5 Test piece5.1 Shape and size The test piece should be a parallelepiped or cylinder. The selected test piece thickness should be 50 mm±1 mm and should never be less than 10 mm. Test pieces less than 10 mm thick should be overlapped to achieve the specified range, but the thickness of each layer must be at least 10 micropore diameters. The area of the test piece shall not be less than 2500 m2 and the test piece and the compression plate shall not overlap exactly. NOTE. For specimens with an area close to the lower limit, the compression force may be low and special test equipment may be required to meet the accuracy specified in 4.1. 5.2 Orientation of the sample If the product shows a porous structure orientation, the direction of compression should be agreed with all parties involved. Usually, the direction of product testing is the direction of force in which the finished product will be subjected under the conditions of use.6 Test stepsMeasure the dimensions of the test piece and calculate the area of the load-bearing surface according to the corresponding steps specified in GB/T 6342. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 18942.1-2003 be delivered?Answer: The full copy PDF of English version of GB/T 18942.1-2003 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 18942.1-2003_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 18942.1-2003_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 18942.1-2003 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 18942.1-2003?A step-by-step guide to download PDF of GB/T 18942.1-2003_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 18942.1-2003". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
