GB/T 1843-2008: Plastics - Determination of izod impact strength Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 1843: Historical versions

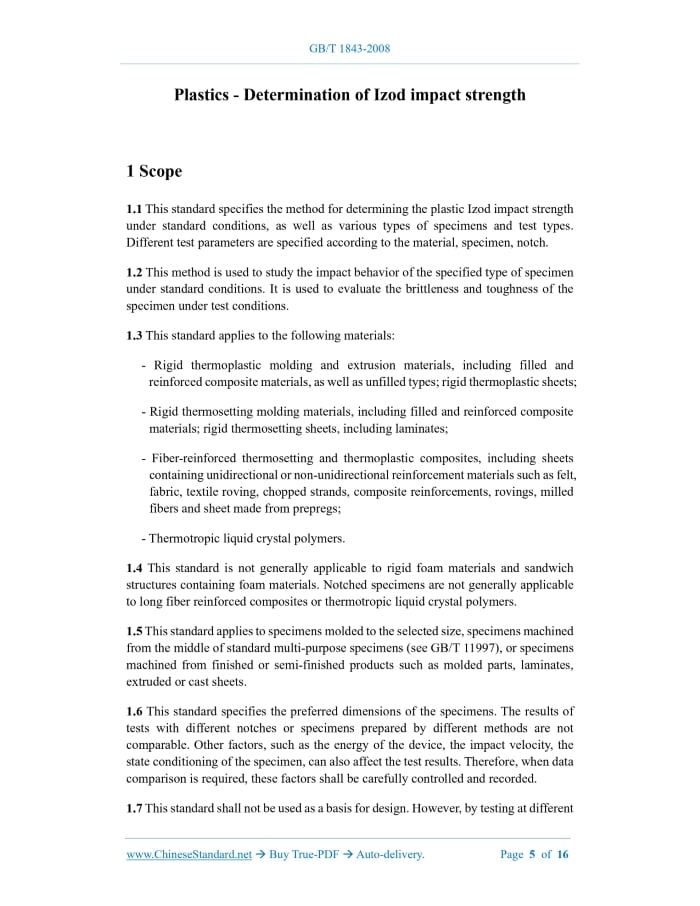

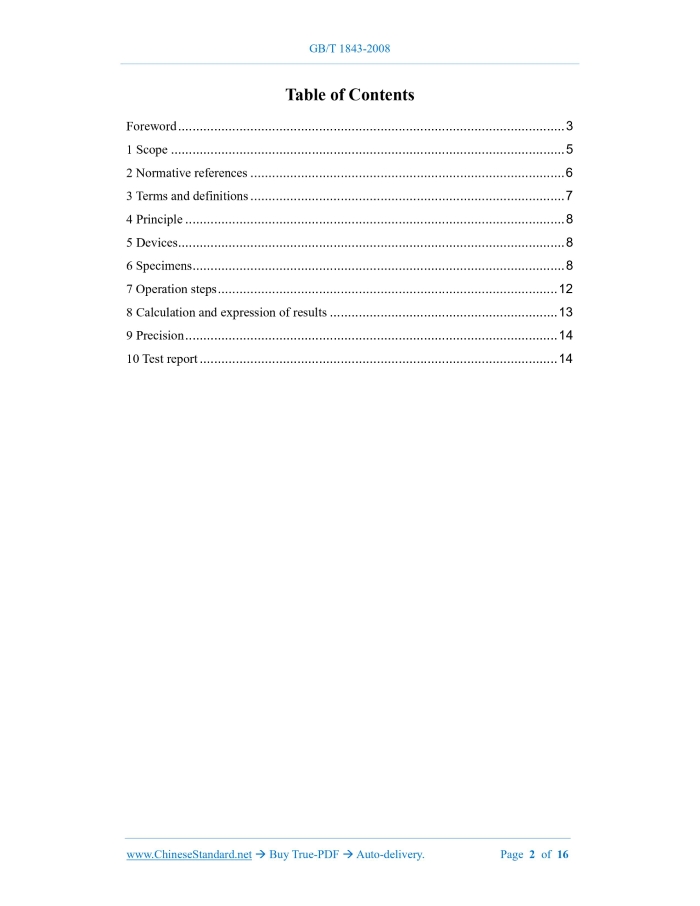

Similar standardsGB/T 1843-2008: Plastics - Determination of izod impact strength---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT1843-2008GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 83.080.01 G 32 GB/T 1843-2008 / ISO 180:2000 Replacing GB/T 1843-1996 Plastics - Determination of Izod impact strength (ISO 180:2000, IDT) ISSUED ON: AUGUST 04, 2008 IMPLEMENTED ON: APRIL 01, 2009 Issued by: General Administration of Quality Supervision, Inspection and Quarantine of PRC; National Standardization Administration. Table of ContentsForeword ... 3 1 Scope ... 5 2 Normative references ... 6 3 Terms and definitions ... 7 4 Principle ... 8 5 Devices ... 8 6 Specimens ... 8 7 Operation steps ... 12 8 Calculation and expression of results ... 13 9 Precision ... 14 10 Test report ... 14 Plastics - Determination of Izod impact strength1 Scope1.1 This standard specifies the method for determining the plastic Izod impact strength under standard conditions, as well as various types of specimens and test types. Different test parameters are specified according to the material, specimen, notch. 1.2 This method is used to study the impact behavior of the specified type of specimen under standard conditions. It is used to evaluate the brittleness and toughness of the specimen under test conditions. 1.3 This standard applies to the following materials: - Rigid thermoplastic molding and extrusion materials, including filled and reinforced composite materials, as well as unfilled types; rigid thermoplastic sheets; - Rigid thermosetting molding materials, including filled and reinforced composite materials; rigid thermosetting sheets, including laminates; - Fiber-reinforced thermosetting and thermoplastic composites, including sheets containing unidirectional or non-unidirectional reinforcement materials such as felt, fabric, textile roving, chopped strands, composite reinforcements, rovings, milled fibers and sheet made from prepregs; - Thermotropic liquid crystal polymers. 1.4 This standard is not generally applicable to rigid foam materials and sandwich structures containing foam materials. Notched specimens are not generally applicable to long fiber reinforced composites or thermotropic liquid crystal polymers. 1.5 This standard applies to specimens molded to the selected size, specimens machined from the middle of standard multi-purpose specimens (see GB/T 11997), or specimens machined from finished or semi-finished products such as molded parts, laminates, extruded or cast sheets. 1.6 This standard specifies the preferred dimensions of the specimens. The results of tests with different notches or specimens prepared by different methods are not comparable. Other factors, such as the energy of the device, the impact velocity, the state conditioning of the specimen, can also affect the test results. Therefore, when data comparison is required, these factors shall be carefully controlled and recorded. 1.7 This standard shall not be used as a basis for design. However, by testing at different temperatures, changing the notch radius and (or) thickness, and preparing specimens under different conditions, can obtain the information on typical properties of the material.2 Normative referencesThe provisions in following documents become the provisions of this Standard through reference in this Standard. For the dated references, the subsequent amendments (excluding corrections) or revisions do not apply to this Standard; however, parties who reach an agreement based on this Standard are encouraged to study if the latest versions of these documents are applicable. For undated references, the latest edition of the referenced document applies. GB/T 2918-1998 Plastics - Standard atmospheres for conditioning and testing (IDT ISO 291:1997) GB/T 5471-2008 Plastics - Compression moulding of test specimens of thermosetting materials (ISO 295:2004, IDT) GB/T 9352-2008 Plastic - Compression moulding of test specimens of thermoplastic materials (ISO 293:2004, IDT) GB/T 11997-2008 Plastic - Multipurpose test specimens (ISO3167:2002, IDT) GB/T 17037.1-1997 Injection moulding of test specimens of thermoplastic materials - Part 1: General principles and moulding of multipurpose and bar test specimens (IDT ISO294-1: 1996) GB/T 21189-2007 Verification of pendulum impact-testing machines used for Charpy Izod and tensile impact-testing of plastics (ISO13802: 1999, IDT) ISO 1268 1) Fiber-reinforced plastics - Methods of producing test sheets - Part 1: General conditions ISO 2602:1980 Statistical interpretation of test results - Estimation of the mean - Confidence interval ISO 2818:1994 Plastics - Preparation of test specimens by machining ISO 10724-1:1998 Plastics - Injection moulding of test specimens of thermosetting powder moulding compounds (PMCs) - Part 1: General principles and moulding of multipurpose test specimens 1 It is being revised into 11 parts.4 PrincipleA pendulum of known energy strikes a specimen supported as a vertical Izod once, to measure the energy absorbed when the specimen fails. The impact line is a fixed distance from the specimen fixture; for notched specimens, the distance from the impact line to the notch centerline is the fixed distance (see Figure 2).5 Devices5.1 Testing machine 5.1.1 For the principle, characteristics, identification of the testing machine, please refer to GB/T 21189-2007. 5.1.2 Some plastics are very sensitive to clamping force. When testing such materials, a standardized clamping force method shall be used and the clamping force shall be noted in the test report. The clamping force can be controlled by a calibrated torque wrench or a pneumatic or hydraulic device on the screw tightened by the vise. 5.2 Micrometer and gauge Measure the main dimensions of the specimen, using a micrometer or gauge which has an accuracy of 0.02 mm. In order to measure the dimension of the notched specimen bN, a measuring probe which has a width of 2 mm ~ 3 mm and a shape suitable for the shape of the notch shall be installed on the micrometer.6 Specimens6.1 Preparation 6.1.1 Molded and extruded materials The materials shall be prepared in accordance with the relevant material standards. If there is no such standard or otherwise specified, the specimens shall be directly compression molded or injection molded in accordance with the corresponding standards of GB/T 9352-2008, GB/T 17037.1-1997, GB/T 5471-2008 or ISO 10724- 1:1998, or machined from compression molded or injected sheets. The specimens may also be cut from type A multi-purpose specimens conforming to GB/T 11997-2008. 6.1.2 Sheets The specimens shall be machined from sheets in accordance with ISO 2818:1994, using type A notches whenever possible. During testing, the machined surface of the unnotched specimen shall not be in tension. material is to be obtained, specimens with notches of Type A and Type B shall be tested. 6.3.3 Sheets, including long fiber reinforced materials The recommended thickness h is 4 mm. If the specimen is cut from a sheet or component, its thickness shall be the same as the original thickness of the sheet or component, which shall not exceed 10.2 mm. When the thickness of the sheet is uniform and contains only one regularly distributed reinforcement material, when its thickness is greater than 10.2 mm, it shall be machined from one side of the sheet to 10.2 mm ± 0.2 mm. When testing unnotched specimens, in order to avoid surface effects, the original surface of the specimen shall be in tension during the test. During the test, the side of the impact specimen is impacted; the impact direction is parallel to the plane of the sheet. Only when h = b = 10 mm can the test be carried out parallel or perpendicular to the sheet surface (see Figure 1). 6.4 Number of specimens 6.4.1 Unless otherwise specified in the standard of the test material, a group of specimens shall be 10. When the coefficient of variation (see ISO 2602:1980) is less than 5%, 5 specimens can be tested. 6.4.2 If the laminated material is tested in the vertical and parallel directions, 10 specimens shall be tested in each direction. 6.5 State conditioning Unless otherwise specified in the standard of the test material, the test shall be conditioned for at least 16 hours at 23 °C and 50% relative humidity in accordance with GB/T 2918-1998, or according to the conditions agreed upon by the relevant parties. The conditioning time of the notched specimen shall be calculated after the notch processing.7 Operation steps7.1 Unless the relevant parties agree to use other conditions, such as testing at high or low temperatures, the test shall be carried out in the same environment as the state conditioning. 7.2 Measure the thickness h and width b of the middle part of each specimen or the residual width bN of the notched specimen, accurate to 0.02 mm. When the specimen is injection molded, it is not necessary to measure every specimen size. Just make sure that the dimensions are listed in Table 1 and only measure one specimen in a group. When using a multi-cavity mold, ensure that the dimensions of the specimens in each cavity are the same. 7.3 Determine whether the testing machine has a specified impact velocity and an appropriate energy range. The energy absorbed by the punched specimen shall be within 10% ~ 80% of the nominal energy of the pendulum. If more than one pendulum meets these requirements, the pendulum with the largest energy shall be selected. 7.4 Determine the friction loss and corrected absorbed energy according to GB/T 21189-2007. 7.5 Lift and lock the pendulum. Install the specimen as shown in Figure 1 and meet the requirements of 5.1.2. When measuring the notched specimen, the notch shall be on the side of the pendulum impact edge. 7.6 Release the pendulum. Record the impact energy absorbed by the specimen. Make necessary corrections for its friction loss (see 7.4). 7.7 The following characters are used to name the four types of impact: C - Complete failure: The specimen is broken into two or more sections. H - Hinge failure: An incomplete failure in which the specimen is not connected by a very thin rigid surface. P - Partial failure: Incomplete failure except hinge failure. N - No failure: No failure, only bending deformation; stress whitening may occur.8 Calculation and expression of results8.1 Unnotched specimen The Izod unnotched impact strength aiU is calculated according to formula (1), in kilojoule per square meter (kJ/m2): Where: Ec - Corrected specimen fracture absorption energy, in joule (J); h - Specimen thickness, in millimeter (mm); b - Specimen width, in millimeter (mm). d) Description of the material properties and shape, i.e., finished product, semi- finished product, test piece or specimen, including main dimensions, shape, processing method, etc.; e) Impact velocity; f) Nominal energy of the pendulum; g) If a uniform clamping force is used, indication of the clamping force (see 5.1.2); h) Method of specimen preparation; i) Direction of specimen cutting (if the material is a finished or semi-finished product); j) Number of specimens; k) Conditioning used and standard test environment, as well as special treatments required by the test material and product standards; l) Type of failure observed; m) Individual test results, as follows (see also Table 2): 1) Grouped into three types of failure: C: Complete failure, including hinge failure H; P: Partial failure; N: No failure - no failure occurred. 2) Select the failure type that occurs most frequently and record the average value x of the impact strength of this failure type; record the corresponding failure type with the letter C or P; 3) If the most common failure type is N, only record the letter N; 4) For the failure type that occurs less frequently, add the letter C, P or N between the two brackets, only when the number of occurrences is higher than 1/3 (otherwise insert a "*" sign). n) Standard deviation of the mean value if necessary; o) Test date. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 1843-2008 be delivered?Answer: The full copy PDF of English version of GB/T 1843-2008 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 1843-2008_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 1843-2008_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 1843-2008 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 1843-2008?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 1843-2008 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 1843-2008?A step-by-step guide to download PDF of GB/T 1843-2008_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 1843-2008". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
