GB/T 18248-2021: Seamless steel tubes for gas cylinder Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 18248: Historical versions

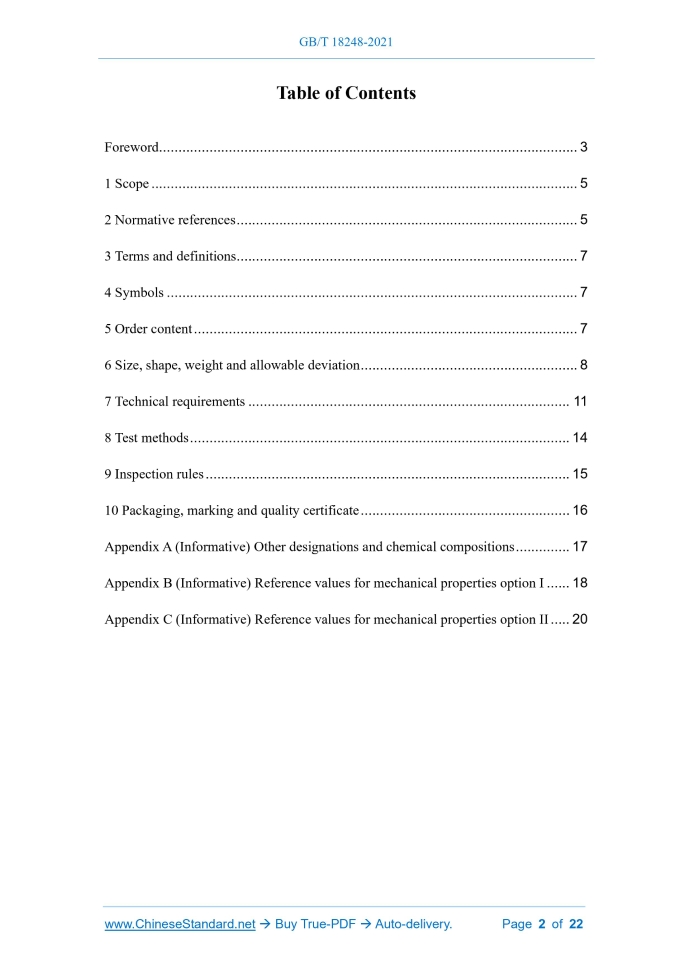

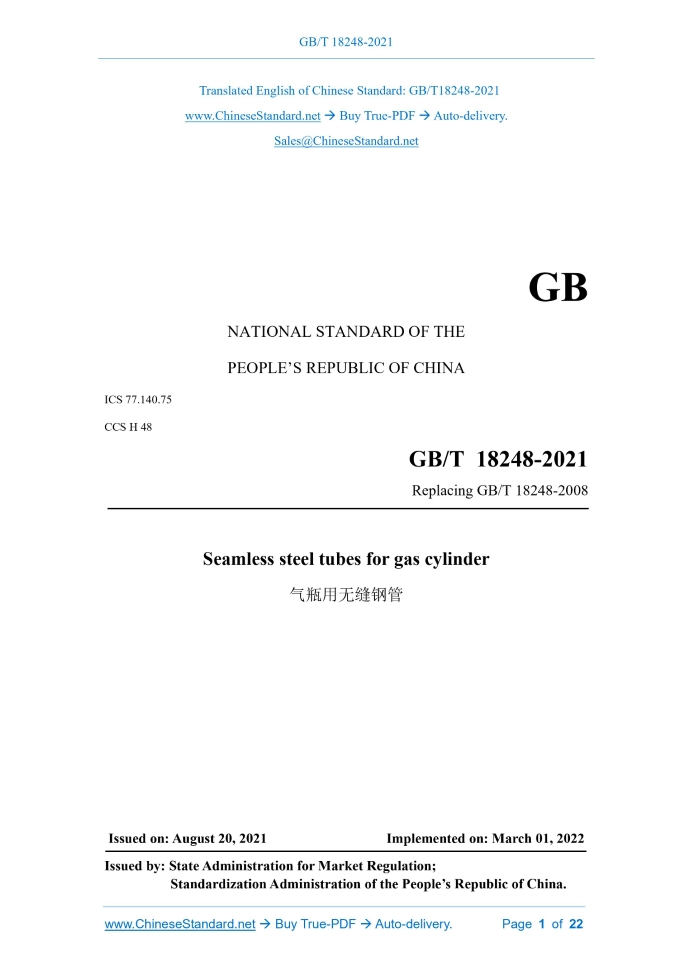

Similar standardsGB/T 18248-2021: Seamless steel tubes for gas cylinder---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT18248-2021NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 77.140.75 CCS H 48 Replacing GB/T 18248-2008 Seamless steel tubes for gas cylinder Issued on. AUGUST 20, 2021 Implemented on. MARCH 01, 2022 Issued by. State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword... 3 1 Scope... 5 2 Normative references... 5 3 Terms and definitions... 7 4 Symbols... 7 5 Order content... 7 6 Size, shape, weight and allowable deviation... 8 7 Technical requirements... 11 8 Test methods... 14 9 Inspection rules... 15 10 Packaging, marking and quality certificate... 16 Appendix A (Informative) Other designations and chemical compositions... 17 Appendix B (Informative) Reference values for mechanical properties option I... 18 Appendix C (Informative) Reference values for mechanical properties option II... 201 ScopeThis document specifies the order content, size, shape, weight and allowable deviation, technical requirements, test methods, inspection rules, packaging, marking and quality certificate of seamless steel tubes for gas cylinder. This document applies to seamless steel tubes for the manufacture of gas cylinders and accumulator shells (hereinafter referred to as steel tubes).2 Normative referencesThe following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the version corresponding to that date is applicable to this document; for undated references, the latest version (including all amendments) is applicable to this document. GB/T 222, Permissible tolerances for chemical composition of steel products GB/T 223.5, Steel and iron - Determination of acid-soluble silicon and total silicon content - Reduced molybdosilicate spectrophotometric method GB/T 223.9, Iron, steel and alloy - Determination of aluminium content - Chrome azurol S photometric method GB/T 223.11, Iron, steel and alloy - Determination of chromium content - Visual titration or potentiometric titration method GB/T 223.12, Methods for chemical analysis of iron, steel and alloy - The sodium carbonate separation-diphenyl carbazide photometric method for the determination of chromium content3 Terms and definitionsTerms and definitions defined in GB/T 222 and GB/T 30062 apply to this document.4 SymbolsThe following symbols apply to this document.5 Order contentA contract or order for ordering steel tubes under this document shall include, but not be limited to, the following.6 Size, shape, weight and allowable deviation6.1 Outside diameter and wall thickness 6.1.1 Unless otherwise specified in the contract, the steel tubes shall be delivered according to the nominal outer diameter (D) and nominal wall thickness (S). According to the requirements of the buyer, after negotiation between the supplier and the buyer, the steel tubes can be delivered according to the nominal outer diameter and the minimum wall thickness (Smin). 6.1.4 Unless otherwise specified in the contract, the allowable deviation of the wall thickness of the steel tubes shall comply with the provisions of ordinary grade PA. 6.1.5 According to the requirements of the buyer, if it is negotiated between the buyer and the supplier AND indicated in the contract, steel tubes of the dimensional allowable deviation other than those that are specified in Tables 1 and 2 may be supplied. 6.2 Length 6.2.1 Normal length The normal length of the steel tube is 4 000 mm ~ 12 000 mm. After it is negotiated between the supplier and the buyer, and indicated in the contract, steel tubes with a length greater than 12 000 mm or less than 4 000 mm but not less than 3 000 mm can be delivered; the quantity of steel tubes with a length less than 4 000 mm shall not exceed 5% of the total delivery of the batch of steel tubes. 6.2.2 Fixed length and multiple length 6.3 Curvature 6.3.1 The curvature per meter of the steel tube shall meet the following requirements. 6.3.2 The full-length curvature of the steel tube shall not exceed 0.15% of the length of the steel tube. 6.4 Out-of-roundness and uneven wall thickness According to the requirements of the buyer, if it is negotiated between the supplier and the buyer, and indicated in the contract, the out-of-roundness and uneven wall thickness of the steel tube shall not exceed 80% of the outer diameter allowance and wall thickness allowance, respectively. 6.5 End shape The end faces of the steel tube shall be perpendicular to the axis of the steel tube; the burrs of the cut shall be removed. 6.6 Weight7 Technical requirements7.1 Steel designation and chemical composition 7.1.1 The steel designation and chemical composition (melting analysis) shall comply with the requirements of Table 3.After negotiation between the supplier and the buyer, the order can be placed as per other designations and chemical compositions in Appendix A. 7.2 Manufacturing method 7.2.1 Smelting method of steels The steel shall be refined outside the furnace with an electric arc furnace and processed by vacuum refining, OR refined outside the furnace with an oxygen converter and processed by vacuum refining. 7.4 Mechanical properties 7.4.1 The supplier shall select one option from the following three options of mechanical properties to provide mechanical properties for reference. 7.4.2 Unless otherwise specified in the contract, the supplier shall provide reference values of mechanical properties by means of mechanical properties option I. 7.5 Compactness 7.7 Surface quality 7.7.1 There shall be no visible cracks, folds, breaks, delamination and scars on the inner and outer surfaces of the steel tubes. These defects shall be completely removed; the depth of removal shall not exceed 10% of the wall thickness; the actual wall thickness of the cleaned part shall not be less than the minimum allowable wall thickness; the removal part shall have a smooth transition. 7.7.2 The depth of the straight on the inner and outer surfaces of the steel tube shall meet the following requirements. 7.7.3 Other local imperfections where the depth does not exceed the lower deviation of the wall thickness are allowed. 7.8 Non-destructive testing 7.8.1 When the electromagnetic testing method is used to test the compactness, the steel tubes shall be subjected to ultrasonic testing one by one. When the hydraulic testing is used to test the compactness, the steel tubes shall be subjected to ultrasonic testing or magnetic flux leakage testing one by one. 7.8.4 When the steel tubes are delivered as per the minimum wall thickness, the groove depth of the control tube for the non-destructive testing shall be calculated according to the average wall thickness of the steel tube.8 Test methods8.1 Sampling for chemical composition analysis of steel tubes shall comply with the rules of GB/T 20066.Chemical composition analysis usually abides by the provisions of GB/T 4336, GB/T 20123 or other general methods; arbitration shall comply with the provisions of GB/T 223.5, GB/T 223.9, GB/T 223.11, GB/T 223.12, GB/T 223.14, 8.2 The size and shape of the steel tubes shall be measured one by one by gauges that meet the accuracy requirements. 8.3 The inner and outer surfaces of the steel tubes shall be inspected visually under full lighting conditions.9 Inspection rules9.1 Inspection and acceptance The inspection and acceptance of steel tubes shall be carried out by the supplier's quality and technical supervision department. 9.2 Batch rules 9.3 Sampling quantity The sampling quantity for each inspection of each batch of steel tubs shall meet the requirements of Table 5. 9.4 Re-inspection and determination rules The re-inspection and determination rules of steel tubes shall comply with the provisions of GB/T 2102. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 18248-2021 be delivered?Answer: The full copy PDF of English version of GB/T 18248-2021 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 18248-2021_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 18248-2021_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 18248-2021 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 18248-2021?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 18248-2021 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 18248-2021?A step-by-step guide to download PDF of GB/T 18248-2021_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 18248-2021". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
