GB/T 17618-2015: Information technology equipment -- Immunity characteristics -- Limits and methods of measurement Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Obsolete GB/T 17618: Historical versions

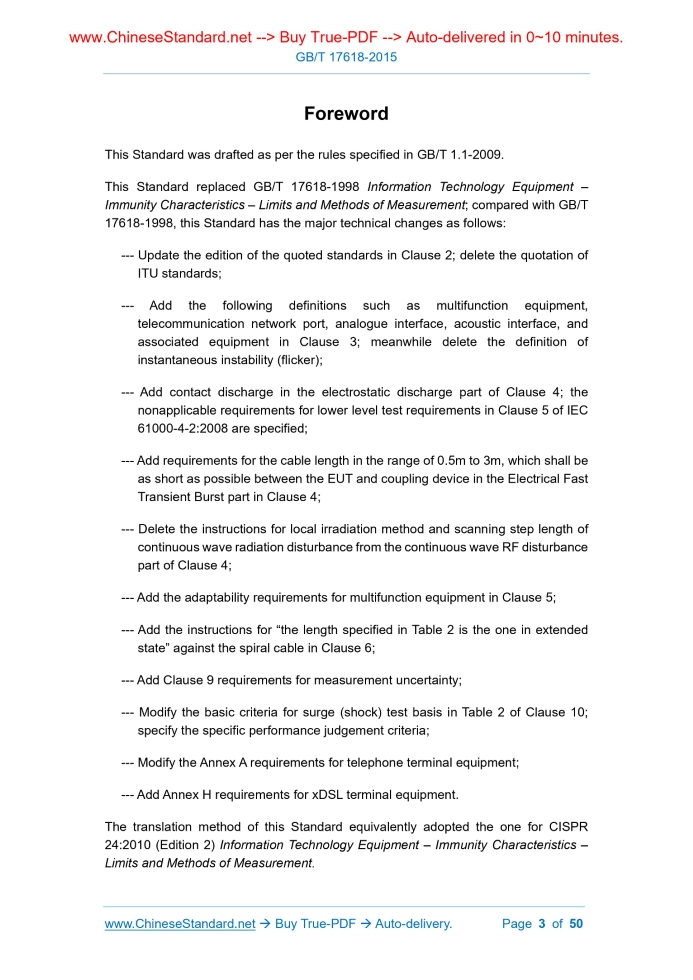

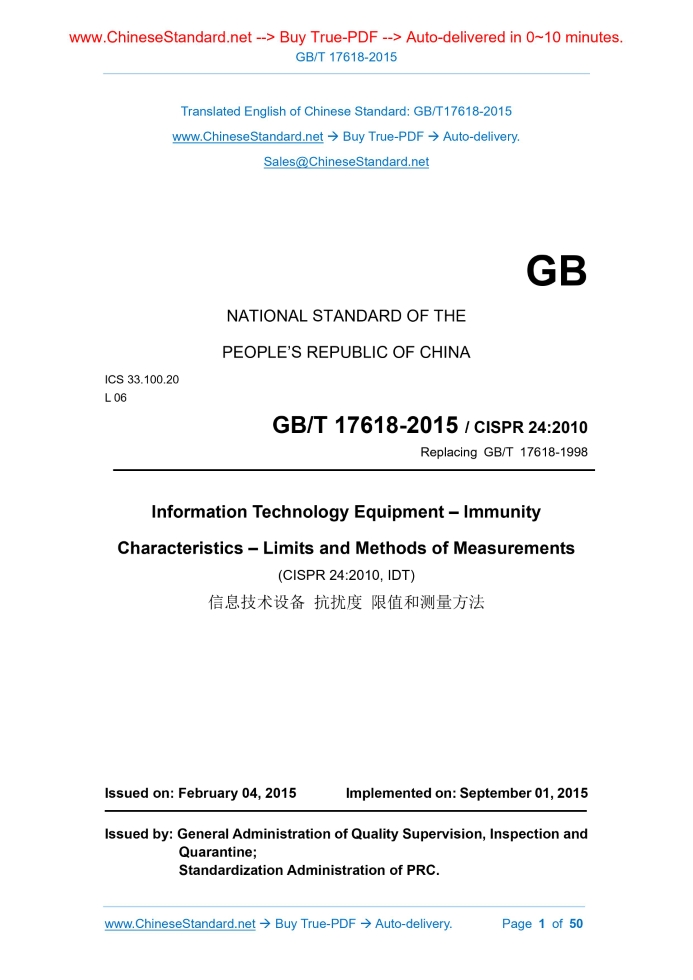

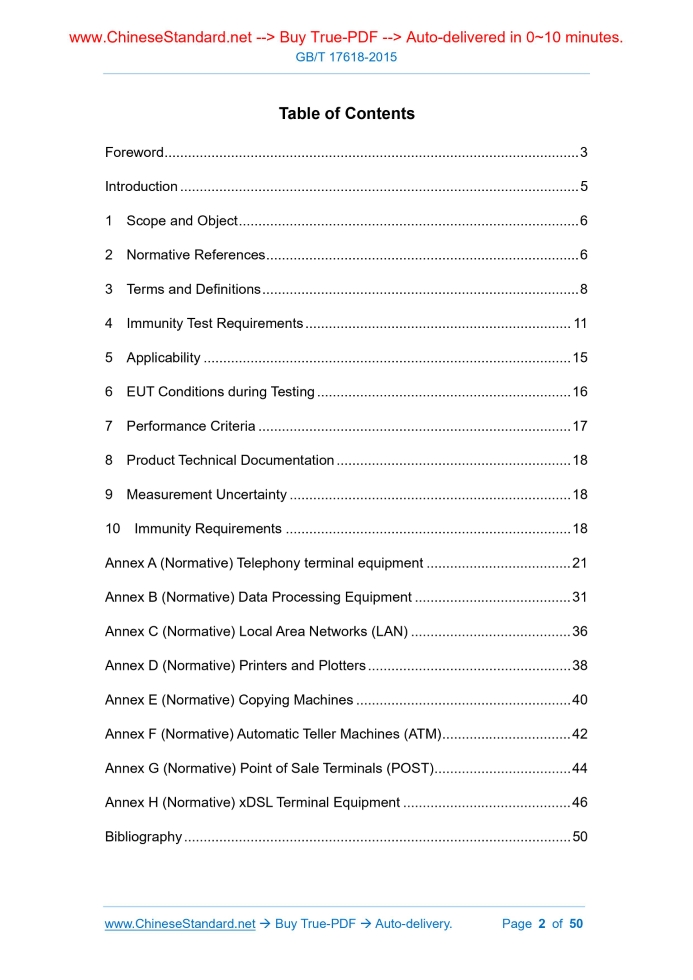

Similar standardsGB/T 17618-2015: Information technology equipment -- Immunity characteristics -- Limits and methods of measurement---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT17618-2015 Information technology equipment.Immunity characteristics.Limits and methods of measurement ICS 33.100.20 L06 National Standards of People's Republic of China Replace GB/T 17618-1998 Information technology equipment immunity Limits and measurement methods (CISPR24..2010, IDT) Released on.2015-02-04 2015-09-01 implementation General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China China National Standardization Administration issued Content Foreword III Introduction IV 1 Scope and purpose 1 2 Normative references 1 3 Terms and Definitions 2 4 Immunity test requirements 4 5 Applicability 6 6 State of the EUT during the test 7 7 Performance criteria 7 8 Product Technical Documents 8 9 Measurement uncertainty 8 10 Immunity requirements 9 Appendix A (Normative Appendix) Telephone Terminal Equipment 11 Appendix B (Normative) Data Processing Equipment 19 Appendix C (Normative) Local Area Network (LAN) 22 Appendix D (Normative) Printers and Plotters 23 Appendix E (Normative) Copier 24 Appendix F (Normative) Automatic Teller Machine (ATM) 25 Appendix G (Normative) Sales Terminal (POST) 27 Appendix H (Normative) xDSL Terminal Equipment 29 Reference 32 ForewordThis standard was drafted in accordance with the rules given in GB/T 1.1-2009. This standard replaces GB/T 17618-1998 "Information Technology Equipment Immunity Limits and Measurement Methods", and GB/T 17618-1998 The main technical changes are as follows. --- Chapter 2 updates the version of the reference standard and removes references to the ITU standard; --- Chapter 3 adds definitions of multifunction devices, telecommunication network ports, analog interfaces, sound interfaces, and auxiliary devices, and deletes them at the same time. The definition of transient instability (flicker); --- Added a lower level for contact discharge, Chapter 5 of IEC 61000-4-2.2008, in the Electrostatic Discharge section of Chapter 4. The test requirements are not applicable; --- Increase the cable length between the EUT and the coupling device in the electric fast transient burst group in Chapter 4 should be 0.5m to 3m Between and as short as possible; ---In the fourth chapter of the continuous wave radio frequency disturbance section, the continuous wave radiation disturbance is removed. Regarding the local irradiation mode and the scanning step size Description --- Chapter 5 adds the applicability requirements for multi-function devices; --- Chapter 6 added a description of the helical cable "the length specified in Table 2 is the length of the extended state"; --- Added the requirements of Chapter 9 for measurement uncertainty; --- Table 2 of Chapter 10 modifies the basic criteria for the surge (shock) test and specifies specific performance criteria; --- Revised Appendix A requirements for telephone terminal equipment; --- Added Appendix H requirements for xDSL terminal equipment. This standard uses the translation method equivalent to CISPR24.2010 (2nd edition) "Information technology equipment immunity limit and measurement side law". The documents of our country that have a consistent correspondence with the international documents referenced in this standard are as follows. ---GB/T 9383-2008 Sound and television broadcast receivers and related equipment immunity limits and methods of measurement (CISPR 20.2006, MOD) ---GB/T 17626.2-2006 Electromagnetic compatibility test and measurement technology Electrostatic discharge immunity test (IEC 61000-4-2. 2001, IDT) ---GB/T 17626.3-2006 Electromagnetic compatibility test and measurement technology RF electromagnetic field radiation immunity test (IEC 61000-4- 3.2002, IDT) --- GB/T 25498.1-2010 Electroacoustic human head simulator and ear simulator - Part 1.s Simulator (IEC 60318-1.1998, IDT) This standard is proposed and managed by the National Radio Interference Standardization Technical Committee (SAC/TC79). This standard was drafted. Ministry of Industry and Information Technology Electronics Industry Standardization Institute, Lenovo Group, Huawei Technologies Co., Ltd., Industry and Letter The Fifth Institute of Electronics of the Ministry of Information, Beijing Special Test Electronic Instrument Co., Ltd. The main drafters of this standard. Liu Jianpeng, Li Huanran, Chen Shigang, Lu Feiyan, Jingmei, Landford, Chen Hui. This standard was first published in.1998 and this is the first revision.introductionThis standard establishes uniform requirements for the electromagnetic immunity of information technology equipment. The measurement method is based on the EMC immunity standard quasi. Applicable test items, test levels, product operating conditions, and evaluation criteria are given in the standard. Information technology equipment immunity Limits and measurement methods1 Scope and purposeThis standard applies to information technology equipment (ITE) as defined in GB 9254-2008. The purpose of this standard is to place appropriate requirements on the inherent immunity of the ITE to allow the equipment to function properly in its intended environment. This standard The equipment specifies continuous and transient conducted and radiated disturbances, including electrostatic discharge (ESD) immunity test requirements. This standard specifies the measurement methods and limits for ITE in the frequency range of 0 Hz to 400 GHz. For special environmental conditions, mitigation measures may be required. For testing and performance evaluation purposes, some tests are performed in the specified frequency band or frequency selection. Meet the resistance at these frequency points The equipment required for the disturbance is considered to meet the requirements in the whole frequency range of 0 Hz to 400 GHz. Test requirements are specified on each port considered. Note 1.Safety requirements are not included in this standard. Note 2.In some special cases, the level of disturbance may exceed the level specified in this standard, for example, when using a handheld transmitter near the device. In this case Special mitigation measures may be used.2 Normative referencesThe following documents are indispensable for the application of this document. For dated references, only dated versions apply to this article. Pieces. For undated references, the latest edition (including all amendments) applies to this document. GB/T 4365-2003 Electrotechnical terminology electromagnetic compatibility [IEC 60050 (161)..1990, IDT] GB/T 6113.102-2008 - Radio disturbance and immunity measuring equipment and measuring methods - Part 1-2.Radio disturbances And immunity measurement equipment auxiliary equipment conduction disturbance (CISPR16-1-2.2006, IDT) GB 9254-2008 Radio disturbance limits and methods of measurement for information technology equipment (CISPR22.2006, IDT) GB/T 17626.4-2008 Electromagnetic compatibility test and measurement technology Electrical fast transient burst immunity test (IEC 61000- 4-4.2004, IDT) GB/T 17626.5-2008 Electromagnetic compatibility test and measurement technology Surge (impact) immunity test (IEC 61000-4-5. 2005, IDT) GB/T 17626.6-2008 Electromagnetic compatibility test and measurement technology Conducted disturbance immunity of radio frequency field induction (IEC 61000- 4-6.2006, IDT) GB/T 17626.8-2006 Electromagnetic compatibility test and measurement technology power frequency magnetic field immunity test (IEC 61000-4-8.2001, IDT) GB/T 17626.11-2008 Electromagnetic compatibility test and measurement techniques Immunity to voltage dips, short interruptions and voltage changes Test (IEC 61000-4-11.2004, IDT) Electroacoustic human head simulators and ear simulators - Part 1.Measurements of in-ear earphones and earphones Ear simulator (Electroacoustics-Simulatorsofhumanheadandear-Part 1.Earsimulatorforthemeas- Urmentofsupra-auralandcircumauralearphones) Electromagnetic compatibility (EMC) - Part 4-2.Test and measurement techniques Electrostatic discharge immunity test [E- Lectromagneticcompatibility(EMC)-Part 4-2.Testingandmeasurementtechniques-Electrostatic Dischargeimmunitytest] IEC 61000-4-3.2006 A1.2007 A2.2010 Electromagnetic compatibility (EMC) Part 4-3.Test and measurement technology Frequency electromagnetic field radiation immunity test [Electromagneticcompatibility(EMC)-Part 4-3.Testing and measurement techniques-Radiated,radio-frequency,electromagneticfieldimmunitytest] CISPR20.2006 Noise and TV Broadcast Receiver and Related Equipment Immunity Performance Limits and Test Methods (Soundand Televisionbroadcastreceiversandassociatedequipment-Immunitycharacteristics-Limitsandmeth- Odsofmeasurement)3 Terms and definitionsThe following terms and definitions as defined in GB/T 4365-2003 apply to this document. 3.1 Downgrade degradation Electromagnetic disturbances cause undesirable changes in EUT performance. This does not mean that the EUT must be malfunctioning or destructive. Invalid. 3.2 Test equipment equipmentundertest; EUT A representative device or a group of devices (ie, systems) that interact with each other, including one or more host units, and The procedures specified in the standard are tested. 3.3 Information technology equipment informationtechnologyequipment; ITE Any equipment that satisfies condition a) and condition b). a) Its main function is to be able to enter, store, display, retrieve, transfer, process, exchange or control data and telecommunications messages (or a combination of functions), the device can be configured with one or more terminal ports that are typically used for information transfer; b) The rated voltage does not exceed 600V. For example, ITE includes data processing equipment, office equipment, electronic business equipment, telecommunications equipment, and the like. According to the International Telecommunication Union (ITU) Radio Regulations, those primary functions are any equipment that transmits and/or receives (or ITE Part of it is outside the scope of this standard. Note. Any device with radio transmission and/or reception functions should meet the national wireless definition as defined by the International Telecommunication Union (ITU) Radio Regulations. Electrical regulations, whether or not this standard is valid for them. Equipment that specifies all harassment requirements in this band in the relevant national standards, not included in the scope of this standard Inside. [GB 9254-2008, definition 3.1] 3.4 [Cathode ray tube (CRT) monitor] jitter jitter [ofacathodetube (CRT) monitor] The peak-to-peak variation of the geometric position of the image element on the visible surface of the CRT monitor. 3.5 Port port The specific interface of the device under test to the external electromagnetic environment (see Figure 1). Figure 1 Description of the port 3.6 Chassis port enclosureport The physical boundary of the EUT through which electromagnetic fields are radiated or illuminated. The physical boundaries of the plugin are defined by the host unit. 3.7 Call telephonycal In order for telecommunications terminal equipment (TTE) to exchange information (voice, video signal or data) with other TTEs over the network, in the network and The operation process carried out in the TTE. Note. It is recommended to make calls in the manner specified by the manufacturer. For line switching services, when both parties can use 64kbit/s or equivalent channels, they think that the data is handed over. Change is possible. For packet services, when a virtual channel is established with the called TTE, information exchange is considered possible. 3.8 Establish call establishofatelephonycal User operations or automated processes that connect to the network to gain the ability to exchange information with other TTEs. Note. See note to 3.7. 3.9 Receiving call receptionofatelephonycal User operations or automated processing by connecting to the network and originating from the network to gain the ability to exchange information with other TTEs process. Note. See note to 3.7. 3.10 Keep calling maintenanceofatelephonycal The ability to exchange information without having to clear and re-establish calls. Note. See note to 3.7. 3.11 Clear call clearingatelephonycal A user operation process or automatic processing process (this party takes the initiative or the other party takes the initiative), and returns to the energy order through the connection with the network. The state of the new call is established and the information exchange is stopped. Note. See note to 3.7. 3.12 Network terminator networkterminator; NT An auxiliary device representing a telecommunications network terminal. 3.13 Telephone service telephonyservice Provide real-time, two-way communication capabilities to users through the network. [see ITU-TI.241.1] 3.14 Telecommunications terminal equipment telecommunicationsterminalequipment; TTE A device connected to a public or personal telecommunications network, ie. --- directly connected to the equipment of the telecommunications network terminal to send, process or receive information; --- Equipment used in conjunction with the telecommunication network, the telecommunication network is directly or indirectly connected to the terminal of the telecommunication network for transmission, processing or connection Receive information. 3.15 Multifunction equipment Information technology equipment having two or more functions as defined by this standard and/or other standards in the same unit. Note. Examples of multifunction devices include. --- Personal computer with telecommunication function and/or broadcast receiving function; --- Personal computer with measurement function, etc. 3.16 Telecom network port telecommunicationnetworkport Refers to the connection port for voice, data, and signal transmission, intended to connect directly to a multi-user telecommunications network [eg, public switched telecommunications network (PSTN), Integrated Services Digital Network (ISDN), x-type digital subscriber line (xDSL), etc., local area networks (such as Ethernet, Token Ring, etc.) and classes Like a network, interconnected systems are interconnected. Note. For the connection port normally used to connect the various components in the ITE system [such as RS-232, IEEE standard 1284 (parallel printer), universal serial bus (USB), IEEE Standard 1394 ("FireWire"), etc., if the port is in accordance with performance specifications (such as the maximum length of the cable connected to it) If used, the port is not within the scope of the telecommunications/network port specified in this definition. 3.17 Analog interface analogue interface An interface for transmitting and receiving signals whose characteristic amount continuously changes as another physical quantity representing the information changes. 3.18 Sound interface The port that outputs and/or produces a sound signal. 3.19 Auxiliary equipment associatedequipment; AE A device that operates the EUT in a typical manner and/or monitors the operation of the EUT.4 Immunity test requirements4.1 General requirements This standard proposes the immunity test according to each port of the equipment. The test should be carried out in a clear and reproducible manner. The test shall be carried out item by item in order, and the test sequence is arbitrary. The description of the test, the test generator, the test method and the test arrangement are given in the EMC Basic Standards (see Chapter 2). Referenced in the following tables. The content of the EMC basic standard is not repeated here, but the content that needs to be modified or added in the actual test is given in this standard. 4.2 Detailed requirements 4.2.1 Electrostatic discharge (ESD) This test procedure shall be carried out in accordance with IEC 61000-4-2.2008 with the following modifications and explanations. Electrostatic discharge should only be applied to points or surfaces that the device may be exposed to during normal use, including those specified in the user manual. Something that may be touched, such as cleaning up or adding areas where consumables may touch when the EUT is powered. The number of test points depends on the specific equipment. The choice of test points should consider the requirements of 8.3.1 and A.5 of IEC 61000-4-2.2008. The electrostatic discharge test of the contacts is not required when the connector is disconnected. A.5 of IEC 61000-4-2.2008 gives a selection guide for actual test points. When choosing a test point, pay special attention to the keyboard and dial Number plate, power switch, mouse, drive slot, card slot, communication port and other parts. There should be two ways to discharge. a) Contact discharge on the conductive surface and the coupling plate. The EUT shall withstand at least.200 electrostatic discharges, including 100 positive and negative polarities, and shall be at least at the 4 test points of the EUT. Row. For benchtop equipment, one of the test points should be the center of the front edge of the horizontal coupling plate for at least 50 indirect discharges (positive and negative polarity) 25 times each). For all other test points, at least 50 direct contact discharges (25 positive and negative polarities) should be performed at each point. Suitable for all The areas that are exposed to the user during normal use are tested. If there is no suitable direct contact test point, it should be indirectly discharged. In this way, at least.200 discharges are performed [see IEC 61000-4-2.2008 for the method of discharging a vertical coupling plate (VCP)]. For contact discharges, the lower-level test requirements specified in Chapter 5 of IEC 61000-4-2.2008 do not apply. b) Air discharge of holes, slits and insulating surfaces. When it is impossible to conduct contact discharge test on some parts of the EUT, it is advisable to check the equipment and identify the user's easy contact and easy The point at which air breakdown occurs, for example, the gap at the edge of the button, the keyboard, and the outer casing of the handset. These parts are air-discharged test. 4.2.2 Electrical Fast Transient Pulse Group (EFT) The test method is specified in detail in GB/T 17626.4-2008, but the test arrangement for field measurement is not applicable to ITE. The test shall be carried out in accordance with the test procedures specified in GB/T 17626.4-2008 with the following modifications and instructions. --- When the EUT has multiple identical ports, only one of them is tested; ---Multi-core cables, such as 50 pairs of telecommunications cables, should be tested as a single cable. This test shall not separate or group cables; --- Only applicable to communication cables longer than 3m according to the manufacturer's specifications; --- The cable length between the EUT and the coupling should be between 0.5m and 3m and as short as possible. 4.2.3 RF continuous wave disturbance 4.2.3.1 Overview The frequency range of the radiation field test is 80MHz~1000MHz. The frequency range of the continuous wave conduction test is 0.15MHz~ 80MHz. Sweeping within the above frequency range as required, and may require more comprehensive and comprehensive at selected finite frequency points Functional test. The requirements for additional frequency selection tests are not applicable to all products and are only applicable to those specified in Appendix A. This requested product (specific requirements depend on the product). The selected frequencies are given in Tables 1 to 4. The dwell time at each frequency point should not be less than the time required to cause the EUT to act and respond, however, during each frequency sweep The dwell time at the rate point should not exceed 5 s. The time to make the EUT action should not be understood as the total time of a program or a cycle, but should be understood as a failure with the EUT. The reaction time is related. The clock frequency and other sensitive frequencies do not need to be evaluated separately unless required by the appendix to this standard. 4.2.3.2 Continuous wave radiation disturbance This test procedure shall be carried out in accordance with IEC 61000-4-3.2006. During the test, the EUT should be placed so that its four sides are exposed to the electromagnetic field in sequence. And assess the performance of the EUT at each location. If the most sensitive face of the EUT is known in the full frequency range (for example by pre-testing), then only the sensitive faces can be tested. in case It is not possible to determine the most sensitive faces (for example, different sensitive faces at different frequencies) and the four sides of the EUT should be tested. If the EUT is too large to be adequately irradiated by the antenna, or if the EUT is outside the range of the uniform domain, local irradiation should be used. test. In order to irradiate parts that were not previously in the uniform domain, the EUT can be rearranged to keep the surface to be measured uniform. Within the domain. 4.2.3.3 Continuous wave conducted disturbance Except as provided in 4.2.3.1, this test procedure shall be carried out in accordance with GB/T 17626.6-2008. 4.2.4 Power frequency magnetic field This test procedure shall be carried out in accordance with GB/T 17626.8-2006. The EUT shall be placed and connected in accordance with its functional requirements and placed in the center of the field coil (immersion method). Cables supplied by the EUT manufacturer should be used. If the EUT does not have a cable attached, the cable appropriate for the relevant signal should be selected instead. Devices with large physical dimensions do not need to be completely placed in the magnetic field, only sensitive devices (such as CRT monitors, if only It is the sensitive part) placed in the magnetic field. In this case, if the CRT monitor is connected to the ITE as a system, the CRT monitor Or sensitive devices can be tested separately. 4.2.5 Surge (shock) This test procedure shall be carried out in accordance with GB/T 17626.5-2008. 4.2.6 Voltage dips and short interruptions This test procedure shall be carried out in accordance with GB/T 17626.11-2008.5 ApplicabilityThe relevant ports of the EUT shall be tested according to Tables 1 to 4. Given the electrical performance and use of a particular EUT, certain tests may be inappropriate and therefore undesirable. In this case, need The decision to test certain specific ports for certain specific ports and their justifications are documented in the test report. For multi-function devices that are applicable to different terms of this standard and/or other standards, there is no need to physically change the inside of the device. To achieve its functional operation, it should be tested separately for each of its functions. As long as each function of the device under test matches For the terms/standards, the equipment shall be considered to comply with all the terms/standards. For example, for individuals with broadcast reception The computer, if it can run each function of the computer separately under normal working conditions, then it should first receive it in accordance with this standard. The test is performed under the condition that the function is not working, and then, according to CISPR20.2006, only the broadcast receiving function works. test. For devices that cannot be operated independently for each function, or for a special function to operate independently, the device will not meet its main function. A device that can save measurement time when several functions are running at the same time, if the device is still full when running the necessary functions The relevant provisions/standards are considered to meet the requirements. For example, a personal computer with broadcast reception cannot be independent of The broadcast receiving function is implemented under the condition of the calculation function, so the personal computer can be calculated according to this standard and CISPR20.2006 The function is tested while the function of the broadcast reception function is running at the same time. Due to different test specifications and/or test arrangements and/or performance criteria, when the relevant functions of multi-function devices are tested according to different standards Inspection time, allows specific ports, frequencies or functions to be not required in the relevant standards (for example, according to this standard, the broadcast receiving function is included. When the device is measuring, the requirements in Table 2 do not apply to the antenna port or the broadcast receiving function is not evaluated). Whether it is necessary to meet multiple criteria in the appendix, depending on the EUT. For example, the TTE connected to the LAN should meet Appendix A and Performance criteria specified in Appendix C.6 State of the EUT during the test6.1 General status The test shall be carried out in the most representative manner consistent with the typical application and with all major functions operating. Test samples should be configured in the actual typical installation. If the EUT is part of the system or can be connected to an auxiliary device, the EUT shall be as described in Chapter 8 of GB 9254-2008. In a similar manner, the necessary auxiliary equipment is connected and tested in a representative minimum configuration. The configuration and operation mode of the EUT during the test shall be accurately indicated in the test report, and each function of the equipment shall be tested and Not always possible, in this case you should choose the most rigorous way of running. If the EUT is equipped with more terminals or ports with more similar connection types, you should select a sufficient number of terminals or ports to simulate Practise the actual working state and ensure that all different types of terminals are included. Spiral cables (such as keyboard cables) should not be intentionally stretched during the test. For this type of cable, the length specified in Table 2 is stretched The length of the state. Test equipment or auxiliary equipment connected to the EUT (such as NT or simulator) should have no effect on the test results. If the external protection device or protective measures are specified in accordance with the manufacturer's specifications or specified in the user manual, then The test requirements of this standard apply only in the case of external protective devices or protective measures. During the test, the environmental conditions and supply voltage shall be kept within the scope of work specified in the product specification, except in the basic standard. Another explanation. If a grounding terminal is provided... ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 17618-2015 be delivered?Answer: The full copy PDF of English version of GB/T 17618-2015 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 17618-2015_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 17618-2015_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 17618-2015 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 17618-2015?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 17618-2015 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 17618-2015?A step-by-step guide to download PDF of GB/T 17618-2015_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 17618-2015". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
