GB/T 1724-2019 PDF EnglishUS$115.00 · In stock · Download in 9 seconds
GB/T 1724-2019: Paints, varnishes and printing inks - Determination of fineness of grind Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 1724: Historical versions

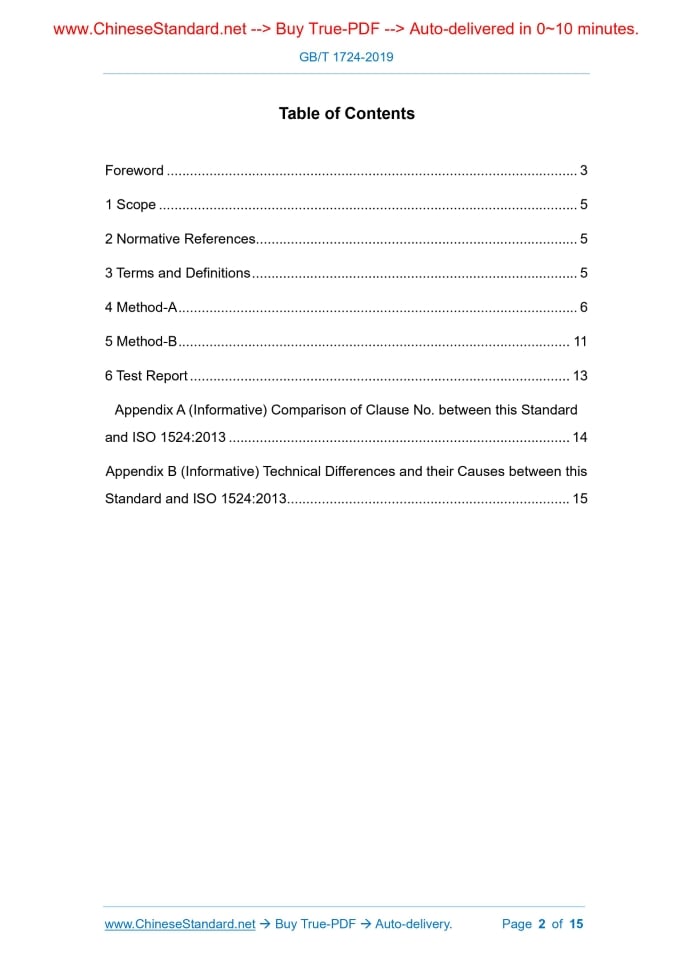

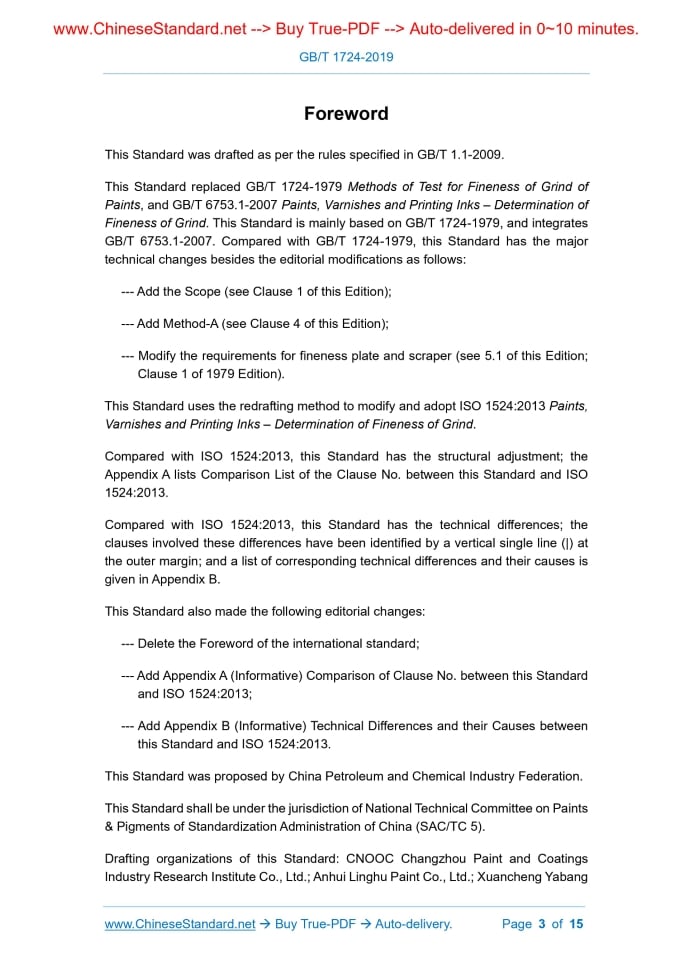

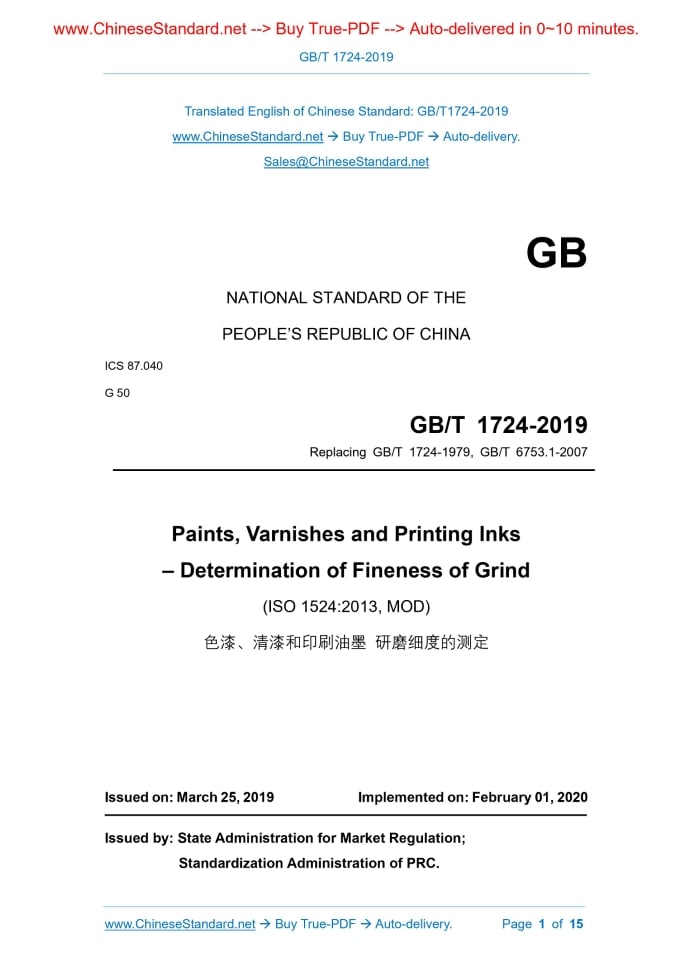

GB/T 1724-2019: Paints, varnishes and printing inks - Determination of fineness of grind---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT1724-2019NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 87.040 G 50 Replacing GB/T 1724-1979, GB/T 6753.1-2007 Paints, Varnishes and Printing Inks – Determination of Fineness of Grind (ISO 1524:2013, MOD) ISSUED ON: MARCH 25, 2019 IMPLEMENTED ON: FEBRUARY 01, 2020 Issued by: State Administration for Market Regulation; Standardization Administration of PRC. Table of ContentsForeword ... 3 1 Scope ... 5 2 Normative References ... 5 3 Terms and Definitions ... 5 4 Method-A ... 6 5 Method-B ... 11 6 Test Report ... 13 Appendix A (Informative) Comparison of Clause No. between this Standard and ISO 1524:2013 ... 14 Appendix B (Informative) Technical Differences and their Causes between this Standard and ISO 1524:2013... 15ForewordThis Standard was drafted as per the rules specified in GB/T 1.1-2009. This Standard replaced GB/T 1724-1979 Methods of Test for Fineness of Grind of Paints, and GB/T 6753.1-2007 Paints, Varnishes and Printing Inks – Determination of Fineness of Grind. This Standard is mainly based on GB/T 1724-1979, and integrates GB/T 6753.1-2007. Compared with GB/T 1724-1979, this Standard has the major technical changes besides the editorial modifications as follows: --- Add the Scope (see Clause 1 of this Edition); --- Add Method-A (see Clause 4 of this Edition); --- Modify the requirements for fineness plate and scraper (see 5.1 of this Edition; Clause 1 of 1979 Edition). This Standard uses the redrafting method to modify and adopt ISO 1524:2013 Paints, Varnishes and Printing Inks – Determination of Fineness of Grind. Compared with ISO 1524:2013, this Standard has the structural adjustment; the Appendix A lists Comparison List of the Clause No. between this Standard and ISO 1524:2013. Compared with ISO 1524:2013, this Standard has the technical differences; the clauses involved these differences have been identified by a vertical single line (|) at the outer margin; and a list of corresponding technical differences and their causes is given in Appendix B. This Standard also made the following editorial changes: --- Delete the Foreword of the international standard; --- Add Appendix A (Informative) Comparison of Clause No. between this Standard and ISO 1524:2013; --- Add Appendix B (Informative) Technical Differences and their Causes between this Standard and ISO 1524:2013. This Standard was proposed by China Petroleum and Chemical Industry Federation. This Standard shall be under the jurisdiction of National Technical Committee on Paints & Pigments of Standardization Administration of China (SAC/TC 5). Drafting organizations of this Standard: CNOOC Changzhou Paint and Coatings Industry Research Institute Co., Ltd.; Anhui Linghu Paint Co., Ltd.; Xuancheng Yabang Paints, Varnishes and Printing Inks – Determination of Fineness of Grind1 ScopeThis Standard specifies the method of using the appropriate fineness plate [scale is (µm)] to determine the grind fineness of paints, varnishes, printing inks. This Standard is applicable to the determination of the fineness of all types of liquid paints and varnishes and the relevant products; while it is not applicable to the determination of the fineness of products containing flake pigments (such as glass flaks, micaceous iron oxide, and flaks zinc powder).2 Normative ReferencesThe following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this document. GB/T 3186 Paints Varnishes and Raw Materials for Paints and Varnishes – Sampling (GB/T 3186-2006, ISO 15528-2000, IDT) GB/T 20777 Paints and Varnishes - Examination and Preparation of Samples for Testing (GB/T 20777-2006, ISO 1513:1992, IDT) JB/T 9385-2017 Specifications for the Scraper Fineness Gauges3 Terms and DefinitionsFor the purposes of this document, the following terms and definitions apply. 3.1 Fineness of grind The readings obtained on a standard fineness gauge under the specified test conditions. Such readings indicate the depth of the fineness gauge groove at which the discrete solid particles in the product can be easily distinguished.5 Method-B5.1 Instrument The fineness gauge and scraper shall meet the requirements of JB/T 9385-2017. The accuracy of the fineness of grind depends on the used fineness gauge (see 5.3). When reporting the results or specifying the requirements, the specification of the fineness gauge shall be specified (150µm, 100µm or 50µm). 5.2 Sampling See 4.2. 5.3 Test procedures 5.3.1 Perform the preliminary tests to determine the optimum specification of the fineness gauge and the approximate grind fineness of the sample (see Table 2 and Paragraph 2 of 5.3.5). Such results of approximate measurement are not included in the test results. The sample shall be tested in parallel for three times. Table 2 – Typical Fineness Gauge Scales and Recommended Test Range Unit: µm 5.3.2 Place the washed and dried fineness gauge (see 5.1) on a flat, horizontal, non- sliding surface. 5.3.3 Pour a sufficient amount of the sample into the deep end of the groove and allow the sample to overflow slightly. Be careful not to entrain the sample with air when pouring the sample. 5.3.4 Hold the scraper with the thumbs and forefingers of both hands (see 5.1); place the blade of the scraper on the deepest end of the groove of the fineness gauge; touch the surface of the fineness gauge; make the long side of the scraper parallel to the wide side of the fineness gauge; moreover, the scraper shall be pressed perpendicularly to the surface of the fineness plate; so that the scraper and the long side of the groove form an right angle. The scraper is scraped across the entire surface of the fineness gauge at a uniform speed within 3s to a position where the depth of the groove is zero. In the case of printing inks or similar viscous liquids, in order to avoid the low results, the time required for the scraper to scrape the entire groove length shall be no less than 5s. Apply sufficient downward pressure on the scraper to ensure Specification of fineness gauge Scale interval Recommended test range the groove is filled with the sample and the excessive sample shall be scrapped off. 5.3.5 After the sample is scrapped, immediately (no greater than 5s) observe the fineness gauge from the side as soon as possible. When observing, the sight line and the long side of the groove shall form a right angle; and the angle with the surface of the fineness gauge shall be 15°~30°; meanwhile, observation is required to be conducted under light that is easy to see the condition of the sample in the groove. If the flowability of the sample causes a flat pattern can’t be obtained after scraping and coating, a minimum amount of suitable diluent or paint base solution can be added and manually stirred; then followed by repeated test. Any dilution shall be indicated in the report; sometimes, the diluted sampled may occur flocculation and affect the fineness of the grind. 5.3.6 Observe the sample position where the dense particles appear firstly; record the readings (accurate to the minimum scale) on the groove position where the particles appear uniformly. If there are individual particles exposes to other scale lines, then the number of the particles in the range between readings and the adjacent scale line shall not exceed 3 (see Figure 4). Figure 4 – Example of Fineness with Readings of 45µm 5.3.7 Immediately use suitable solvent to clean the fineness gauge and scraper after each reading. 5.4 Results expression The test results take the arithmetic mean of two readings that are close to each other, accurate to the minimum scale of the fineness gauge. The difference between two ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 1724-2019 be delivered?Answer: The full copy PDF of English version of GB/T 1724-2019 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 1724-2019_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 1724-2019_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 1724-2019 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 1724-2019?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 1724-2019 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 1724-2019?A step-by-step guide to download PDF of GB/T 1724-2019_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 1724-2019". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
