GB/T 14450-2016: Bead wire Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 14450: Historical versions

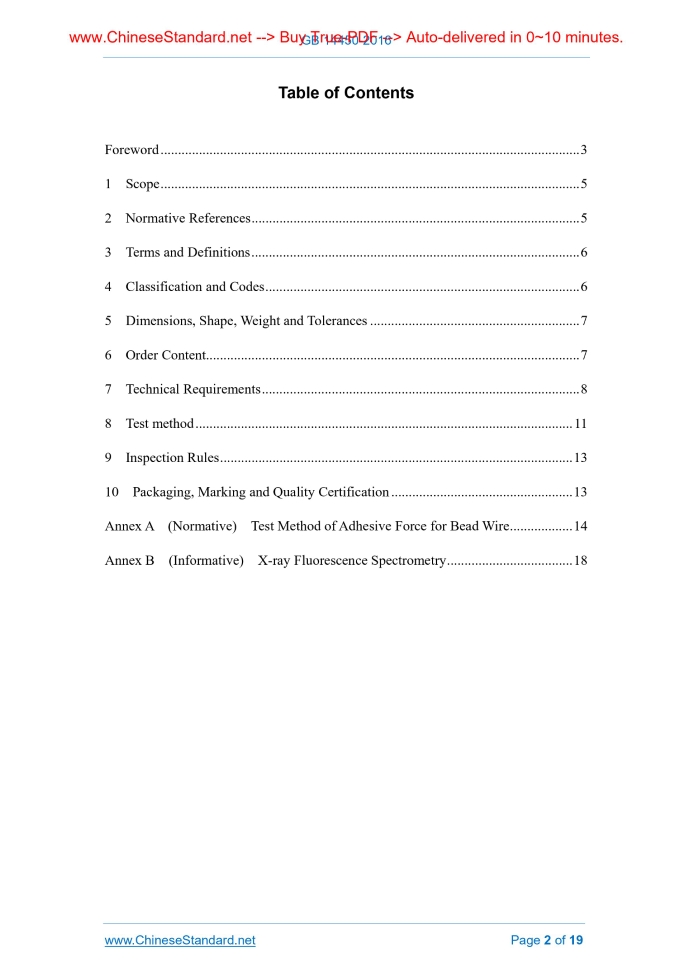

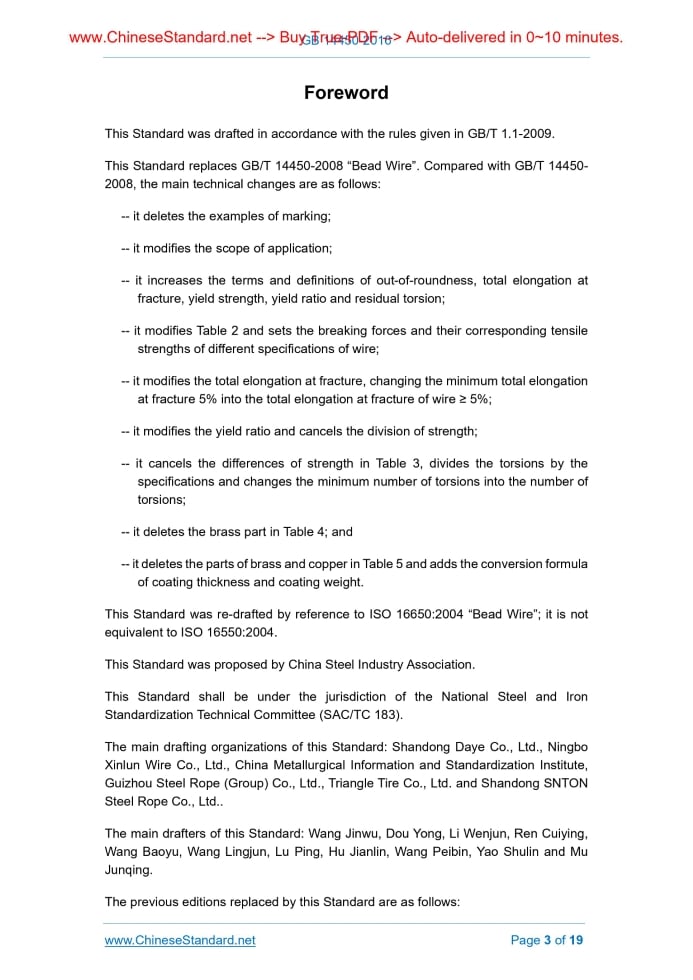

Similar standardsGB/T 14450-2016: Bead wire---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT14450-2016GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 77.140.65 H 49 Replacing GB 14450-2008 Bead Wire (ISO 16650.2004, NEQ) Issued on: AUGUST 29, 2016 Implemented on: JULY 1, 2017 Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China; Standardization Administration of the People's Republic of China. Table of ContentsForeword ... 3 1 Scope ... 5 2 Normative References ... 5 3 Terms and Definitions ... 6 4 Classification and Codes ... 6 5 Dimensions, Shape, Weight and Tolerances ... 7 6 Order Content... 7 7 Technical Requirements ... 8 8 Test method ... 11 9 Inspection Rules ... 13 10 Packaging, Marking and Quality Certification ... 13 Annex A (Normative) Test Method of Adhesive Force for Bead Wire ... 14 Annex B (Informative) X-ray Fluorescence Spectrometry ... 18ForewordThis Standard was drafted in accordance with the rules given in GB/T 1.1-2009. This Standard replaces GB/T 14450-2008 “Bead Wire”. Compared with GB/T 14450- 2008, the main technical changes are as follows. -- it deletes the examples of marking; -- it modifies the scope of application; -- it increases the terms and definitions of out-of-roundness, total elongation at fracture, yield strength, yield ratio and residual torsion; -- it modifies Table 2 and sets the breaking forces and their corresponding tensile strengths of different specifications of wire; -- it modifies the total elongation at fracture, changing the minimum total elongation at fracture 5% into the total elongation at fracture of wire ≥ 5%; -- it modifies the yield ratio and cancels the division of strength; -- it cancels the differences of strength in Table 3, divides the torsions by the specifications and changes the minimum number of torsions into the number of torsions; -- it deletes the brass part in Table 4; and -- it deletes the parts of brass and copper in Table 5 and adds the conversion formula of coating thickness and coating weight. This Standard was re-drafted by reference to ISO 16650.2004 “Bead Wire”; it is not equivalent to ISO 16550.2004. This Standard was proposed by China Steel Industry Association. This Standard shall be under the jurisdiction of the National Steel and Iron Standardization Technical Committee (SAC/TC 183). The main drafting organizations of this Standard. Shandong Daye Co., Ltd., Ningbo Xinlun Wire Co., Ltd., China Metallurgical Information and Standardization Institute, Guizhou Steel Rope (Group) Co., Ltd., Triangle Tire Co., Ltd. and Shandong SNTON Steel Rope Co., Ltd.. The main drafters of this Standard. Wang Jinwu, Dou Yong, Li Wenjun, Ren Cuiying, Wang Baoyu, Wang Lingjun, Lu Ping, Hu Jianlin, Wang Peibin, Yao Shulin and Mu Junqing. The previous editions replaced by this Standard are as follows. Bead Wire1 ScopeThis Standard specifies the terms and definitions, classification and codes, dimensions, shape, weight and tolerance, order content, technical requirements, test method, inspection rules, packaging, marking and quality certification of bead wire. This Standard applies to the tempered round steel wire for all kinds of tire beads (hereinafter referred to as “wire”).2 Normative ReferencesThe following referenced documents are indispensable for the application of this document. For dated references, only the edition dated applies to this document. For undated references, the latest edition of the referenced document (including any amendments) applies to this Standard. GB/T 228.1 Metallic Materials – Tensile Testing – Part 1. Method of Test at Room Temperature (GB/T 228.1-2010, ISO 6892-1.2009, MOD) GB/T 239.1 Metallic Materials – Wire – Part 1. Simple Torsion Test (GB/T 239.1-2012, ISO 7800.2003, MOD) GB/T 2103 General Requirements for Acceptance, Packing, Marking and Quality Certification of Steel Wire GB/T 24242.1 Non-alloy Steel Wire Rods for Conversion to Wire – Part 1. General Requirements (GB/T 24242.1-2009, ISO 16120-1.2001, MOD) GB/T 24242.2 Non-alloy Steel Wire Rods for Conversion to Wire – Part 2. Specific Requirements for General Purpose Wire Rod (GB/T 24242.2-2009, ISO16120-2.2011, MOD) GB/T 24242.4 Non-alloy Steel Wire Rods for Conversion to Wire – Part 4. Specific Requirements for Wire Rod for Special Applications (GB/T 24242.4-2014, ISO 16120- 4.2011, MOD) YB/T 135 Copper Coated Steel Wire – Test Method for Weight of Copper Coating and Composition YB/T 081 Rule for Rounding-off of Numerical Values and Judgement of Testing Values for Technical Standards of Metallurgy3 Terms and DefinitionsFor the purpose of this Standard, the following terms and definitions apply. 3.1 Out-of-roundness It is the arithmetic difference between the maximum and minimum diameter measured in the same transverse cross-section perpendicular to the wire axis. 3.2 Tensile strength It is the ratio of the maximum breaking force of the sample to the original sectional area of the sample in a tensile test, expressed with Rm. Tensile strength = maximum breaking force ÷ nominal sectional area of wire Note. The tensile strength shall be calculated in accordance with the nominal diameter. 3.3 Total elongation at fracture It is the ratio of the total elongation at fracture of wire (elastic elongation + plastic elongation) to the original gauge length (L0), expressed in percentage (%). 3.4 Yield strength It is the ratio of the tensile strength to the original sectional area of the sample when the sample begins to produce plastic deformation and the tensile force is no longer increased in a tensile test. 3.5 Yield ratio It is the ratio of the yield strength to the tensile strength. 3.6 Residual torsion It is the number of free rotation laps around its own axial direction over a specified length. Note. “+” indicates the clockwise direction; “-” indicates the anticlockwise direction; “t” indicates the number of laps.4 Classification and Codes4.1 Wire can be classed into two categories in according with the tensile strength grade. a) normal tenacity, NT; and a wire coil 5 straightness One end of a wire coil 1 pc/ coil Drop down the wire from a position 500 mm above the smooth test platform to make the wire spread naturally, then determine its straightness 6 Residual torsion One end of a wire coil As agreed Fix one end of wire at one end of the spool, cut off 4 laps to 5 laps of wire, bend the wire end into 90°, then rotate the spool, release wire 6,000 mm long, let go of the end and then observe the rotation laps of wire around its axis. During the test, the wire shall not rub anything 7 Surface quality A complete coil for observation 1 pc/coil Visual inspection 8 Coating composition One end of a wire coil 2 coils/ batch X-ray fluorescent spectrometry (refer to Annex B) or relevant provisions of YB/T 135 9 Coating weight One end of a wire coil 2 coils/ batch X-ray fluorescent spectrometry (refer to Annex B) or relevant provisions of YB/T 135 Bronze density is calculated in accordance with 8.9 g/cm3 Adhesive force between wire and rubber See Annex A or as agreed upon by both parties Note. If the purchaser has other requirements, they shall be decided as agreed upon by both parties.9 Inspection Rules9.1 Inspection and acceptance The quality inspection and acceptance of wire shall be conducted by the technical supervision department of the supplier. When necessary, the purchaser shall be entitled to conduct inspection and acceptance in accordance with the specifications of Table 6. 9.2 Batching rules 9.2.1 Wire shall be accepted by batch. Each batch of wire shall comprise the wire of the same tensile strength grade, the same surface condition and the same dimensions and specifications. 9.2.2 The test items, sampling quantity and sampling methods of wire shall meet the specifications of Table 6. 9.3 Re-inspection and judgment rules 9.3.1 For the items submitted for acceptance by coil, if one of their test results is disqualified, it is allowed to carry out re-inspection for the unqualified items; and then those qualified can be delivered. 9.3.2 For the items submitted for acceptance by batch, if there is one sample unqualified among the test results, then take a double number of test pieces from the same batch of wire for re-inspection. If there is still one test piece unqualified among the re-inspection results, then the batch of wire shall be tested by coil; and those qualified can be delivered.10 Packaging, Marking and Quality Certification10.1 Packaging Wire shall be wound on a spool or reel evenly; the packing method... ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 14450-2016 be delivered?Answer: The full copy PDF of English version of GB/T 14450-2016 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 14450-2016_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 14450-2016_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 14450-2016 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 14450-2016?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 14450-2016 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 14450-2016?A step-by-step guide to download PDF of GB/T 14450-2016_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 14450-2016". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
