GB/T 13916-2013: Unnoted tolerance of shape and position for stamping parts Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 13916: Historical versions

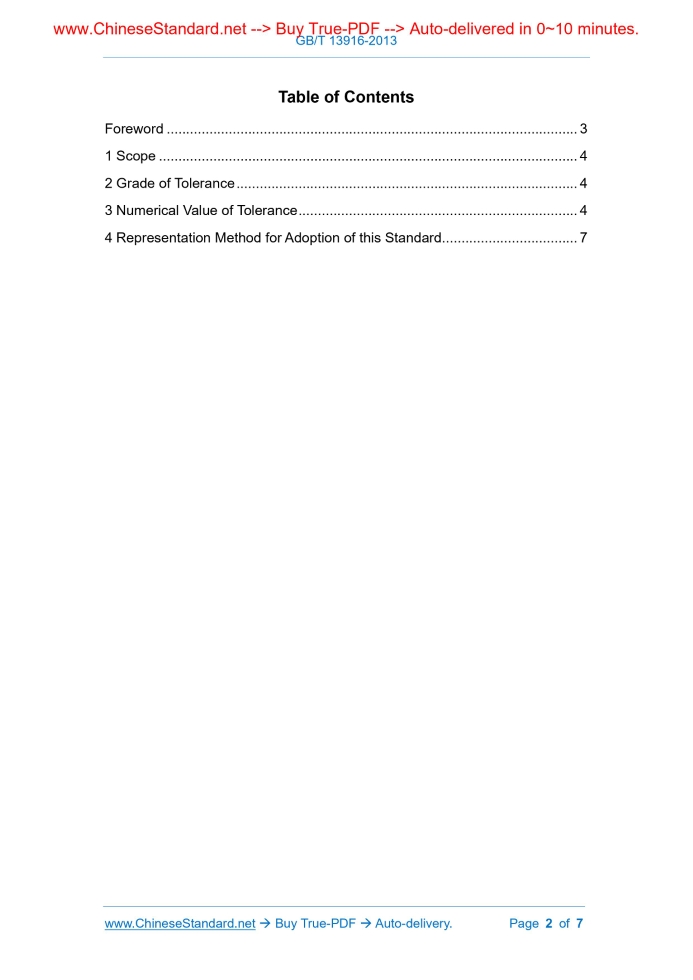

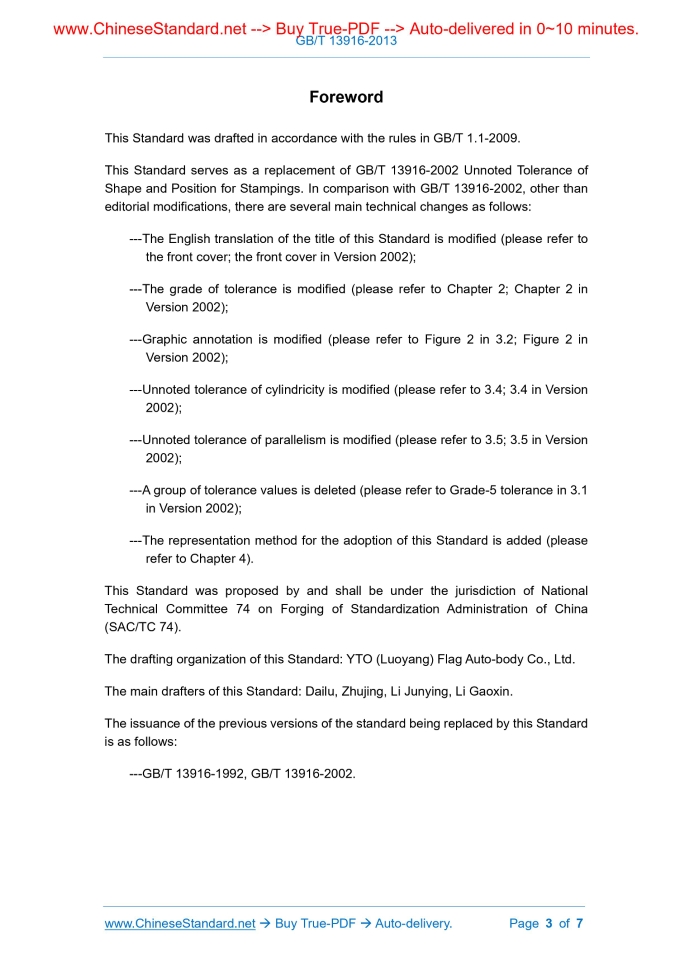

Similar standardsGB/T 13916-2013: Unnoted tolerance of shape and position for stamping parts---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT13916-2013NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 25.020 J 32 Replacing GB/T 13916-2002 Unnoted Tolerance of Shape and Position for Stamping Parts Issued on. JUNE 9, 2013 Implemented on. MARCH 1, 2014 Issued by. General Administration of Quality Supervision, Inspection and Quarantine; Standardization Administration of the People’s Republic of China. Table of ContentsForeword... 3 1 Scope... 4 2 Grade of Tolerance... 4 3 Numerical Value of Tolerance... 4 4 Representation Method for Adoption of this Standard... 7ForewordThis Standard was drafted in accordance with the rules in GB/T 1.1-2009. This Standard serves as a replacement of GB/T 13916-2002 Unnoted Tolerance of Shape and Position for Stampings. In comparison with GB/T 13916-2002, other than editorial modifications, there are several main technical changes as follows. ---The English translation of the title of this Standard is modified (please refer to the front cover; the front cover in Version 2002); ---The grade of tolerance is modified (please refer to Chapter 2; Chapter 2 in Version 2002); ---Graphic annotation is modified (please refer to Figure 2 in 3.2; Figure 2 in Version 2002); ---Unnoted tolerance of cylindricity is modified (please refer to 3.4; 3.4 in Version 2002); ---Unnoted tolerance of parallelism is modified (please refer to 3.5; 3.5 in Version 2002); ---A group of tolerance values is deleted (please refer to Grade-5 tolerance in 3.1 in Version 2002); ---The representation method for the adoption of this Standard is added (please refer to Chapter 4). This Standard was proposed by and shall be under the jurisdiction of National Technical Committee 74 on Forging of Standardization Administration of China (SAC/TC 74). The drafting organization of this Standard. YTO (Luoyang) Flag Auto-body Co., Ltd. The main drafters of this Standard. Dailu, Zhujing, Li Junying, Li Gaoxin. The issuance of the previous versions of the standard being replaced by this Standard is as follows. ---GB/T 13916-1992, GB/T 13916-2002. Unnoted Tolerance of Shape and Position for Stamping Parts1 ScopeThis Standard stipulates the unnoted tolerance grade and numerical value of straightness, flatness, concentricity and symmetry for metal stamping parts; it also stipulates the unnoted tolerance of roundness, cylindricity, parallelism, perpendicularity and gradient for metal stamping parts. This Standard is applicable to stamping parts for metal plates.2 Grade of ToleranceUnnoted tolerance of straightness, flatness, concentricity and symmetry for stamping parts shall be divided into four grades, namely, f (fine), m (middle), c (coarse), v (very coarse).3 Numerical Value of Tolerance3.1 Unnoted Tolerance of Straightness and Flatness Unnoted tolerance of straightness and flatness shall comply with the stipulations in Table 1.Unnoted tolerance of flatness shall select a longer side as the main parameter. 3.3 Unnoted Tolerance of Roundness Unnoted tolerance of roundness shall be not more than the corresponding dimensional tolerance. 3.4 Unnoted Tolerance of Cylindricity Unnoted tolerance of cylindricity is constituted of 3 parts. roundness, straightness and parallelism tolerance of relative generatrix. Each tolerance is controlled by its noted tolerance or unnoted tolerance; inclusion requirements may be adopted. 3.5 Unnoted Tolerance of Parallelism Unnoted tolerance of parallelism equals to dimensional tolerance, or, flatness (straightness) tolerance. The larger value between them shall prevail.4 Representation Method for Adoption of this StandardWhen the unnoted tolerance stipulated in this Standard is adopted, it shall be represented through the serial No. of this Standard and the symbols of tolerance grade in corresponding drawings and technical documents. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 13916-2013 be delivered?Answer: The full copy PDF of English version of GB/T 13916-2013 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 13916-2013_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 13916-2013_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 13916-2013 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 13916-2013?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 13916-2013 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 13916-2013?A step-by-step guide to download PDF of GB/T 13916-2013_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 13916-2013". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
