GB/T 13552-2023: Automotive V-ribbed belts Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 13552: Historical versions

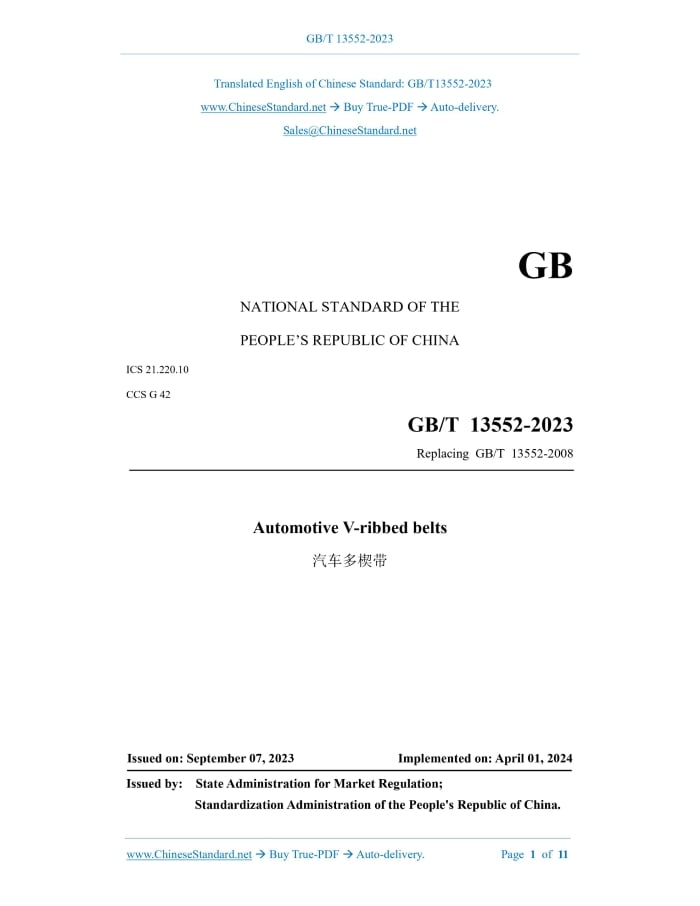

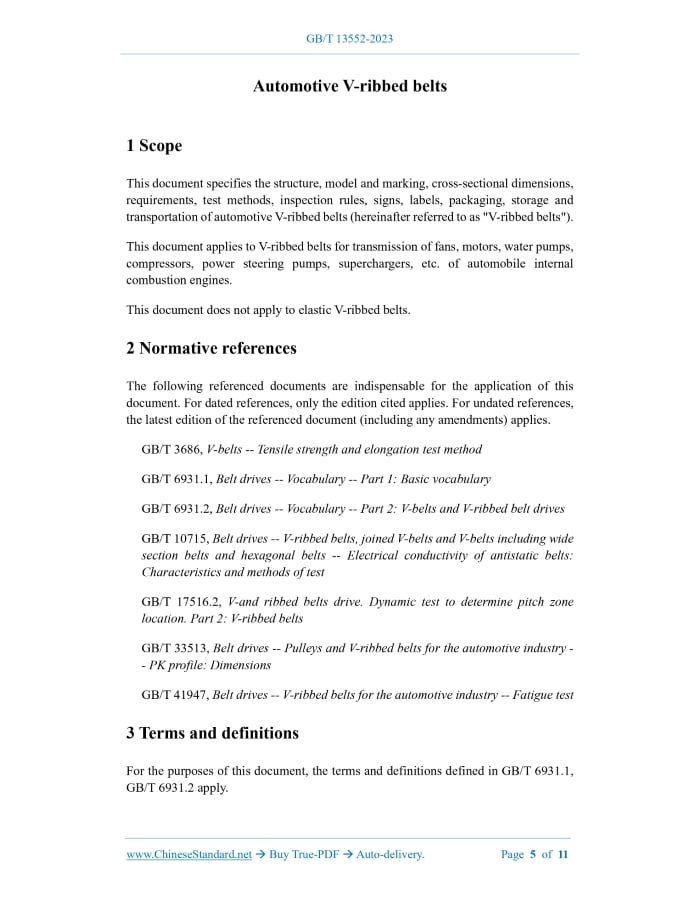

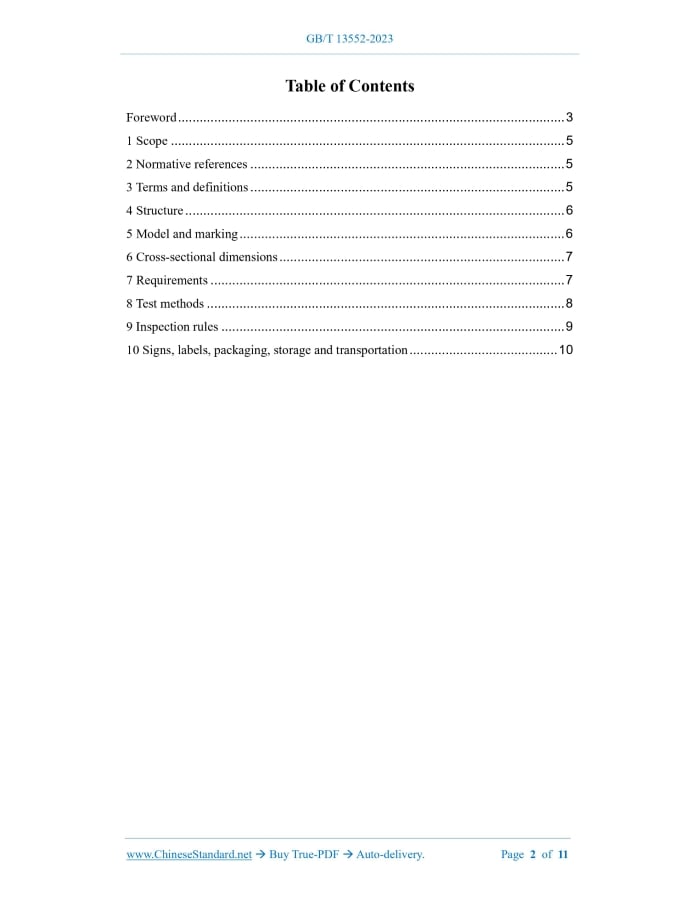

Similar standardsGB/T 13552-2023: Automotive V-ribbed belts---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT13552-2023GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 21.220.10 CCS G 42 Replacing GB/T 13552-2008 Automotive V-ribbed belts ISSUED ON: SEPTEMBER 07, 2023 IMPLEMENTED ON: APRIL 01, 2024 Issued by: State Administration for Market Regulation; Standardization Administration of the People's Republic of China. Table of ContentsForeword ... 3 1 Scope ... 5 2 Normative references ... 5 3 Terms and definitions ... 5 4 Structure ... 6 5 Model and marking ... 6 6 Cross-sectional dimensions ... 7 7 Requirements ... 7 8 Test methods ... 8 9 Inspection rules ... 9 10 Signs, labels, packaging, storage and transportation ... 10 Automotive V-ribbed belts1 ScopeThis document specifies the structure, model and marking, cross-sectional dimensions, requirements, test methods, inspection rules, signs, labels, packaging, storage and transportation of automotive V-ribbed belts (hereinafter referred to as "V-ribbed belts"). This document applies to V-ribbed belts for transmission of fans, motors, water pumps, compressors, power steering pumps, superchargers, etc. of automobile internal combustion engines. This document does not apply to elastic V-ribbed belts.2 Normative referencesThe following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. GB/T 3686, V-belts -- Tensile strength and elongation test method GB/T 6931.1, Belt drives -- Vocabulary -- Part 1: Basic vocabulary GB/T 6931.2, Belt drives -- Vocabulary -- Part 2: V-belts and V-ribbed belt drives GB/T 10715, Belt drives -- V-ribbed belts, joined V-belts and V-belts including wide section belts and hexagonal belts -- Electrical conductivity of antistatic belts: Characteristics and methods of test GB/T 17516.2, V-and ribbed belts drive. Dynamic test to determine pitch zone location. Part 2: V-ribbed belts GB/T 33513, Belt drives -- Pulleys and V-ribbed belts for the automotive industry - - PK profile: Dimensions GB/T 41947, Belt drives -- V-ribbed belts for the automotive industry -- Fatigue test3 Terms and definitionsFor the purposes of this document, the terms and definitions defined in GB/T 6931.1, GB/T 6931.2 apply. 7.6 Antistatic properties The antistatic properties of V-ribbed belts with antistatic requirements shall comply with the requirements of GB/T 10715.8 Test methods8.1 Appearance Check the appearance of the V-ribbed belt by visual inspection. 8.2 Size The effective line difference of V-ribbed belt is measured according to the provisions of GB/T 17516.2. The exposed height and effective length limit deviation of the V- ribbed belt are measured in accordance with the provisions of GB/T 33513. 8.3 Tensile property test The tensile strength and reference force elongation of V-ribbed belts are tested in accordance with the provisions of GB/T 3686. 8.4 Low temperature resistance performance test 8.4.1 Specimen The number of specimens is 3. Taken from the same sample tape. Cut a strip with a length of not less than 250 mm as a specimen. If 3 specimens cannot be taken from one sample belt, 3 specimens can be taken from the same model and batch of products, but this shall be noted in the test report. 8.4.2 Test procedures For ordinary V-ribbed belts, the specimens are pretreated at a temperature of (100±2)℃ for . The specimen is then cooled to room temperature and kept at (-30±1)°C for . For heat-resistant V-ribbed belts, pretreat the specimens for at a temperature of (120±2)°C. The specimen is then cooled to room temperature and kept at a temperature of (-40±1)°C for . After taking it out, immediately conduct bending tests on the corresponding cylinders according to the requirements of Condition A and Condition B in Table 2. The bending arc must be at least 90°. 8.5 Fatigue life test The length of the V-ribbed belt is based on the actual usage conditions or as agreed between the supplier and the purchaser. Use a two-wheel, three-wheel or four-wheel fatigue testing machine to conduct fatigue life testing in accordance with the provisions of GB/T 41947. 8.6 Antistatic performance test The antistatic performance of V-ribbed belts is tested in accordance with the provisions of GB/T 10715.9 Inspection rules9.1 Exit-factory inspection 9.1.1 V-ribbed belts must be inspected by the manufacturer's quality inspection department and issued with a certificate before leaving the factory. 9.1.2 The exit-factory inspection items of V-ribbed belts include appearance, size and tensile properties. 9.1.3 V-ribbed belts shall be visually inspected one by one. 9.1.4 For the size of the V-ribbed belt, at least 3 shall be measured for each mold, and 1 shall be taken from the head, middle and tail. If one of them is unqualified, the molded V-ribbed belt shall be fully inspected. 9.1.5 The number of V-ribbed belts of the same material shall not exceed 50,000 in one batch. Sufficient samples shall be taken from each batch of products for tensile property testing. If the monthly output is less than 50,000 pieces, inspection will be conducted once a month. If the party has special requirements, relevant inspections can be decided through negotiation between the supplier and the purchaser. 9.2 Type inspection 9.2.1 V-ribbed belts shall undergo type inspection at least once every six months. When one of the following conditions occurs, type inspection shall be carried out. a) During the trial production of new products or the finalization and appraisal of old products for production transfer; b) When the product is resumed after 2 years of discontinuation; c) After the product is officially produced, if there are major changes in structure, materials, and processes, it may affect product performance; d) When the national market supervision and administration department puts forward requirements for type inspection. 9.2.2 The type inspection items of V-ribbed belts shall include all items in Chapter 7. 9.3 Determination rules 9.3.1 Exit-factory inspection 9.3.1.1 If one or both of the appearance and dimensions of the V-ribbed belt do not meet the requirements of this document, the product will be judged as unqualified. 9.3.1.2 If the tensile properties of the V-ribbed belt do not meet the requirements of this document, double the number of specimens from the batch of V-ribbed belt products shall be taken for re-inspection. If the re-inspection result is still unqualified, the batch of products will be judged as unqualified products. 9.3.2 Type inspection 9.3.2.1 The appearance and size determination of V-ribbed belts shall be carried out in accordance with 9.3.1.1. 9.3.2.2 If the tensile properties, low temperature resistance, fatigue life and antistatic properties of the V-ribbed belt do not meet the requirements of this document, double the number of specimens will be taken from the batch of V-ribbed belt products, and the unqualified items and related items will be reinspected. If one or more of the re- inspection results are still unqualified, the batch of products will be judged as unqualified.10 Signs, labels, packaging, storage and transportation10.1 Signs Each V-ribbed belt shall be clearly marked and shall at least include the following: a) Mark; b) Manufacturer's name or trademark or supplier code; c) Year and month of manufacture or batch number. 10.2 Labels and packaging ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 13552-2023 be delivered?Answer: The full copy PDF of English version of GB/T 13552-2023 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 13552-2023_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 13552-2023_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 13552-2023 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 13552-2023?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 13552-2023 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 13552-2023?A step-by-step guide to download PDF of GB/T 13552-2023_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 13552-2023". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
