GB/T 13061-2017 PDF EnglishUS$145.00 · In stock · Download in 9 seconds
GB/T 13061-2017: Technical specification of air spring used for air suspension of commercial vehicle Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 13061: Historical versions

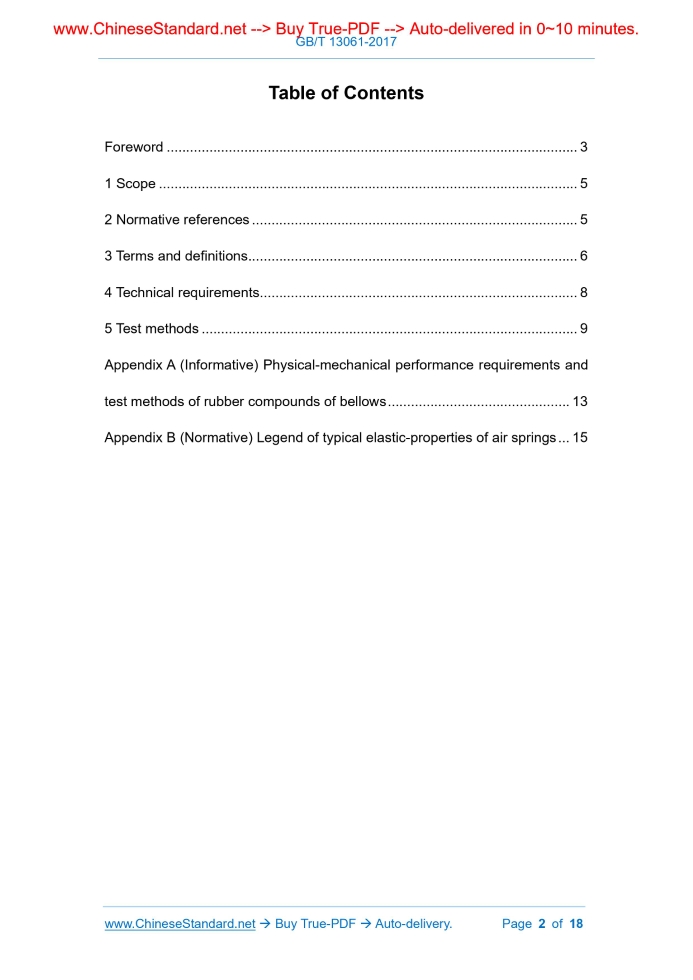

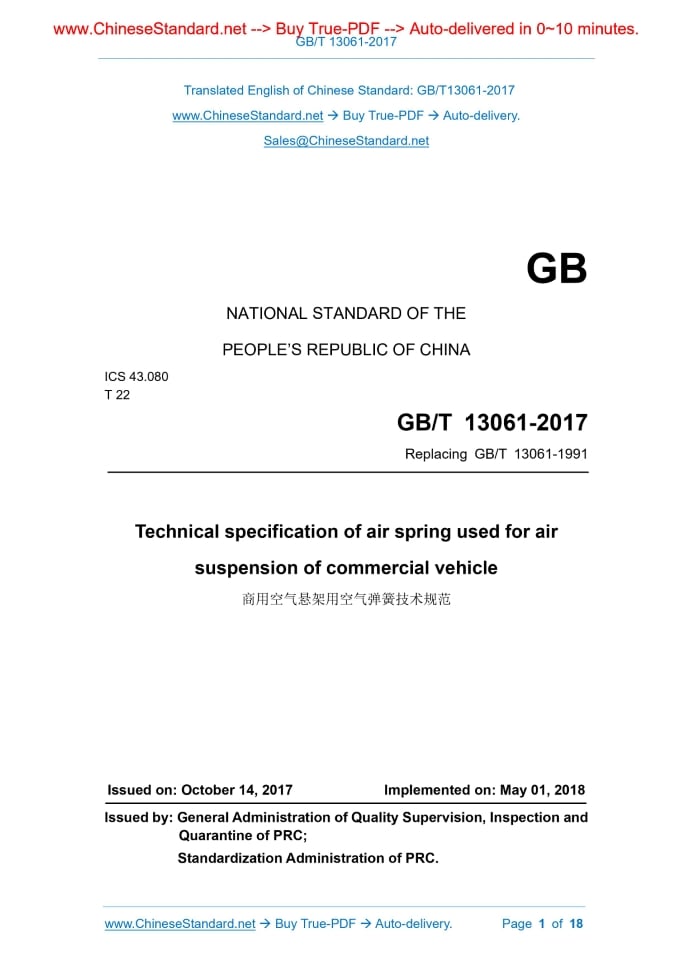

Similar standardsGB/T 13061-2017: Technical specification of air spring used for air suspension of commercial vehicle---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT13061-2017 NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 43.080 T 22 Replacing GB/T 13061-1991 Technical specification of air spring used for air suspension of commercial vehicle Issued on. OCTOBER 14, 2017 Implemented on. MAY 01, 2018 Issued by. General Administration of Quality Supervision, Inspection and Quarantine of PRC; Standardization Administration of PRC. Table of ContentsForeword... 3 1 Scope... 5 2 Normative references... 5 3 Terms and definitions... 6 4 Technical requirements... 8 5 Test methods... 9 Appendix A (Informative) Physical-mechanical performance requirements and test methods of rubber compounds of bellows... 13 Appendix B (Normative) Legend of typical elastic-properties of air springs... 15ForewordThis standard was drafted in accordance with the rules given in GB/T 1.1-2009. This standard replaces GB/T 13061-1991 “Air spring for automotive suspension - Rubber bellows”. As compared with GB/T 13061-1991, the main changes of this standard are as follows. - MODIFY the standard name from the original “Air spring for automotive suspension - Rubber bellows” to “Technical specification of air spring used for air suspension of commercial vehicle”; - MODIFY the scope from the original “automotive suspension” to “air suspension for commercial vehicle”; - MODIFY the terms and definitions (see clause 3 of the 1991 version); - MODIFY the technical requirements for the physical-mechanical properties of the materials of air spring bellows, the appearance quality of the air spring, the internal destructive pressure, the fatigue life of the frame of air spring (see 5.1, 5.2, 5.5, 5.7 of the 1991 version); - MODIFY the test items, test conditions, test methods (see 6.1, 6.3, 6.5 of the 1991 version); - MODIFY the airtightness test (see 6.5.3 of the 1991 version); - MODIFY the 24-h pressure drop of the air spring (see 5.4 of the 1991 version); - ADD the definitions of air spring height, design height, maximum internal pressure, effective diameter, air spring volume (see 3.1, 3.3, 3.5, 3.8, 3.12); - ADD the compressive permanent deformation test, low-temperature resistance test, hot-air aging test, ozone aging resistance test in the test of physical-mechanical performance of the rubber compound of bellows (see A.3.3.2, A.3.3.5, A.3.3.6, A.3.3.7); - ADD the ambient temperature for the use of air spring (see 4.1.1); - ADD the dynamic elastic performance tests and volume tests (see 5.5.3.1 and 5.5.4); - DELETE the product classifications (see clause 4 of the 1991 version); - DELETE the interlayer adhesion strength between the cord fabrics of bellows (see 5.6 of the 1991 version); - DELETE the telescopic test and the peel test (see clause 6.5.2, 6.5.6 of the 1991 version); - DELETE the inspection rules (see clause 7 of the 1991 version); - DELETE the marking, packaging, transportation, storage (see clause 8 of the 1991 version). This standard was proposed by the Ministry of Industry and Information Technology. This standard shall be under the jurisdiction of the National Automotive Standardization Technical Committee (SAC/TC 114). Drafting organizations of this standard. Dongfeng Motor Corporation, Zhuzhou Times New Materials Technology Co., Ltd., Shandong Meichen Technology Co., Ltd., Shanghai Keman Vehicle Parts System Co., Ltd., Guizhou Gaoma Fuguo Advance Rubber Co., Ltd., Xiamen Jinlong United Automobile Industry Co., Ltd., Zhengzhou Nissan Automobile Co., Ltd. The main drafters of this standard. Feng Mei, Chen Yaoming, Ye Aifeng, Yu Boying, Zhang Shangjiao, Wang Jin, Liu Jin, Cheng Haitao, Wang Sheng, Qiu Jianjun, Zhang Guangshi, He Yunjiang, Yuan Zhaohui, Pan Xueyu, Cui Jining, Zhang Liancang, Wang Lianping, Yang Guoku, Gao Jia. This standard replaces the standard previously issued as follows. - GB/T 13061-1991. Technical specification of air spring used for air suspension of commercial vehicle1 ScopeThis standard specifies the technical requirements and test methods for air spring products for the air suspensions of commercial vehicles. This standard applies to the air suspensions of commercial vehicles. The air springs for other non-air suspension, non-commercial vehicles or non-vehicle may make reference to this standard.2 Normative referencesThe following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this standard. GB/T 528 Rubber, vulcanized or thermoplastic - Determination of tensile stress-strain properties GB/T 531.1 Rubber vulcanized or thermoplastic - Determination of indentation hardness - Part 1.Durometer method (Shore hardness) GB/T 1682 Rubber, vulcanized - Determination of low-temperature brittleness - Single test piece method GB/T 2941 Rubber - General procedures for preparing and conditioning test pieces for physical test methods GB/T 3512 Rubber, vulcanized or thermoplastic - Accelerated ageing and heat resistance tests GB/T 7759 Rubber, vulcanized or thermoplastic - Determination of compression set at ambient elevated or low temperatures3 Terms and definitionsThe terms and definitions as defined in GB/T 34591 as well as the following terms and definitions apply to this document. 3.1 Air spring height The distance between the upper and lower support planes for installation of the air spring. 3.2 Standard height A reference height of the air spring, which is used as the start point for the calculation of deformation. 3.3 Design height The installation height of the air spring at the design location of vehicle is referred to as the design height Hd. 3.4 Standard pressure The static pressure at which the air spring is subjected to the rated load at a standard height. 3.5 Maximum pressure pmax The static pressure at which the air spring is allowed to be subjected to the maximum load at standard height. 3.6 Standard status The working status of the air spring at standard height and standard pressure.4 Technical requirements4.1 Technical requirements for air spring assembly 4.1.1 The general use temperature of the air spring is -30 °C ~ 57 °C. For the air springs which have special use requirements (such as beyond this temperature range, oil resistance, etc.), it is determined by the supplier and the user through negotiation; and it is permanently identified on the air spring. 4.2 Technical requirements for each component of air spring 4.2.1 The physical-mechanical properties of the rubber compound of air spring’s bellow may be found in Appendix A. 4.2.2 The appearance quality of each component of the air spring shall meet the following requirements.5 Test methods5.1 Test items The rubber compound for bellow shall be subjected to physical-mechanical property test. The air spring is subjected to airtightness test, elastic-property test, volume test, destructive, frame fatigue test. 5.2 Test sample 5.3 Test conditions The ambient temperature of the test of finished product of air spring assembly shall be controlled at (23 ± 5) °C. 5.4 Test equipment 5.4.1 The air spring’s elastic-property test is carried out on an electro-hydraulic servo or mechanical test machine which can perform approximate harmonic motion. Record the load-deformation and pressure-deformation correspondence. 5.5 Test procedure 5.5.1 Physical-mechanical property test of rubber compound The physical-mechanical properties of the rubber compound used to make the bellow are as shown in Appendix A. 5.5.2 Airtightness test Adjust the air spring to the standard height. Inflate to 1.3 times the standard pressure. Hold for 30 s. After it stabilizes, reduce the pressure of the air spring to the standard pressure. Close the inflation and exhaust valves. Record the pressure value. Maintain it at stationary status. After 24 hours, measure the pressure drop. If it is not more than 0.05 MPa, it is qualified. 5.5.3 Test of elastic-properties 5.5.4 Volume test First use water to fill the air spring, to discharge the air from inside of the air spring. Then adjust the air spring to the maximum stretching status and ensure the water pressure is at 0.50 MPa. 5.5.6 Test of frame’s fatigue life Adjust the air spring to the standard height and 0.70 MPa air pressure. Disconnect the air source. It is recommended to use a single-swing arm which has an arm length of 600 mm or a symmetric two-way swing arm. The hinge point is located at ±30 mm on the air spring’s installation surface. At the frequency of 2.0 Hz ~ 3.0 Hz and the amplitude of ±50 mm, repeat vibrations. During the test, according to the actual test conditions, it may use the cooling method. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 13061-2017 be delivered?Answer: The full copy PDF of English version of GB/T 13061-2017 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 13061-2017_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 13061-2017_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 13061-2017 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 13061-2017?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 13061-2017 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 13061-2017?A step-by-step guide to download PDF of GB/T 13061-2017_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 13061-2017". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
