GB/T 10605-2015 PDF EnglishUS$170.00 · In stock · Download in 9 seconds
GB/T 10605-2015: Center driving rotary-rake thickener Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 10605: Historical versions

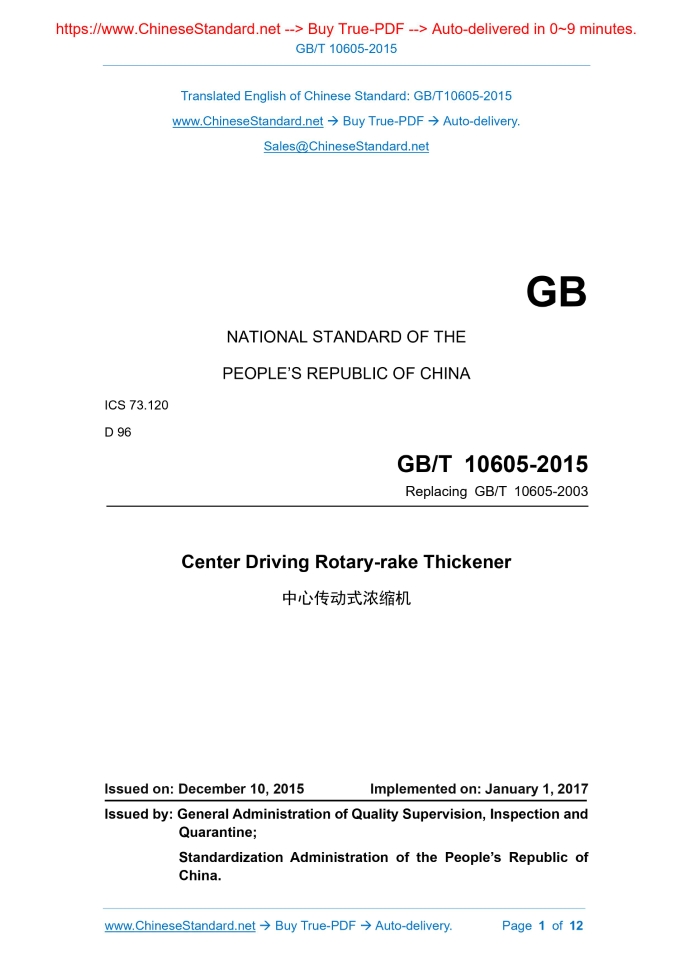

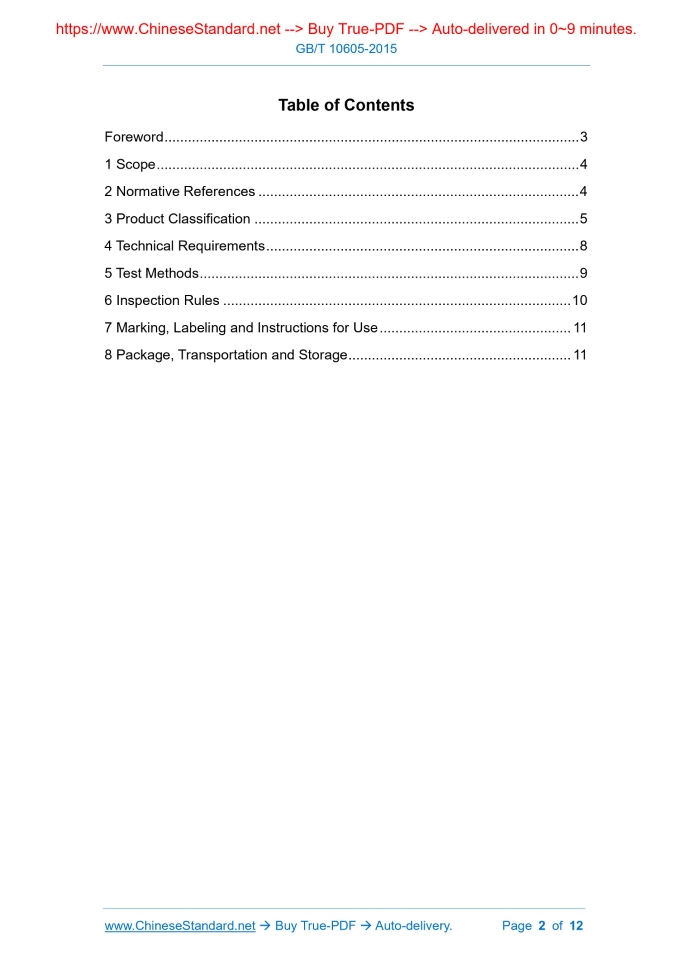

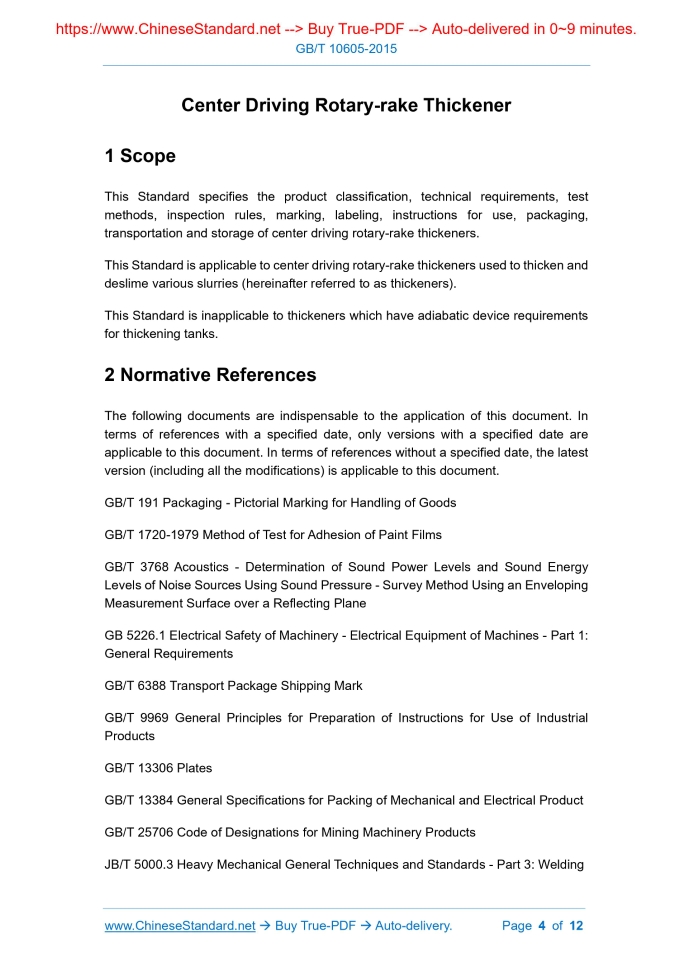

Similar standardsGB/T 10605-2015: Center driving rotary-rake thickener---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT10605-2015GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 73.120 D 96 Replacing GB/T 10605-2003 Center Driving Rotary-rake Thickener ISSUED ON: DECEMBER 10, 2015 IMPLEMENTED ON: JANUARY 1, 2017 Issued by: General Administration of Quality Supervision, Inspection and Quarantine; Standardization Administration of the People’s Republic of China. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative References ... 4 3 Product Classification ... 5 4 Technical Requirements ... 8 5 Test Methods ... 9 6 Inspection Rules ... 10 7 Marking, Labeling and Instructions for Use ... 11 8 Package, Transportation and Storage ... 11 Center Driving Rotary-rake Thickener1 ScopeThis Standard specifies the product classification, technical requirements, test methods, inspection rules, marking, labeling, instructions for use, packaging, transportation and storage of center driving rotary-rake thickeners. This Standard is applicable to center driving rotary-rake thickeners used to thicken and deslime various slurries (hereinafter referred to as thickeners). This Standard is inapplicable to thickeners which have adiabatic device requirements for thickening tanks.2 Normative ReferencesThe following documents are indispensable to the application of this document. In terms of references with a specified date, only versions with a specified date are applicable to this document. In terms of references without a specified date, the latest version (including all the modifications) is applicable to this document. GB/T 191 Packaging - Pictorial Marking for Handling of Goods GB/T 1720-1979 Method of Test for Adhesion of Paint Films GB/T 3768 Acoustics - Determination of Sound Power Levels and Sound Energy Levels of Noise Sources Using Sound Pressure - Survey Method Using an Enveloping Measurement Surface over a Reflecting Plane GB 5226.1 Electrical Safety of Machinery - Electrical Equipment of Machines - Part 1: General Requirements GB/T 6388 Transport Package Shipping Mark GB/T 9969 General Principles for Preparation of Instructions for Use of Industrial Products GB/T 13306 Plates GB/T 13384 General Specifications for Packing of Mechanical and Electrical Product GB/T 25706 Code of Designations for Mining Machinery Products JB/T 5000.3 Heavy Mechanical General Techniques and Standards - Part 3: Welding4 Technical Requirements4.1 The thickeners shall comply with the requirements of this Standard and be manufactured in accordance with the drawings and technical documents approved by the specified procedures. 4.2 Before the assembly, the components and parts of the thickeners shall pass the inspections; the purchased parts and outsourced parts shall have a certificate of conformity. 4.3 The thickeners shall be able to normally operate under the following conditions: a) The altitude does not exceed 3,000 m; b) The ambient temperature is -20 °C ~ + 50 °C. 4.4 The welding quality of all components and parts of the thickeners shall comply with the requirements of JB/T 5000.3. 4.5 The assembly of the thickeners shall comply with the requirements of JB/T 5000.10. 4.6 The structure of the thickeners shall comply with the following requirements: a) All parts must not interfere with each other; all movable parts shall flexibly operate, and without jamming or abnormal sound; b) The mechanism shall not leak oil into the thickening tank; c) The rake frame shall be smoothly lifted; d) Easy to be installed, maintained and lubricated; e) There shall be an overload protection system. 4.7 The thickeners may be driven by an electric motor or a hydraulic motor. The driving device shall be able to implement multi-step or stepless speed regulation, so as to adapt to the requirements of different working conditions. 4.8 In terms of the thickeners driven by a hydraulic motor, the hydraulic system shall comply with the stipulations of JB/T 6996 and shall comply with the following requirements: a) The system pressure is stable and the thickener smoothly operates; b) There shall be a self-locking function; the scraper rake can stay in any position without falling on its own. 5.2 After the transmission device of the thickeners runs idly for 2 h, use a point thermometer to measure the temperature rise and maximum temperature of the bearing part. 5.3 The noise of the thickeners during idling operation shall be inspected in accordance with the stipulations of GB/T 3768 when the transmission device and the lifting device are operating. 5.4 Conduct visual inspection on the appearance quality of the paint. The thickness of the paint film is measured through an electromagnetic film thickness meter. The adhesion of the paint film is inspected in accordance with the method specified in GB/T 1720.6 Inspection Rules6.1 Classification of Inspection The inspection of the thickeners is divided into exit-factory inspection and type inspection. 6.2 Exit-factory Inspection 6.2.1 Each thickener shall pass the inspection by the manufacturer’s quality inspection department before exiting the factory. When exiting the factory, the product shall be attached with a document proving its quality conformance. 6.2.2 The exit-factory inspection items are 4.5 ~ 4.15. 6.3 Type Inspection 6.3.1 Under one of the following circumstances, the thickeners shall receive type inspection: a) When new products are put into production or old products are transferred to another factory for production; b) After normal production, when there are relatively significant changes in product structure, materials or processes that might affect product performance; c) When the production has been suspended for over one year, and then, resumed; d) Products in normal production shall be inspected once every 3 years; e) When there are relatively significant differences between the exit-factory inspection results and the results of the previous type inspection; ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 10605-2015 be delivered?Answer: The full copy PDF of English version of GB/T 10605-2015 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 10605-2015_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 10605-2015_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 10605-2015 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 10605-2015?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 10605-2015 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 10605-2015?A step-by-step guide to download PDF of GB/T 10605-2015_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 10605-2015". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
