GB/T 10003-2008: Biaxially oriented polypropylene (BOPP) film for general use Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 10003: Historical versions

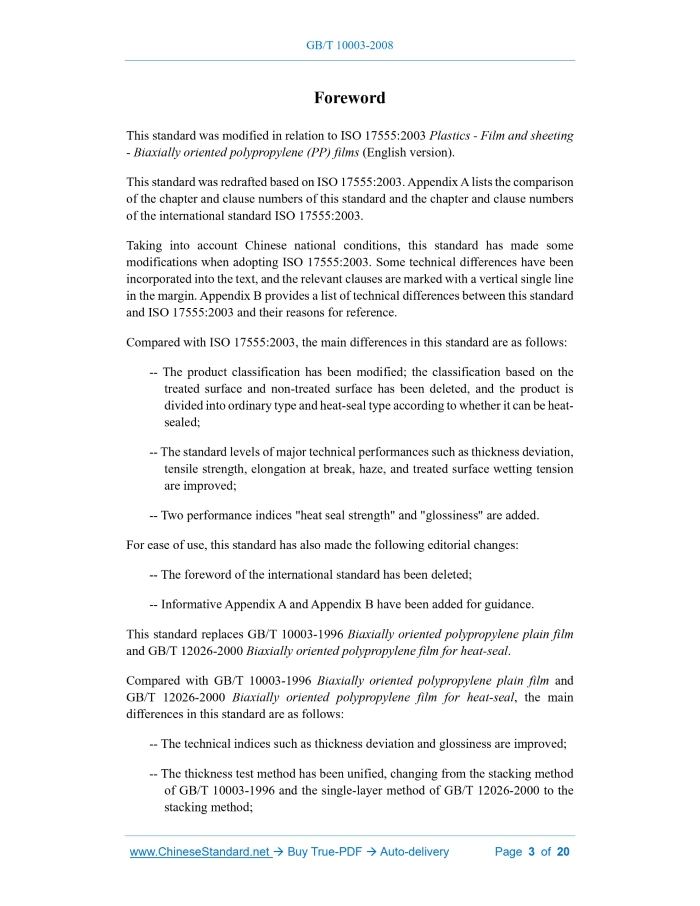

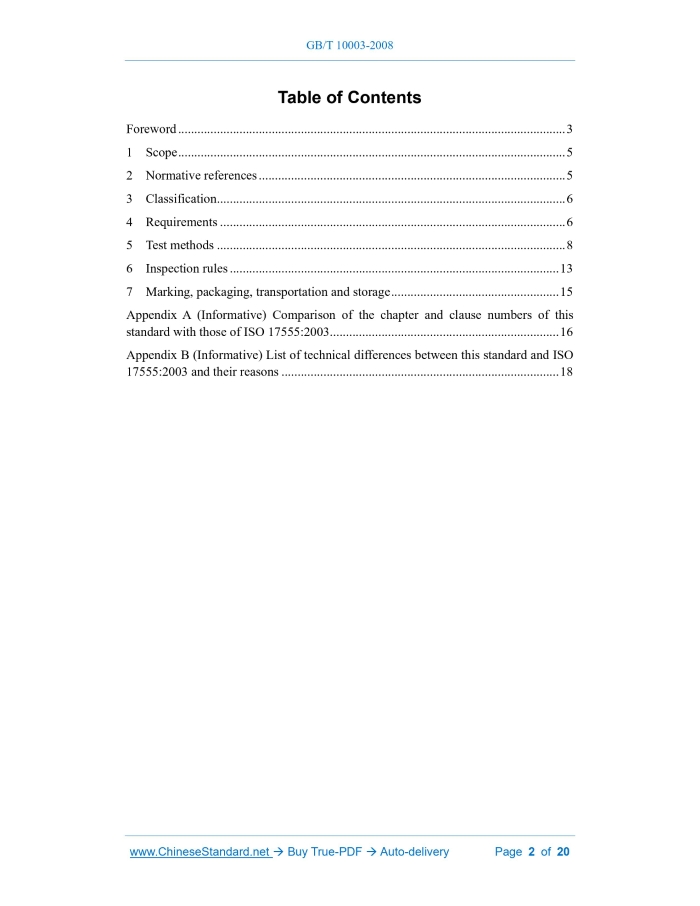

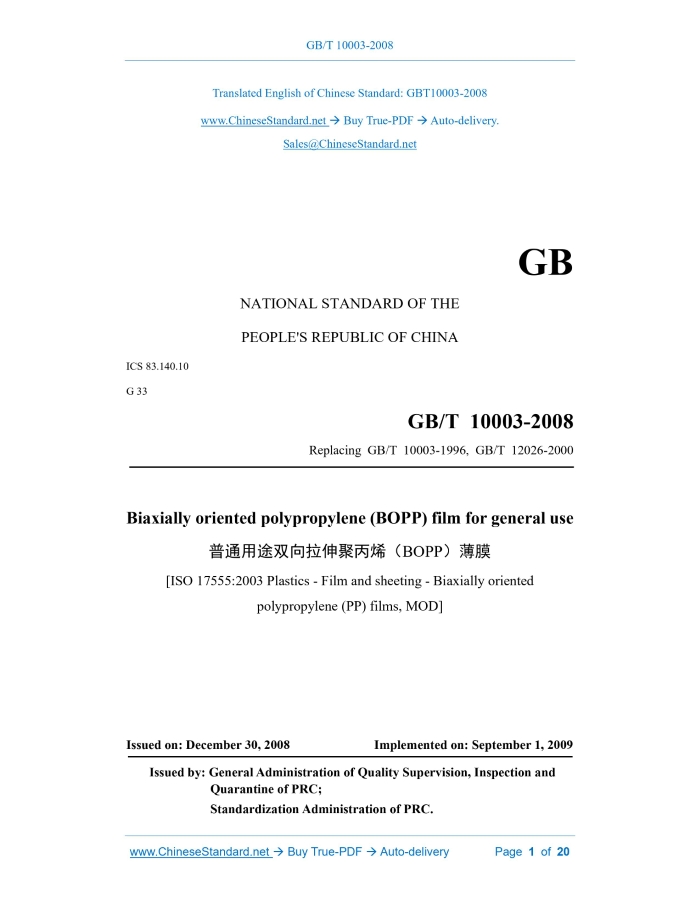

Similar standardsGB/T 10003-2008: Biaxially oriented polypropylene (BOPP) film for general use---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT10003-2008GB NATIONAL STANDARD OF THE PEOPLE'S REPUBLIC OF CHINA ICS 83.140.10 G 33 Replacing GB/T 10003-1996, GB/T 12026-2000 Biaxially oriented polypropylene (BOPP) film for general use [ISO 17555:2003 Plastics - Film and sheeting - Biaxially oriented polypropylene (PP) films, MOD] ISSUED ON: DECEMBER 30, 2008 IMPLEMENTED ON: SEPTEMBER 1, 2009 Issued by: General Administration of Quality Supervision, Inspection and Quarantine of PRC; Standardization Administration of PRC. Table of ContentsForeword ... 3 1 Scope ... 5 2 Normative references ... 5 3 Classification ... 6 4 Requirements ... 6 5 Test methods ... 8 6 Inspection rules ... 13 7 Marking, packaging, transportation and storage ... 15 Appendix A (Informative) Comparison of the chapter and clause numbers of this standard with those of ISO 17555:2003 ... 16 Appendix B (Informative) List of technical differences between this standard and ISO 17555:2003 and their reasons ... 18ForewordThis standard was modified in relation to ISO 17555:2003 Plastics - Film and sheeting - Biaxially oriented polypropylene (PP) films (English version). This standard was redrafted based on ISO 17555:2003. Appendix A lists the comparison of the chapter and clause numbers of this standard and the chapter and clause numbers of the international standard ISO 17555:2003. Taking into account Chinese national conditions, this standard has made some modifications when adopting ISO 17555:2003. Some technical differences have been incorporated into the text, and the relevant clauses are marked with a vertical single line in the margin. Appendix B provides a list of technical differences between this standard and ISO 17555:2003 and their reasons for reference. Compared with ISO 17555:2003, the main differences in this standard are as follows: -- The product classification has been modified; the classification based on the treated surface and non-treated surface has been deleted, and the product is divided into ordinary type and heat-seal type according to whether it can be heat- sealed; -- The standard levels of major technical performances such as thickness deviation, tensile strength, elongation at break, haze, and treated surface wetting tension are improved; -- Two performance indices "heat seal strength" and "glossiness" are added. For ease of use, this standard has also made the following editorial changes: -- The foreword of the international standard has been deleted; -- Informative Appendix A and Appendix B have been added for guidance. This standard replaces GB/T 10003-1996 Biaxially oriented polypropylene plain film and GB/T 12026-2000 Biaxially oriented polypropylene film for heat-seal. Compared with GB/T 10003-1996 Biaxially oriented polypropylene plain film and GB/T 12026-2000 Biaxially oriented polypropylene film for heat-seal, the main differences in this standard are as follows: -- The technical indices such as thickness deviation and glossiness are improved; -- The thickness test method has been unified, changing from the stacking method of GB/T 10003-1996 and the single-layer method of GB/T 12026-2000 to the stacking method; Biaxially oriented polypropylene (BOPP) film for general use1 ScopeThis standard specifies the terms and definitions, classification, requirements, test methods, inspection rules, marking, packaging, transportation and storage of biaxially oriented polypropylene (BOPP) films for general use. This standard applies to ordinary (plain film) and heat-seal films for general use, which are made from polypropylene resin as the main raw material and are produced by biaxial stretching using the flat film method. This standard does not apply to other biaxially oriented polypropylene films with special functions, such as biaxially oriented polypropylene matt film, biaxially oriented polypropylene pearlized film, biaxially oriented polypropylene film for ripping strip, biaxially oriented polypropylene film for capacitors, and biaxially oriented polypropylene cigarette packaging film.2 Normative referencesThe provisions in the following documents become the clauses of this standard through reference in this standard. For all the referenced documents with dates, all the subsequent amendments (excluding errata) or revisions are not applicable to this standard. However, the parties who reach an agreement based on this standard are encouraged to study whether the latest versions of these documents can be used. For all the referenced documents without dates, the latest versions are applicable to this standard. GB/T191 Packaging - Pictorial marking for handling of goods (GB/T 191-2008, ISO 780:1997, MOD) GB/T 1037-1988 Test method for water vapor transmission of plastic film and sheet - Cup method GB/T 1040.3-2006 Plastics - Determination of tensile properties - Part 3: Test conditions for films and sheets (ISO 527-3:1995, IDT) GB/T 2410-2008 Determination of the luminous transmittance and haze of transparent plastics GB/T 2828.1-2003 Sampling procedures for inspection by attributes - Part 1: Sampling schemes indexed by acceptance quality limit (AQL) for lot-by-lot inspection (ISO 2859-1:1999, IDT) GB/T 2918-1998 Plastics - Standard atmospheres for conditioning and testing (idt ISO 291:1997) GB/T 5009.60-2003 Method for analysis of hygienic standard of products of polyethylene, polystyrene and polypropyrene for food packaging GB/T 6672-2001 Plastics film and sheeting - Determination of thickness by mechanical scanning (idt ISO 4593:1993) GB/T 6673-2001 Plastics film and sheeting - Determination of length and width (idt ISO 4592:1992) GB/T 8807-1988 Test method for specular gloss of plastics GB 9688 Hygienic standard for polypropyrene products used as food containers and tableware GB/T 14216-2008 Plastics - Film and sheeting - Determination of wetting tension (ISO 8296:2003, IDT)3 ClassificationDepending on whether there is a heat-sealing layer on the surface, it is divided into ordinary type (Type A) and heat-seal type (Type B).4 Requirements4.1 Appearance The appearance of the film shall comply with the requirements in Table 1, and the appearance of the film roll shall comply with the requirements in Table 2. where: Δd -- average thickness deviation, expressed in %; Δdm -- the maximum thickness deviation, expressed in %; Δdn -- the minimum thickness deviation, expressed in %; L1 -- average thickness, in micrometers (μm); L2 -- the maximum thickness value, in micrometers (μm); L3 -- the minimum thickness value, in micrometers (μm); S -- nominal thickness, in micrometers (μm). 5.5 Width and length The test of the width and length shall be in accordance with the provisions of GB/T 6673-2001. 5.6 Tensile strength and nominal strain at break According to the provisions of GB/T 1040.3-2006, the specimen is prepared by cutting method, and the specimen type is type 2. The specimen is a strip with a length of 150 mm and a width of (15±0.1) mm. The distance between the fixtures is 100 mm, and the test speed is (250±25) mm/min. 5.7 Thermal shrinkage rate 5.7.1 Test instruments and equipment Blast constant temperature oven (with a stainless-steel plate), stopwatch, and measuring tool (with an accuracy of 0.5 mm). 5.7.2 Specimens The length direction and width direction of the film roll are the longitudinal and transverse directions of the specimen, respectively. Cut 5 square specimens of 100 mm×100 mm from the sample to be tested in the direction parallel to the longitudinal direction. The sides of the square shall be parallel to the longitudinal direction of the film roll, and the longitudinal and transverse directions shall be marked. Draw two straight lines parallel to the two sides of the square and passing through the center of the square as marks, and accurately measure the lengths of the two straight lines. 5.7.3 Test procedures Place the specimen flat on the stainless-steel plate in the constant temperature oven at 120 ℃±3 ℃, with the stainless steel plate located in the middle of the oven. During the test, the air is blown and the heating time is 120 seconds. Take out the specimen and cool it to the test environment temperature. Measure the length of the longitudinal and transverse marking lines with an accuracy of 0.5 mm. 5.7.4 Result calculation The longitudinal and transverse thermal shrinkage rates are calculated according to formula (4): where: T -- the thermal shrinkage rate of the specimen, expressed in %; L -- the length of the marked straight line before heating, in millimeters (mm); L1 -- the length of the marked straight line after heating, in millimeters (mm). Take the arithmetic mean of the five specimens as the thermal shrinkage rate of the tested sample. 5.8 Heat seal strength 5.8.1 Specimens Cut 5 specimens evenly along the width direction of the film roll. The specimens are 150 mm long and (15±0.1) mm wide. 5.8.2 Test procedures During the test, fold the specimen in half, align the two ends and place them flat on the welding surface of the heat sealer for heat sealing. The heat sealing temperature is 135 ℃, the welding surface pressure during heat sealing is 0.18 MPa, and the heat sealing time is 1 s. With the heat sealing part as the center line, clamp the two ends of the specimen on the two fixtures of the test machine respectively, so that the longitudinal axis of the specimen coincides with the center line of the upper and lower 6.3 Inspection categories 6.3.1 Factory inspection The factory inspection items include all items in Chapter 4 except the water vapor transmission rate and hygiene indicators. 6.3.2 Type inspection Type inspection includes all items in Chapter 4, among which the hygiene indicators need to be inspected only when the film is used as food packaging. Type inspection shall be carried out in any of the following situations: a) Finalization and appraisal of new product trials; b) After formal production, if there are major changes in structure, materials, or processes that may affect product performance; c) The inspection is carried out once a year during normal production; d) When the production is resumed after being discontinued for more than half a year; e) When there is a significant difference between the factory inspection result and the last type inspection result. 6.4 Judgment rules 6.4.1 Judgment of non-conforming items If any one of the appearance and dimensional deviations is unqualified, the roll will be judged as unqualified. If there are unqualified items in the physical and mechanical properties test results, double samples shall be taken in the original lot and the unqualified items shall be retested. If the re-test results are still unqualified, the physical and mechanical properties of this lot of films are unqualified. If any one of the hygiene indicators is unqualified, the hygiene indicators will be judged as unqualified. 6.4.2 Judgment of qualified lots Appearance and dimensional deviations shall be judged according to Table 9. If the test results of appearance, dimensional deviation, physical and mechanical properties and hygiene indicators are all qualified, the lot is judged to be qualified.7 Marking, packaging, transportation and storage7.1 Marking The product shall have a certificate of conformity and be marked with the product name, specification, length, net weight, production date, inspection stamp, manufacturer name, manufacturer address, and implementation standards; the outer packaging shall have signs such as "Keep dry; Keep away from heat; Handle with care" and shall comply with the provisions of GB/T 191. 7.2 Packaging Each roll of film is protected with pads at both ends and packed with film. With both ends plugged with plastic plugs, it shall he loaded into the box with the supporting of plywood and tied tightly with plastic tape. Special packaging is subject to agreement between the supplier and the buyer. 7.3 Transportation It shall be handled with care during transportation to avoid mechanical collision and exposure to sunlight and rain. 7.4 Storage The film shall be stored in a clean, dry warehouse, properly stacked, away from heat sources, and not exposed to direct sunlight. The storage period shall not exceed six months from the date of production. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 10003-2008 be delivered?Answer: The full copy PDF of English version of GB/T 10003-2008 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 10003-2008_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 10003-2008_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 10003-2008 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 10003-2008?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 10003-2008 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 10003-2008?A step-by-step guide to download PDF of GB/T 10003-2008_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 10003-2008". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
