GB 8408-2018 PDF EnglishUS$305.00 · In stock · Download in 9 seconds
GB 8408-2018: Large-scale amusement device safety code Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB 8408: Historical versions

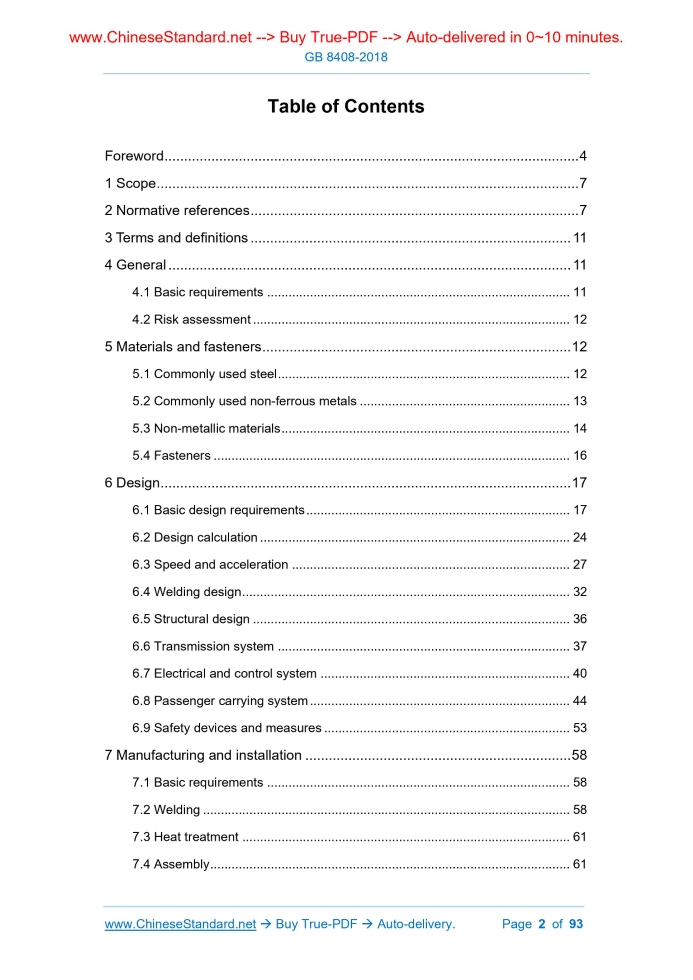

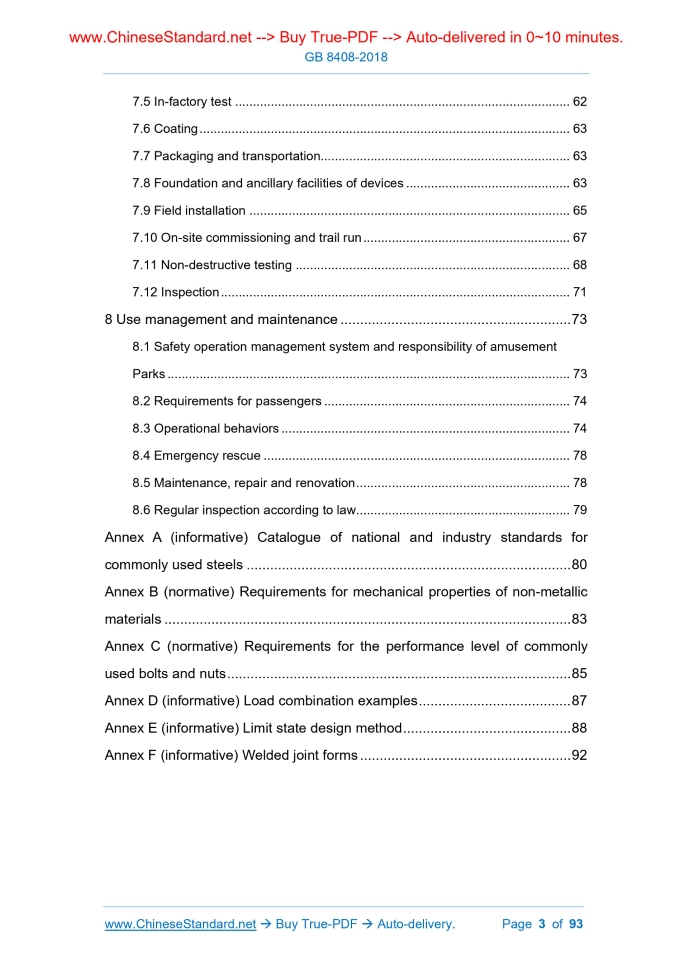

GB 8408-2018: Large-scale amusement device safety code---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GB8408-2018GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 97.200.40 Y 57 Replacing GB 8408-2008 Large-scale amusement device safety code Issued on: MAY 14, 2018 Implemented on: DECEMBER 01, 2018 Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China; Standardization Administration of the People's Republic of China. Table of ContentsForeword... 4 1 Scope... 7 2 Normative references... 7 3 Terms and definitions... 11 4 General... 11 5 Materials and fasteners... 12 6 Design... 17 7 Manufacturing and installation... 58 8 Use management and maintenance... 73 8.1 Safety operation management system and responsibility of amusement Annex A (informative) Catalogue of national and industry standards for commonly used steels... 80 Annex B (normative) Requirements for mechanical properties of non-metallic materials... 83 Annex C (normative) Requirements for the performance level of commonly used bolts and nuts... 85 Annex D (informative) Load combination examples... 87 Annex E (informative) Limit state design method... 88 Annex F (informative) Welded joint forms... 921 ScopeThis Standard specifies the basic safety requirements for the general rules, materials and fasteners, design, manufacturing and installation, use management and maintenance of large-scale amusement devices (hereinafter referred to as amusement devices). This Standard applies to large-scale amusement devices. This Standard does not apply to competitive sport devices and fitness devices.2 Normative referencesThe following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. GB/T 699 Quality carbon structure steels GB/T 709-2006 Dimension, shape, weight and tolerances for hot-rolled steel plates and sheets GB/T 715 Hot-rolled round carbon steel bars for standard parts GB/T 983 Covered electrodes for manual metal arc welding of stainless and heat-resisting steels GB/T 985.1 Recommended joint preparation for gas welding, manual metal arc welding, gas-shield arc welding and beam welding GB/T 985.2 Recommended joint preparation for submerged arc welding GB/T 1173 Casting aluminium alloys3 Terms and definitionsFor the purpose of this document, the terms and definitions defined in GB/T 20306 apply.4 General4.1 Basic requirements 4.2 Risk assessment5 Materials and fasteners5.1 Commonly used steel 5.1.1 The steel used in amusement devices shall comply with the specifications 5.2 Commonly used non-ferrous metals 5.3 Non-metallic materials 5.4 Fasteners6 Design6.1 Basic design requirements 6.1.1 Basic requirements 6.1.1.1 The design of amusement devices shall have design instructions, calculation instructions, use and maintenance instructions and a full set of drawings, risk assessment reports and design verification outlines complying with the relevant national standards. The above information shall be kept until at least the amusement devices are scrapped. 6.1.1.2 The design of amusement devices and auxiliary devices shall be calculated correctly and reasonably structured to ensure passenger safety. When accurate calculation cannot be performed, it can be confirmed and verified by tests. 6.1.1.3 Operation and use organizations or design commissioners shall provide the local meteorological, power supply, seismic and geological data in written form to the design and manufacturing organizations. 6.1.1.4 The selection of materials shall be based on the consideration of structural importance, load characteristics, structural forms, stress conditions, manufacturing processes, connection methods and work environment. 6.1.1.5 The mechanical properties, heat treatment performance and welding performance of metal materials used for important mechanical parts shall meet the requirements of working conditions. 6.1.1.6 Amusement devices shall specify the design service life of the complete machine and its main components. The calculated design life of the complete machine shall be not less than 35000 hours, including the getting on/off time. 6.1.1.7 The use and maintenance instructions shall be in simplified Chinese. For multilingual versions, the simplified Chinese version shall prevail. At least the following contents shall be included. a) Device overview and structure introduction; b) Technical performance and parameters, operating conditions; c) Operational procedures and precautions; d) Notice to passengers; e) Maintenance instructions; f) Common faults and remedies; g) Design service life of the complete machine and main components; h) Requirements for management, operation, maintenance, service personnel; i) List of vulnerable parts, scrapping requirements and recommended replacement cycle; j) Passenger grooming measures and methods in abnormal conditions; k) Safety requirements such as number of passengers, height requirements, age range, physical limitations, and whether children need to be under adult supervision; l) Items and inspection requirements for daily inspections, weekly inspections, monthly inspections (including seasonal inspections and semi-annual inspections) and annual inspections (including multi-year inspections), and corresponding inspections, testing (including non- destructive testing) and test methods, and the proportion of inspections and testing, etc.; m) For travelling amusement devices, there shall be installation and commissioning methods, site requirements, etc.; n) General assembly drawings, electrical schematic diagrams, hydraulic and pneumatic schematic diagrams, schematic diagrams of the mechanical components used to guide the maintenance inspection, and schematic diagrams of important welds and pins that require non-destructive testing of amusement devices; o) Manufacturer's name and detailed address, service or supervisory phone number, email address, website address, etc. 6.1.2 Amusement device loading 6.1.2.1 Permanent load The load of which the load point, size and direction does not change with time, such as the structural weight of the amusement device, expressed in Gk. 6.1.2.2 Live load The load of the passengers themselves, expressed in Q1, specified as follows. a) When carrying 1 ~ 2 adults, it is calculated as not less than 750 N/person; when carrying more than 2 adults, it is calculated as not less than 700 N/person. b) Children (not more than 1.2 m in height or under 10 years of age) shall be calculated as not less than 400 N/person. NOTE. When calculating the number of passengers based on members, it shall calculate according to the number of passengers designed to be carried. For example, for flying chair’s single seat system, it is calculated as no less than 750 N/person. for overall pylons, it is calculated as not less than 700N/person. 6.1.2.3 Supporting and constraint reaction of passengers When designing cabins, the force exerted by the passenger on the armrest, support, ankle and lining, etc. shall be taken into consideration when the vehicle is in normal operation and during start-up, braking and emergency situations. These forces shall not be less than 500 N/adult, and shall not be less than 300 N/person for amusement devices for children, expressed in Q2. 6.1.2.4 Value, Q3, of uniformly distributed live loads in human activity area The value of live loads uniformly distributed in human activity areas such as platforms, stairs, entrances and exits of amusement devices is as follows. 6.1.2.6 Driving force and braking force The force driving the carries to move and the force forcing the carries to stop moving (or to slow down), expressed in Q5. 6.1.2.7 Friction force The force produced by friction on the contact surface between relatively moving objects, expressed in Q6. 6.1.2.8 Inertial force The force produced by the variations (value and direction) in the movement speed and shall be calculated according to the full load state, expressed in Q7. where. 6.1.2.9 Collision force The force produced due to collision in the course of movement. Generally, it only checks parts that have been directly involved in the collision, assuming that it occurs in the most unfavorable position, and in any case the collision force shall not be less than 0.3 mg. It shall be calculated as full load and expressed in Q8. 6.1.2.10 Wind load The wind load is divided into normal working condition load and limit working condition load. In the design of amusement devices, the wind load under normal working conditions shall be calculated at a maximum operating wind speed of 15m/s. For indoor amusement devices, the wind load may not be calculated. In the static state (limit working condition), it shall be able to withstand wind loads provided by local meteorological data. The wind load is expressed in Q9.The value of wind load and its calculation method shall be in accordance with the specifications in GB 50009. 6.1.3 Analysis of working conditions 6.1.3.1 The working conditions of amusement devices include normal operation working conditions, abnormal operation working conditions and limit state working conditions. NOTE. For normal operation working conditions, reference may be made to different situations, such as no load, partial load and full load, under the designed use conditions of amusement devices. For abnormal operation working conditions, reference may be made to different situations such as emergency stop, emergency rescue and maintenance of amusement devices. For limit state working conditions, reference may be made to different situations of amusement devices under local limit conditions such as limit wind speed and earthquake. 6.1.3.2 Kinematics and dynamics analysis shall be performed on amusement devices to obtain data such as operating speed, acceleration, force and operating posture. 6.1.3.3 The working condition analysis shall consider at least the following situations. a) Different stages of device operation, such as getting on/off of passengers, normal operation, braking status, maintenance, etc.; b) Different distribution of loads, such as full load, partial load, etc.; c) Different postures of the device; d) Possible abnormal operation and limit state working conditions. 6.1.4 Load combination 6.1.4.1 Based on different devices and working condition analysis, combine the permanent loads and other loads bear by the structure of amusement devices into one calculation load, carry out analysis and calculation separately. Refer to Annex D for details. 6.1.4.2 Load combination shall be carried out according to specific conditions such as abnormal operation working conditions and limit state working conditions, and the structure shall not be damaged or permanently deformed. 6.2 Design calculation 6.2.1 Basic requirements The design calculation of amusement devices includes. static strength calculation, rigidity calculation, fatigue strength calculation, stability calculation, anti-overturning calculation, anti-sideslip calculation, etc., which shall be selected according to the specific structure and working conditions. The calculation of the static strength of structures using Q345 steel, No. 20 steel, No. 45 steel, 40Cr and Q390 steels may be performed with reference to the limit state design method specified in Annex E. 6.2.2 Stress calculation Parts and welds shall be subjected to stress calculation. The ratio of the ultimate stress of the material to the maximum stress it is subjected to is the safety factor. The calculated safety factor n shall meet the requirements of 6.2.3 Fatigue strength calculation 6.2.3.1 The fatigue calculation of steel structural members and their connections shall comply with the specifications about the fatigue strength calculation in GB 50017. 6.2.3.2 For Grade I and II welds of amusement devices, fatigue strength check shall be carried out. The fatigue strength calculation may be exempted for the portion where the tensile stress does not occur in the stress cycle. 6.2.3.3 The allowable fatigue strength safety factors of shafts shall meet the requirements of Table 2. Table 2 -- Allowable fatigue strength safety factors of shafts 6.2.3.4 When the maximum calculated stress of the cyclic load is less than the fatigue limit of the material, the part has infinite life; when the maximum calculated stress of the cyclic load is greater than the fatigue limit of the material, the fatigue load spectrum is used to calculate the service life of the part. 6.2.3.5 For parts that cannot be designed as a detachable structure, the design service life cannot be lower than the design service life of the complete machine. 6.2.4 Rigidity calculation Some parts that have deformation requirements for amusement devices shall be calculated for rigidity. 6.2.5 Stability calculation In order to prevent structural instability, overall and local stability calculations are required for slender, thin-walled structural parts. The calculation of the stability of slender members shall comply with the relevant specifications of GB 50017; the calculation of the stability of plates and housing shall meet the requirements of 5.7 in GB/T 3811-2008. 6.2.6 Anti-overturning calculation This calculation shall be performed when there is a possibility of an overall overturning during the operation of the amusement devices. where. 6.2.7 Anti-sideslip calculation This calculation shall be performed when there is a possibility of an overall sideslip during the operation of the amusement devices. 6.3 Speed and acceleration 6.3.1 Speed allowable values 6.3.1.1 For amusement devices of which passengers are getting on/off while running, the relative running speed shall be not more than 0.3 m/s. 6.3.1.2 For amusement devices such as fairy train type, see Table 4 for speed allowable values. 6.3.2 Acceleration allowable values 6.3.2.1 Basic requirements In order to prevent passengers from being harmed, the acceleration of passengers of amusement devices shall be limited to a certain range. Figure 2 shows the human space coordinate system. The allowable acceleration values are shown in Figures 3 to 6 (represented by the ratio of actual acceleration to gravitational acceleration g). 6.3.2.2 Measurement position The reference point for calculating or measuring the acceleration shall generally be 600 mm above the seat (or approximate adult's heart position). Acceleration with a duration less than or equal to 0.2 s is the impact acceleration, and acceleration with a duration greater than 0.2 s is the steady-state acceleration. 6.3.2.3 Acceleration in x direction The maximum acceleration in the +x direction shall not exceed 6 g, and the maximum acceleration in the -x direction shall not exceed 3.5 g. 6.3.2.4 Acceleration in y direction The lateral (y direction) acceleration shall comply with the specifications of Figure 3. 6.3.2.5 Acceleration in z direction The vertical acceleration shall comply with the specifications of Figure 4.For example, the allowable acceleration limits for 0.3 s are az = -1.7 g and az = +6.0 g. When there is an impact load, the above values shall be reduced by 10 %. 6.3.2.6 Combination of accelerations When the lateral acceleration ay and the vertical acceleration az exist at the same time, the ratios ay/[ay] and az/[az] of Figure 5 shall also be satisfied. Where ay and az are lateral and vertical actual acceleration values; [ay] and [az] are lateral and vertical allowable acceleration values. ay and az are the maximum acceleration values that are taken in 0.3 s, that is, the maximum values that occur within a time difference of 0.3 s, which need to be combined. 6.4 Welding design 6.4.1 Design principles of welded joints 6.4.1.1 The weld metal shall be compatible with the main metal. When steels of different strengths are connected, the welding materials compatible with low- strength steels shall be used. 6.4.1.2 The groove and dimension of welded joints shall comply with the specifications of GB/T 985.1 and GB/T 985.2. 6.4.1.3 Welding of weldments of different thicknesses or different widths. when the difference between one side of the two weldments is more than 4 mm, the bevel with a slope of not more than 1.4 shall be made from one side or two sides in the width or thickness direction, respectively, see Figure 7. 6.4.1.4 Under the premise of meeting the design, the number of welds and the stress concentration area should be reduced. Welds should avoid dense, cross- welded, two-way, three-way intersections, avoid high working stress portions in structures, machined surfaces, etc. 6.4.1.5 There should be enough space around the weld to facilitate the welding operation and post-welding testing. 6.4.2 Forms of welded joints See Annex F for forms of welded joints. 6.4.3 Grading of welds 6.4.3.1 Grading principle 6.4.3.1.1 Welds shall be graded after risk assessment. In the risk assessment, factors such as the possibility of weld failure, the severity of failure consequences, and the testability of welds shall be considered. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB 8408-2018 be delivered?Answer: The full copy PDF of English version of GB 8408-2018 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB 8408-2018_English with my colleagues?Answer: Yes. The purchased PDF of GB 8408-2018_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB 8408-2018 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB 8408-2018?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB 8408-2018 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB 8408-2018?A step-by-step guide to download PDF of GB 8408-2018_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB 8408-2018". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
