GB 7956.12-2015 PDF EnglishUS$475.00 · In stock · Download in 9 seconds
GB 7956.12-2015: Fire fighting vehicles -- Part 12: Aerial firefighting vehicle Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

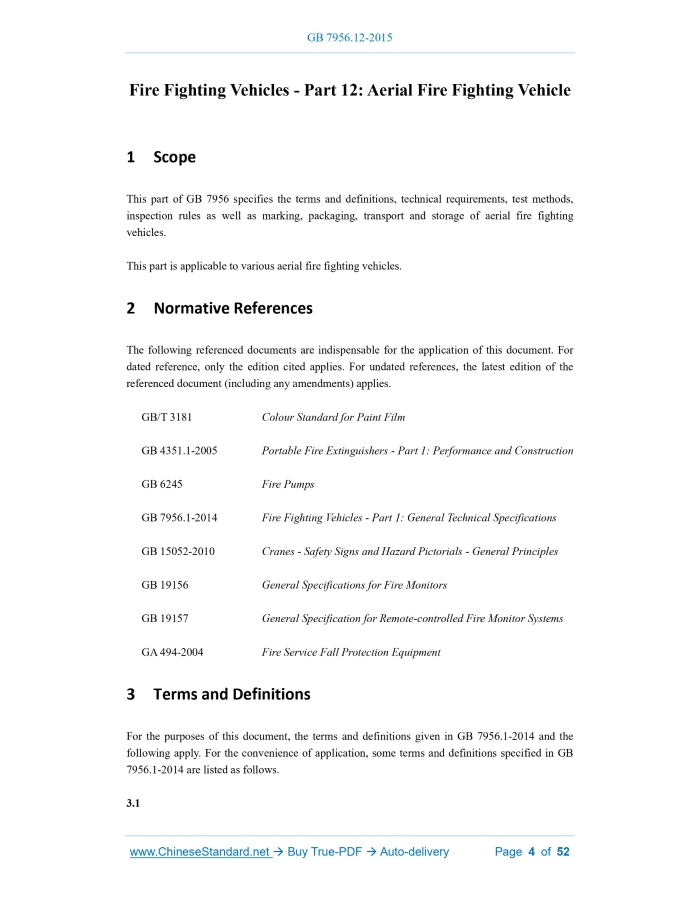

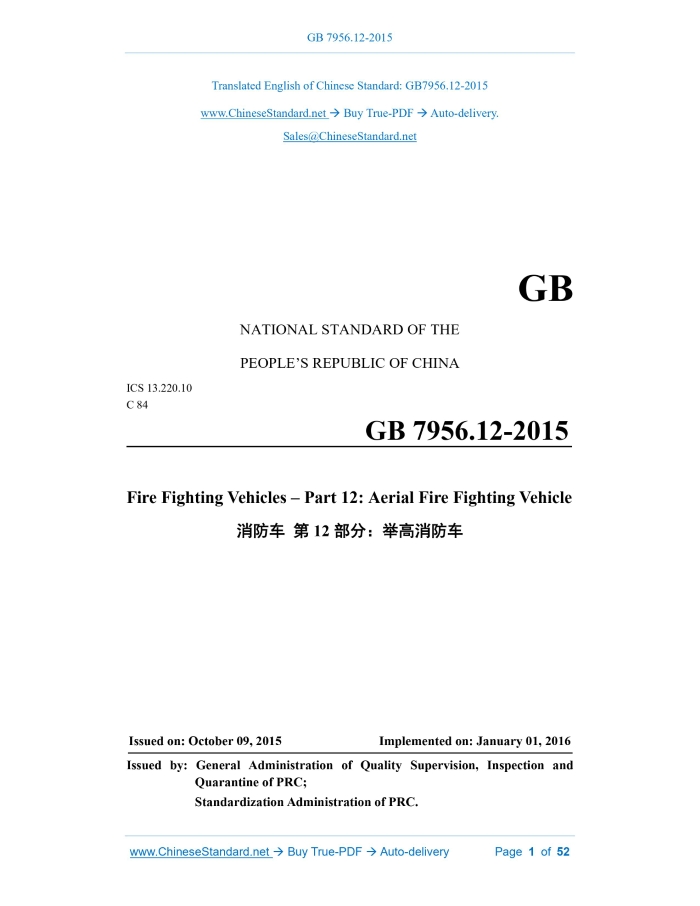

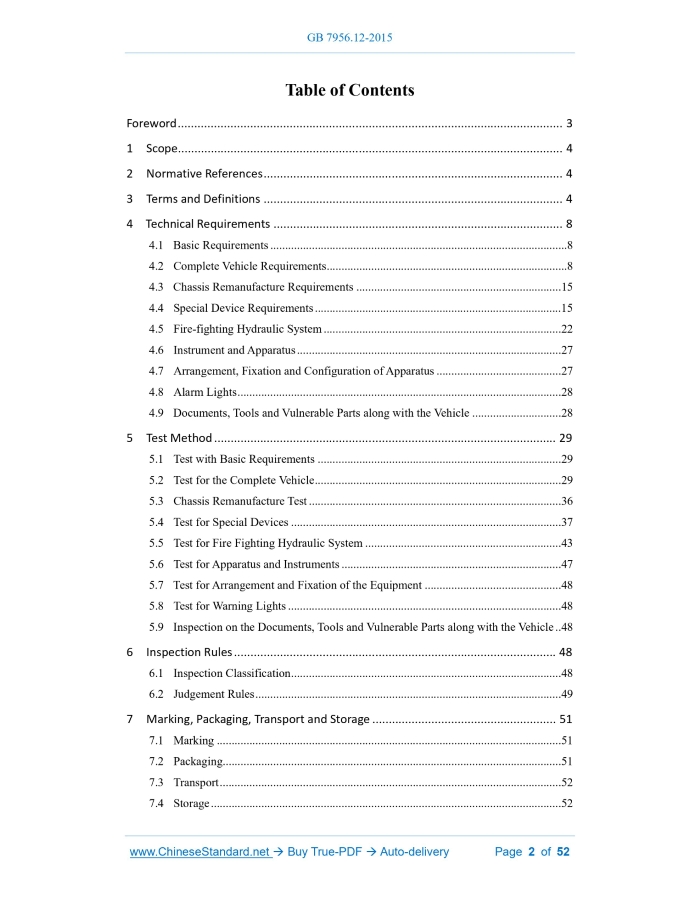

GB 7956.12-2015: Fire fighting vehicles -- Part 12: Aerial firefighting vehicle---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GB7956.12-2015GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 13.220.10 C 84 Fire Fighting Vehicles – Part 12.Aerial Fire Fighting Vehicle Issued on. OCTOBER 09, 2015 Implemented on. JANUARY 01, 2016 Issued by. General Administration of Quality Supervision, Inspection and Quarantine of PRC; Standardization Administration of PRC. Table of ContentsForeword... 3 1 Scope... 4 2 Normative References... 4 3 Terms and Definitions... 4 4 Technical Requirements... 8 4.1 Basic Requirements...8 4.2 Complete Vehicle Requirements...8 4.3 Chassis Remanufacture Requirements... 15 4.4 Special Device Requirements... 15 4.5 Fire-fighting Hydraulic System... 22 4.6 Instrument and Apparatus... 27 4.7 Arrangement, Fixation and Configuration of Apparatus... 27 4.8 Alarm Lights... 28 4.9 Documents, Tools and Vulnerable Parts along with the Vehicle... 28 5 Test Method... 29 5.1 Test with Basic Requirements... 29 5.2 Test for the Complete Vehicle... 29 5.3 Chassis Remanufacture Test... 36 5.4 Test for Special Devices... 37 5.5 Test for Fire Fighting Hydraulic System... 43 5.6 Test for Apparatus and Instruments... 47 5.7 Test for Arrangement and Fixation of the Equipment... 48 5.8 Test for Warning Lights... 48 5.9 Inspection on the Documents, Tools and Vulnerable Parts along with the Vehicle.. 48 6 Inspection Rules... 48 6.1 Inspection Classification... 48 6.2 Judgement Rules... 49 7 Marking, Packaging, Transport and Storage... 51 7.1 Marking... 51 7.2 Packaging... 51 7.3 Transport... 52 7.4 Storage... 521 ScopeThis part of GB 7956 specifies the terms and definitions, technical requirements, test methods, inspection rules as well as marking, packaging, transport and storage of aerial fire fighting vehicles. This part is applicable to various aerial fire fighting vehicles.2 Normative ReferencesThe following referenced documents are indispensable for the application of this document. For dated reference, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. GB/T 3181 Colour Standard for Paint Film GB 4351.1-2005 Portable Fire Extinguishers - Part 1.Performance and Construction GB 6245 Fire Pumps GB 7956.1-2014 Fire Fighting Vehicles - Part 1.General Technical Specifications GB 15052-2010 Cranes - Safety Signs and Hazard Pictorials - General Principles GB 19156 General Specifications for Fire Monitors GB 19157 General Specification for Remote-controlled Fire Monitor Systems GA 494-2004 Fire Service Fall Protection Equipment3 Terms and DefinitionsFor the purposes of this document, the terms and definitions given in GB 7956.1-2014 and the following apply. For the convenience of application, some terms and definitions specified in GB 7956.1-2014 are listed as follows. 3.1 aerial fire fighting vehicle The fire fighting vehicle that is mainly equipped with elevating boom, slewing mechanism, etc. and used for high-altitude fire fighting and rescue as well as goods, materials and fire fighter transmission. Generally, it is classified into platform fire fighting vehicle, aerial ladder fire fighting vehicle and water tower fire fighting vehicle. 3.2 platform fire fighting vehicle The fire fighting vehicle that is mainly equipped with crank arm, straight-crank arm and rescue cage, and able to transmit fire fighter and fire extinguishing goods and materials to high altitude, rescue trapped person or spray fire extinguishing agent. [definition 3.2.1 in GB 7956.1-2014] 3.4 water tower fire fighting vehicle The fire fighting vehicle that is mainly equipped with straight arm, crank arm, straight-crank arm and liquid feed pipe, with fire monitor or forcible entry device installed at top, able to spray fire extinguishing agent at high altitude or carry out forcible entry. [definition 3.2.3 in GB 7956.1-2014]4 Technical Requirements4.1 Basic Requirements Aerial fire fighting vehicle (hereafter abbreviated as aerial fire fighting vehicle) shall comply with the requirements of this part, except the general technical requirements in GB 7956.1-2014. 4.2 Complete Vehicle Requirements 4.2.1 General requirements 4.2.2 Operating instructions and mark 4.2.2.1 Detailed illustration or literal operating instructions and warning specifications shall be arranged at operating platform of stabilizer, rescue cage and turntable of aerial fire fighting vehicle visible for the operation personnel. 4.2.3 Hydraulic system 4.2.3.1 Hydraulic oil tank volume of aerial fire fighting vehicle shall ensure the aerial fire fighting vehicle is able to continuously complete 50 operation cycles, and the temperature of hydraulic oil in the oil tank shall not be greater than 90℃. There shall be no boom (ladder) quiver, creeping or blocking due to overhigh oil temperature, and the hydraulic elements and components shall be free from oil leakage, oil penetration or damage. 4.2.4 Safety requirements 4.2.4.1 Aerial fire fighting vehicle shall possess the function of interlocking of lower- and upper-vehicles; the boom (ladder) cannot move before the stabilizer is extended and leveled and supported reliably; before boom (ladder) retracts to the support bracket, the stabilizer of lower-vehicle cannot retract. Interlock function of lower- and upper-vehicles shall be realized automatically. 4.2.4.7 The safety coefficient for pulling the rigging like steel cable, chain, etc. of boom (ladder) shall not be less than 5, and that for other rigging shall not be less than 2. 4.2.4.8 Operating platform of aerial fire fighting vehicle shall not be equipped with device that directly adjust the parameters of hydraulic or electrical system. The places for parameter adjustment can only be opened with special tools and shall be with warning specifications whose color meets the requirements of Clause 9 in GB 15052-2010 and content contains the text "adjustment ought to be implemented by experienced personnel" with font size enabling operation personnel to read easily. 4.2.5 Special requirements 4.2.5.1 Platform fire fighting vehicle 4.2.5.1.1 For platform fire fighting vehicles with the maximum operating height not greater than 35 m, the duration for its boom lifting from driving position to the maximum operating height and rotating by 90° shall be less than 150s. For platform fire fighting vehicles with the maximum operating height greater than 35 m but not greater than 70 m, such duration shall increase by 40 s for each 10 m of the part exceeding 35 m. 4.2.5.1.2 The duration for stabilizer extending, supporting and being leveled shall not be greater than 50 s. 4.2.5.1.3 The area of rescue cage of platform fire fighting vehicle shall be greater than 1.5m2. 4.2.5.1.4 As for platform fire fighting vehicle with the rescue cage monitor not spraying water, the rated load of its rescue cage shall not be less than 270kg. 4.2.5.1.5 If lateral cat ladder is arranged for platform fire fighting vehicle, auxiliary ladder able of ensuring the personnel arrive at ground surface safely shall be arranged; there shall be transitive ladder section connecting rescue cage on the top of crawling ladder. 4.2.5.2 Aerial ladder fire fighting vehicle 4.2.5.2.1 For aerial ladder fire fighting vehicles with a maximum operating height not greater than 40 m, the duration for ladder lifting from driving position to the maximum operating height and rotating by 90° shall be less than 120s. 4.2.5.2.2 The duration for stabilizer extending, supporting and being leveled shall not be greater than 40 s. 4.2.5.2.3 As for aerial ladder fire fighting vehicle, the area of its rescue cage shall be greater than 1.0m2 and that of its lift shall be greater than 0.8m2. 4.2.5.2.4 As for aerial ladder fire fighting vehicle with the rescue cage monitor not spraying water, the rated load of its rescue cage shall not be less than 180kg. 4.2.5.2.5 As for aerial ladder fire fighting vehicle, auxiliary ladder, which may directly arrive the ground surface when unfolded, shall be arranged at the lower end of its ladder. 4.2.5.2.7 If ladder step is round, the diameter of ladder step including anti-skidding layer shall be greater than 32 mm. 4.2.5.2.8 If ladder step is of other shape, the sectional area of ladder step shall not be less than 775 mm2; as for the section including anti-skidding layer, the length of long side is not greater than 80 mm and that of the short side is not less than 19 mm. 4.2.5.2.9 The ladder step installed on ladder of aerial ladder fire fighting vehicle shall be able to withstand a force of 2,300N without fracture or obvious permanent deformation. 4.2.5.2.10 Ladder of aerial ladder fire fighting vehicle shall possess driving locking device which shall ensure the ladder will not stretch when the aerial ladder fire fighting vehicle imminently brakes at 30 km/h and shall be without additional switch. 4.2.5.2.11 As for aerial ladder fire fighting vehicle equipped with manned rescue cage and fire monitor, its stability shall comply with the requirements of 4.2.4.4, the ladder shall be extended to working limit position with an angle of 45°; 4.2.5.2.12 Fire monitor installed at ladder top shall not influence the motion of ladder or hinder the personnel approaching the ladder top according to operation specifications. The depression angle and elevation angle for fire monitor winding the horizontal line shall be greater than 60° and the left swing angle and right swing angle for it winding the ladder parallel line shall be greater than 45°.5 Test Method5.1 Test with Basic Requirements The test methods shall be in accordance with the relevant contents specified in Clause 6 Test Method of GB 7956.1-2014.Judge whether the test results comply with relevant requirements of Clause 5 in GB 7956.1-2014. 5.2 Test for the Complete Vehicle 5.2.1 Test with general requirements 5.2.2 Operating instructions and mark inspection 5.2.2.1 Inspect the operation and warning specifications at the operating platforms of stabilizer, rescue cage and turntable, then judge whether the test results comply with those specified in 4.2.2.1. 5.2.3 Hydraulic system test 5.2.3.1 Carry out the operation cycle continuously for 50 times with the mode specified in 5.2.5 Test with special requirements 5.2.5.1 Platform fire fighting vehicles 5.4.3 Test for the rescue cage 5.4.3.1 Identification inspection 5.4.3.1.1 Visually inspect the mark contents, distinctness and fixing mode in the rescue cage; judge whether the test results comply with those specified in 4.4.3.1.1. 5.4.3.1.2 Visually inspect whether the safety range and operating range is determined automatically according to the rescue cage load and spraying conditions of the fire monitor. Judge whether the test results comply with those specified in 4.4.3.1.2. 5.4.3.2 Structural strength test6 Inspection Rules6.1 Inspection Classification 6.1.1 Exit-factory inspection Exit-factory inspection items shall at least include those items given in Table 3; the inspection results shall comply with the requirements of GB 7956.1-2014 and this part. 6.1.2 Type inspection 6.2 Judgement Rules In Table 3, as for 5.1.4, 5.1.5 and 5.1.6 of item 1, 5.5.7 of item 5, items 8, 13, 16, 17, 18 and 23 as well as 4.5.3 of item 19, the product shall be judged as unacceptable if one of the items is rejected. For the rest items, if one of them fails to meet the requirements of this part, then it is allowed to rework the rejected item for re-inspection; if it is still unacceptable, then the product shall be judged as unacceptable.7 Marking, Packaging, Transport and Storage7.1 Marking The marking of aerial fire fighting vehicles shall not only comply with the requirements of 5.2 in GB 7956.1-2014 but also those of 4.4.2.1.3 in this part. 7.2 Packaging 7.2.1 Aerial fire fighting vehicles shall be bare-packed upon exit-factory, and the documents accompanying the vehicle shall be packaged with damp-proof materials. 7.2.2 All the vehicle doors and toolboxes shall be closed and locked tightly. 7.3 Transport 7.3.1 Transport by driving shall comply with the requirements regarding driving of new vehicles in the user’s manual. 7.3.2 Transport by railway (waterway) shall be in accordance with the relevant requirements. 7.4 Storage In the case of long-term storage for aerial fire fighting vehicles, discharge the water and fuel totally and clear the circuit, then park the vehicles at a well-ventilated site to prevent damaged by corrosive gases and protected from rain, damp and exposure. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB 7956.12-2015 be delivered?Answer: The full copy PDF of English version of GB 7956.12-2015 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB 7956.12-2015_English with my colleagues?Answer: Yes. The purchased PDF of GB 7956.12-2015_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB 7956.12-2015 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB 7956.12-2015?A step-by-step guide to download PDF of GB 7956.12-2015_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB 7956.12-2015". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
