GB/T 4706.11-2024 (GB 4706.11-2008) PDF EnglishUS$195.00 · In stock · Download in 9 seconds
GB 4706.11-2008: Household and similar electrical appliances -- Safety -- Particular requirements for instantaneous water heaters Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB 4706.11: Historical versions

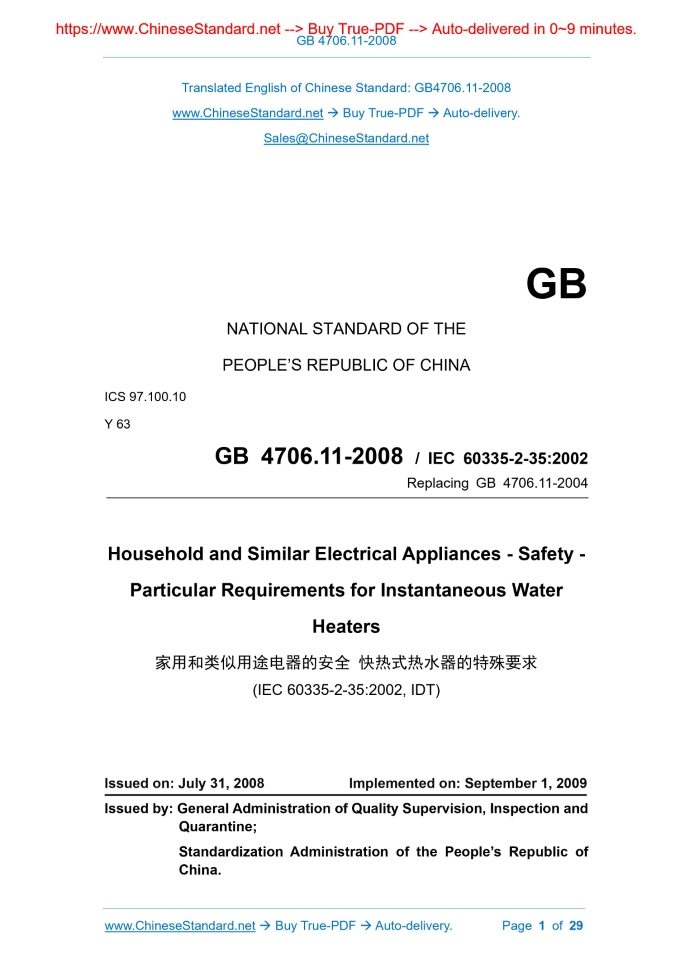

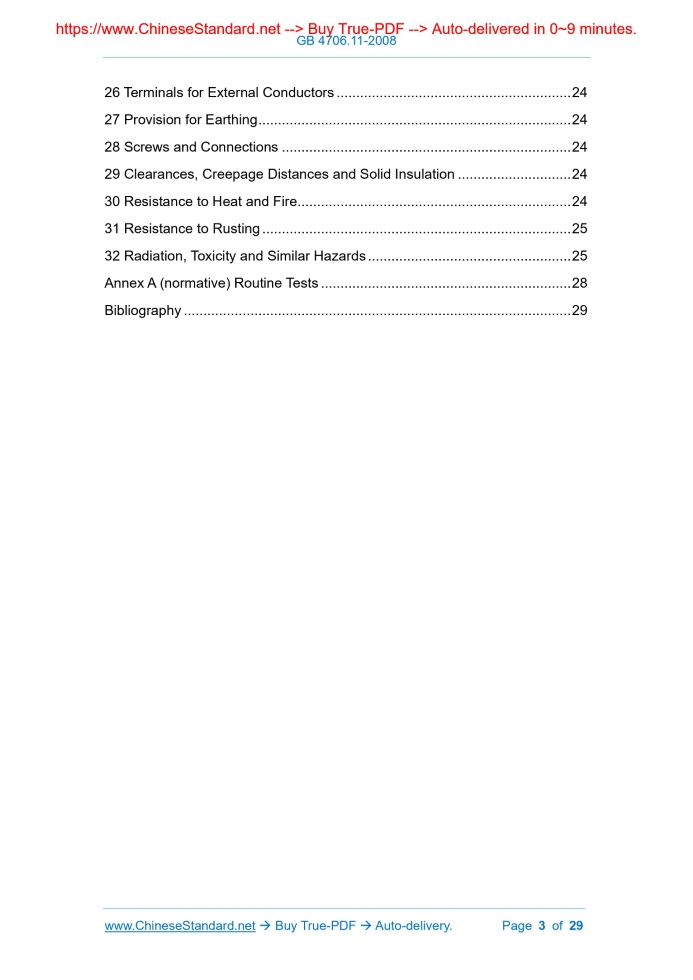

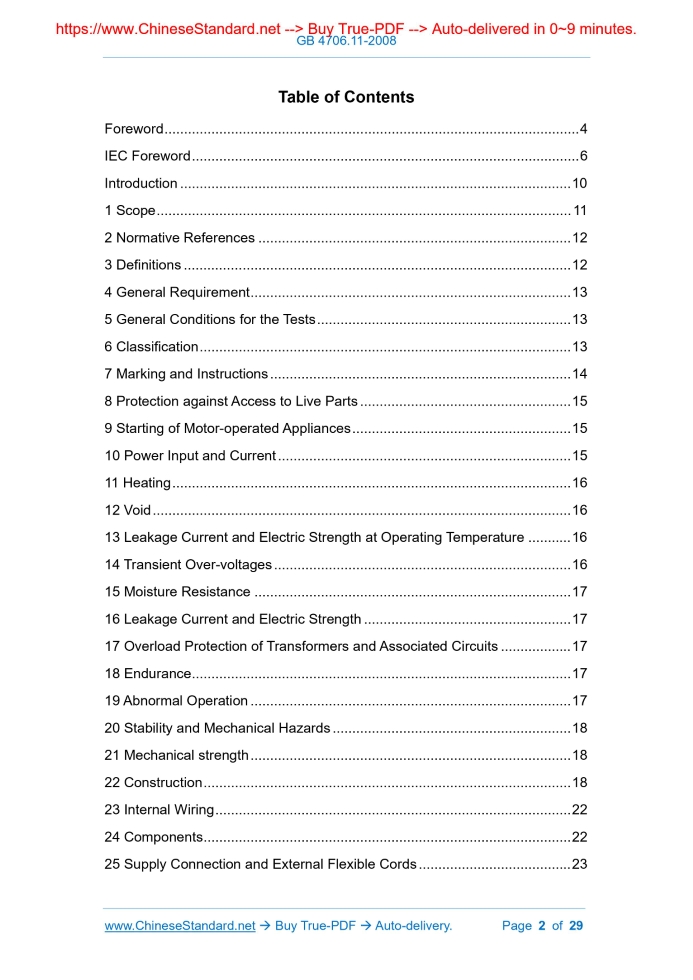

Similar standardsGB 4706.11-2008: Household and similar electrical appliances -- Safety -- Particular requirements for instantaneous water heaters---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GB4706.11-2008 GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 97.100.10 Y 63 GB 4706.11-2008 / IEC 60335-2-35.2002 Replacing GB 4706.11-2004 Household and Similar Electrical Appliances - Safety - Particular Requirements for Instantaneous Water Heaters (IEC 60335-2-35.2002, IDT) Issued on: JULY 31, 2008 Implemented on: SEPTEMBER 1, 2009 Issued by. General Administration of Quality Supervision, Inspection and Quarantine; Standardization Administration of the People’s Republic of China. Table of ContentsForeword... 4 IEC Foreword... 6 Introduction... 10 1 Scope... 11 2 Normative References... 12 3 Definitions... 12 4 General Requirement... 13 5 General Conditions for the Tests... 13 6 Classification... 13 7 Marking and Instructions... 14 8 Protection against Access to Live Parts... 15 9 Starting of Motor-operated Appliances... 15 10 Power Input and Current... 15 11 Heating... 16 12 Void... 16 13 Leakage Current and Electric Strength at Operating Temperature... 16 14 Transient Over-voltages... 16 15 Moisture Resistance... 17 16 Leakage Current and Electric Strength... 17 17 Overload Protection of Transformers and Associated Circuits... 17 18 Endurance... 17 19 Abnormal Operation... 17 20 Stability and Mechanical Hazards... 18 21 Mechanical strength... 18 22 Construction... 18 23 Internal Wiring... 22 24 Components... 22 25 Supply Connection and External Flexible Cords... 23 26 Terminals for External Conductors... 24 27 Provision for Earthing... 24 28 Screws and Connections... 24 29 Clearances, Creepage Distances and Solid Insulation... 24 30 Resistance to Heat and Fire... 24 31 Resistance to Rusting... 25 32 Radiation, Toxicity and Similar Hazards... 25 Annex A (normative) Routine Tests... 28 Bibliography... 29ForewordAll the technical content of this Part is mandatory. This Part equivalently adopts (IDT) IEC 60335-2-35.2002 + A1 Household and Similar Electrical Appliances - Safety - Part 2-35.Particular Requirements for Instantaneous Water Heaters. This Part shall be cooperatively used with GB 4706.1-2005 Household and Similar Electrical Appliances - Safety - Part 1.General Requirements. The “applicable” part in this Part indicates that the corresponding provisions in GB 4706.1-2005 are applicable to this Part; the part that states “replacement” or “modification” in this Part shall prevail; the part that states “addition” in this Part indicates that in addition to complying with the corresponding provisions in GB 4706.1- 2005, it shall also comply with the additional provisions in this Part. For ease of use, this Part makes the following editorial modifications to IEC 60335-2- 35. a) The phrase “Part 1” is modified into “GB 4706.1-2005”; b) Decimal point “.” is used to replace comma “,”, which is used as decimal point. This Part serves as a replacement of GB 4706.11-2004 Household and Similar Electrical Appliances - Safety - Particular Requirements for Instantaneous Water Heaters. In comparison with GB 4706.11-2004, the main differences are as follows. 1) Added in 7.12.1.if it complies with the requirements mentioned in 13.2 and 24.101 for connection by a power cord with a plug, this clause is not mandatory. 2) Added in 13.2.for bare water heaters that are connected to the power source by a power cord with a plug, the leakage current test must be repeated. During the test, the current measurement between the earthing terminal of the appliance and the neutral conductor is shown in Figure 103.Test in each position of selector switch; the leakage current shall not exceed 2.75 mA. 3) Added in 24.101.for bare water heaters that are connected to the power source by a power cord with a non-polar plug, the internal thermal circuit breaker or other protective devices must be disconnected at all poles. 4) Added in 27.1. For class I appliances, the enclosure of the heating elements must be permanently and reliably connected to the earthing terminal, unless. ---The containers that provide metal water inlet and outlet pipes must be permanently and reliably connected to the earthing terminal, and ---Other easily accessible metal parts of the container that are in contact with water are permanently and reliably connected to the earthing terminal. Deleted in 27.1. For class I appliances, metal containers and other metal parts which are in contact with the water shall be permanently and reliably connected to the earthing terminal. 5) Added in 30.2.2.this test is not applicable to electric heating elements that support bare water heaters, and insulating materials of the connecting parts. This Part was proposed by China Light Industry Council. This Part shall be under the jurisdiction of National Technical Committee 46 on Household Appliances Condenser of Standardization Administration of China. The drafting organizations of this Part. China Household Electric Appliance Research Institute (CHEARI); Xiamen Shuaike Bathroom Appliance Co., Ltd.; Midea Group; Qingdao Economic and Technological Development Zone Haier Water Heater Co., Ltd.; Ningbo FOTILE Kitchenware Co., Ltd.; Ningbo Suodun Feiyu Electric Appliance Co., Ltd.; Moluoni Sanitary Ware (China) Co., Ltd.; A.O.Smith (China) Water Heater Co., Ltd.; SAKURA Kitchen (China) Co., Ltd.; Zhejiang KANCH Electric Co., Ltd.; Zhongshan HANOVER Electric Appliance Co., Ltd. The main drafters of this Part. Ma Dejun, Li Yi, Hou Quanduo, Zhou Liguo, Wang Renhua, Wang Qi, Chen Fei, Yang Bo, Wan Huaxin, Liao Jinzhu, Xu Zhong, Chen Su, Zhang Wenhao. This Part was issued for the first time in 2004.This is the first amendment. Household and Similar Electrical Appliances - Safety - Particular Requirements for Instantaneous Water Heaters1 ScopeThis clause of GB 4706.1-2005 applies, except as follows. This Part deals with the safety of electric instantaneous water heaters for household and similar purposes and intended for heating water below boiling temperature, their rated voltage being not more than 250 V for single-phase appliances and 480 V for other appliances. NOTE 101.Instantaneous water heaters incorporating bare heating elements are within the scope of this Part. Appliances not intended for normal household use but which nevertheless may be a source of danger to the public, such as appliances intended for use in shops, in light industry and on farms, are within the scope of this Part. As far as is practicable, this Part deals with the common hazards presented by appliances which are encountered by all persons in and around the home. However, in general, it does not consider. ---the use of appliances by young children or infirm persons without supervision; ---playing with the appliance by young children. NOTE 102.Attention is drawn to the fact that ---for appliances intended to be used in vehicles or on board ships or aircraft, additional requirements may be necessary; ---in many countries, additional requirements authorities responsible for the protection of labor and similar authorities; ---in many countries, regulations exist for the installation of equipment connected to the water mains. NOTE 103.This Part does not apply to ---appliances for boiling water (GB 4706.19); ---storage water heaters (GB 4706.12); ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. |
