GB 32086-2015 PDF EnglishUS$95.00 · In stock · Download in 9 seconds
GB 32086-2015: Requirement of vertical flammability characteristic and test method for certain category automobile interior material Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB 32086: Historical versions

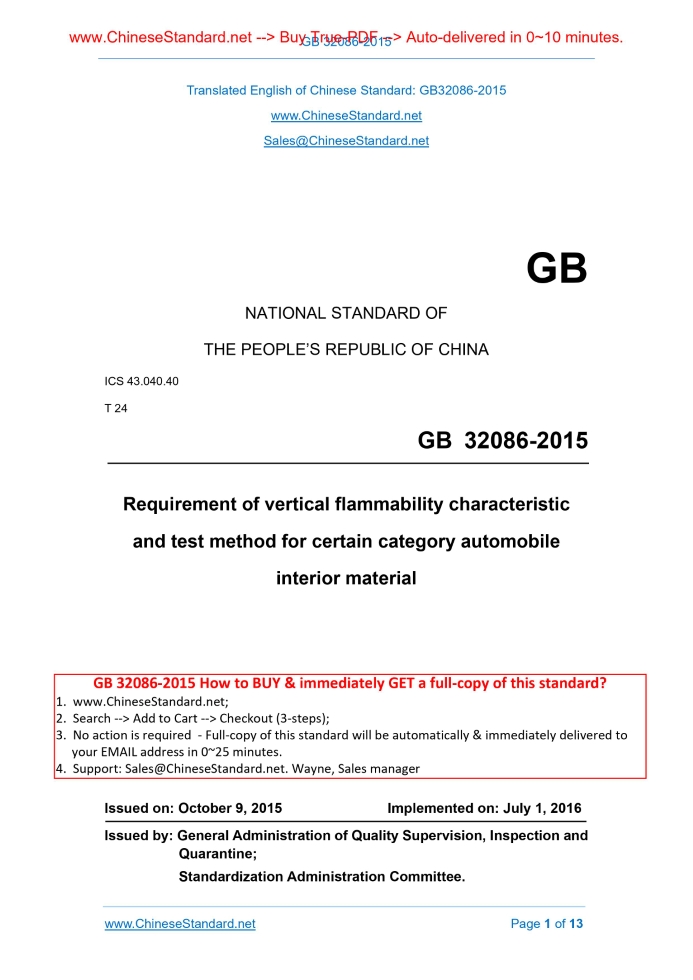

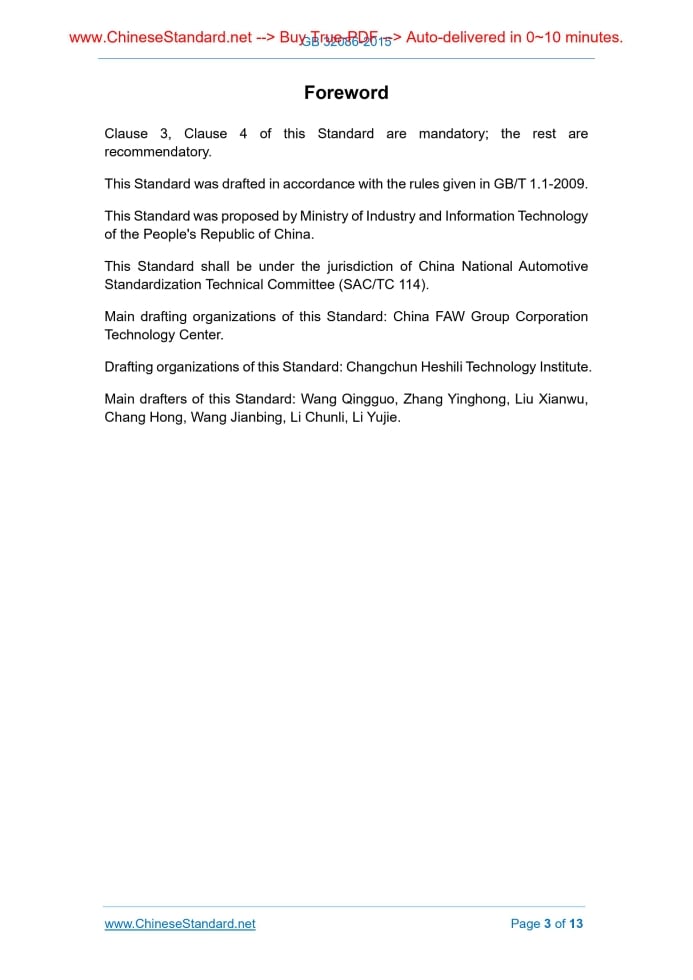

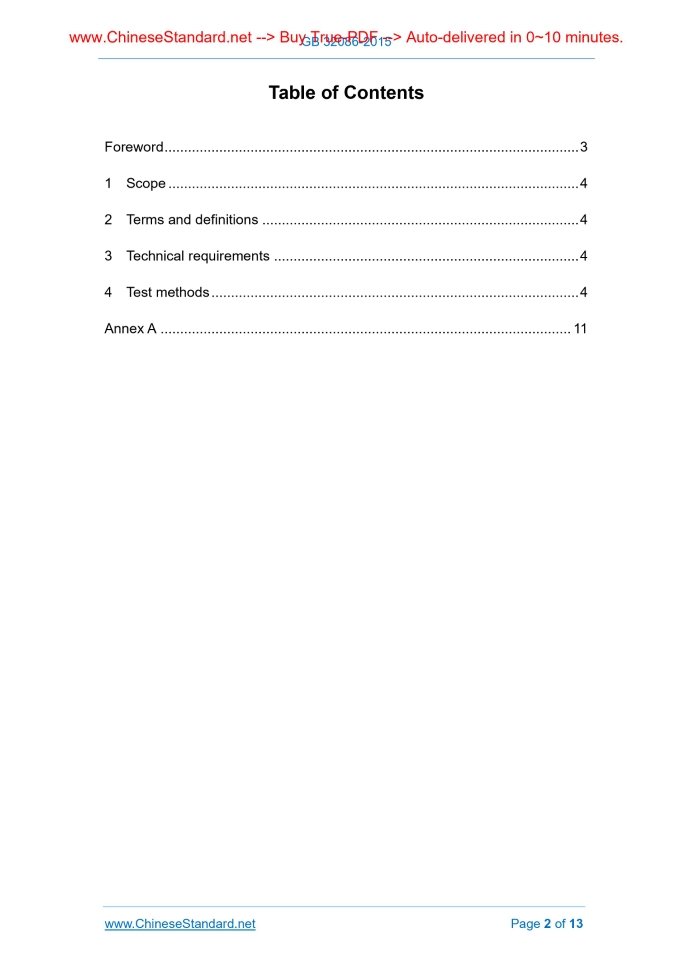

Similar standardsGB 32086-2015: Requirement of vertical flammability characteristic and test method for certain category automobile interior material---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GB32086-2015 GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 43.040.40 T 24 GB/T 32086-2015 Requirement of vertical flammability characteristic and test method for certain category automobile interior material Based on 2017 No.7 Announcement issued by Standardization Administration of China, GB 32086-2015 is renamed as GB/T 32086-2015 Issued on. OCTOBER 9, 2015 Implemented on. JULY 1, 2016 Issued by. General Administration of Quality Supervision, Inspection and Quarantine; Standardization Administration Committee. Table of ContentsForeword... 3 1 Scope... 4 2 Terms and definitions... 4 3 Technical requirements... 4 4 Test methods... 4 Annex A... 11ForewordClause 3, Clause 4 of this Standard are mandatory; the rest are recommendatory. This Standard was drafted in accordance with the rules given in GB/T 1.1-2009. This Standard was proposed by Ministry of Industry and Information Technology of the People's Republic of China. This Standard shall be under the jurisdiction of China National Automotive Standardization Technical Committee (SAC/TC 114). Main drafting organizations of this Standard. China FAW Group Corporation Technology Center. Drafting organizations of this Standard. Changchun Heshili Technology Institute. Main drafters of this Standard. Wang Qingguo, Zhang Yinghong, Liu Xianwu, Chang Hong, Wang Jianbing, Li Chunli, Li Yujie. Requirement of vertical flammability characteristic and test method for certain category automobile interior material1 ScopeThis Standard specifies the technical requirements of vertical flammability characteristic and test methods for certain category automobile interior material. This Standard is applicable to interior curtains, sun shades and/or other interior materials for M3 vehicles that are used to carry more than 22 passengers; it is not applicable to city buses that have standing passengers.2 Terms and definitionsThe following terms and definitions apply to this document. 2.1 burning rate The ratio between combustion distance and time used, in millimeters per minute (mm/min).3 Technical requirementsVertical burning rate shall not exceed 100 mm/min.4 Test methods4.1 Principle Vertically fix the specimen on the rectangular frame. Use the predetermined flame to ignite specimen in the combustion chamber. Determine the combustion distance and time used of the specimen. 4.2 Test equipment and appliances 4.2.1 Specimen holder The specimen holder shall be a rectangular frame, as shown in Figure 1.The frame height is 560 mm. 4.2.2 Pressboard Use U pressboard to ensure the vertical flatness of specimen on the specimen holder. The U pressboard shall be flat with rigidity. It is made of suitable material. The size equals to the specimen holder size. The thickness is 1.0 mm ± 0.1 mm. Drill 12 round holes of which the diameter is about 4 mm on both sides of the pressboard. 4.2.3 Gas light Gas light provides test fire source. Its description and structure shall comply with the provisions of Annex A. 4.2.4 Gas The gas used by gas light is industrial propane gas, butane gas or liquefied petroleum gas. 4.2.5 Marker line White mercerized cotton thread of which the maximum linear density is 50 tex. 4.2.6 Stopwatch The stopwatch accuracy to measure time shall not be less than 0.5 s. 4.2.7 Steel ruler The steel ruler scale is more than 600 mm. The accuracy is 1 mm. unit. mm 4.2.8 Fuming hood The specimen holder shall be placed in the fuming hood. The internal volume of fuming hood is 20 ~ 110 times specimen holder volume. Any one among the fuming hood’s length, width and height must not exceed 2 times any size of the other two sizes. 4.3 Specimen 4.3.1 Size The size of specimen. length is 560 mm ± 2 mm; width is 170 mm ± 2 mm; the thickness is component thickness. 4.3.3 Pre-treatment Place the specimen under standard state of which the temperature is 23°C±2°C, the relative humidity is 50%±5% for at least 24 h, till the test starts. 4.4 Test procedure 4.4.1 Carry out the test under the environmental conditions of which the temperature is 10°C~30°C, the relative humidity is 15% ~ 80%. 4.4.3 Fix the pretreated specimen on the fixing-needle of specimen holder, close to the location column. Then press the U-pressboard on it to ensure that the fixing-needle goes through each round hole on the pressboard. The specimen shall be at least 20 mm away from the frame. Mount the specimen holder on the top bracket of combustion chamber to ensure the specimen vertical. 4.4.8 Measure the following times, in seconds (s). 4.5 Calculation For the specimen burnt to at least the first marker line, the burning speed (vi) shall be calculated according to the following equation. 4.6 Representation of burning speed result 4.6.1 If the specimen cannot keep burning for 5s after ignition for 15 s in the flame, or the flame burns out by itself before reaching to the first marker line, then the burning speed shall be regarded as it fails to comply with requirements. Both shall be represented as 0 mm/min. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB 32086-2015 be delivered?Answer: The full copy PDF of English version of GB 32086-2015 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB 32086-2015_English with my colleagues?Answer: Yes. The purchased PDF of GB 32086-2015_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB 32086-2015 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB 32086-2015?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB 32086-2015 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB 32086-2015?A step-by-step guide to download PDF of GB 32086-2015_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB 32086-2015". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
