GB 27789-2011 PDF English


Search result: GB 27789-2011_English: PDF (GB27789-2011)
Standard IDUSDBUY PDFLead-DaysStandard Title (Description)Status
GB 27789-2011130 Add to Cart Auto, < 3 mins Thermoplastic polyolefin sheets for waterproofing Valid

GB27789-2011: PDF in English

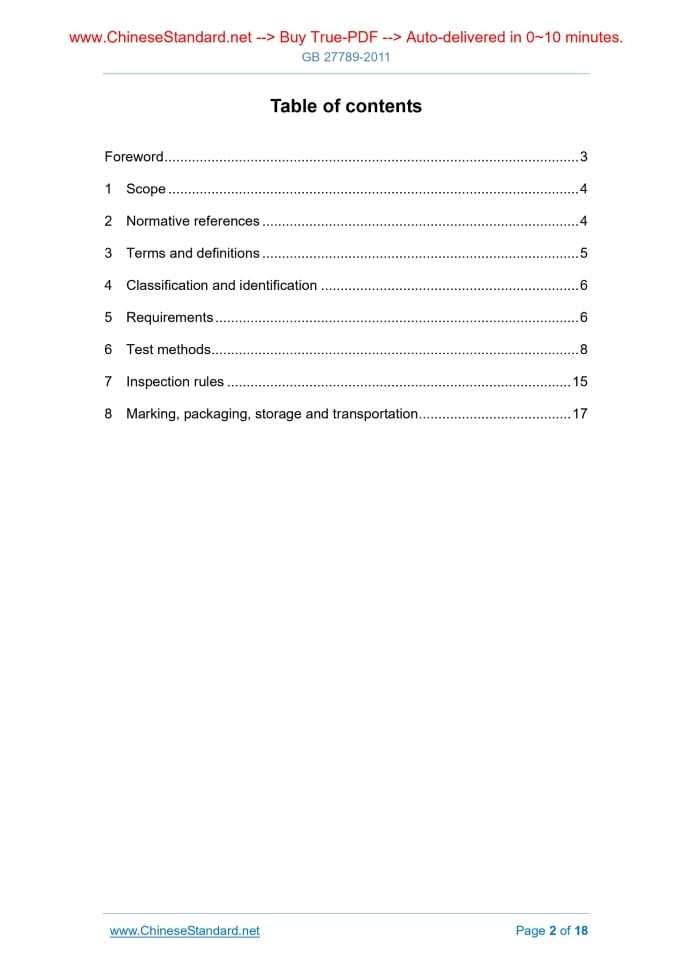

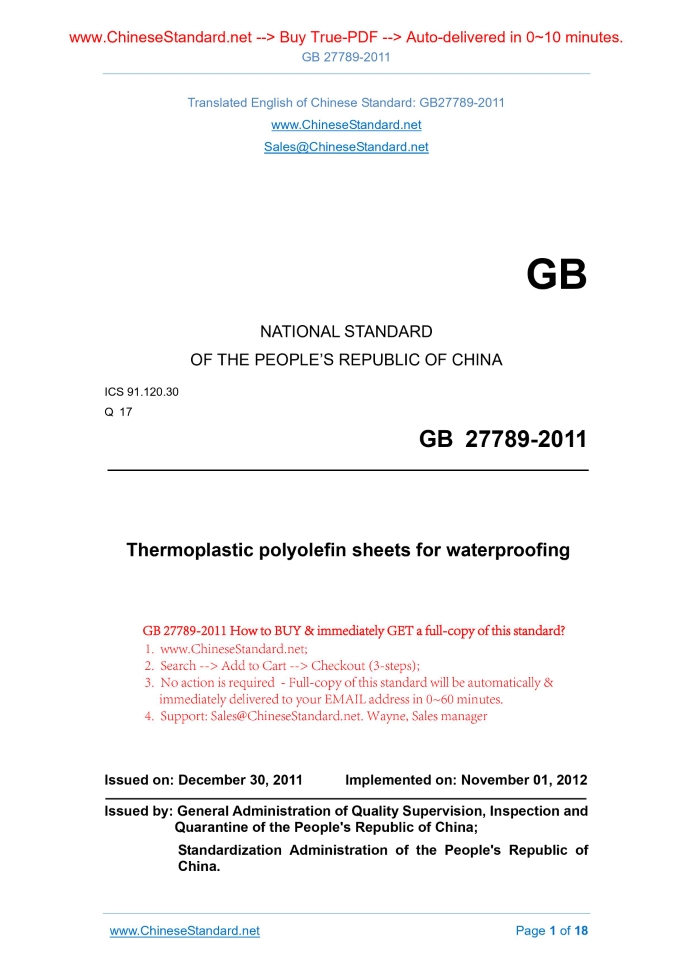

GB 27789-2011 GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 91.120.30 Q 17 Thermoplastic polyolefin sheets for waterproofing 热塑性聚烯烃(TPO)防水卷材 ISSUED ON. DECEMBER 30, 2011 IMPLEMENTED ON. NOVEMBER 01, 2012 Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China; Standardization Administration of the People's Republic of China. 3. No action is required - Full-copy of this standard will be automatically & immediately delivered to your EMAIL address in 0~60 minutes. Table of contents Foreword ... 3  1 Scope ... 4  2 Normative references ... 4  3 Terms and definitions ... 5  4 Classification and identification ... 6  5 Requirements ... 6  6 Test methods ... 8  7 Inspection rules ... 15  8 Marking, packaging, storage and transportation ... 17  Foreword Chapter 5.3 of this standard is mandatory, AND the rest is recommended. This standard was drafted in accordance with the rules given in GB/T 1.1-2009. The consistency of standard to ASTM D6878.2008 “Standard specification for thermoplastic polyolefin based sheet roofing” is not equivalent. This standard was proposed by the China Building Materials Federation. This standard shall be under the jurisdiction of the National Light Decoration and Decoration Building Materials Standardization Committee, Building Waterproof Material Subcommittee (SAC/TC 195/SC 1). The main drafting organizations of this standard. China Building Materials Science Research Institute Suzhou Waterproof Research Institute, China Building Waterproofing Association. The participating drafting organizations of this standard. Shenzhen Zhuobao Scientific Co., Ltd., Shanghai Building Science Study Institute (Group) Co., Ltd., SOPREMA (Shanghai) Construction Materials Trade Co., Ltd., Basell Asia Pacific Consulting (Shanghai) Co., Ltd., Dow Chemical Company (China) Co., Ltd., Shanghai Shenda Kobond New Material Co., Ltd., Shanghai Hainer Building Technology Co., Ltd., Gessmann (Shanghai) International Trade Co., Ltd., Shandong Sida Building Systems Engineering Co., Ltd., Guangdong Keshun Chemical Industry Co., Ltd., Pnata (Dalian) Technology Co., Ltd., Tangshan Desheng Waterproof Material Co., Ltd., Shanghai Tai’an Engineering Industry Co., Ltd., Shanghai Yuhong Building Waterproof Material Co., Ltd., Changshu Sanheng Building Material Co., Ltd., Sichuan Shuyang Waterproof Material Co., Ltd. The main drafters of this standard. Zhu Zhiyuan, Zhu Dongqing, Yang Sheng, Zou Xianhua, Zhu Xiaohua, Meng Yun, Shang Huasheng, Jiang Qinyi, Chen Jianhua, Chen Wenjie. Thermoplastic polyolefin sheets for waterproofing 1 Scope This standard specifies the terms and definitions, classification and identification, requirements, test methods, inspection rules, marking, packaging, storage and transportation of thermoplastic polyolefin sheets for waterproofing. This standard applies to the waterproof sheets which use the ethylene and α-olefin polymer as the main raw material for the purposes of building engineering. 2 Normative references The following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this Standard. GB/T 328.5-2007 Test methods for building sheets for waterproofing - Part 5. Plastic and rubber sheets for waterproofing - Thickness and mass per unit area GB/T 328.7 Test methods for building sheets for waterproofing - Part 7. Plastic and rubber sheets for waterproofing length, width, straightness, and flatness GB/T 328.9-2007 Test methods for building sheets for waterproofing - Part 9. Plastic and rubber sheets for waterproofing - Tensile properties GB/T 328.10-2007 Test methods for building sheets for waterproofing - Part 10. Bitumen plastic and rubber sheets for waterproof – Water tightness GB/T 328.13 Test methods for building sheets for waterproofing - Part 13. Plastic and rubber sheets for waterproofing – Dimensional stability GB/T 328.15 Test methods for building sheets for waterproofing - Part 15. Plastic and rubber sheets for waterproofing – Foldability at low temperature GB/T 328.19 Test methods for building sheets for waterproofing - Part 19. Plastic and rubber sheets for waterproofing – Resistance to tearing GB/T 328.21 Test methods for building sheets for waterproofing - Part 21. Plastic and rubber sheets for waterproofing – Resistance to peeling of joints GB/T 328.25-2007 Test methods for building sheets for waterproofing - Part 25. Bitumen plastic and rubber sheets for waterproofing – Resistance to static loading GB/T 528 Rubber, vulcanized or thermoplastic – Determination of tensile stress – Stain properties GB/T 529 Rubber, vulcanized or thermoplastic – Determination of tear strength (trouser, angle and crescent test pieces) GB 12952-2011 Polyvinyl chloride plastic sheets for waterproofing GB/T 18244 Test methods for resistance to weathering of building waterproofing materials GB/T 18378 Terminology for waterproof bitumen and waterproof sheet GB/T 20624.2 Paints and varnishes – Rapid-deformation (impact resistance) tests – Part 2. Falling-weight test small area indenter GB 50009 Load code for the design of building structures 3 Terms and definitions The terms and definitions as defined in GB/T 18378 AND the following terms and definitions apply to this document. 3.1 Homogeneous thermoplastic polyolefin waterproofing sheets It refers to the thermoplastic polyolefin waterproofing sheets that do not employ an inner reinforcing material or a backing material. 3.2 Thermoplastic polyolefin waterproofing sheets backed with fabric It refers to the thermoplastic polyolefin waterproofing sheets which compound the fabric such as polyester nonwoven fabric at the lower surface. 3.3 Thermoplastic polyolefin waterproofing sheets with internally reinforced fabric It refers to the thermoplastic polyolefin waterproofing sheets which is reinforced with polyester or fiberglass meshes in the middle of the sheet. 6.4 Appearance Visual inspection. 6.5 Tensile performance The test sample size of type L and P product is 150 mm × 50 mm; PERFORM test in accordance with the method A of GB/T 328.9-2007; the fixture spacing is 90 mm; the elongation is calculated using the 70 mm marking line spacing; the type P elongation is taken as the elongation L at the maximum tension, AND the type L elongation is taken as the elongation at fracture. If the sample does not fracture when the product testing machine travels to its end, CHANGE the fixture spacing to 50 mm and the marking line spacing to 30 mm; PERFORM test again; AND all the tensile performance tests of the same sample shall be made using the same method. The type H is tested in accordance with the method B in GB/T 328.9-2007, it uses the dumbbell type I test piece which complies with GB/T 528, AND the tensile speed is (250 ± 50) mm/min. The arithmetic mean of the 5 test samples in the longitudinal or transverse direction is calculated as the test result. 6.6 Heat treatment dimensional change rate PERFORM test in accordance with GB/T 328.13 in the 80 °C ± 2 °C blast oven; it is not allowed to stack them; AND it is remained at this constant temperature for 24 h. TAKE it out; PLACE it at the standard test conditions for 24 h; MEASURE the length. 6.7 Low temperature bending performance PERFORM test in accordance with GB/T 328.15. 6.8 Water tightness PERFORM test in accordance with the method B of GB/T 328.10-2007; USE the cross metal slotted plate, AND the pressure is 0.3 MPa, which is maintained for 2 h. 6.9 Impact resistance PLACE the perforator on the surface of the test sample; LET the steel ball at the lower end of the punch head position at the center of the test sample; MAKE the spherical surface in contact with the test sample. ADJUST the hammer to the specified drop height of 500 mm and POSITION it. LET the hammer fall down freely to impact the punch head at the test sample surface; TAKE the sample out; CHECK whether the test sample is perforated; TEST 3 samples in total. When there is no obvious perforation, USE the device as shown in Figure 1 to perform water tightness test against the sample. PLACE the round glass tube vertically at the center of the test hole of the sample; USE the sealant to seal the gap between the glass tube and the sample. PLACE the test sample on a 150 mm × 150 mm filter paper; PLACE the filter paper on a glass plate; ADD the stained water into the glass tube; LET it stand for 24 h; CHECK the filter paper; AND if there is color change or water traces, it indicates that the sample is perforated. 6.10 Static load resistance PERFORM test in accordance with the test method A in GB/T 328.25-2007; USE the 20 kg load. 6.11 Peel strength... .......
Source: https://www.ChineseStandard.net/PDF.aspx/GB27789-2011
