GB 23255-2019: Photometric Characteristics of Daytime Running Lamps for Power Driven Vehicles Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB 23255: Historical versions

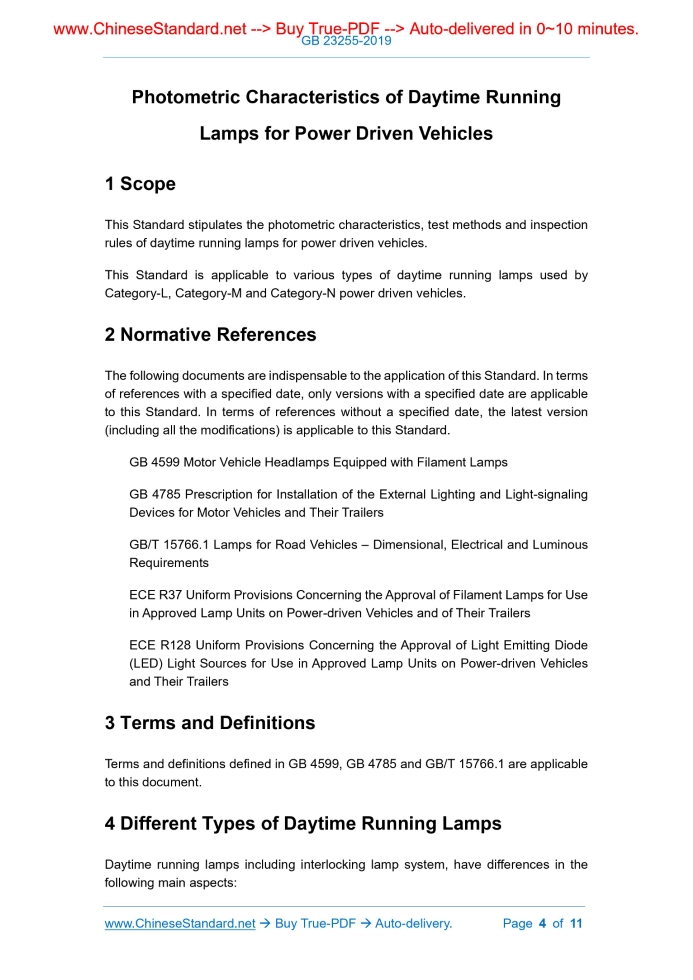

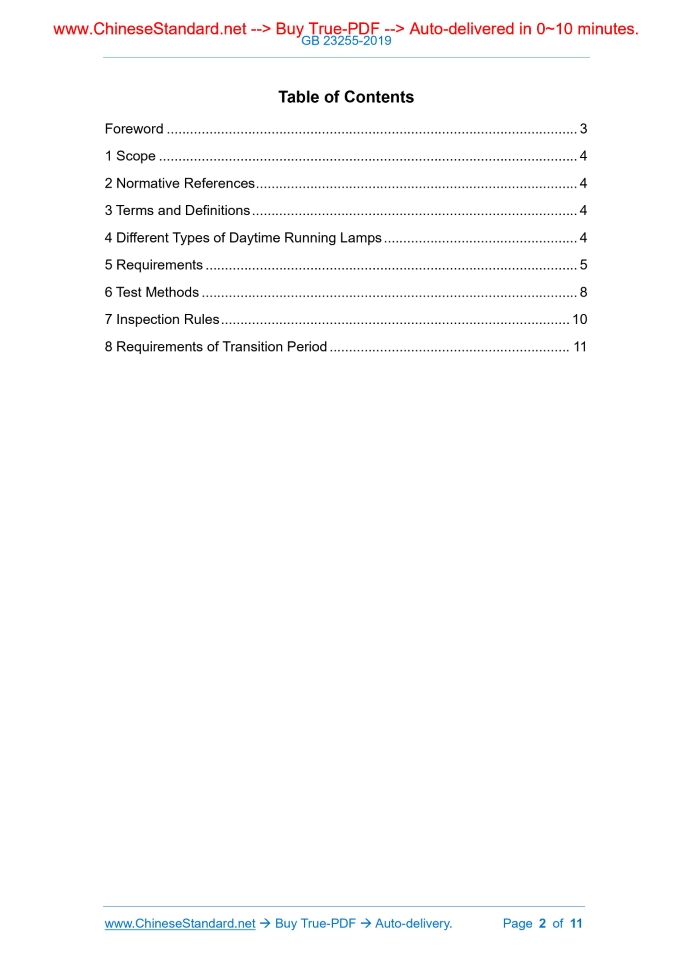

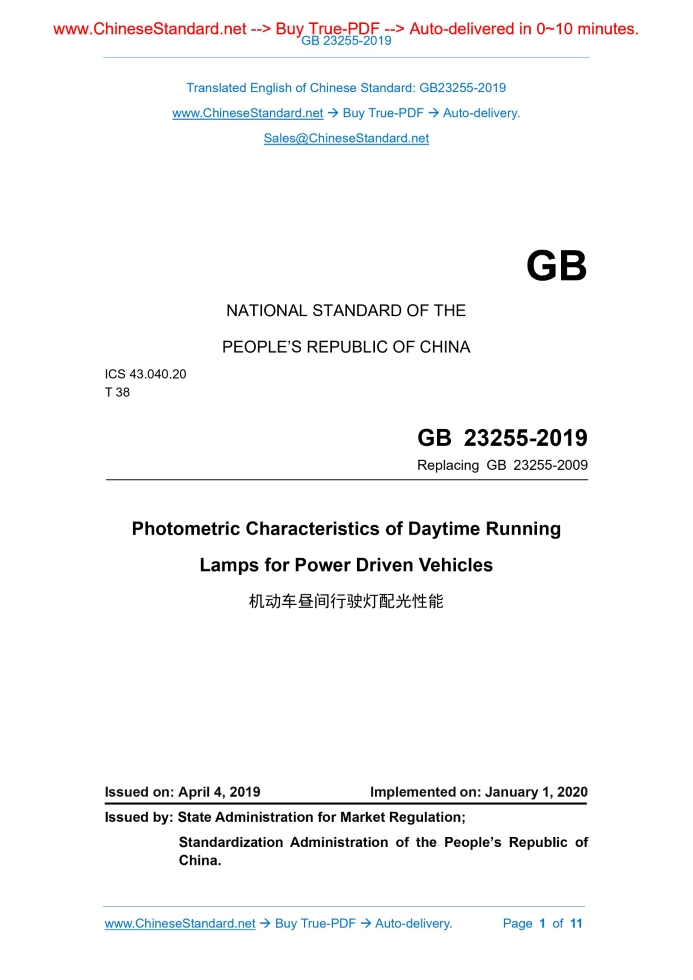

Similar standardsGB 23255-2019: Photometric Characteristics of Daytime Running Lamps for Power Driven Vehicles---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GB23255-2019NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 43.040.20 T 38 Replacing GB 23255-2009 Photometric Characteristics of Daytime Running Lamps for Power Driven Vehicles Issued on. APRIL 4, 2019 Implemented on. JANUARY 1, 2020 Issued by. State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword... 3 1 Scope... 4 2 Normative References... 4 3 Terms and Definitions... 4 4 Different Types of Daytime Running Lamps... 4 5 Requirements... 5 6 Test Methods... 8 7 Inspection Rules... 10 8 Requirements of Transition Period... 11ForewordAll content in this Standard is compulsory. This Standard was drafted in accordance with the rules in GB/T 1.1-2009. This Standard serves as a replacement of GB 23255-2009 Photometric Characteristics of Daytime Running Lamps for Motor Vehicles. In comparison with GB 23255-2009, apart from editorial modifications, the main technical changes are as follows. ---The title of the Standard is modified from Photometric Characteristics of Daytime Running Lamps for Motor Vehicles in the previous version into Photometric Characteristics of Daytime Running Lamps for Power Driven Vehicles in this version; ---Category-L is added to the scope of application of this Standard; ---Requirements towards light source module are added; ---Requirements towards interlocking lamp are added; ---Requirements towards visual surface area are changed; ---Requirements towards the maximum luminous intensity are modified; ---H-H line photometric requirements are modified; ---The range of photometric angle is added. The amendment of this Standard takes ECE R87 Rev3 Uniform Provisions Concerning the Approval of Daytime Running Lamps for Power-driven Vehicles by the United Nations Economic Commission for Europe, including the corresponding amendment (ECE R87 Rev3 Amendment-1) as a reference. This Standard was proposed by and shall be under the jurisdiction of Ministry of Industry and Information Technology of the People’s Republic of China. The drafting organizations of this Standard. Shanghai Motor Vehicle Inspection Certification & Tech Innovation Center Co., Ltd., (SMVIC), Changchun HELLA Co., Ltd., SAIC MOTOR Group Technology Center. The main drafters of this Standard. Wanghua, Yelin, Liuqian. The issuance of the previous versions of the standard replaced by this Standard is as follows. ---GB 23255-2009. Photometric Characteristics of Daytime Running Lamps for Power Driven Vehicles1 ScopeThis Standard stipulates the photometric characteristics, test methods and inspection rules of daytime running lamps for power driven vehicles. This Standard is applicable to various types of daytime running lamps used by Category-L, Category-M and Category-N power driven vehicles.2 Normative ReferencesThe following documents are indispensable to the application of this Standard. In terms of references with a specified date, only versions with a specified date are applicable to this Standard. In terms of references without a specified date, the latest version (including all the modifications) is applicable to this Standard. GB 4599 Motor Vehicle Headlamps Equipped with Filament Lamps GB 4785 Prescription for Installation of the External Lighting and Light-signaling Devices for Motor Vehicles and Their Trailers GB/T 15766.1 Lamps for Road Vehicles – Dimensional, Electrical and Luminous Requirements ECE R37 Uniform Provisions Concerning the Approval of Filament Lamps for Use in Approved Lamp Units on Power-driven Vehicles and of Their Trailers ECE R128 Uniform Provisions Concerning the Approval of Light Emitting Diode (LED) Light Sources for Use in Approved Lamp Units on Power-driven Vehicles and Their Trailers3 Terms and DefinitionsTerms and definitions defined in GB 4599, GB 4785 and GB/T 15766.1 are applicable to this document.4 Different Types of Daytime Running LampsDaytime running lamps including interlocking lamp system, have differences in the following main aspects.5 Requirements5.1 General Requirements 5.1.1 The design and fabrication of daytime running lamps shall guarantee that under normal operating conditions, even if they are under vibration, they could still comply with the operating requirements and the stipulations in this Standard. 5.2 Light Source Module 5.2.1 Light source module shall be designed to be merely installed on the right position. Light source modules, other than 5.3.1, shall only be dismantled through tools. 5.3 Replaceable Light Source 5.3.1 Daytime running lamps shall use light sources that comply with the stipulations in GB/T 15766.1, ECE R37 or ECE R128. 5.4 Visual Surface Area Visual surface area of the reference axis direction shall be not less than 25 cm2, and not more than 200 cm2. 5.5 Chromaticity The light color of daytime running lamps shall be white. Its chromatic characteristics shall comply with the stipulations in GB 4785. 5.6 Photometric Characteristics 5.6.1 The luminous intensity of daytime running lamps on the reference axis shall be not less than 400 cd. 5.6.4 Multiple-light-source daytime running lamps shall comply with the following requirements. 5.7 Heat Resistance 5.7.1 After receiving heat resistance test and reaching stability at ambient temperature, daytime running lamps shall not manifest phenomena like distortion, deformation, cracks or color changes. 5.7.2 If necessary, photometric characteristics shall be re-determined. The result of the determination shall at least reach 90% of the result obtained before the heat resistance test.6 Test Methods6.1 Requirements of Darkroom, Device and Equipment Test darkroom, device and equipment shall comply with the stipulations in GB 4599. 6.2 Requirements of Visual Surface Visual surface boundary in the reference axis direction of daytime running lamps shall be determined. 6.3 Voltage Requirements in Photometric Test and Chromaticity Test 6.3.1 If electric light source controller is not used, colorless or colored standard light sources of categories stipulated by daytime running lamps shall be adopted. In addition, the following voltages shall be provided. 6.3.2 In terms of systems which use electric light source controller, and act as a part of daytime running lamps, the voltage of the supply lamp input terminal shall respectively be 6.75 V, 13.5 V or 28.0 V. 6.3.3 In terms of systems which use electric light source controller, but do not belong to a constituent component of daytime running lamps, the voltage released by the manufacturer shall be input to the input terminal. 6.3.4 In terms of daytime running lamps with irreplaceable light sources (filament light bulbs and others), the test voltage shall comply with the requirements in 6.3.2. 6.4 Requirements of Preparation before Photometric Test Before photometric test, light sources shall be lightened up in accordance with the voltage during the test, so that the optical performance could approach stability. 6.5 Requirements of Photometric Measurement of Daytime Running Lamps with Different Light Sources 6.6 Requirements of Different Installation Locations When daytime running lamps are installed on vehicles in more than one location, or in multiple different locations in one area, photometric measurement shall be conducted in every location, or, photometric measurement shall be conducted repeated in an extreme location in the reference axis area appointed by the manufacturer. 6.7 Other Requirements of Laboratories 6.7.1 The measurement distance of photometric characteristics shall guarantee that distance inverse square law in photometry can be applied. 6.8.2 Test voltage 6.8.2.1 In terms of daytime running lamps with replaceable light sources, they shall comply with the following requirements. 6.8.2.2 In terms of daytime running lamps with irreplaceable light sources (filament light bulbs and others), the test voltage shall comply with the requirements in 6.3.2.7 Inspection Rules7.1 Requirements of Type Inspection 7.1.1 The manufacturer shall provide the following documents. 7.1.2 Each sample lamp shall comply with the stipulations in 5.1, 5.2, 5.3 and 5.4. 7.1.3 Conduct the test in accordance with the stipulations in Chapter 6.Each sample lamp shall comply with the stipulations in 5.5, 5.6 and 5.7. 7.2 Requirements of Production Consistency Inspection 7.2.1 In terms of products which are qualified in type inspection, use randomly selected sample lamps to determine the consistency of production. 7.2.2 Randomly selected sample lamps shall comply with the stipulations in 5.1, 5.2, 5.3 and 5.4. 7.2.3 Conduct the test in accordance with the stipulations in Chapter 6.The randomly selected sample lamps shall comply with the stipulations in 5.5 and 5.7. 7.2.4 Conduct the test in accordance with the stipulations in Chapter 6.The randomly selected sample lamps shall comply with the following stipulations.8 Requirements of Transition Period8.1 Since the implementation date of this Standard, daytime running lamps, which newly apply for type inspection, shall comply with this Standard. 8.2 Since the implementation date of this Standard, vehicle models, which newly apply for type approval, shall receive 24 months of transition period. 8.4 Daytime running lamps that do not involve type change shall receive expansion application in accordance with the requirements in GB 23255-2009. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB 23255-2019 be delivered?Answer: The full copy PDF of English version of GB 23255-2019 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB 23255-2019_English with my colleagues?Answer: Yes. The purchased PDF of GB 23255-2019_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB 23255-2019 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB 23255-2019?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB 23255-2019 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB 23255-2019?A step-by-step guide to download PDF of GB 23255-2019_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB 23255-2019". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
