GB 2099.5-2008: [GB/T 2099.5-2008] Plugs and socket-outlets for household and similar purposes -- Part 2: Particular requirements for switched socket-outlets with interlock for fixed installations

---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GB2099.5-2008

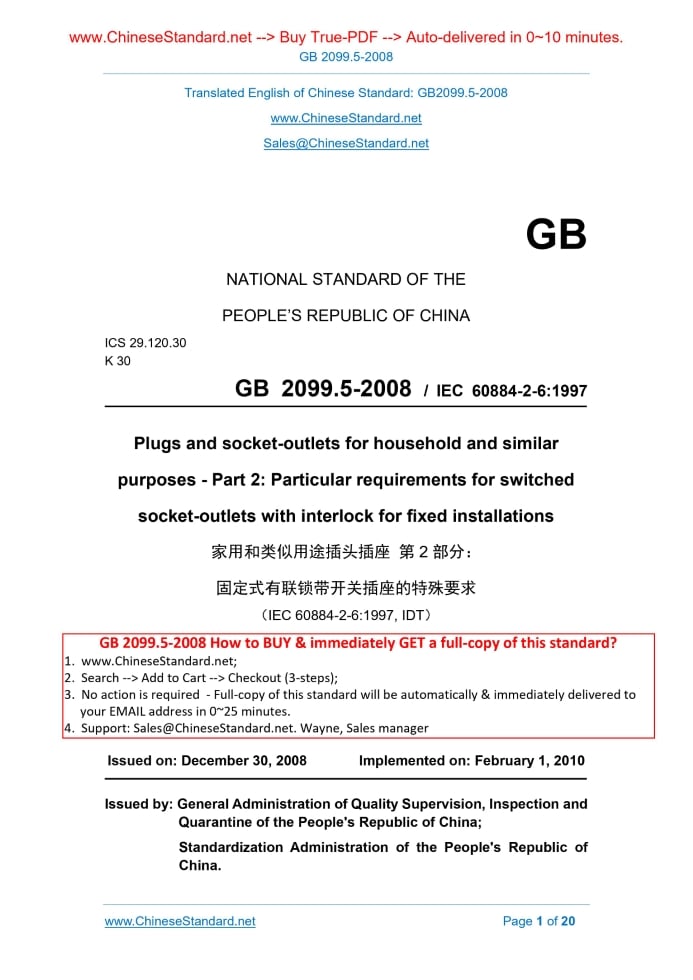

Plugs and socket-outlets for household and similar purposes.Part 2.Particular requirements for switched socket-outlets with interlock for fixed installations ICS 29.120.30 K30 National Standards of People's Republic of China GB 2099.5-2008/IEC 60884-2-6.1997 Plugs and sockets for household and similar purposes - Part 2. Fixed with interlock switch socket special requirements (IEC 60884-2-6.1997, IDT) Posted 2008-12-30 2010-02-01 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released

Table of Contents

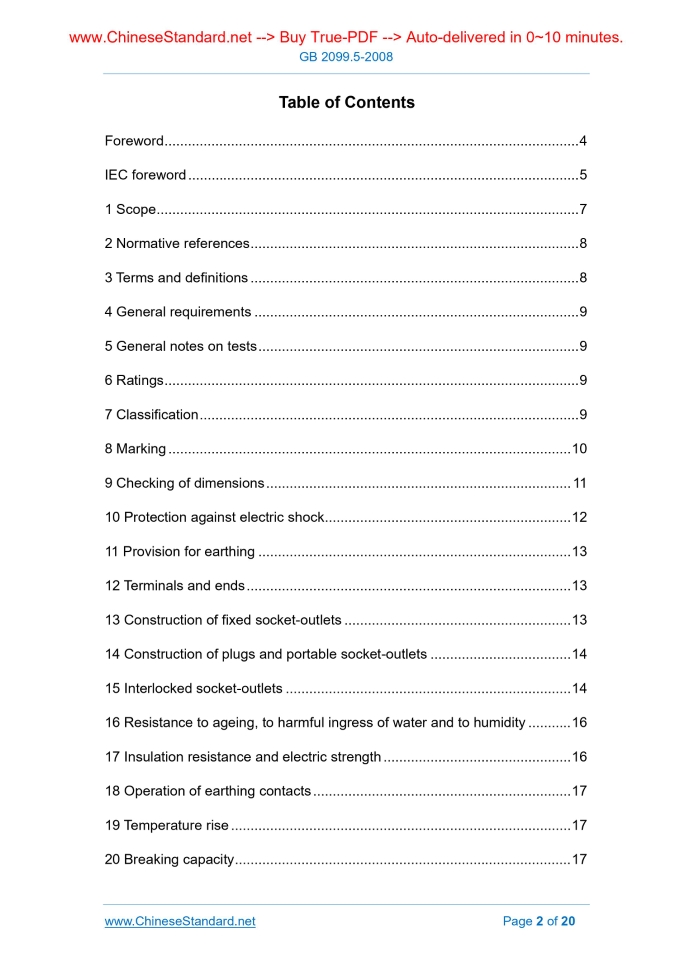

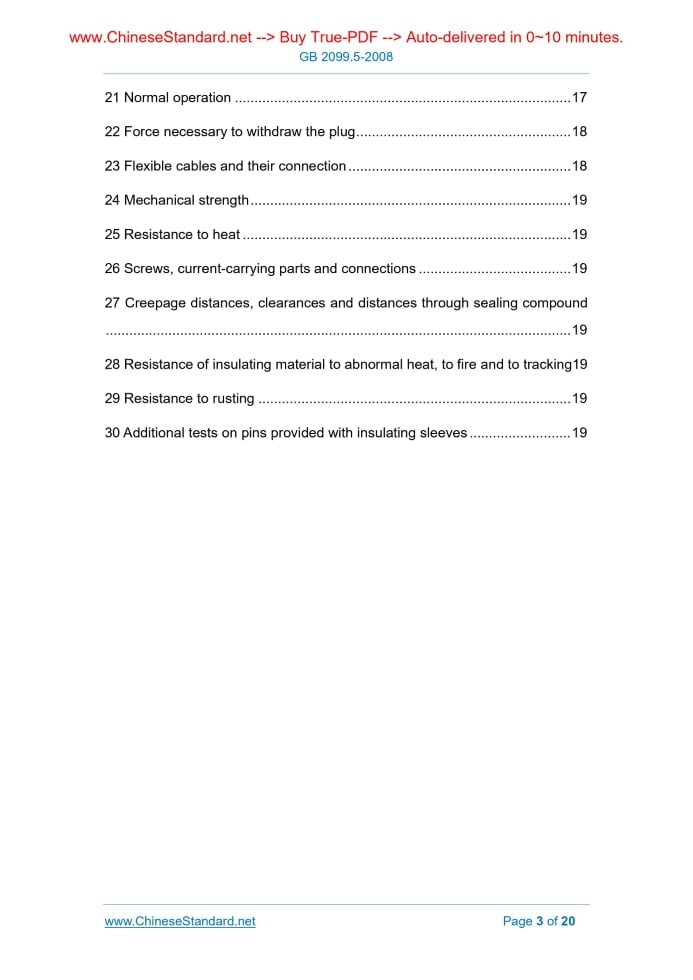

Preface Ⅰ IEC Foreword Ⅱ 1 Scope 1 2 Normative references 1 3 Terms and definitions 4 2 General requirements 5 Test 2 Overview Rating 2 6 7 Category 2 8 mark 3 9 3 Dimensional inspection 10 Protection against electric shock 3 11 grounding 4 12 Terminals and terminations 4 Fixed receptacle structure 13 4 Structure 14 plugs and mobile sockets 4 15 Interlock socket 5 16 anti-aging, and moisture protection provided by the housing 5 17 Insulation resistance and electric strength 6 18 ground contacts 6 working 19 rise 6 20 Breaking capacity 6 21 Normal operation 6 The force required to pull the plug 22 6 23 soft and cable connection 7 24 mechanical strength 7 25 Heat 7 26 Screws, current-carrying parts and connections 7 27 distance creepage distances and clearances by the sealant 7 Abnormal heat-resistant, flame-resistant and electrically insulating material to tracking 28 7 29 7 rust Additional tests with a pin 30 of the insulating jacket 7 GB 2099.5-2008/IEC 60884-2-6.1997

Foreword

All technical content in this section are mandatory. GB 2099 "plug and socket for household and similar purposes" is divided into the following sections. Part 1.General requirements Part 2.Particular requirements --- Particular requirements for fused plugs --- Particular requirements for appliance socket Particular requirements --- converters Particular requirements --- Fixed without interlock switch socket --- Fixed Particular requirements for interlocking with a switch socket --- Safety extra-low voltage plug and socket special requirements This section is Part 2 GB 2099.Fixed special requirements with interlock switch socket. This section identical with IEC 60884-2-6.1997 "plugs and sockets for household and similar purposes - Part 2.Fixed with interlock switch Special requirements "socket. This section should be GB 2099.1 "plugs and sockets for household and similar purposes - Part 1.General requirements" in conjunction. This part is proposed by the China Electrical Equipment Industrial Association. This part of the National Electric annex Standardization Technical Committee (SAC/TC67) centralized. This section drafted by. China Electric Apparatus Research Institute, Zhejiang Chint Building Appliance Co., Ltd., Hangzhou Hongyan Electric Co., Ltd., Guangdong Matsumoto Electrical Appliance Co., Ltd., Clipsal Industries (Huizhou) Co., Ltd., Zhejiang Yuehua Telecommunication Co., Ltd., based Electric (Shenzhen) Co., Ltd. The main drafters of this section. Meng Zhiqiang, Shi Jihua, single toward blue, Zhang Wenjie, He Zhiguo, Tangyan Lan, holy dynasty, Angui Long, Zheng Liqing. GB 2099.5-2008/IEC 60884-2-6.1997 IEC Foreword 1) IEC (International Electrotechnical Commission) is composed of national Electrotechnical Commission (IEC National Committees) worldwide standardization groups Organizations. The object of IEC is to promote international cooperation in the field of standardization and related electrical and electronic problems. For this purpose, IEC addition to carrying out Among other activities, publishes international standards. These standards work is entrusted to technical committees to complete. Each member of the IEC National Committee, as long as the standard to be developed are interested may participate in this preparatory work. Liaising with the IEC 's international official group Organization is also involved in the development of standards. IEC and the World Organization for Standardization (ISO) in accordance with the conditions specified in the agreement, close cooperation. 2) since each technical committee has representatives from the National Commission on the relevant issues of interest, so the IEC on technical The formal decisions or agreements in question are the maximum expression of the international consensus on the relevant issues. 3) documents generated in the form of recommendations for international use, and standards, technical specifications, technical reports or guidelines published in the form, And National Committees in that sense of acceptance. 4) In order to promote international unification, IEC National Committees in charge of the IEC international standards transparently converted to the maximum extent possible National or regional standards. Between the IEC Standard and the corresponding national or regional standard if there is any difference should be made clear after the standard conversion Explained. 5) IEC did not develop any signs of approval procedures. When a device is declared if it complies with one of its standards of IEC, IEC this Irresponsible. 6) All users should ensure that they should have the latest version. 7) whether and when and where the direct or indirect, or use or publication or other means of the IEC and the IEC publication Publication costs incurred (including legal fees) and expenses, IEC or its directors, employees, servants or agents (including individual experts And members of the Technical Committee) and the IEC National Committee has no obligation to any personal loss, property damage or other natural causes on Responsible for any loss caused. 8) Note that this publication cited normative references. In order to accurately use of this publication, a reference to the relevant publications are essential. 9) Note IEC publication may be involved in some of the patents subject ingredient. IEC has no obligation to determine whether any or all of these patent. International Standard IEC 60884-2-6 by IEC TC23.electrical accessories Technical Committee SC23B plug socket and switch the Technical Committee Members will be established. And IEC 60884-1 3rd Edition for use. This standard is based on the following documents. Draft International Standard document Report on voting 23B/521/FDIS 23B/530/RVD Details of the standard vote, voting reports listed in the table above. This standard is based on ISO /IEC Directives, Part 2 written. This Part 2-6 of IEC 60884-1 with the intended use. This document is based on the third edition of IEC 60884-1 is established. This Part 2-6 supplements and modify the corresponding clauses in IEC 60884-1, IEC standard to convert it costs. fixed in chain with a switch Particular requirements for socket. In Part 2-6 in Chapter 1, shall apply in this part of the standard continues to apply. Where in this standard marked "increase", "modification" or By "alternative" content, Part 1 of the relevant contents shall make the appropriate changes. Reg - Part 1 does not have, graphs or tables numbered from 101 onwards. When the first part of the applicable provisions indicated applies only contain fixed in chain with a switch socket related requirements. A list of all parts IEC 60884 series, under the general title. plug and socket for household and similar purposes. It can be found on the IEC website. GB 2099.5-2008/IEC 60884-2-6.1997 Plugs and sockets for household and similar purposes - Part 2. Fixed with interlock switch socket special requirements 1 Scope GB 2099.1 of this chapter make the following modifications apply. GB 2099 this section applies to household and similar purposes for indoor or outdoor use, rated voltage with or without ground contacts 50V more but not exceeding 440V, rated current not exceeding 32A AC fixed with interlock switches and sockets. Subject to this section are interlock switches and sockets from a socket in line with GB 2099.1 and in line with GB 16915.1 and/or GB 16915.2 The switch interlock to form a complete part. For screwless terminals equipped with a fixed attachment, the maximum rated current is limited to 16A. This section does not include requirements for concealed mounting box. This section includes sockets Surface-mounted mounting box test requirements necessary. Note 1.The case for universal installation requirements given by the GB 17466. Note 2.This section does not apply in line with GB 10963, GB 16916 and GB 16917 devices have socket interlock. This part can be used as these Requirements and test related accessories guidelines. This section does not apply to. --- Interlock device outlet for industrial use; --- ELV has a socket interlock. Comply with the requirements of this Annex for use in usually not more than 35 ℃, but occasionally reaching 40 ℃ ambient temperature. 2 Normative references GB 2099.1 of this chapter make the following modifications apply. Add the following reference standards. Part 1 GB 16915.1-2003 Switches for household and similar fixed electrical installations. General requirements (IEC 60669-1. 2000, MOD) Part 2 GB 16915.2-2000 Switches for household and similar fixed electrical installations. Particular requirements - Section 1.Power SWITCH (eqv IEC 60669-2-1.1996) 3 Terms and Definitions GB 2099.1 of this chapter apply to make the following modifications. Add the following terms and definitions. 3.101 Electrical or electronic or mechanical, or any combination of these three means can before mating plug and socket correctly this means Avoid plug plug plug cover or charged, and when the plug latch sleeve or plug the plug can not be pulled or charged prior to pull the plug Let socket insert set off. 3.102 Factory-assembled unit with an interlock device according to an outlet and the outlet control switch composed of a Siamese. GB 2099.5-2008/IEC 60884-2-6.1997 3.103 After the plug is properly inserted to keep the plug in place and prevent mechanical device plug is inadvertently pulled out. 4 General requirements GB 2099.1 of this chapter apply. 5 Test Overview GB 2099.1 of this chapter make the following modifications apply. 5.4 increase in the fourth paragraph. Test Chapter 15, it might need three additional specimens. 6 RATINGS GB 2099.1 of this chapter apply. Category 7 GB 2099.1 of this chapter apply to make the following modifications. 7.2 Addition. 7.2.101 interlock with switch socket is divided into. 7.2.101.1 press the START switch method of classification. ---Rotary switch; --- Pull down switch; --- Rocker switch; ---power switch button; --- Touch switch; --- Proximity switch; --- Light control switch; --- Voice-activated switch; --- Other external sensor switch. 7.2.101.2 Press switch poles Category. --- Single-pole switch; --- Pole switch; --- Three-pole switch; --- Three-pole with neutral wire switch. 7.2.101.3 classification by type of interlock. ---mechanical; --- Electric type; --- Electronic; --- Any combination of these three. 7.2.101.4 holding means by Category. --- Without holding means; --- Tape holding means. GB 2099.5-2008/IEC 60884-2-6.1997 8 flag GB 2099.1 of this chapter apply to make the following modifications. 8.1 before the second note add. --- Small gap structure symbols, if applicable; --- Micro-gap structure symbols, if applicable; --- Semiconductor conversion device symbol, if applicable. 8.2 supra note add. --- Small gap structure symbol --- Micro-gap structure symbol The semiconductor conversion device symbol --- (Under consideration) --- "Off" position (off) ○ --- "On" position (on) │ After the first three increases Note 2). Note 4.The symbol "○" should only be used for normal switch-gap structure. Note 5.You can also use other suitable durable method to display the position of the switch contacts. increase. 2) according to the provisions of GB 16915.1 Note 4 and increase our products according to the actual situation Note 5. 8.101 connection phase line (mains lead) terminals should be an identification mark, unless the connection method is not important in itself, is self-evident, or On the wiring diagram indicated by outside. Such terminals shall be marked with the letter L to identify, if more than one of such terminals, respectively, the letter should be L1, L2, L3, etc. to identify, and that these letters can be shown each with an arrow to its respective terminal. On poles, three and four pole switch, unless the relationship between the terminal itself is self-evident, otherwise, with any one of the terminals corresponding pole We should have such an identification mark (where applicable), to distinguish it from other poles corresponding terminals. These marks shall not be placed on screws or other easily removable parts. Compliance is checked by inspection. 8.102 poles, three poles and four-pole switch and switch should sign a rated voltage above 250V or exceed the rated current of 16A, clearly marked It shows the actual position of the starting element toward a different direction or position of the switch. The flag should be in front with a switch socket, when fitted with a roof or cover should be clearly visible. If these signs and markings on the cover, the cover should be It is not possible to ensure that these components will result in the installation mark the wrong position. Logo start moving direction of the element, it can be represented by the symbol. "On" position (on) should be clearly marked. Compliance is checked by inspection. 9 Dimensional inspection GB 2099.1 of this chapter apply. 10 Protection against electric shock GB 2099.1 of this chapter apply to make the following modifications. increase. 10.101 knobs, levers, buttons, rocker panels and other insulation products should be, or you must use double or reinforced insulation to their easy touch And metal parts and metal parts separated by the switching mechanism, or their accessible metal parts securely grounded. GB 2099.5-2008/IEC 60884-2-6.1997 Compliance is checked by inspection and by chapter 17 of Chapter 21 of the test examination. NOTE. The "double insulation" and "reinforced insulation" is defined in GB/T 12501. 10.102 switch mechanism is not insulated from live parts and metal parts, such as a wheel or rocker pivot spindle or the like, should not be extended housing. Compliance is checked by inspection. If necessary, the starting components can be removed or destroyed. If you have to start element destruction will be carried out Chapter 28 of the test examination. 10.103 After having interlock switches and sockets installed in normal use, the metal parts of the switching mechanism, such as a wheel or a spindle or seesaw Pivot, etc., should not be accessible. In addition, these metal parts should be accessible metal parts, including support concealed socket with interlock switch may be installed in the base Insulated metal frame metal mounting box, etc., but also with its screw fixed to the base bracket insulation. If the switch mechanism metal parts separated from live parts, creepage distances and clearances between them for the predetermined value of at least 27.1 Twice, or these metal parts firm ground, you do not meet these additional requirements. Compliance is checked by inspection and, if necessary, also to measure and chapter 17 and chapter 20 of the test examination. 11 earthing GB 2099.1 of this chapter apply. 12 Terminals and terminations GB 2099.1 of this chapter apply. Fixed socket structure 13 GB 2099.1 of this chapter apply to make the following modifications. increase. Poles 13.101 switch should match the number of poles socket phase. Neutral switch sockets without neutral pole uncontrolled excluded. Ground contact is not a pole, grounding switch control circuit should not be. Position switch operating member shall not impede the normal plug into the appropriate, correct operation of the operating element should not be because the corresponding plug Proper insertion and blocked. NOTE. If in doubt, you can use the appropriate standard plug and socket size of the system to check. Compliance is checked by inspection and manual test to check. 13.102 rotary switch knob should be firmly coupled to the rotating shaft member or operating mechanism. By the following tests to check for eligibility. 1min 100N axial pulling force applied to the knob. After that, only one direction of operation of the switch knob, if possible, without excessive force towards the opposite direction of rotation 100 times. During the test, the knob should not be disengaged. 13.103 starter switch element is released automatically when the movable contact in the appropriate location, but starting element can be one-button switch at Single rest position. 13.104 switch moving contact can still be in the "on" or "off" position. 13.105 switch when operating slowly, do not appear excessive arc. 13.106 interlock with all of the electrodes should switch socket substantially simultaneously switched on and off. 13.107 If the lid or cover is removable during the installation, operation of the switching mechanism should be independent of the presence lid or cover. Compliance is checked by the following method to check. do not install the cover and cover with a light switch in series, and generally do not use excessive as normal Force operation starting element. During the test, the lamp should be flashing. Structure 14 plugs and mobile sockets GB 2099.1 This chapter does not apply. GB 2099.5-2008/IEC 60884-2-6.1997 15 Interlock socket GB 2099.1 of this chapter make the following modifications apply. When the insert sleeve when charging socket, with interlock switches and sockets should not be inserted into the plug or completely disconnected from the socket when the plug End Full when inserted into the socket plug socket sets to live. Compliance is checked by inspection and testing 15.1 15.2 After completion of the test in Chapter 12. 15.1 without holding the device with an interlock switch socket should. --- Switch coupled to the movable receptacle machine up, when to pull the plug, the contact should be disconnected before the plug is inserted or Insert set off while the pin and socket is disconnected; --- The corresponding plug interlock device after operating correctly engaged; --- Not because of normal wear and tear and weaken operating plug interlock device. Compliance is checked by test 15.1.1 and Chapter 21 to check. 15.1.1 interlock with switch socket Figure 101 is connected. Test carried out as follows. Without attempting to plug into the switch means is closed. Switch contacts should be closed. By continuity test phase terminal and the socket is inserted between the sets ensure the above conditions. Insert plug connection Figure 101, the switch means is closed. A1 lamp is not lit, A2 lights should be bright. In the most unfavorable direction slowly pull the plug, A1 lights should be bright. If these conditions are met can be considered the test is completed. Note 1.During the time of the brightness of the lights A1 A2 lamp may be weakened. Note 2.The lamp is lit when the case of doubt, the test should be repeated with an oscilloscope. For each sample of the above three samples tested three times. Note 3.This test can be used specially prepared samples provided by the manufacturer. 15.2 with a holding device with an interlock switch socket should. --- Interlock switch operating device shall be mechanically connected so that when the insert sleeve when charged, can not pull the plug out of the socket That, when the switching device when the "ON" position, can not plug into the socket; --- Take any additional parts interlock device can operate correctly. Compliance is checked by inspection, by manual test and tests to check 15.2.1. 15.2.1 mechanical holding means are interlocked with a switch socket, insert the plug into the socket to lock the following tests. Applying an axial force to the belt into the belt interlock switches, mechanical holding means in a locked position on the outlet plug. United will take Lock with switch socket to the mounting plate A test device shown in Figure 18, so that the vertical axis of the plug socket sets, and plug latch Insertion hole down. Test plug pin is hardened steel products, and by carefully rounded. Plug in the effective length of the surface roughness of not more than Distance 0.8μm, the latch between the nominal distance, deviation of ± 0.05mm. Test plug should have a minimum size requirements, with a tolerance of +0.01 0 mm Before each test, the grease on the bolt removed. The test and pull the plug in the socket 10 from the socket. Then the test plug is inserted, and with the appropriate clamping means D A weight hanging on the test plug. Plug, clamping force applied to the disc apparatus and the weight is equal to 120N. During the test plug from the outlet should not fall off the mechanical holding device should remain in the locked position. After the test socket with interlock switch no damage within the meaning of this standard. For this test, ground contacts as a pole. 16 anti-aging, and moisture protection provided by the housing GB 2099.1 of this chapter apply. GB 2099.5-2008/IEC 60884-2-6.1997 17 Insulation resistance and electric strength GB 2099.1 of this chapter apply to make the following modifications. 17.1 instead of the last sentence. 17.1.1 In addition to the g), h) term insulation resistance of not less than 2MΩ, the rest of the insulation resistance of not less than 5MΩ. 17.1.1 After the first two increases Note. On with switch socket switch, insulation resistance should be measured in the following order. f) between all poles connected together and the body, the switch in the "on" position; g) between each pole in turn all other connected to the electrode and the body, the switch in the "on" position; h) when the terminals are connected together electrically between the switch in the "on" position, the switch to be in the "off" position. Note. The term "body" in f) and g) are mentioned include accessible metal parts, metal frames supporting flush-mounted socket with switch base, operation keys, and easy touch And the outer member and the outer surface of the insulating material operation key metal foil in contact, a fixed point of the cable used to operate the switch, chains, rods, or cover and base plate Fixing screws, external assembly screws, earthing terminals and institutions need any metal parts insulated from live parts (see 10.102). Work ground contacts 18 GB 2099.1 of this chapter apply. 19 temperature GB 2099.1 of this chapter apply. 20 Breaking capacity GB 2099.1 of this chapter do increase after following apply. 20.101 interlock switch with switch socket should be brought in line with the requirements of GB 16915.1 or GB 16915.2. 21 normal operation GB 2099.1 of this chapter make the following modifications apply. There interlock switches and sockets should withstand normal use of mechanical stress, electrical and thermal stresses without excessive wear Or other harmful effects. By following the test to check eligibility. a) switch shall comply with GB 16915.1 or GB 16915.2 requirements of the appropriate section. b) To a sample circuit cosφ = 0.8 ± 0.05, the rated current and the rated voltage of the plug socket insertion and pull 5,000 times. After the test, the specimens should be able to withstand the electric strength test conducted according to the requirements of 17.2; should be able to comply with Chapter 19 of the temperature rise test Requirements, test current is reduced to the rated current of the sample. After the test, the specimen shall show. --- Will affect the future use of wear; --- If you indicate the location of the starting elements, starting with the movable contact element position both inconsistent; --- Housing, insulating liner or barrier damage, resulting in switch can no longer operate or no longer meet the requirements of chapter 10; --- Loose electrical or mechanical connections; --- Sealant leakage; --- Switch moving contact relative displacement. Before carrying out the electric strength test of this section will not be repeated and wet handling 16.3 specified. Then interlock mechanism in Chapter 15 of the test sample checks. The force required to pull the plug 22 GB 2099.1 of this chapter apply to make the following modifications. GB 2099.5-2008/IEC 60884-2-6.1997 After the third paragraph, add the following note. Note. with holding means are interlocked with switch socket while maintaining lock means no test. 23 soft and cable connection GB 2099.1 This chapter does not apply. 24 Mechanical strength GB 2099.1 of this chapter apply. Heat 25 GB 2099.1 of this chapter apply. 26 Screws, current-carrying parts and connections GB 2099.1 of this chapter apply. 27 distance creepage distances and clearances by sealant GB 2099.1 of this chapter apply to make the following modifications. increase. 27.101 pairs creepage interlock with switch socket carried by the switch distances, clearances and distance through the sealant should be consistent GB 16915.1 or GB 16915.2 requirements of the appropriate section. Abnormal heat-resistant, flame-resistant and electrically insulating material to tracking 28 GB 2099.1 of this chapter apply. 29 rust GB 2099.1 of this chapter apply. Additional tests with a pin 30 of the insulating sheath GB 2099.1 This chapter does not apply. Figure 15.1 The test circuit 101 GB 2099.5-2008/IEC 60884-2-6.1997 ......
