GB 17927.2-2011 PDF EnglishUS$205.00 · In stock · Download in 9 seconds
GB 17927.2-2011: Upholstered furniture -- Assessment of the resistance to ignition of mattress and sofa -- Part 2: Match flame equivalent Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

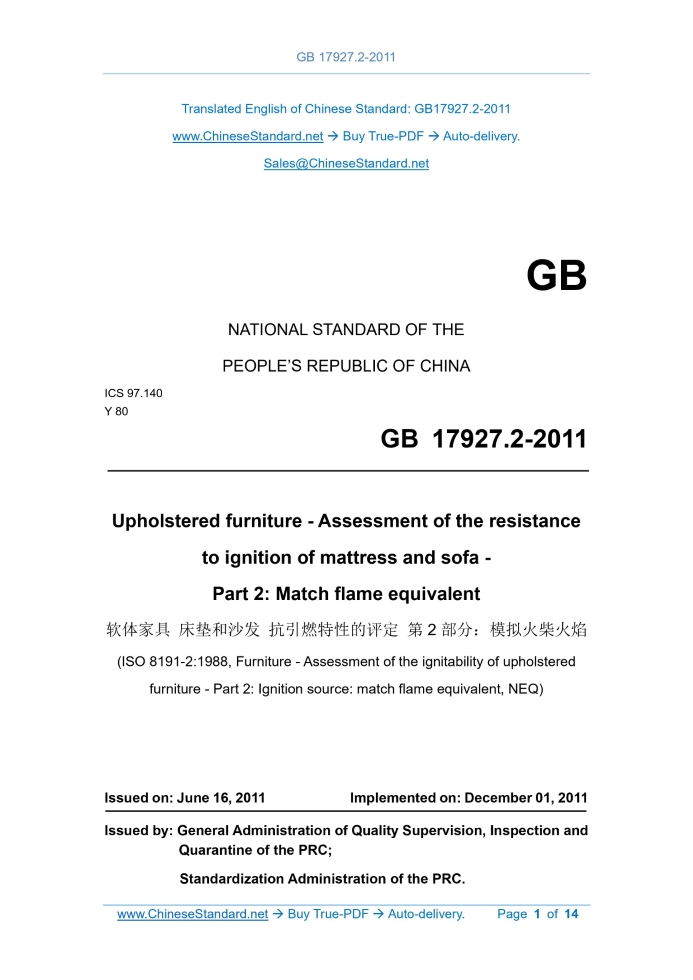

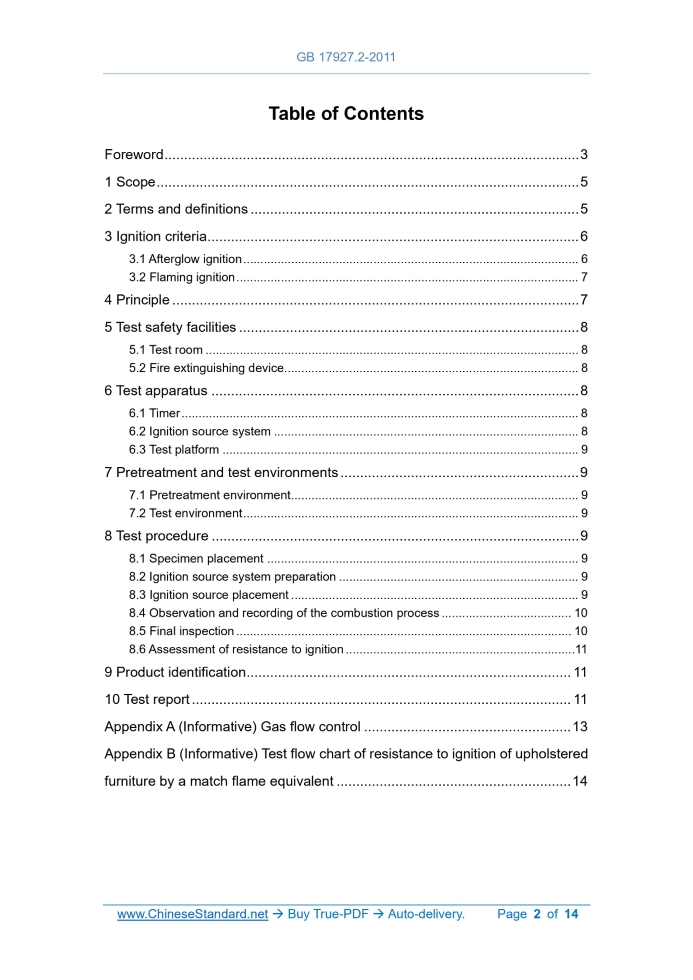

Similar standardsGB 17927.2-2011: Upholstered furniture -- Assessment of the resistance to ignition of mattress and sofa -- Part 2: Match flame equivalent---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GB17927.2-2011 GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 97.140 Y 80 Upholstered furniture - Assessment of the resistance to ignition of mattress and sofa - Part 2: Match flame equivalent (ISO 8191-2:1988, Furniture - Assessment of the ignitability of upholstered furniture - Part 2: Ignition source: match flame equivalent, NEQ) ISSUED ON: JUNE 16, 2011 IMPLEMENTED ON: DECEMBER 01, 2011 Issued by: General Administration of Quality Supervision, Inspection and Quarantine of the PRC; Standardization Administration of the PRC. Table of ContentsForeword ... 3 1 Scope ... 5 2 Terms and definitions ... 5 3 Ignition criteria ... 6 3.1 Afterglow ignition ... 6 3.2 Flaming ignition ... 7 4 Principle ... 7 5 Test safety facilities ... 8 5.1 Test room ... 8 5.2 Fire extinguishing device... 8 6 Test apparatus ... 8 6.1 Timer ... 8 6.2 Ignition source system ... 8 6.3 Test platform ... 9 7 Pretreatment and test environments ... 9 7.1 Pretreatment environment ... 9 7.2 Test environment ... 9 8 Test procedure ... 9 8.1 Specimen placement ... 9 8.2 Ignition source system preparation ... 9 8.3 Ignition source placement ... 9 8.4 Observation and recording of the combustion process ... 10 8.5 Final inspection ... 10 8.6 Assessment of resistance to ignition ... 11 9 Product identification ... 11 10 Test report ... 11 Appendix A (Informative) Gas flow control ... 13 Appendix B (Informative) Test flow chart of resistance to ignition of upholstered furniture by a match flame equivalent ... 14 Upholstered furniture - Assessment of the resistance to ignition of mattress and sofa - Part 2: Match flame equivalent1 ScopeThis Part of GB 17927 specifies the method and assessment rules for the test of the resistance to ignition of upholstered furniture by using an ignition source of match flame equivalent. This Part is applicable to the test and assessment of the resistance to ignition of upholstered furniture such as mattress and sofa used in public places. The test and assessment of the resistance to ignition of upholstered furniture unit can refer to it for implementation.2 Terms and definitionsThe following terms and definitions apply to this document. 2.1 Progressive smouldering An exothermic oxidation reaction without flames. After being separated from the ignition source, it will spread by itself, sometimes accompanied by incandescent luminescence. 2.2 Flaming A gaseous combustion process accompanied by luminescence. 2.3 Afterflame The continuous flaming of the specimen after the ignition source is removed under the specified test conditions. 2.4 a) The afterglow characteristics gradually intensify on the specimen, which will endanger the safety if the test is continued; and effective fire extinguishing measures must be taken; b) During the test, the upholstered part is almost completely ignited by afterglow; c) During the test, the specimen is ignited to the end by afterglow; that is, the upper edge, lower edge, side, or the entire thickness of the specimen; d) In the final inspection, in any direction except that closest to the top of the ignition source, outside the range of 100 mm away from the ignition source, any scorching phenomenon other than discoloration appears on the specimen. However, any smouldering extinguished within 120 s after the ignition source is removed is not counted. 3.2 Flaming ignition In this Part, the following conditions are regarded as flaming ignition: a) The afterflame phenomenon gradually intensifies on the specimen, which will endanger the safety if the test is continued; and effective fire extinguishing measures must be taken; b) During the test, the upholstered part is almost completely ignited by afterflame; c) During the test, the front end of the combustion flame has reached the lower edge, side or through the entire thickness of the specimen. However, any flaming extinguished within 120 s after the ignition source is removed is not counted.4 PrincipleUse a match flame equivalent as the ignition source to conduct an ignition test on the upholstered furniture, to determine the resistance to ignition of the whole upholstered part including the fabric, lining and filler of the specimen. However, the test results do not indicate the resistance to ignition of a certain constituent material.5 Test safety facilities5.1 Test room The test room can be a room with a volume greater than 20 m3 (containing enough oxygen for the test), or a small space with ventilation facilities. The air flow rate, supplied by the air supply and exhaust system, around the test bench is 0.02 m/s~0.2 m/s. It shall contain enough oxygen and does not interfere with the combustion test. 5.2 Fire extinguishing device Considering that certain material combinations may produce violent combustion during the test, it is necessary to provide sufficient effective fire extinguishing facilities.6 Test apparatus6.1 Timer The timing range of the timer shall not be less than 1 h, with an accuracy of 1 s. 6.2 Ignition source system Use butane, which is equivalent to a match flame, as the ignition source. The design of the ignition source can provide the heat equivalent to that of a burning match. The ignition source system includes: a) Stainless steel combustion tube: One; the outer diameter is (8.0±0.1)mm; the inner diameter is (6.5±0.1)mm; the length is (200±5)mm; b) Hose: The length shall be 2.5 m~3 m; the inner diameter shall be (7±1)mm; it shall be connected to the stainless steel combustion tube; c) Flow control system: It includes a flowmeter, fine-tuning valve, on-off valve, and pressure-regulating valve; is connected to the butane cylinder. The flow rate calibrated by the flowmeter shall be able to meet the requirement of measuring the flow of butane gas at 25 °C to be (45±2)mL/min. The nominal output pressure provided by the system is 2.8 kPa. Note 1: A stainless steel combustion tube similar in size to a) can also be used. However, within the 50 mm length of the combustion tube from the nozzle (flame port), the inner and outer diameters must be machined to reach the specified size. in the groove of the quilting line, or on the button for testing. At the same time, start the timer to start timing. The combustion tube shall be placed in horizontal contact with the specimen. After the combustion tube burns on the specimen for (15±1)s, it is carefully moved away from the test part, to terminate the ignition. 8.3.2 Sofa Place the combustion tube along the joint between the seat cushion and the backrest of the sofa; or place it in other parts where the sofa is most likely to be ignited, e.g. local depressions such as the inner side of the seam and the pits of the quilting line. And make the distance between the ignition source and the two ends of the specimen or the trace left by the previous test at least 50 mm. At the same time, start the timer to start timing. After the combustion tube burns on the specimen for (15±1)s, it is carefully moved away from the test part, to terminate the ignition. 8.4 Observation and recording of the combustion process Observe and record all afterflame or afterglow on the surface and inside of the specimen. Any combustion phenomena such as afterflame or afterglow, which extinguish themselves within 120 s after the combustion tube is removed, need not be recorded. If after the combustion tube is removed for 120 s and up to 1 h, afterflame or afterglow is observed, it indicates that the specimen has not passed the test of resistance to ignition by a match flame equivalent. The test shall be stopped immediately for fire extinguishing treatment. Record the elapsed time from placing the ignition source to extinguishing the ignited specimen; complete the test report. If no afterflame or afterglow is found within 1 h, these phenomena shall be recorded. And in other positions that meet the requirements of 8.3.1 or 8.3.2, repeat the above test. If there is still no afterflame or afterglow phenomenon, it shall be recorded; and carry out the final inspection of the specimen. 8.5 Final inspection Carefully check the surface and interior of the specimen for any undetected afterflame or afterglow phenomenon. If so, immediately extinguish the specimen. And measure the range of the burned part; record the range (maximum length, width and depth) of the burned part (horizontal, vertical) in mm. For safety reasons, the test personnel shall ensure that, before leaving, the specimen is completely extinguished. 8.6 Assessment of resistance to ignition When the test and inspection are carried out in accordance with the provisions of 8.3, 8.4 and 8.5, if the combustion tube is removed for 120 s and up to 1 h, and no afterflame or afterglow phenomenon is observed on the surface or inside of the specimen; the specimen is regarded as resistance-to-ignition level II and to pass the test of resistance to ignition by a match flame equivalent. Otherwise, the specimen is regarded not to pass the test of resistance to ignition by a match flame equivalent; and record the range of the burned part. Note: Refer to Appendix B for the test procedure.9 Product identificationThe manufacturer shall identify the resistance-to-ignition level of the product.10 Test reportThe test report shall include the following: 1) The standard name and standard number used in the test; 2) A brief description of the structure of the specimen; 3) The type of ignition source; 4) Whether the specimen is ignited each test. Carry out the test according to 8.4; if the repeated test finds afterflame or afterglow, the overall result is assessed as "failing the test of resistance to ignition by a match flame equivalent". According to the final inspection of 8.5, if afterflame or afterglow phenomenon is found, the result is also assessed as "failing the test of resistance to ignition by a match flame equivalent"; 5) Record the range (length, width, and depth) of the burned part (horizontal, vertical) of each test; 6) Fire extinguishing measures for each test; 7) Specimen pretreatment environment, time, test environment; 8) Typical characteristics of combustion: Such as melting, dripping, scorching, the development process from afterglow to afterflame; 9) The time of the main items, such as the time for specimen afterflame or afterglow, the time for the fabric to crack, and the time for the specimen to ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB 17927.2-2011 be delivered?Answer: The full copy PDF of English version of GB 17927.2-2011 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB 17927.2-2011_English with my colleagues?Answer: Yes. The purchased PDF of GB 17927.2-2011_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB 17927.2-2011 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB 17927.2-2011?A step-by-step guide to download PDF of GB 17927.2-2011_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB 17927.2-2011". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
