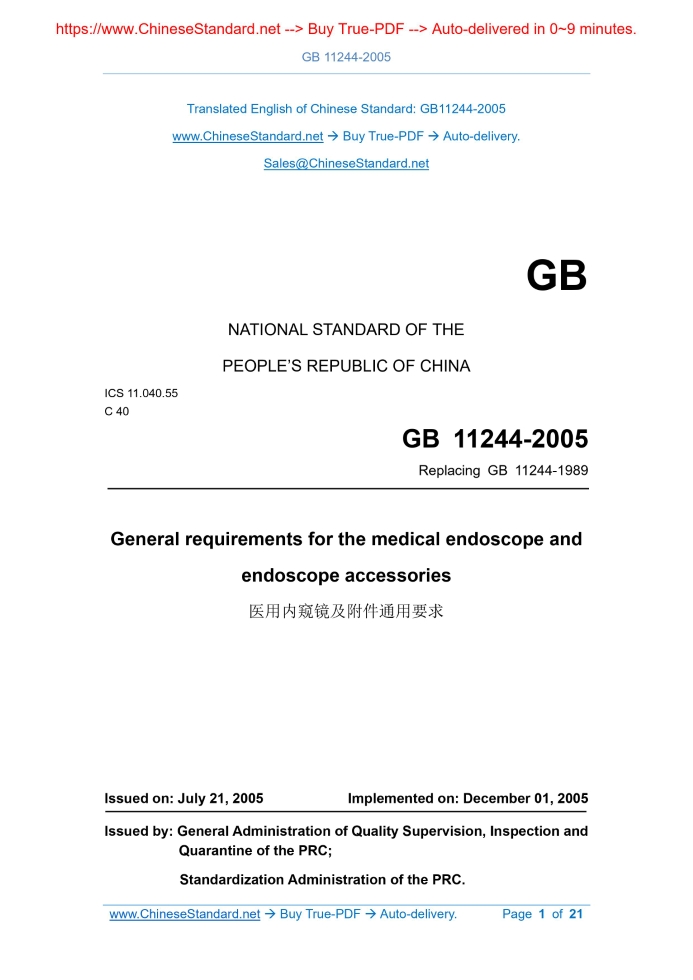

---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GB11244-2005GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 11.040.55 C 40 Replacing GB 11244-1989 General requirements for the medical endoscope and endoscope accessories Issued on. JULY 21, 2005 Implemented on. DECEMBER 01, 2005 Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the PRC; Standardization Administration of the PRC.
Table of Contents

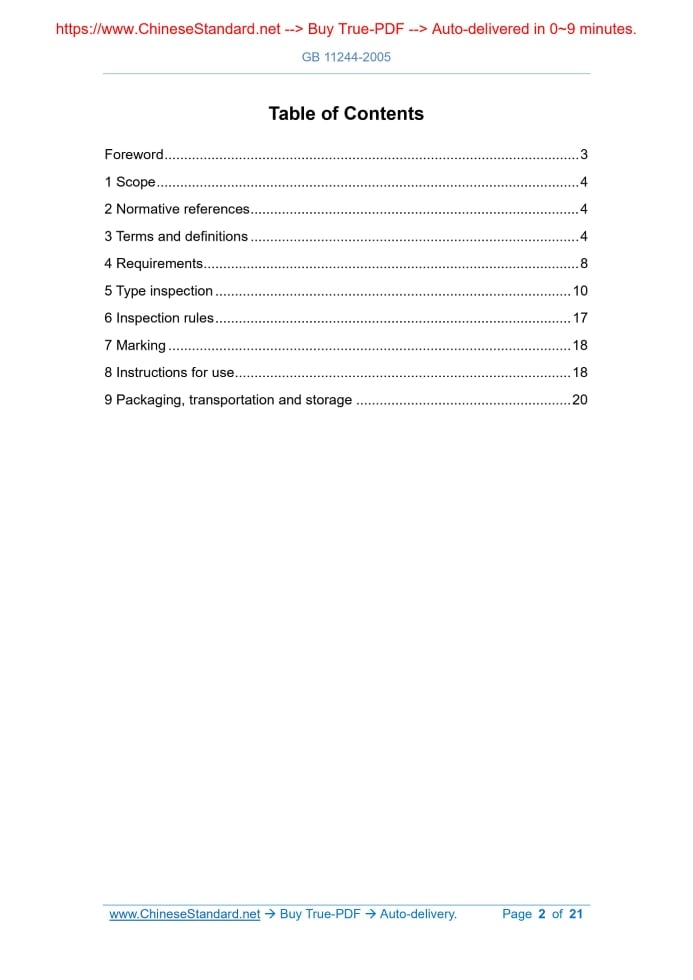

Foreword... 3 1 Scope... 4 2 Normative references... 4 3 Terms and definitions... 4 4 Requirements... 8 5 Type inspection... 10 6 Inspection rules... 17 7 Marking... 18 8 Instructions for use... 18 9 Packaging, transportation and storage... 20Foreword
This Standard is developed in accordance with the international standard ISO 8600.1997 "Medical endoscopes and endoscopic accessories". In terms of technical content, it is not equivalent to ISO 8600.1997. Used in conjunction with this Standard is GB 9706.19-2000 "Medical electrical equipment - Part 2.Particular requirements for the safety of endoscopic equipment". The main technical differences between this Standard and ISO 8600 are as follows. - Incorporate all the inspection methods of ISO 8600-3 and ISO 8600-4 and the inspection provisions of ISO 8600-1 into this Standard. - According to the actual situation of China, the environmental test adopts the relevant regulations of GB/T 14710. - ADD the requirement of coincidence of lighting source and observation field of view. - The shape and size of the eyepiece are identical to the requirements of DIN58105 "Requirements and inspection of medical endoscopes". - ADD the requirements for inspection rules, packaging, transportation and storage. [Translator note. The original text is reformatted to items, for ease of reading] This Standard was proposed by China Food and Drug Administration. This Standard shall be under the jurisdiction of National Technical Subcommittee on Medical Optics and Instruments of Standardization Administration of China. Drafting organization of this Standard. Shanghai Medical Optical Instrument Co., Ltd. Main drafters of this Standard. Mai Xiuqin, Li Yafen, Xue Xiaoguo, Qian Xiaoyang. General requirements for the medical endoscope and endoscope accessories1 Scope

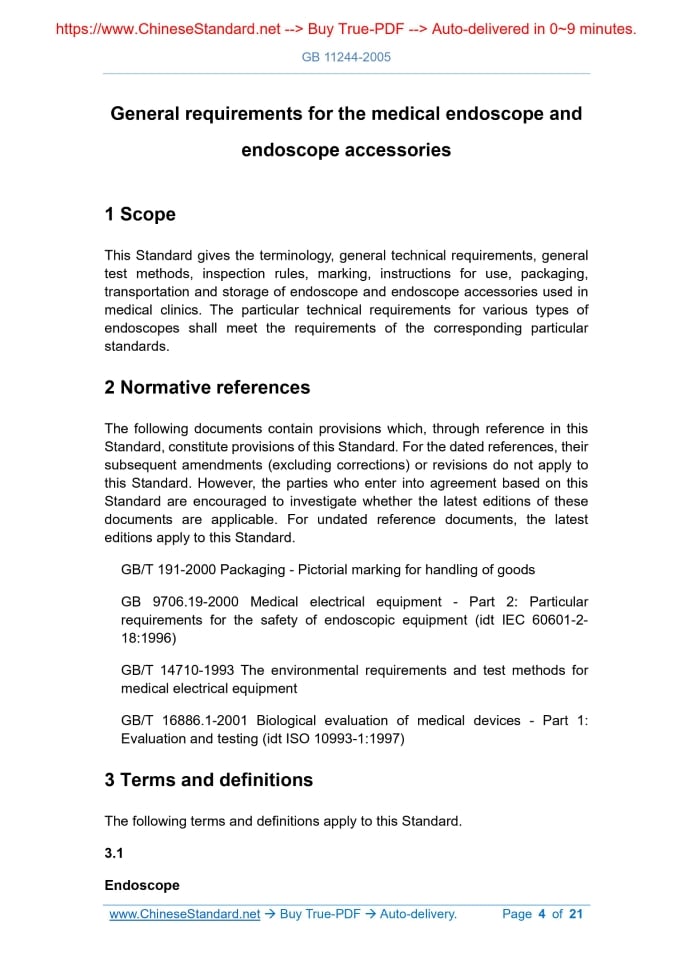

This Standard gives the terminology, general technical requirements, general test methods, inspection rules, marking, instructions for use, packaging, transportation and storage of endoscope and endoscope accessories used in medical clinics. The particular technical requirements for various types of endoscopes shall meet the requirements of the corresponding particular standards.2 Normative references
The following documents contain provisions which, through reference in this Standard, constitute provisions of this Standard. For the dated references, their subsequent amendments (excluding corrections) or revisions do not apply to this Standard. However, the parties who enter into agreement based on this Standard are encouraged to investigate whether the latest editions of these documents are applicable. For undated reference documents, the latest editions apply to this Standard. GB/T 191-2000 Packaging - Pictorial marking for handling of goods GB 9706.19-2000 Medical electrical equipment - Part 2.Particular requirements for the safety of endoscopic equipment (idt IEC 60601-2- 18.1996)3 Terms and definitions
The following terms and definitions apply to this Standard. 3.1 Endoscope Medical instruments for observation purposes, with or without lenses; medical devices which go deep into the natural or surgically opened pores of the human body for examination, diagnosis or treatment. 3.2 Endoscope accessory Medical devices which can penetrate the endoscope into the natural or surgically opened pores of the human body; or medical devices which can be used for inspection, treatment, or diagnosis with an endoscope. 3.3 Rigid endoscope The endoscope (endoscope accessory) of which the insertion portion cannot be bent into the human body's natural or surgically opened pore or instrument channel. 3.4 Flexible endoscope The endoscope (endoscope accessory) of which the insertion portion can freely bend into the human body's natural or surgically opened pore or instrument channel. 3.5 French; Fr The measurement method for the size of the endoscope with circular or non- circular cross-section, which is defined as.4 Requirements
4.1 Surface and edge 4.2 Maximum insertion portion width The maximum insertion portion width must not be larger than the size specified in the instructions for use provided by the manufacturer. See 8.2 c). 4.3 Minimum insertion channel width The minimum insertion channel width must not be less than the size specified in the instructions for use provided by the manufacturer. See 8.2 h). 4.4 Field of view If the manufacturer has no other special regulations, the deviation of the field of view of optical endoscope from the nominal value provided by the manufacturer shall not exceed 15%. In the product catalog and manual materials, the description of the field of view is not mandatory. 4.7 Coincidence of lighting source and observation field of view At the working distance, the illumination spot shall fill the field of view, without obvious dividing line between bright and dark. 4.8 Safety Endoscopes and endoscope accessories shall meet the requirements of GB 9706.1. 4.9 Biocompatibility The outer surface material of the insertion portion is an external access device, which is in short-term contact with the tissue. Its biocompatibility shall be evaluated according to the requirements of GB/T 16886.1-2001.5 Type inspection
5.1 Surface and edge Under sufficient lighting, use visual inspection and hand feel inspection. It shall meet the requirements of 4.1, without the need for magnifying tools. 5.2 Maximum insertion portion width 5.2.1 Scope This section gives the measurement method for the maximum insertion portion width of medical endoscopes and endoscope accessories. It can be expressed in millimeters or French (millimeters). 5.2.3 Accuracy of measuring instrument An instrument with an accuracy of 0.05 mm (such as vernier calipers) shall be used for measurement. If the French size of the perimeter is measured, an instrument with an accuracy of 0.5 mm (such as a tape measure or similar measuring tool) shall be used. 5.2.4 Measurement process 5.2.4.1 Readings in millimeters For the measurement of readings in millimeters, it shall measure the maximum diameter of the circumscribed circle perpendicular to the axis of the insertion portion [see Figure 4a) and b)]. This maximum diameter is defined as the maximum diameter measured on all cross-sections perpendicular to the axis along the entire length of the insertion portion. 5.2.4.2 Readings in French size For readings expressed in French size, it shall measure the maximum perimeter of the cross-section perpendicular to the axis of the insertion portion. The maximum perimeter is defined as the longest perimeter measured across all cross-sections perpendicular to the axis along the entire length of the insertion portion. 5.3 Minimum insertion channel width The accuracy of the measuring instrument for measuring the minimum insertion channel width shall not be greater than 0.01 mm. 5.4 Field of view and direction of view 5.4.3.4 Illumination White light shall be used to illuminate the measuring mark. The minimum illumination is not less than 500 lx. Endoscope or external light source can be used. 5.4.4 Test method for field of view and direction of view The following test method is for recommendation only. If the same results can be obtained, other methods can also be used. 5.5 Funnel-shaped eyepiece cover USE a length measuring instrument with an accuracy of ±5% and a goniometer with an accuracy of ±5%. 5.6 Coincidence of lighting source and observation field of view When the matching light source is in the brightest state, use visual inspection. It shall meet the requirements of 4.7.6 Inspection rules
6.1 General Endoscopes and endoscope accessories shall pass the inspection by the manufacturer’s quality test department; be accompanied by a product quality inspection conformity certificate, before leaving the factory. 6.3 Inspection classification and inspection items 6.3.1 Inspection is classified into exit-factory inspection and type inspection. 6.4 Determination rule and reinspection rule 6.4.1 The exit-factory inspection is a full inspection. If any of the inspection items is not met, the product is not qualified. 6.4.2 Type inspection randomly selects 2 sets from the products, which have passed the exit-factory inspection.7 Marking
7.1 Least marking Each endoscope and endoscope accessory shall have the following markings. 7.2 Clear marking After the equipment is used, cleaned, disinfected, sterilized and stored in accordance with the manufacturer's instructions for use, the markings must be kept clear. 7.3 Exceptional marking When it is impossible to mark on the separable part or the installation parts of the separable part of the equipment due to the size or shape, the required mark shall be partly marked on the package or partly on the instructions for use.8 Instructions for use
8.1 The manufacturers of endoscopes and endoscope accessories provide users with instructions for use, which shall include at least the following. 8.2 The identification and specifications of the equipment shall include the following. 8.3 The prevention and application instructions when using the equipment shall include.9 Packaging, transportation and storage
9.1 There shall be the following markings on the outer packaging box. 9.2 Each set of medical endoscopes and endoscope accessories shall be accompanied by a product manual, inspection conformity certificate and packing list; packaged in moisture-proof paper bags or plastic bags, and placed in the box. 9.3 Medical endoscopes and endoscope accessories are first packed in a dry shock-proof and moisture-proof box; and then packed into a shock-proof and moisture-proof outer packaging box. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al.
