GA/T 1056-2013: Police digital trunking communication system-General technical specifications

---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GAT1056-2013

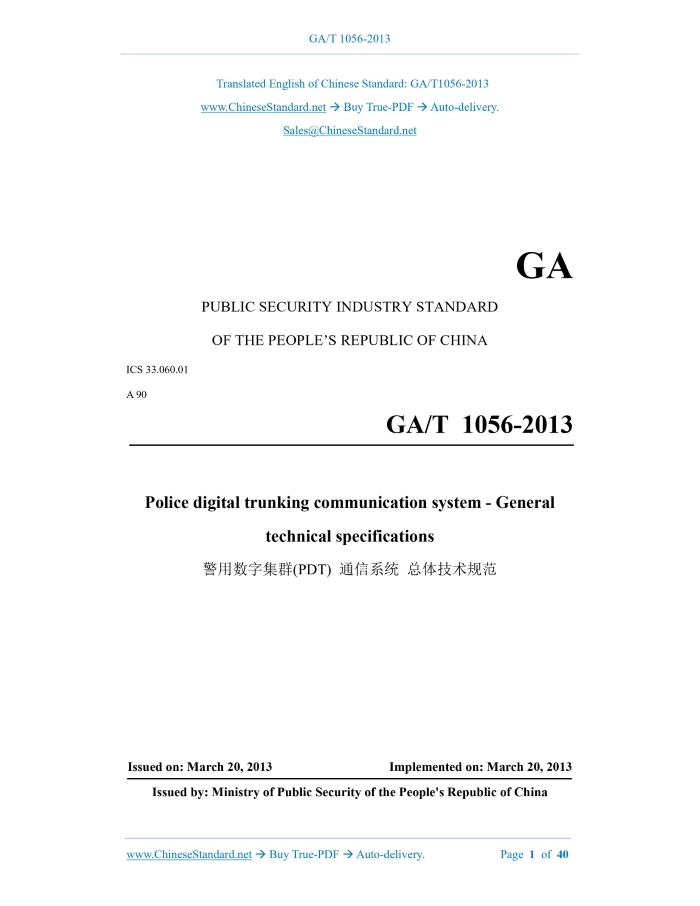

GA PUBLIC SECURITY INDUSTRY STANDARD ICS 33.060.01 A 90 Police digital trunking communication system - General technical specifications Issued on. MARCH 20, 2013 Implemented on. MARCH 20, 2013 Issued by. Ministry of Public Security of the People's Republic of China

Table of Contents

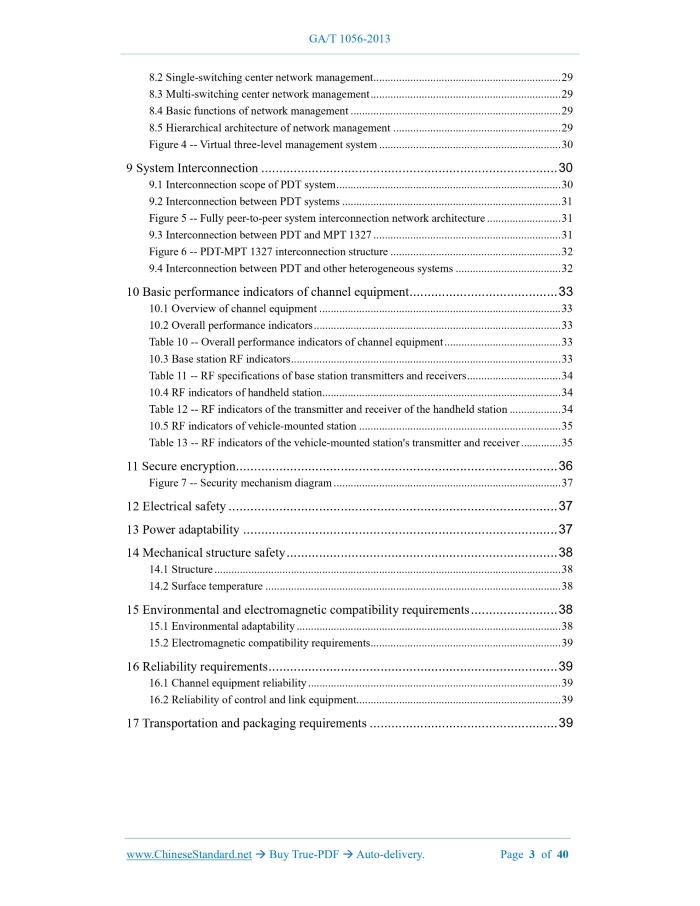

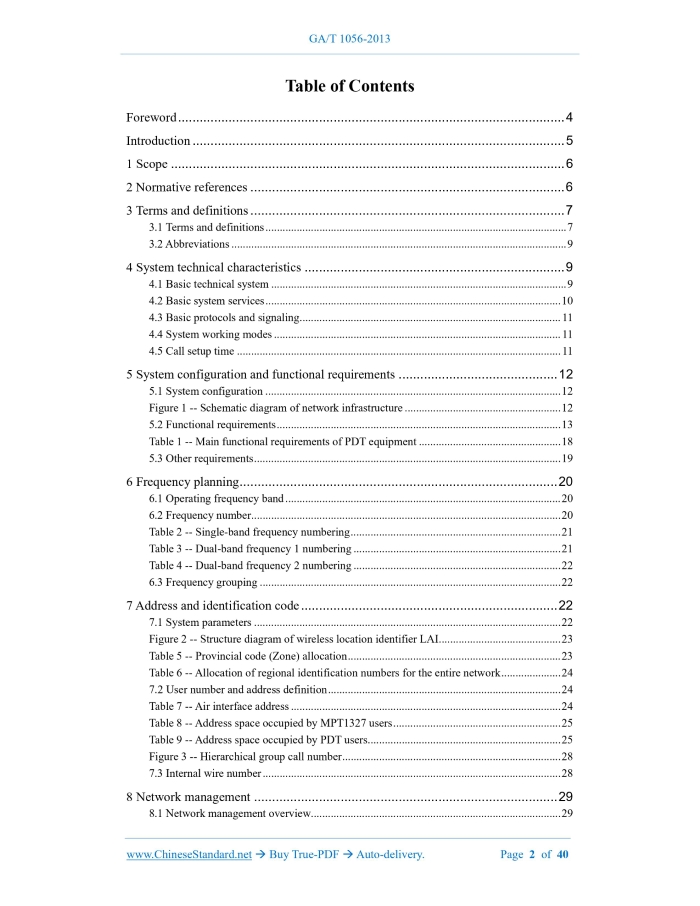

Foreword... 4 Introduction... 5 1 Scope... 6 2 Normative references... 6 3 Terms and definitions... 7 3.1 Terms and definitions... 7 3.2 Abbreviations... 9 4 System technical characteristics... 9 5 System configuration and functional requirements... 12 6 Frequency planning... 20 Table 2 -- Single-band frequency numbering... 21 Table 3 -- Dual-band frequency 1 numbering... 21 Table 4 -- Dual-band frequency 2 numbering... 22 7 Address and identification code... 22 8 Network management... 29 9 System Interconnection... 30 10 Basic performance indicators of channel equipment... 33 11 Secure encryption... 36 Figure 7 -- Security mechanism diagram... 37 12 Electrical safety... 37 13 Power adaptability... 37 14 Mechanical structure safety... 38 15 Environmental and electromagnetic compatibility requirements... 38 16 Reliability requirements... 39 17 Transportation and packaging requirements... 39

1 Scope

This Standard specifies the technical characteristics, system composition and functional requirements, operating frequency band, address and identification code, network management, basic performance indicators of channel equipment, AC power supply system, information security and confidentiality, environment and electromagnetic compatibility, reliability and other general requirements of the police digital trunking (PDT) communication system. This Standard applies to the overall planning, network design, equipment development, production, engineering construction and acceptance of the police digital trunking (PDT) communication system.

2 Normative references

The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. GB/T 7610-1987, Characteristics of pulse code modulation for voice-frequencies GB/T 13426-1992, Reliability requirements and test methods for digital communication equipment GB/T 14013-1992, Mobile communication equipment -- Transport package GB/T 15540-2006, EMC specification and test methods for land mobile communication equipment GB/T 15844.3-1995, Reliability requirements and test methods for radio transceiver employing F3E emission used in the mobile services GB/T 17626.2-2006, Electromagnetic compatibility (EMC) -- Testing and measurement techniques -- Electrostatic discharge immunity test

3 Terms and definitions

3.1 Terms and definitions The following terms and definitions apply to this document. 3.2 Abbreviations The following abbreviations apply to this document. BS. Base Station DMO. Direct Mode FGN. Fleet Group Number FIN. Fleet Individual Number GN. Group Number

4 System technical characteristics

4.1 Basic technical system 4.1.1 Technical system 4.1.2 RF modulation method The RF modulation method uses four-level frequency shift keying (4FSK). 4.1.3 Modulation rate The modulation is transmitted at 4800 symbols/s. Each symbol consists of two bits of information. 4.1.4 Speech coding The speech coding rate shall be greater than or equal to 2 kbps. The rate after speech coding plus channel coding shall be 3.6 kbps. 4.2 Basic system services 4.2.1 User terminal services User terminal services are services that provide complete communication capabilities between user terminals. 4.2.2 Carrying services Carrying services are telecommunication services that provide signal transmission capabilities between user terminals and network interfaces. 4.3 Basic protocols and signaling The basic protocols and signaling of the air interface shall comply with the provisions of GA/T 1057-2013 and GA/T 1058-2013. 4.4 System working modes 4.5 Call setup time The time to establish a group call within the same exchange shall be less than or equal to 300 ms.

5 System configuration and functional requirements

5.1 System configuration 5.1.1 Network infrastructure Network infrastructure equipment includes switches, gateways, network management equipment, base station control equipment and access points, as shown in Figure 1. 5.1.2 User terminal equipment 5.2 Functional requirements 5.2.1 Functional definition 5.2.1.1 Registration Registration is the process of a mobile station initiating a network access request and confirming it to the trunking system. Authentication may be required during registration. 5.2.1.5 Voice private call A voice private call is a point-to-point two-way voice call established between a mobile station and other user terminals. The participants of a call are only the caller and the called party. There are two types of voice private calls between mobile stations. FOACSU and OACSU. 5.2.1.10 Emergency call An emergency call is a special call initiated by a user in an emergency situation. It has the highest priority. When there are no channel resources, the system will release channel resources of other low-level calls for emergency calls. 5.2.1.11 Priority call Priority calls are calls that are given priority to obtain resources when the system is busy. The way to obtain resources can be to seize the channel of low-priority calls or to jump the queue in the queue. 5.2.1.12 Alarm An alarm is when a user presses a special button on a mobile station device in an emergency, sending a predefined status message to a pre-set destination (mobile station or dispatch station) on the system control channel to notify other mobile stations or dispatch stations that the user is in an emergency state. 5.2.1.14 Monitoring Monitoring refers to the process of authorizing a user terminal to obtain voice on a specified mobile station, talk group or channel. 5.2.1.15 Interruption Interruption means that when the dispatch station is monitoring or participating in a voice call, it forcibly interrupts the ongoing speech and seizes the right to speak. 5.2.1.16 Forced disconnection Forced disconnection refers to the process in which the system forcibly disconnects an ongoing call and releases the corresponding resources occupied. 5.2.1.17 Handover Handover refers to the process in which a mobile station switches base stations during a voice call without interrupting the ongoing service. 5.2.1.18 Call time limit The call time limit is a function that the system uses to control the maximum duration allowed for a user to make a voice call, including a single push-to-talk time limit and a single call total duration limit.

6 Frequency planning

6.1 Operating frequency band There are three frequency bands at 350 MHz available for PDT use (other frequency bands are subject to the relevant regulations of the national radio management department). 6.2 Frequency number 6.2.1 Frequency numbering rules The starting frequency of the single-band frequency is 358.0125 MHz. The starting frequency number is 1.The frequency interval is 12.5 kHz. 6.2.2 Single-band frequency numbering The numbering rules for single-band frequencies are shown in Table 2. 6.2.3 Dual-band frequency 1 numbering The numbering rules for dual-band frequency 1 are shown in Table 3. 6.2.4 Dual-band frequency 2 numbering The numbering rules for dual-band frequency 2 are shown in Table 4.

7 Address and identification code

7.1 System parameters 7.1.1 Network scale parameters (Model) The network scale parameter is used to identify the scale of the network. According to the network planning of the public security, the Large Network is selected, Model=102. 7.1.3 Network zone identifier (NZI) It identifies the administrative region number of each province, autonomous region, and municipality directly under the central government in the entire network, a total of 6 bits. See Table 6 for NZI code allocation. 7.2 User number and address definition 7.2.1 Air interface user address definition The length of the PDT air interface user address (ID) is 24 bits. There is another 1 bit to indicate the single call or group call address. The user address is divided into two parts in binary representation. The first 9 bits are the network area identification number (NAI). The last 15 bits are the short single call address code (SSI) or short group call address code (SGI), see Table 7. 7.2.3.3 Relationship between the single call address code and the segment single call number 7.2.4 Group call number 7.2.4.1 Short group call address code The short group call address code is 15 bits long, expressed in decimal form as 0~32767, where 0 is a blank number; 1~17000 are group call user numbers, 32767 is a full call number, and other addresses are reserved.

8 Network management

8.1 Network management overview Network management (abbreviated as "NM") can be divided into two types according to the basic network structure. single switching center NM and multi-switching center NM. 8.3 Multi-switching center network management The network management of multi-switching centers is completed by local network management and central network management organizations. 8.4 Basic functions of network management The network management system shall have the following basic functions. 8.5 Hierarchical architecture of network management The PDT network uses a virtual three-level management architecture, see Figure 4.

9 System Interconnection

9.1 Interconnection scope of PDT system PDT system interconnection includes the following parts. 9.2 Interconnection between PDT systems 9.2.1 PDT system network design The PDT system network interconnection design shall be based on the full IP soft switching technology designed in the logical domain, which can reflect the maximum flexibility, compatibility and scalability. 9.2.4 Signaling for interconnection between PDT systems It complies with the pSIP protocol specified in the police digital trunking (PDT) communication system. 9.2.5 Voice transmission protocol for interconnection between PDT systems PDT interconnection voice transmission uses RTP (real-time transport protocol). The voice format carried by RTP is PDT voice coding. 9.3 Interconnection between PDT and MPT 1327 9.4 Interconnection between PDT and other heterogeneous systems The interconnection between PDT and other special systems shall be specified separately as needed. GA/T 1056-2013 GA PUBLIC SECURITY INDUSTRY STANDARD ICS 33.060.01 A 90 Police digital trunking communication system - General technical specifications Issued on. MARCH 20, 2013 Implemented on. MARCH 20, 2013 Issued by. Ministry of Public Security of the People's Republic of China

Table of Contents

Foreword... 4 Introduction... 5 1 Scope... 6 2 Normative references... 6 3 Terms and definitions... 7 3.1 Terms and definitions... 7 3.2 Abbreviations... 9 4 System technical characteristics... 9 5 System configuration and functional requirements... 12 6 Frequency planning... 20 Table 2 -- Single-band frequency numbering... 21 Table 3 -- Dual-band frequency 1 numbering... 21 Table 4 -- Dual-band frequency 2 numbering... 22 7 Address and identification code... 22 8 Network management... 29 9 System Interconnection... 30 10 Basic performance indicators of channel equipment... 33 11 Secure encryption... 36 Figure 7 -- Security mechanism diagram... 37 12 Electrical safety... 37 13 Power adaptability... 37 14 Mechanical structure safety... 38 15 Environmental and electromagnetic compatibility requirements... 38 16 Reliability requirements... 39 17 Transportation and packaging requirements... 39

1 Scope

This Standard specifies the technical characteristics, system composition and functional requirements, operating frequency band, address and identification code, network management, basic performance indicators of channel equipment, AC power supply system, information security and confidentiality, environment and electromagnetic compatibility, reliability and other general requirements of the police digital trunking (PDT) communication system. This Standard applies to the overall planning, network design, equipment development, production, engineering construction and acceptance of the police digital trunking (PDT) communication system.

2 Normative references

The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. GB/T 7610-1987, Characteristics of pulse code modulation for voice-frequencies GB/T 13426-1992, Reliability requirements and test methods for digital communication equipment GB/T 14013-1992, Mobile communication equipment -- Transport package GB/T 15540-2006, EMC specification and test methods for land mobile communication equipment GB/T 15844.3-1995, Reliability requirements and test methods for radio transceiver employing F3E emission used in the mobile services GB/T 17626.2-2006, Electromagnetic compatibility (EMC) -- Testing and measurement techniques -- Electrostatic discharge immunity test

3 Terms and definitions

3.1 Terms and definitions The following terms and definitions apply to this document. 3.2 Abbreviations The following abbreviations apply to this document. BS. Base Station DMO. Direct Mode FGN. Fleet Group Number FIN. Fleet Individual Number GN. Group Number

4 System technical characteristics

4.1 Basic technical system 4.1.1 Technical system 4.1.2 RF modulation method The RF modulation method uses four-level frequency shift keying (4FSK). 4.1.3 Modulation rate The modulation is transmitted at 4800 symbols/s. Each symbol consists of two bits of information. 4.1.4 Speech coding The speech coding rate shall be greater than or equal to 2 kbps. The rate after speech coding plus channel coding shall be 3.6 kbps. 4.2 Basic system services 4.2.1 User terminal services User terminal services are services that provide complete communication capabilities between user terminals. 4.2.2 Carrying services Carrying services are telecommunication services that provide signal transmission capabilities between user terminals and network interfaces. 4.3 Basic protocols and signaling The basic protocols and signaling of the air interface shall comply with the provisions of GA/T 1057-2013 and GA/T 1058-2013. 4.4 System working modes 4.5 Call setup time The time to establish a group call within the same exchange shall be less than or equal to 300 ms.

5 System configuration and functional requirements

5.1 System configuration 5.1.1 Network infrastructure Network infrastructure equipment includes switches, gateways, network management equipment, base station control equipment and access points, as shown in Figure 1. 5.1.2 User terminal equipment 5.2 Functional requirements 5.2.1 Functional definition 5.2.1.1 Registration Registration is the process of a mobile station initiating a network access request and confirming it to the trunking system. Authentication may be required during registration. 5.2.1.5 Voice private call A voice private call is a point-to-point two-way voice call established between a mobile station and other user terminals. The participants of a call are only the caller and the called party. There are two types of voice private calls between mobile stations. FOACSU and OACSU. 5.2.1.10 Emergency call An emergency call is a special call initiated by a user in an emergency situation. It has the highest priority. When there are no channel resources, the system will release channel resources of other low-level calls for emergency calls. 5.2.1.11 Priority call Priority calls are calls that are given priority to obtain resources when the system is busy. The way to obtain resources can be to seize the channel of low-priority calls or to jump the queue in the queue. 5.2.1.12 Alarm An alarm is when a user presses a special button on a mobile station device in an emergency, sending a predefined status message to a pre-set destination (mobile station or dispatch station) on the system control channel to notify other mobile stations or dispatch stations that the user is in an emergency state. 5.2.1.14 Monitoring Monitoring refers to the process of authorizing a user terminal to obtain voice on a specified mobile station, talk group or channel. 5.2.1.15 Interruption Interruption means that when the dispatch station is monitoring or participating in a voice call, it forcibly interrupts the ongoing speech and seizes the right to speak. 5.2.1.16 Forced disconnection Forced disconnection refers to the process in which the system forcibly disconnects an ongoing call and releases the corresponding resources occupied. 5.2.1.17 Handover Handover refers to the process in which a mobile station switches base stations during a voice call without interrupting the ongoing service. 5.2.1.18 Call time limit The call time limit is a function that the system uses to control the maximum duration allowed for a user to make a voice call, including a single push-to-talk time limit and a single call total duration limit.

6 Frequency planning

6.1 Operating frequency band There are three frequency bands at 350 MHz available for PDT use (other frequency bands are subject to the relevant regulations of the national radio management department). 6.2 Frequency number 6.2.1 Frequency numbering rules The starting frequency of the single-band frequency is 358.0125 MHz. The starting frequency number is 1.The frequency interval is 12.5 kHz. 6.2.2 Single-band frequency numbering The numbering rules for single-band frequencies are shown in Table 2. 6.2.3 Dual-band frequency 1 numbering The numbering rules for dual-band frequency 1 are shown in Table 3. 6.2.4 Dual-band frequency 2 numbering The numbering rules for dual-band frequency 2 are shown in Table 4.

7 Address and identification code

7.1 System parameters 7.1.1 Network scale parameters (Model) The network scale parameter is used to identify the scale of the network. According to the network planning of the public security, the Large Network is selected, Model=102. 7.1.3 Network zone identifier (NZI) It identifies the administrative region number of each province, autonomous region, and municipality directly under the central government in the entire network, a total of 6 bits. See Table 6 for NZI code allocation. 7.2 User number and address definition 7.2.1 Air interface user address definition The length of the PDT air interface user address (ID) is 24 bits. There is another 1 bit to indicate the single call or group call address. The user address is divided into two parts in binary representation. The first 9 bits are the network area identification number (NAI). The last 15 bits are the short single call address code (SSI) or short group call address code (SGI), see Table 7. 7.2.3.3 Relationship between the single call address code and the segment single call number 7.2.4 Group call number 7.2.4.1 Short group call address code The short group call address code is 15 bits long, expressed in decimal form as 0~32767, where 0 is a blank number; 1~17000 are group call user numbers, 32767 is a full call number, and other addresses are reserved.

8 Network management

8.1 Network management overview Network management (abbreviated as "NM") can be divided into two types according to the basic network structure. single switching center NM and multi-switching center NM. 8.3 Multi-switching center network management The network management of multi-switching centers is completed by local network management and central network management organizations. 8.4 Basic functions of network management The network management system shall have the following basic functions. 8.5 Hierarchical architecture of network management The PDT network uses a virtual three-level management architecture, see Figure 4.

9 System Interconnection

9.1 Interconnection scope of PDT system PDT system interconnection includes the following parts. 9.2 Interconnection between PDT systems 9.2.1 PDT system network design The PDT system network interconnection design shall be based on the full IP soft switching technology designed in the logical domain, which can reflect the maximum flexibility, compatibility and scalability. 9.2.4 Signaling for interconnection between PDT systems It complies with the pSIP protocol specified in the police digital trunking (PDT) communication system. 9.2.5 Voice transmission protocol for interconnection between PDT systems PDT interconnection voice transmission uses RTP (real-time transport protocol). The voice format carried by RTP is PDT voice coding. 9.3 Interconnection between PDT and MPT 1327 9.4 Interconnection between PDT and other heterogeneous systems The interconnection between PDT and other special systems shall be specified separately as needed. ......
