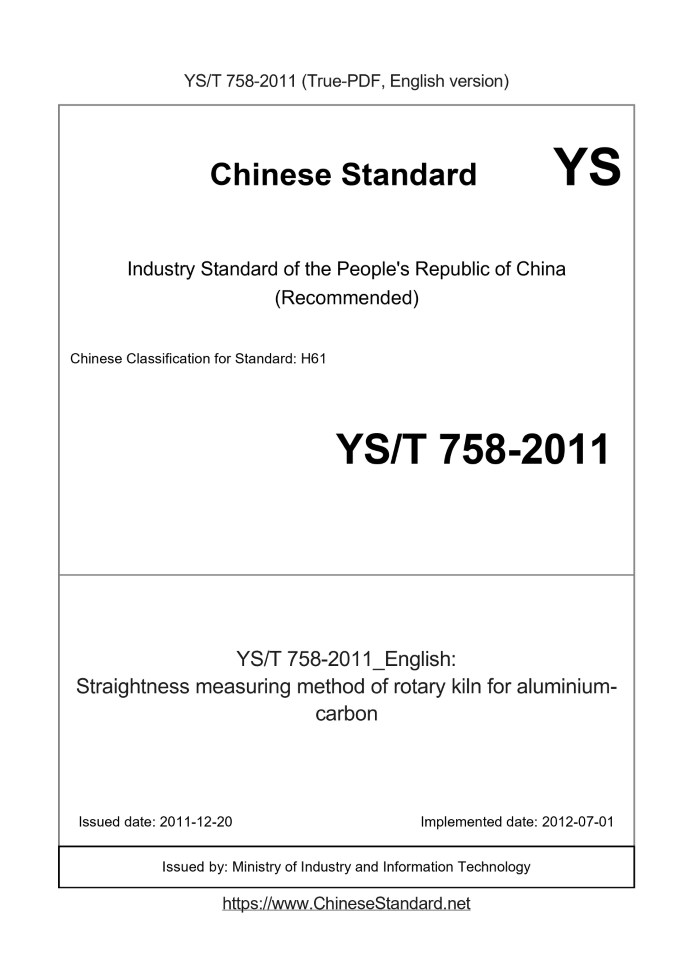

YS/T 758-2011 English PDF

US$259.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email.
YS/T 758-2011: Straightness measuring method of rotary kiln for aluminium-carbon
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
YS/T 758-2011	259	Add to Cart	3 days	Straightness measuring method of rotary kiln for aluminium-carbon	Valid

Similar standards

GB/T 2881   GB/T 1196   YS/T 1004   YS/T 447.1   YS/T 429.1   YS/T 762

Basic data

Standard ID: YS/T 758-2011 (YS/T758-2011)
Description (Translated English): Straightness measuring method of rotary kiln for aluminium-carbon
Sector / Industry: Nonferrous Metallurgy Industry Standard (Recommended)
Classification of Chinese Standard: H61
Classification of International Standard: 77.020
Word Count Estimation: 10,145
Date of Issue: 2011-12-20
Date of Implementation: 2012-07-01
Quoted Standard: GB/T 3161; GB/T 10156; GB/T 11336; GB/T 16455; GB 50026
Regulation (derived from): ?MIIT Announcement 2011 No.43
Issuing agency(ies): Ministry of Industry and Information Technology
Summary: This standard specifies the methods of measurement used rotary kiln daily aluminum production process straightness. This standard applies to aluminum rotary kiln measuring straightness. Kiln diameter �� 2. 2m, length �� 45m, more than two points of support.

YS/T 758-2011: Straightness measuring method of rotary kiln for aluminium-carbon

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Straightness measuring method of rotary kiln for aluminum-carbon ICS 77.020 H61 People's Republic of China Nonferrous Metals Industry Standard Measurement method of linearity of carbon rotary kiln for aluminum 2011-12-20 release 2012-07-01 Implementation Issued by the Ministry of Industry and Information Technology of the People's Republic of China

Foreword

This standard is drafted in accordance with the rules given in GB/T 1.1-2009. This standard is owned by the National Committee for the Standardization of Nonferrous Metals (SAC/TC243). This standard is responsible for drafting units. CLP Investment Ningxia Energy Aluminum Industry Qingtongxia Aluminum Industry Co., Ltd. The main drafters of this standard. Wang Bin, Song Yue, Pan Zhiyuan, Zheng Jianzhong, Li Bing, Chen Zhigang, Wang Dong, Chen Jinghui, Yu Chengbin, Wang Xinping, Feng Yunhua, Ding Xiangdong, Liu Tao, Wang Huairen. Measurement method of linearity of carbon rotary kiln for aluminum

1 Scope

This standard specifies the measurement method of straightness in the daily production of carbon rotary kiln. This standard is applicable to the measurement of the straightness of carbon rotary kiln. Rotary kiln diameter ≥ 2.2m, length ≥ 45m, support points in two groups the above.

2 normative reference documents

The following documents are indispensable for the application of this document. For dated references, only the dated edition applies to this The most recent version of the document, including all modifications, applies to this document. GB/T 3161 optical theodolite GB/T 10156 level GB/T 11336 Straightness error detection GB/T 16455 style and box level Code for engineering survey GB 50026

3 Principle of the method

3.1 vertical straightness measurement principle The use of a level to establish a horizontal datum, read from the ruler of the wheel or the cylinder is the highest point relative to the horizontal reference plane height, And according to the diameter of the wheel and the belt and the cylinder between the top gap, calculate the rotation of the kiln bearing the center of the cylinder in the vertical direction Relative height difference, the vertical straightness of the cylinder axis. 3.2 Horizontal Straightness Measurement Principle The use of the theodolite in the rotary kiln side of the establishment of a kiln and kiln tail wheel center of the center line parallel to the vertical reference plane, measuring wheel The horizontal displacement of the belt or cylinder relative to the vertical datum, calculate the horizontal displacement of the center of the belt or cylinder, and obtain the level of the cylinder axis Straightness.

4 measuring instruments

4.1 level. in line with GB/T 10156 requirements, the accuracy of ± 3mm/km. 4.2 optical theodolite. in line with GB/T 3161 regulations, not less than the national J6-class technical standards. 4.3 scale. accuracy of ± 1mm. 4.4 level (accuracy of 0.02mm /.200mm), shift ruler, steel tape, feeler (accuracy of 0.01mm). 4.5 vernier caliper (accuracy 0.02mm). ......
