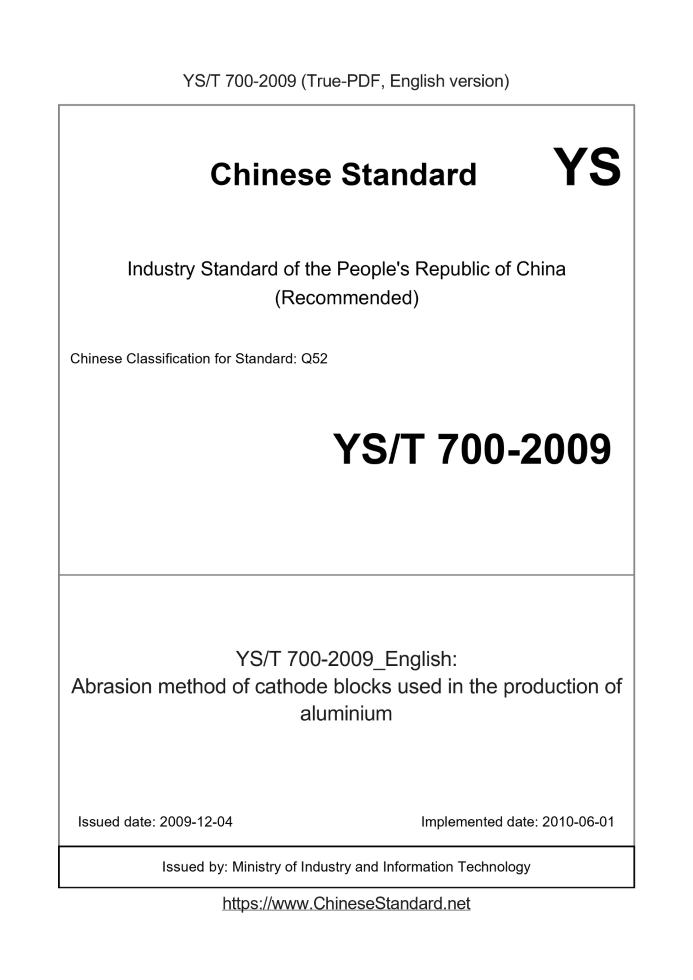

YS/T 700-2009 English PDF

US$169.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email.
YS/T 700-2009: Abrasion method of cathode blocks used in the production of aluminium
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
YS/T 700-2009	169	Add to Cart	3 days	Abrasion method of cathode blocks used in the production of aluminium	Valid

Similar standards

GB/T 8719   YB/T 042   YS/T 575.6   YS/T 587.15   YS/T 699   YS/T 701

Basic data

Standard ID: YS/T 700-2009 (YS/T700-2009)
Description (Translated English): Abrasion method of cathode blocks used in the production of aluminium
Sector / Industry: Nonferrous Metallurgy Industry Standard (Recommended)
Classification of Chinese Standard: Q52
Classification of International Standard: 71.100.10
Word Count Estimation: 6,668
Date of Issue: 2009-12-04
Date of Implementation: 2010-06-01
Quoted Standard: YS/T 62.1; YS/T 62.2
Regulation (derived from): MIIT [2009] No. 66
Issuing agency(ies): Ministry of Industry and Information Technology
Summary: This standard specifies the aluminum cathodes wear test methods. This standard applies to aluminum cathodes wear test. Other aluminum with carbon products can also refer to the use.

YS/T 700-2009: Abrasion method of cathode blocks used in the production of aluminium

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Abrasion method of cathode blocks used in the production of aluminium ICS 71.100.10 Q52 People's Republic of China Nonferrous Metals Industry Standard Aluminum cathode carbon block wear test method Posted 2009-12-04 2010-06-01 implementation Ministry of Industry and Information Technology of the People's Republic of China released

Foreword

This standard by the National Standardization Technical Committee of non-ferrous metals and centralized. This standard by the Aluminum Corporation of China Guizhou Branch, China Nonferrous Metals Industry Institute of Standards Metrology and Quality is responsible for drafting. This standard cable-Development Co., Ltd., Shandong Chenyang Carbon Co., Ltd. participated in the drafting. The main drafters of this standard. Pastoral, Wu Yan, Zeng Ping, the True horse, Liu Rui, Yasuyuki money at Azure. Aluminum cathode carbon block wear test method

1 Scope

This standard specifies the test methods for the wear aluminum cathode blocks. This standard applies to the wear test aluminum cathode blocks. Other aluminum carbon products can also refer to use. Note. The results of this standard may not reflect actual wear values electrolytic cell cathode blocks.

2 Normative references

The following documents contain provisions which, through reference in this standard and become the standard terms. For dated references, subsequent Amendments (not including errata content) or revisions do not apply to this standard, however, encourage the parties to the agreement are based on research Whether the latest versions of these documents. For undated reference documents, the latest versions apply to this standard. YS/T 62.1 carbonaceous materials used in aluminum sampling methods - Part 1 at the bottom of the carbon block YS/T 62.2 carbonaceous materials sampling method with the second portion of the aluminum side carbon block

3 Method summary

Cylindrical sample at a constant pressure generating friction and wear after a certain time, the original sample by measuring the height, the height after friction To measure the cathode blocks wear resistance. 4 Fixtures & Materials 4.1 Wear test equipment (schematic diagram shown in Figure 1) comprising. 4.1.1 Sample holder. contains the samples, can be rotated, the speed can reach 100r/min. 4.1.2 turntable. aluminum material, having a diameter of 300mm, which can be adhered to the sandpaper friction, providing 150r/min speed. 4.1.3 Time controls. control sample test time, accuracy 1s. 4.1.4 pressurizing means. during testing on the sample to provide a constant pressure of 45N. 1 --- turntable; 2 --- adhered to the abrasive disk friction material; 3 --- sample; 4 --- axis. Figure 1 Schematic wear test apparatus 4.2 Friction Materials (self-adhesive sandpaper). P80, sand made of SiC, 300mm; Caliper 4.3. Accuracy 0.01mm.

5 Sampling and sample preparation

5.1 bottom and sides of the carbon block cathode blocks respectively YS/T 62.1 and the provisions of YS T 62.2/sampled. ......
