SJZ11360-2006 English PDFUS$1289.00 · In stock
Delivery: <= 7 days. True-PDF full-copy in English will be manually translated and delivered via email. SJZ11360-2006: Integrated circuit IP core signal integrity specification Status: Valid

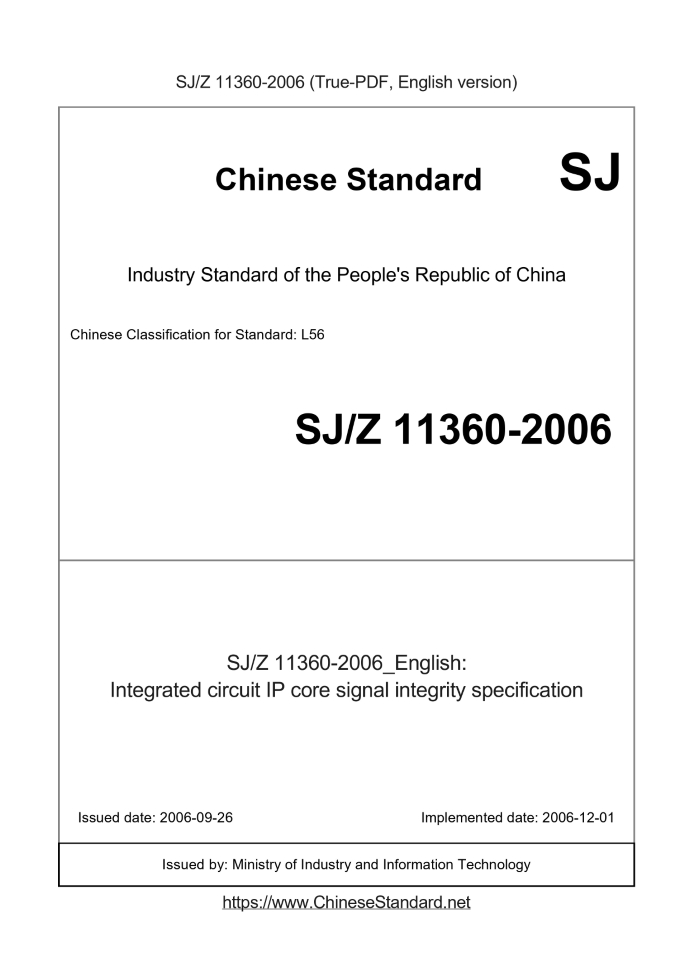

Basic dataStandard ID: SJ/Z 11360-2006 (SJ/Z11360-2006)Description (Translated English): Integrated circuit IP core signal integrity specification Sector / Industry: Electronics Industry Standard Classification of Chinese Standard: L56 Classification of International Standard: 31.200 Word Count Estimation: 46,497 Date of Issue: 2006-09-26 Date of Implementation: 2006-12-01 Quoted Standard: SJ/Z 11354-2006; SJ/Z 11357-2006 Regulation (derived from): Industry Standard Notice 2006 No. 11 (No. 83 overall) Issuing agency(ies): Ministry of Industry and Information Technology Summary: This standard specifies the SoC design digital and analog/mixed-signal IP cores (IntellectualPropertyCore, hereinafter referred to as IP) and signal integrity (SI) problems related deliverables, data formats, and related design criteria and design examples are given. This specification focuses on the SoC design process, IP designers and IP integrators for digital and analog/mixed-signal integrated module requires both communicating SI issues, including interface design. IP in this specification refers to the hard blocks are provided in the form. This specification is limited to the power supply grid, and Crosstalk uniformly doped silicon substrate and the heavily doped bulk silicon substrate, a silicon substrate, an epitaxial layer of substrate coupling. This specification also relates to the power grid, and migration problems associated signal. This specification does not involve noise SI IC packaging problem. This specification focuses on 0. 18��m technology generations, but also related to 0. 07��m and below process may occur in the SI issue. Although SI above question is based on 0. 18��m technology experience, but most of its content can be used to help the IP in the transfer of these processes. However, this specification focuses on meeting the most IP designers and integrators design requirements of the specific process node scope. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of SJZ11360-2006_English be delivered?Answer: Upon your order, we will start to translate SJZ11360-2006_English as soon as possible, and keep you informed of the progress. The lead time is typically 4 ~ 7 working days. The lengthier the document the longer the lead time.Question 2: Can I share the purchased PDF of SJZ11360-2006_English with my colleagues?Answer: Yes. The purchased PDF of SJZ11360-2006_English will be deemed to be sold to your employer/organization who actually pays for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. If you need your currency to be printed on the invoice, please write an email to Sales@ChineseStandard.net. In 2 working-hours, we will create a special link for you to pay in any currencies. Otherwise, follow the normal steps: Add to Cart -- Checkout -- Select your currency to pay. |
