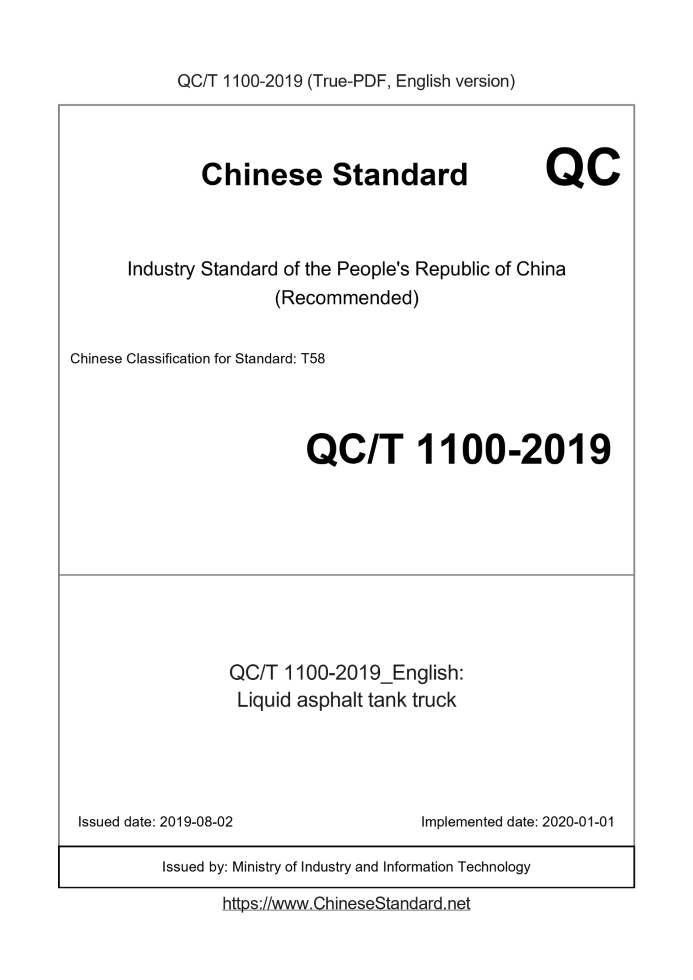

QC/T 1100-2019 English PDFUS$299.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email. QC/T 1100-2019: Liquid asphalt tank truck Status: Valid
Basic dataStandard ID: QC/T 1100-2019 (QC/T1100-2019)Description (Translated English): Liquid asphalt tank truck Sector / Industry: Automobile & Vehicle Industry Standard (Recommended) Classification of Chinese Standard: T58 Word Count Estimation: 15,141 Date of Issue: 2019-08-02 Date of Implementation: 2020-01-01 Regulation (derived from): Natural Resources Department Announcement No. 7 of 2019 Issuing agency(ies): Ministry of Industry and Information Technology QC/T 1100-2019: Liquid asphalt tank truck---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.Liquid asphalt tank truck ICS 43.160 T 58 QC People's Republic of China Automotive Industry Standard Liquid asphalt truck 2019-8-27 released 2020-1-1 implementation Issued by the Ministry of Industry and Information Technology of the People's Republic of China Table of contentsForeword...II 1 Scope...1 2 Normative references...1 3 Terms and definitions...2 4 Technical requirements...2 5 Test method...5 6 Inspection Rules...8 7 Signs, documents, packaging, transportation and storage...9 Appendix A (informative appendix) Test record of liquid asphalt truck...11ForewordThis standard was drafted in accordance with the rules of GB/T 1.1-2009. This standard was proposed and managed by the National Automotive Standardization Technical Committee (SAC/TC 114). The main drafting organizations of this standard. Xi'an Dagang Road Machinery Co., Ltd., Chuzhou Xingyang Automobile Co., Ltd., Wuhu CIMC Ruijiang Automobile Automobile Co., Ltd., Hanyang Special Purpose Vehicle Research Institute, Machinery Industry Special Purpose Vehicle Product Quality Inspection Center. The main drafters of this standard. Sun Jianxi, Du Wenxue, Sun Jialong, Gao Guoguo, Gong Yongjie, Gu Jinxiang, Feng Huijian, Wang Yongbin, Zhang Xin Qiang, Huangfu Jianhong, Ou Yuhong, Wang Meigang, Zhang Xinong. This standard is issued for the first time. Liquid asphalt truck1 ScopeThis standard specifies the terms and definitions, technical requirements, test methods, inspection rules and signs, documents, packaging, transportation and storage of liquid asphalt trucks. This standard applies to liquid asphalt transport vehicles and liquid asphalt transport semi-trailers (hereinafter referred to as asphalt vehicles) modified with the second-class chassis of stereotyped vehicles.2 Normative referencesThe following documents are indispensable for the application of this document. For dated reference documents, only the dated version applies to this document. For undated references, the latest version (including all amendments) applies to this document. GB 1495 Limits and measurement methods of noise outside the vehicle during acceleration GB 1589 External dimensions, axle loads and mass limits of automobiles, trailers and automobile trains GB/T 3766 General rules and safety requirements for hydraulic transmission systems and their components GB 4208 enclosure protection class (IP code) GB 4351.1 Portable Fire Extinguisher Part 1 Performance and Structural Requirements GB/T 4606 The basic dimensions, installation and interchangeable dimensions of No. 50 traction pin for the traction seat of a road vehicle semi-trailer GB/T 4607 The basic dimensions, installation and interchangeable dimensions of No. 90 traction pin for the traction seat of a road vehicle semi-trailer GB 4785 Regulations for the installation of external lighting and light signal devices for automobiles and trailers GB 5226.1 Electrical Safety of Machinery Electrical Equipment of Machinery Part 1.General Technical Conditions GB 7258 Safety technical conditions for motor vehicle operation GB/T 9969 General Rules for the Use of Industrial Products GB 11567 Requirements for side and rear lower protective devices of automobiles and trailers GB/T 12544 Maximum speed test method for automobiles GB 12676 Technical requirements and test methods for braking systems of commercial vehicles and trailers GB/T 14039-2002 Code of pollution grade of solid particles in hydraulic transmission oil GB/T 15088 Road vehicle traction pin strength test GB 15741 Number plate (frame) and its location for automobiles and trailers GB 16735 road vehicle vehicle identification code (VIN) GB/T 18411 road vehicle product label GB 18564.1 Tank Vehicles for Road Transport of Liquid Dangerous Goods Part 1 Metal Atmospheric Tanks GB 19151 Warning triangle for motor vehicles GB.20178 General Rules for Safety Labeling of Earth-moving Machinery GB/T 23336 General technical requirements for semi-trailers GB 25990 Vehicle tail sign board GB/T 26777 Trailer Support Device JB/T 5943 General technical conditions for welding parts of construction machinery JB/T 5945 General technical conditions for assembly of construction machinery JB/T 5946 General technical conditions for coating of construction machinery JT/T 475 semi-trailer axle QC/T 252 Type-setting test procedures for special purpose vehicles3 Terms and definitionsThe following terms and definitions apply to this document. 3.1 Tank volume The volume of water that the tank can hold at room temperature. 3.2 Rated tank volume The asphalt truck is the volume occupied by the asphalt filled in the tank when the rated load quality is reached. 3.3 Filling ratio The ratio of the rated volume of the tank to the total volume of the tank.4 Technical requirements4.1 General 4.1.1 The design and production of asphalt trucks shall comply with the requirements of this standard and relevant national and industry standards, and shall be approved in accordance with prescribed procedures The manufacturing of product drawings and technical documents. 4.1.2 The supporting parts and raw materials used in the asphalt truck shall comply with the relevant national standards or industry standards, and shall have an inspection certificate. 4.1.3 Tank body welding should meet the relevant regulations of GB 18564.1, and all welded parts other than the tank body should comply with the regulations of JB/T 5943. 4.1.4 The components can be assembled after passing the inspection, and the assembly should meet the requirements of JB/T 5945. 4.2 Complete vehicle 4.2.1 The outer dimensions, axle load and quality limits shall meet the requirements of GB 1589. 4.2.2 Operational safety shall comply with the provisions of GB 7258. 4.2.3 The number plate (rack) shall meet the requirements of GB 15741. 4.2.4 The maximum speed of asphalt vehicles should not exceed 80km/h. 4.2.5 The semi-trailer for transporting liquid asphalt should meet the requirements of GB/T 23336, and the supporting device should meet the requirements of GB/T 26777. The height of the lowest point from the ground after being stowed should be no less than 320mm; the traction pin should meet the requirements of GB/T 4606 or GB/T 4607. 4.2.6 The noise near the driver's ears should comply with the regulations of GB 7258; the noise outside the vehicle at acceleration should comply with the regulations of GB 1495. 4.2.7 The braking performance should meet the relevant regulations of GB 12676, GB 7258 and GB/T 23336. 4.2.8 The side protection and rear lower protection device should meet the requirements of GB 11567, the tank body and the pipelines and pipeline accessories on the tank body should not exceed The side and rear lower guards of the vehicle. And the rear end of the tank and the outer end surface of the pipe and the pipe accessories on the rear end of the tank and the rear lower protective device The vertical projection distance of the inner side in the longitudinal direction of the vehicle should be greater than or equal to 150mm. 4.2.9 The tail sign board and its installation position should meet the requirements of GB 25990. 4.2.10 The light color, quantity and installation of external lighting and light signal devices shall meet the requirements of GB 4785. 4.2.11 The reflective markings of the vehicle body shall meet the requirements of GB 7258. 4.2.12 The safety of the electrical system shall meet the requirements of GB 5226.1. 4.2.13 The roll stability angle should meet the requirements of GB 7258. 4.2.14 All rotating and high-temperature parts that pose a danger to drivers and maintenance personnel shall be equipped with protective covers and isolation devices, and shall be in accordance with GB 20178 requires that eye-catching safety signs and hazard graphic signs be set. 4.2.15 It should be equipped with a portable fire extinguisher for vehicles that meets the requirements of GB 4351.1, and it should be placed securely and easily accessible. 4.2.16 A warning triangle for motor vehicles that meets the requirements of GB 19151 shall be provided. 4.3 Appearance 4.3.1 The paint coating shall meet the requirements of JB/T 5946. 4.3.2 Various pipelines and lines should be neatly arranged, fixed and reliable, and should not interfere with and friction with moving parts. 4.3.3 The outer surface of the whole vehicle should be smooth and flat, and there should be no defects such as crushing or scratching. 4.4 Dedicated devices and systems 4.4.1 Tank 4.4.1.1 The maximum filling rate of the tank should not be greater than 95%, and should not be less than 85%; the maximum filling volume of the tank should not be greater than the rated load of the asphalt truck. 4.4.1.2 The thickness of the steel plate used for the cylinder and the head of the tank shall meet the relevant requirements of GB 18564.1; The anti-wave plate and the volume between the anti-wave plate and the adjacent heads should not be greater than 7.5m3; the bottom and top should be able to communicate with each warehouse, and should be convenient for personnel In and out; the thickness of the wave breaker should be consistent with the thickness of the cylinder. 4.4.1.3 Manholes should be provided on the top of the tank. Manholes should be round holes with a nominal diameter greater than or equal to 500mm or elliptical holes 500mm×400mm; Manholes should be closed with a top cover. The top cover should be opened flexibly and closed tightly to prevent rainwater from falling or infiltrating. The top of the tank should be set Road; fixed or foldable guardrails should be provided. The height of the folded guardrails should not be less than 800mm after being raised, and the guardrails should be locked firmly when raised and retracted. 4.4.1.4 A discharge nozzle should be set at the lowest position of the tank tail to ensure that all asphalt in the tank can flow out through this nozzle. 4.4.1.5 There should be escalators for upper and lower tanks on the outside of the tank, and escalators or other devices should be installed at the manholes to facilitate the entry and exit of the tank. 4.4.1.6 Breathing device should be installed on the upper part of the tank, and the breathing device should adopt a tubular structure (referred to as breathing tube). The breathing tube should meet the following requirements. a) Its diameter should not be less than 65mm, and it should be smooth; b) The plane of the breathing tube opening should be no less than 20mm from the top surface of the tank. 4.4.1.7 The asphalt tank should be provided with an insulation layer, and the insulation material should be non-corrosive; the asphalt truck is fully loaded with 130℃ matrix asphalt, and the ambient temperature is 25℃ When parked under the condition of ±5°C and wind speed not greater than 3m/s, the temperature of the pitch in the tank should not drop more than 3°C/h. 4.4.1.8 The lap joints of the outer skin shall be close to each other and flat, and shall be able to prevent rainwater from infiltrating. 4.4.1.9 should be equipped with liquid level display and temperature display devices. A full position alarm should be set, and the full position alarm device should not fail due to asphalt condensation. 4.4.2 Hydraulic system 4.4.2.1 Asphalt trucks that use asphalt pumping systems to discharge materials should use hydraulic systems to drive asphalt pumps. The hydraulic system should meet the requirements of GB/T 3766. 4.4.2.2 The temperature of hydraulic oil in the hydraulic system of the asphalt truck should not exceed 80°C under normal working conditions. 4.4.2.3 The hydraulic system should be equipped with a filter, and the solid particle pollution level of the hydraulic oil should not be greater than the provisions of GB/T 14039-2002 -/17/14. 4.4.2.4 The hydraulic system should have good sealing performance. 4.4.3 Unloading system 4.4.3.1 Basic requirements The unloading system can be installed without an emergency shut-off valve. 4.4.3.2 Gravity discharge The self-flow unloading system is mainly composed of a discharge port pipe, a discharge valve, a discharge pipe interface assembly and a discharge pipe. Each part should meet the following requirements. a) The discharge valve should have a large flow section and low opening resistance. The non-discharge state should be closed tightly and locked reliably; b) The discharge pipe interface assembly should be closed and reliable in any state except for discharge; c) The discharge pipe should be resistant to oil and heat. 4.4.3.3 Pump discharge The asphalt truck should be equipped with an asphalt pumping system for unloading, and it should be able to circulate the asphalt in the tank. The system should meet the following requirements. a) Asphalt pumps should be insulated pumps with large displacement; b) The system should be equipped with an insulated asphalt three-way valve whose diameter should match the asphalt pump. The three-way valve should be closed tightly and locked reliably during transportation; c) The system should have reliable airtightness; d) A heat-conducting oil heating system should be used to heat the asphalt pump, three-way valve and pipelines. The heat-conducting oil heating system should meet the following requirements. 1) It should be able to absorb the waste heat of the flue gas or other heat to heat the heat transfer oil; 2) The system should be able to cycle; 3) The system should be sealed and reliable. 4.4.4 Heating system 4.4.4.1 When the ambient temperature is 25℃±5℃, the wind speed is lower than 3m/s, the vehicle is under the rated load, and the asphalt temperature in the tank is lower than 120℃ The heating system should be able to make the average temperature rise of the asphalt in the tank not less than 10℃ per hour. 4.4.4.2 The heating system shall be equipped with heating pipes, which shall meet the following requirements. a) The heating pipes arranged in the tank should be close to the bottom of the tank, and there should be a certain gap with the bottom of the tank; b) The pipeline should be able to ensure the smooth flow of the flue gas, and a U-shaped structure should be adopted; c) The inlet and outlet of the pipeline should be arranged outside the tank; d) The pipeline should not leak. 4.4.4.3 The heating device should adopt light diesel burner or other heating device that can meet the requirements of 4.4.4.1.The light diesel burner should meet the following requirements. a) The burner should be easy to ignite; b) The power supply for the burner of the liquid asphalt transportation vehicle should adopt its chassis power supply; c) The liquid asphalt transport semi-trailer should be equipped with a generator to provide power for the burner or use the site's 220V external power supply. 4.4.4.4 The chimney should be close to the end of the tank, and it should have strong high temperature and weather resistance; the smoke outlet should be equipped with a rainproof device. 4.4.5 Electrical system 4.4.5.1 The control function of the electrical system shall meet the requirements of GB 5226.1. 4.4.5.2 The protection level of electrical enclosures shall not be lower than the provisions of IP55 in GB 4208. 4.4.5.3 All control devices and components should be sensitive, accurate, safe and reliable.5 Test method5.1 Type test The type test of asphalt truck is carried out in accordance with the provisions of QC/T 252. 5.2 Mandatory inspection The outer dimensions of the asphalt truck, axle load and quality limits, external lighting and light signal devices, side and rear lower protection, noise, body Tests such as optical markings and speed limit devices are carried out in accordance with relevant mandatory standards. 5.3 Special device and system test 5.3.1 Tank filling rate 5.3.1.1 Test conditions. a) The fuel and hydraulic oil of the sample car should be filled up as required, and the tools and accessories should be complete; b) The number of occupants in the cab is the same as the number of seats. 5.3.1.2 Test method. a) The sample car is empty, stop the engine on the weighing instrument and turn off the engine, the transmission is in neutral, and the sample car is called the empty mass M0; b) Fill the asphalt tank with water, and weigh the vehicle mass My when the tank is full; c) The prototype car is stopped on the weighing instrument according to the state b), the asphalt tank is drained outwards, and the weighing instrument is observed to reach the total mass (full vehicle mass) Stop discharging water at time and record the total mass M. 5.3.1.3 Record the test results in Table A.1. 5.3.2 Tank insulation performance 5.3.2.1 The test conditions are as follows. a) The ambient temperature is 25℃±5℃; the wind speed is not more than 3m/s; b) The vehicle is parked on the test site in a static state; c) The asphalt tank is filled with base asphalt at a temperature of 130℃ according to the rated capacity; d) The heating device does not work; e) The asphalt pump is in a stopped state. 5.3.2.2 Test method. a) Asphalt temperature is measured at two points, measuring point A is located.200 mm below the asphalt liquid level; measuring point B is located between the heating pipes (with the pipeline The distance should not be less than.200mm), 300 mm above the lowest point of the tank. As shown in Figure 1. Figure 1 Schematic diagram of temperature measurement point layout b) Test the initial temperature at the beginning of the timing, and then measure the temperature every 30 minutes, and record the test results in Table A.2. 5.3.3 Pumping and unloading system sealing performance test 5.3.3.1 Test conditions. The ambient temperature is not lower than 5℃. 5.3.3.2 Test method. a) Fix the connecting flanges and blind pads at the beginning and end of the system firmly to form a closed system; b) Connect an air compressor or high-pressure air source to pressurize the system, and keep the system pressure constant when the air pressure reaches 2 times the working pressure of the system; c) Apply soapy water to the system components and pipe connections, and observe as you apply them. If there is no air bubbles, it means no leakage. 5.3.4 Heating performance test of heating system 5.3.4.1 The test conditions are as follows. a) The fuel tank is filled with fuel, and the continuous working time of the burner is not less than 4h; b) The ambient temperature is 25℃±5℃, and the wind speed is not more than 3m/s; c) The vehicle is at a standstill; d) The asphalt tank is filled with base asphalt according to the rated volume, and the asphalt temperature should not be lower than 110°C. 5.3.4.2 Test method. a) The measuring point layout is the same as 5.3.2.2 a); b) Ignite the burner according to the procedures and methods specified in the instruction manual; c) Start the test 1h after the combustion is normal, and then start the asphalt pump for internal circulation; d) Test the starting temperature at the beginning of the timing, and then measure the temperature every 1h; e) When the asphalt temperature rises to 140℃, stop the test. 5.3.4.3 Record the test results in Table A.3. 5.3.5 Hydraulic system test 5.3.5.1 Hydraulic oil temperature 5.3.5.1.1 The test conditions are as follows. a) Weather. no rain, wind speed is not more than 3m/s; b) The prototype is empty. 5.3.5.1.2 Test method. a) Set a thermometer in the hydraulic oil tank; b) Start measuring the h......Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of QC/T 1100-2019_English be delivered?Answer: Upon your order, we will start to translate QC/T 1100-2019_English as soon as possible, and keep you informed of the progress. The lead time is typically 1 ~ 3 working days. The lengthier the document the longer the lead time.Question 2: Can I share the purchased PDF of QC/T 1100-2019_English with my colleagues?Answer: Yes. The purchased PDF of QC/T 1100-2019_English will be deemed to be sold to your employer/organization who actually pays for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. If you need your currency to be printed on the invoice, please write an email to Sales@ChineseStandard.net. In 2 working-hours, we will create a special link for you to pay in any currencies. Otherwise, follow the normal steps: Add to Cart -- Checkout -- Select your currency to pay. |
