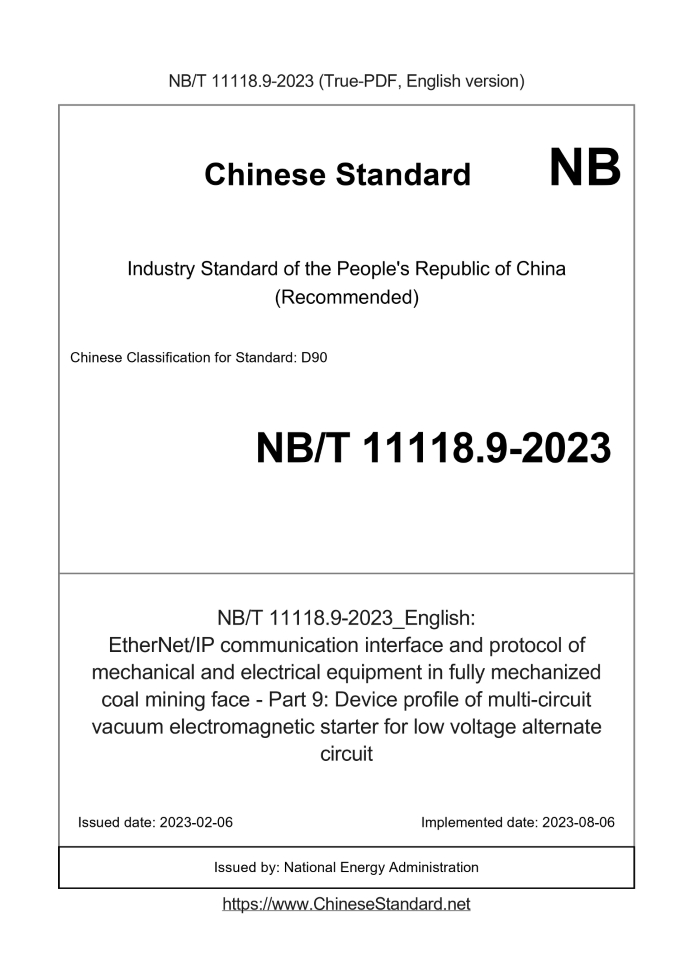

NB/T 11118.9-2023: EtherNet/IP communication interface and protocol of mechanical and electrical equipment in fully mechanized coal mining face - Part 9: Device profile of multi-circuit vacuum electromagnetic starter for low voltage alternate circuit
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
NB/T 11118.9-2023	439	Add to Cart	4 days	EtherNet/IP communication interface and protocol of mechanical and electrical equipment in fully mechanized coal mining face - Part 9: Device profile of multi-circuit vacuum electromagnetic starter for low voltage alternate circuit	Valid

Similar standards

GB/T 37771 GB/T 15335 JB/T 9023.2 NB/T 11118.11 NB/T 11118.1 NB/T 11118.10

Basic data

Standard ID: NB/T 11118.9-2023 (NB/T11118.9-2023)
Description (Translated English): EtherNet/IP communication interface and protocol of mechanical and electrical equipment in fully mechanized coal mining face - Part 9: Device profile of multi-circuit vacuum electromagnetic starter for low voltage alternate circuit
Sector / Industry: Energy Industry Standard (Recommended)
Classification of Chinese Standard: D90
Classification of International Standard: 73.100.01
Word Count Estimation: 21,239
Date of Issue: 2023-02-06
Date of Implementation: 2023-08-06
Issuing agency(ies): National Energy Administration

NB/T 11118.9-2023: EtherNet/IP communication interface and protocol of mechanical and electrical equipment in fully mechanized coal mining face - Part 9: Device profile of multi-circuit vacuum electromagnetic starter for low voltage alternate circuit

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
ICS 73.100.01 CCSD90 Energy Industry Standards of the People's Republic of China Coal mine fully mechanized mining face electromechanical equipment EtherNet/IP Communication interfaces and protocols Part 9.Multi-loop Low Voltage AC Vacuum Solenoid Starter Equipment Data Sheet Published on 2023-02-06 2023-08-06 Implementation Released by the National Energy Administration

Preface III Introduction VI 1 Scope 1 2 Normative reference documents 1 3 Terms and Definitions 1 4 Equipment regulations 1 4.1 Device type number 1 4.2 Device Object Model 1 4.3 Power supply loop object example 2 4.4 Switching device object instance 3 4.5 Loop operation statistics object example 3 4.6 Relay protection object example 4 4.7 Query record object instance 4 4.8 I/O combination object example 5 4.9 Device data format 5 4.10 Device configuration 14 4.11 Query record example 14 Reference 16

Foreword

This document complies with the provisions of GB/T 1.1-2020 "Standardization Work Guidelines Part 1.Structure and Drafting Rules of Standardization Documents" Drafting. This document is Part 9 of NB/T 11118 "EtherNet/IP Communication Interface and Protocol for Mechanical and Electrical Equipment in Coal Mine Mining Faces". NB/T 11118 has published the following parts. ---Part 1.General provisions; ---Part 2.Extended Object Library; ---Part 3.Coal shearer equipment data sheet; ---Part 4.Hydraulic support equipment data sheet; ---Part 5.Liquid supply system equipment data sheet; ---Part 6.Scraper conveyor, transfer machine and crusher equipment data sheet; ---Part 7.Mobile substation equipment data sheet; ---Part 8.Low-voltage AC vacuum feed switchgear data sheet; ---Part 9.Multi-circuit low-voltage AC vacuum electromagnetic starter equipment data sheet; ---Part 10.Low-voltage AC vacuum electromagnetic starter equipment data sheet; ---Part 11.Lighting signal comprehensive protection device equipment data sheet. Please note that some content in this document may be subject to patents. The publisher of this document assumes no responsibility for identifying patents. This document is proposed by the China Coal Industry Association. This document is under the jurisdiction of the Standardization Expert Group of China Coal Industry Association. This document was drafted by. Guoneng Shendong Coal Group Co., Ltd., Beijing Tianma Intelligent Control Technology Co., Ltd., China Coal Engineering Industry Association Productivity Center. The main drafters of this document. Wen Liang, Bai Mingliang, Li Sen, He Haitao, Zhao Zailan, Zeng Xiaoping, Su Fa, Wang Kai, Ji Liuting, Yao Huijun, Wang Bo, Ai Jingshi, Yuan Xiaotao, Wang Zhanfei, Gao Tianhui.

Introduction

NB/T 11118 "EtherNet/IP Communication Interface and Protocol for Mechanical and Electrical Equipment of Coal Mine Fully Mechanized Mining Face" establishes the fully mechanized coal mine working face machine Technical specifications for electrical equipment using EtherNet/IP Ethernet communication, which can be regarded as a reference to GB/Z 26157 (all parts) "Measurement and Control Digital Fieldbus type 2 for data communication industrial control systems. Extensions of ControlNet and EtherNet/IP specifications, mainly reflected in. Logarithmic According to the provisions of the link layer wireless interface, the object library and device profile are expanded, and the data types are expanded. NB/T 11118 by Composed of eleven parts. ---Part 1.General principles. The purpose is to determine the physical layer and data link of EtherNet/IP communication for electromechanical equipment in fully mechanized coal mining working faces. The road layer, network layer, transport layer, presentation layer, and application layer stipulate the security requirements and data types of the equipment. ---Part 2.Extending the object library. The purpose is to define an object model library suitable for electromechanical equipment in coal mine fully mechanized mining faces. ---Part 3.Shearer equipment data sheet. The purpose is to determine the equipment object model composition, object interface and access of the shearer specification. ---Part 4.Hydraulic support equipment data sheet. The purpose is to determine the equipment object model composition, object interface and access of the hydraulic support. Ask about specifications. ---Part 5.Liquid supply system equipment data sheet. The purpose is to determine the equipment object model composition, object interface and access of the liquid supply system. Ask about specifications. ---Part 6.Scraper conveyor, transfer machine and crusher equipment data sheet. The purpose is to determine the scraper conveyor and transfer machine and The equipment object model composition, object interface and access specification of the crusher. ---Part 7.Mobile substation equipment data sheet. The purpose is to determine the equipment object model composition and object interface of the mobile substation. and access specifications. ---Part 8.Low-voltage AC vacuum feed switchgear data sheet. The purpose is to determine the equipment for low voltage AC vacuum feed switches Object model composition, object interfaces and access specifications. ---Part 9.Multi-circuit low-voltage AC vacuum electromagnetic starter equipment data sheet. The purpose is to determine the multi-circuit low-voltage AC vacuum The device object model composition, object interface and access specification of the electromagnetic starter. ---Part 10.Low-voltage AC vacuum electromagnetic starter equipment data sheet. The purpose is to determine the performance of low voltage AC vacuum electromagnetic starter Device object model composition, object interface and access specification. ---Part 11.Lighting signal comprehensive protection device equipment data sheet. The purpose is to determine the equipment for comprehensive protection devices for lighting signals Object model composition, object interfaces and access specifications. Coal mine fully mechanized mining face electromechanical equipment EtherNet/IP Communication interfaces and protocols Part 9.Multi-loop Low Voltage AC Vacuum Solenoid Starter Equipment Data Sheet

1 Scope

This document specifies the equipment data sheet for multi-circuit low-voltage AC vacuum electromagnetic starters, describing the standard objects and behavior of the equipment. This document applies to multi-circuit low-voltage AC vacuum electromagnetic starters running on an EtherNet/IP network.

2 Normative reference documents

The contents of the following documents constitute essential provisions of this document through normative references in the text. Among them, the dated quotations For undated referenced documents, only the version corresponding to that date applies to this document; for undated referenced documents, the latest version (including all amendments) applies to this document. GB/Z 26157.6 Fieldbus type 2 for measurement and control of digital data communication industrial control systems. ControlNet and EtherNet/IP Specification Part 6.Object Model GB/Z 26157.7 Fieldbus type 2 for measurement and control of digital data communication industrial control systems. ControlNet and EtherNet/IP Specification Part 7.Device Profiles

3 Terms and definitions

There are no terms or definitions to be defined in this document.

4 Equipment regulations

4.1 Device type number Device type. 0x6C. 4.2 Device Object Model The device object model of the multi-circuit low-voltage AC vacuum electromagnetic starter is shown in Table 1.Table 1 describes the circuit low-voltage AC vacuum electromagnetic starter. The device has 14 power incoming circuits and 14 outgoing working circuits. The actual multi-circuit low-voltage AC vacuum electromagnetic starter may be There are 3 to 14 incoming circuits and 6 to 14 outgoing working circuits. Table 1 Multi-circuit low-voltage AC vacuum electromagnetic starter equipment object model Class code (hex) Number of required/optional instances of the object class - The number of necessary instances of CIP general necessary objects complies with the requirements of GB/Z 26157.6 04 I/O combination object required 7 ......
